Watertight Enclosure Clamps - 100 mm (4")

Blue Robotics

Watertight Enclosure Clamps - 100 mm (4")

£54.99

The Enclosure Clamps are available for all diameters of Watertight Enclosure for easy mounting on a vehicle. They can be attached to each other to create unique enclosure configurations.

£54.99

Product Description

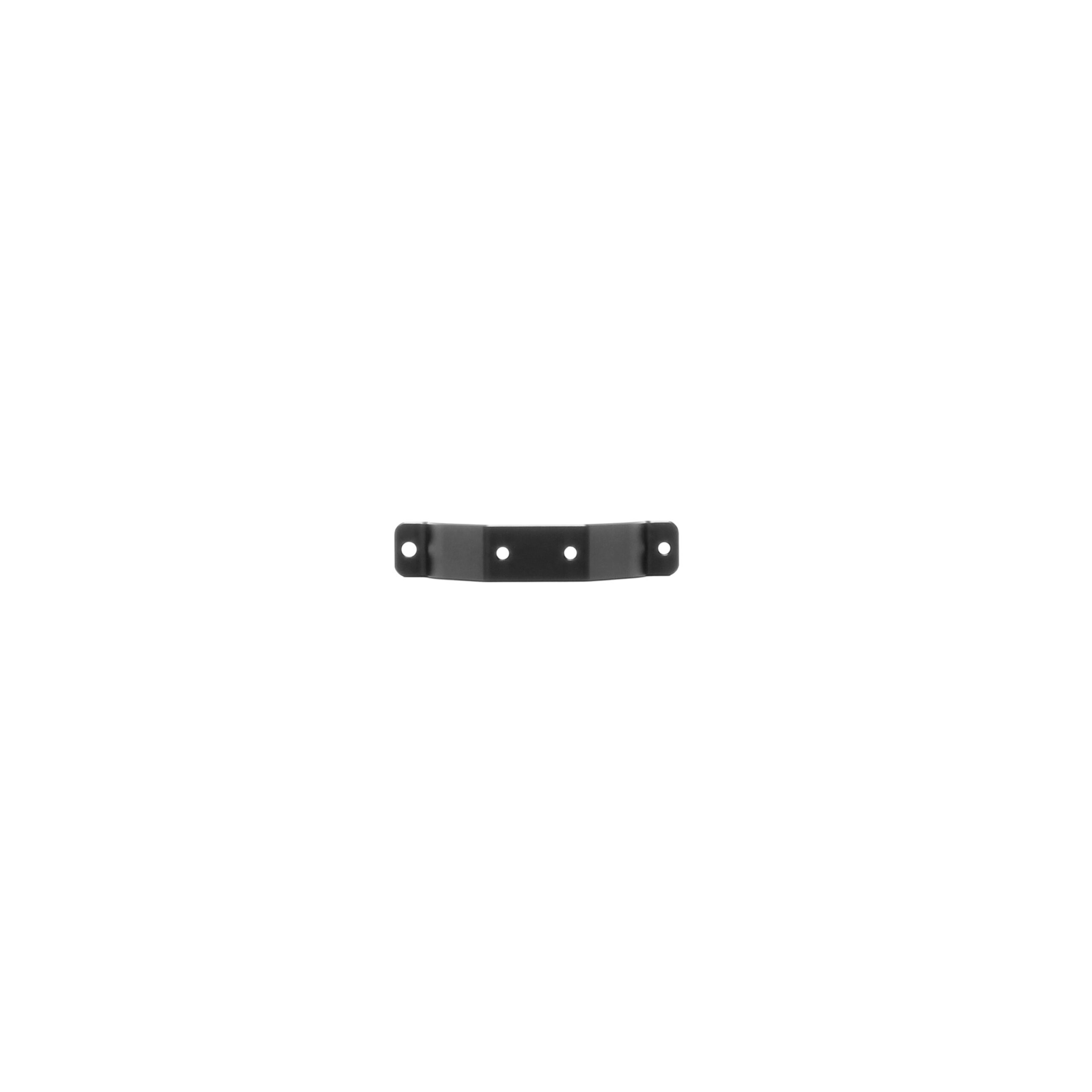

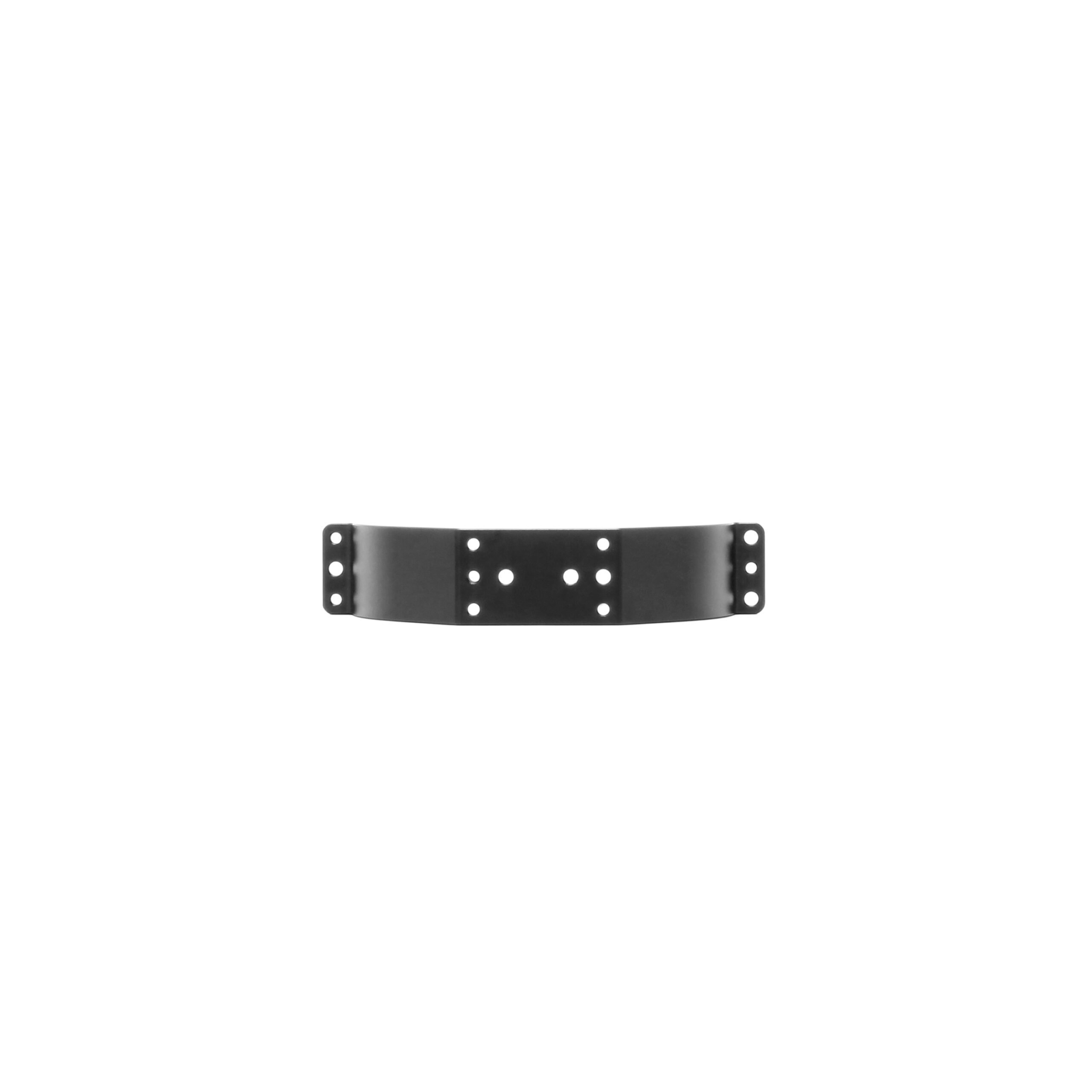

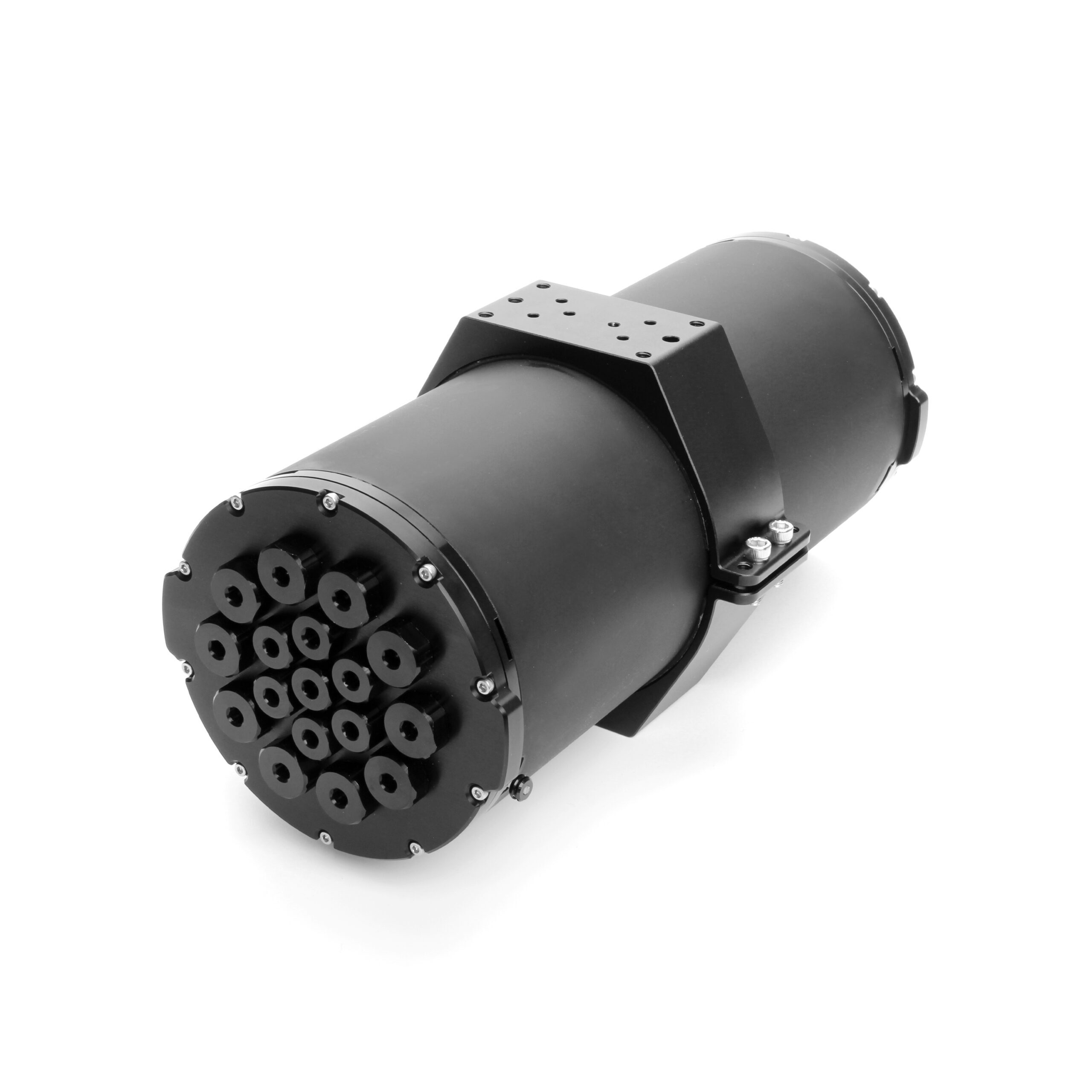

These anodized aluminum clamps for cylindrical Watertight Enclosures provide a simple and easy mounting solution. The threaded mounting holes allow the watertight enclosure to be mounted flush to the structure of your vehicle or on a Payload Skid for the BlueROV2.

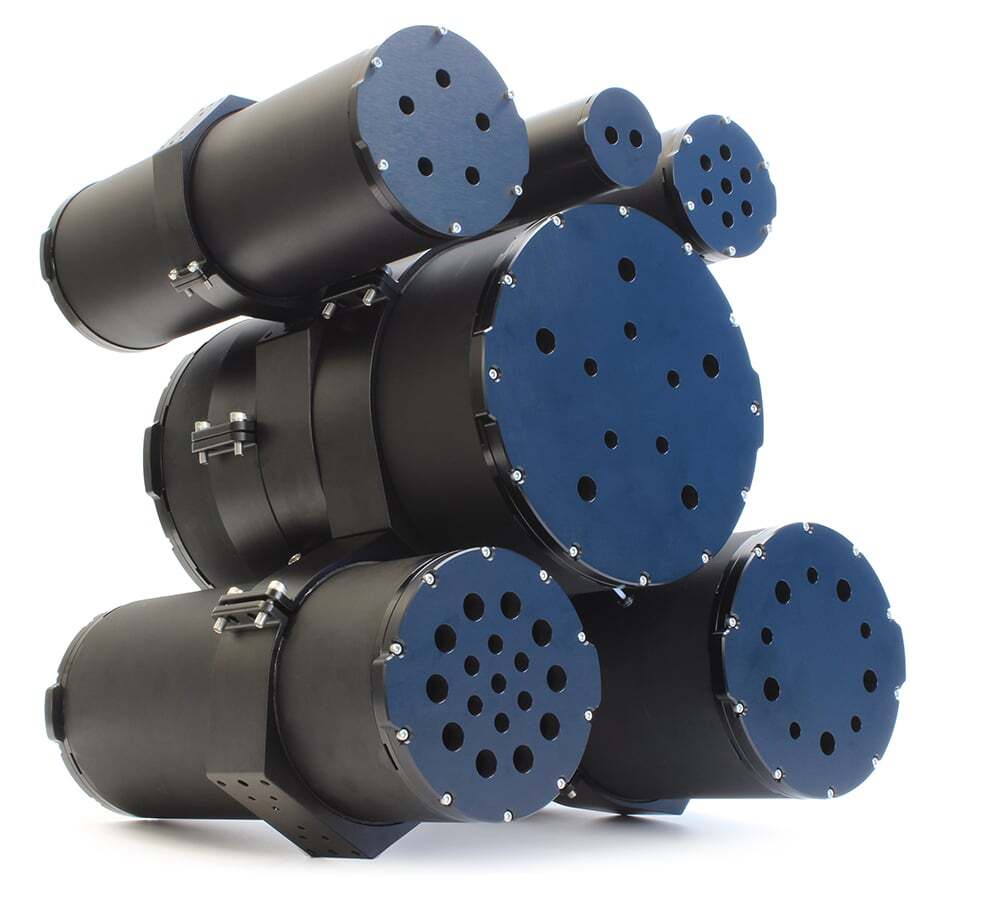

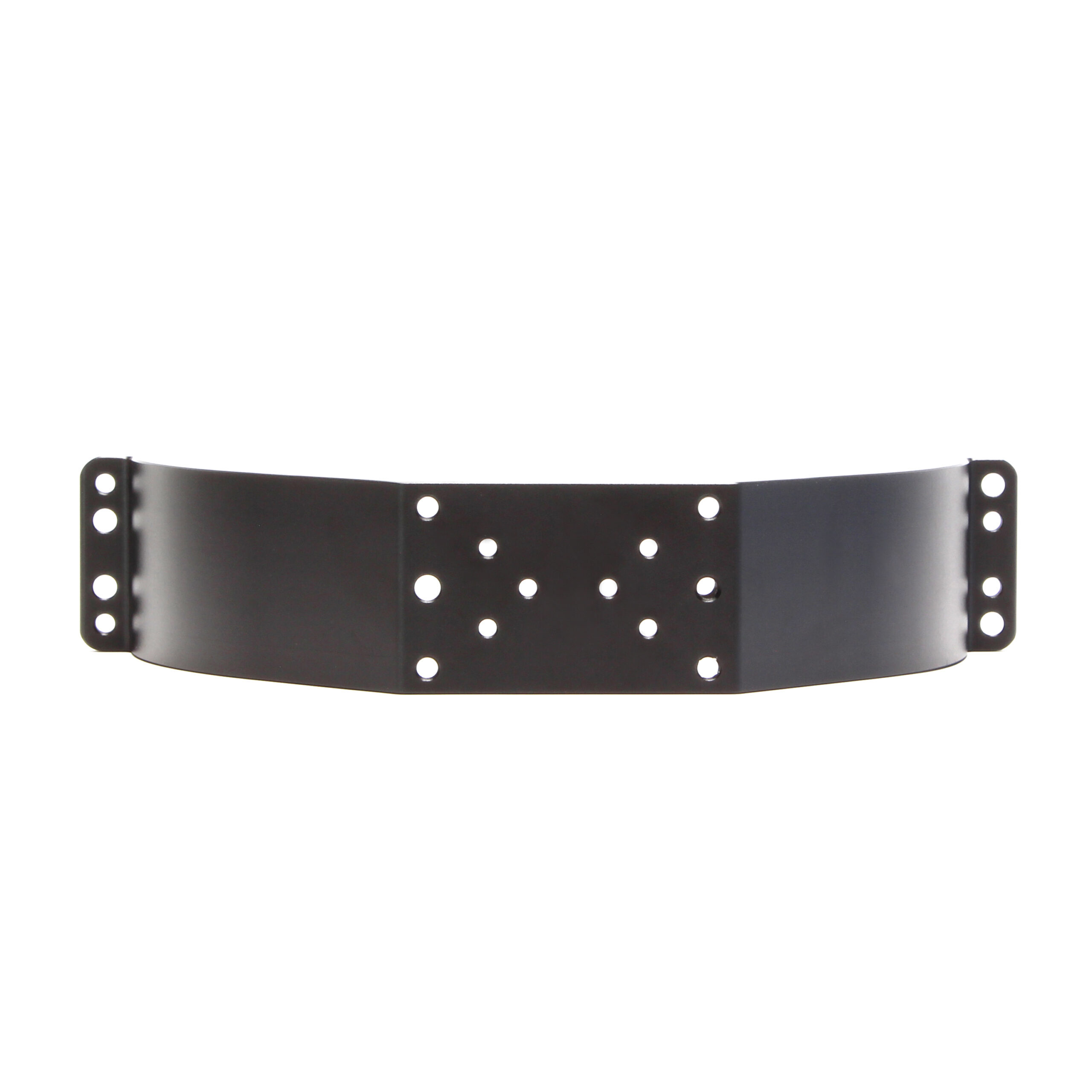

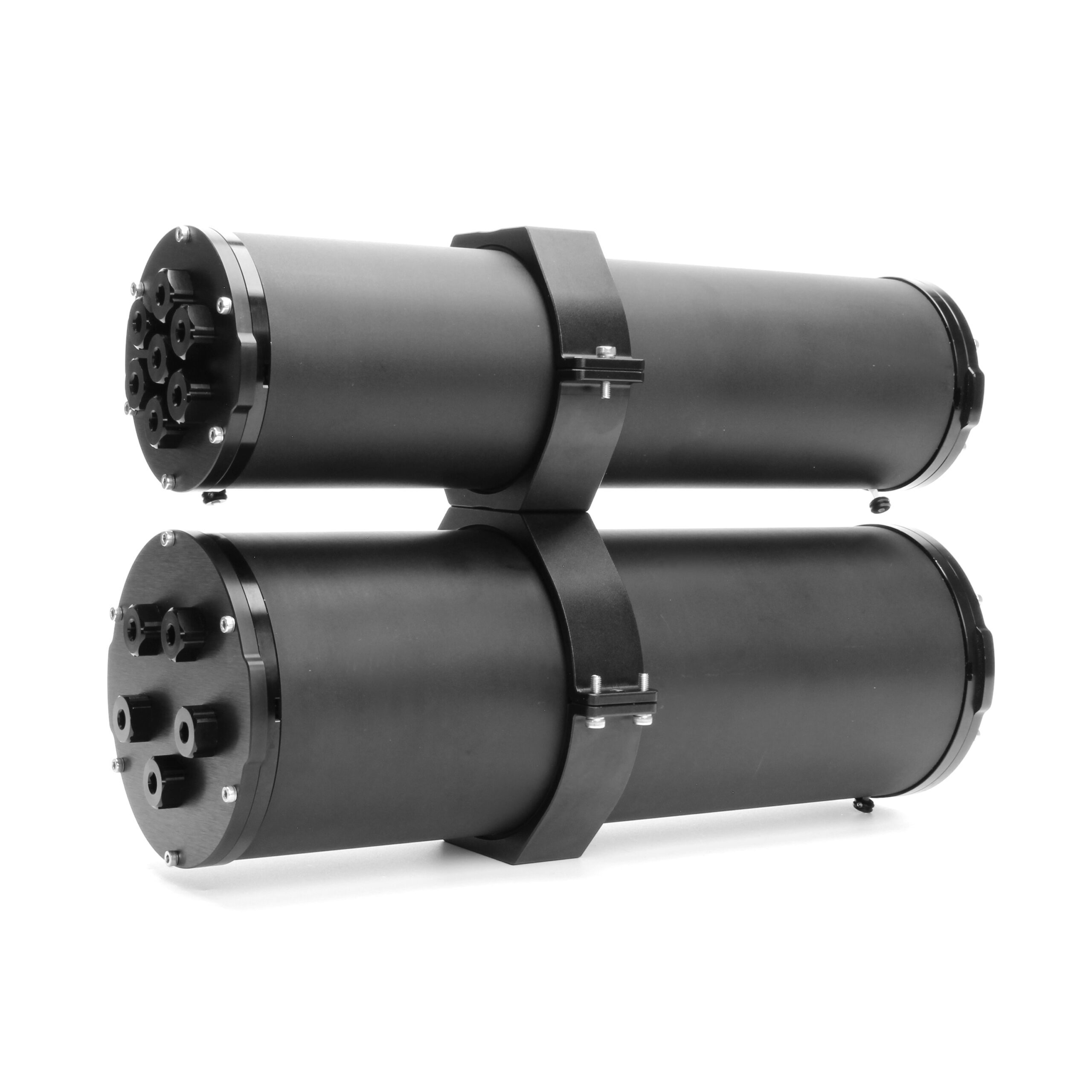

The unique mounting hole pattern allows any clamp to attach to any other clamp, opening up all sorts of possibilities for custom enclosure configurations.

Technical Specifications

Series Diameter	Materials	Length (A)	Height (B)	Length (C)	Radius (D)	Width (E)	Clamping Screw Holes (F)	Mounting Screw Holes (G)	Weight ¹	Part Number
50 mm (2")	Aluminum 6061-T6, type III anodized Buna-N 50A Stainles steel 316	87.2 mm	35.9 mm	27 mm	30.85 mm	17.0 mm	M4x0.7	2x M4x0.7	54 g	BR-102710-002
75 mm (3")		119.4 mm	50.0 mm	47 mm	46.05 mm	30.0 mm		4x M4x0.7	161 g	BR-102710-003
100 mm (4")		144.9 mm	62.8 mm	47 mm	58.75 mm	30.0 mm		4x M4x0.7	192 g	BR-102710-004
130 mm (5")		177.8 mm	78.1 mm	80 mm	71.35 mm	53.0 mm	M6x1.0	4x M6x1.0	599 g	BR-102710-005
150 mm (6")		203.1 mm	90.6 mm	80 mm	83.95 mm	53.0 mm			645 g	BR-102710-006
200 mm (8")		255.6 mm	116.1 mm	80 mm	109.1 mm	53.0 mm			822 g	BR-102710-008
¹ In air weight of two clamps, rubber strips, and clamping hardware.
