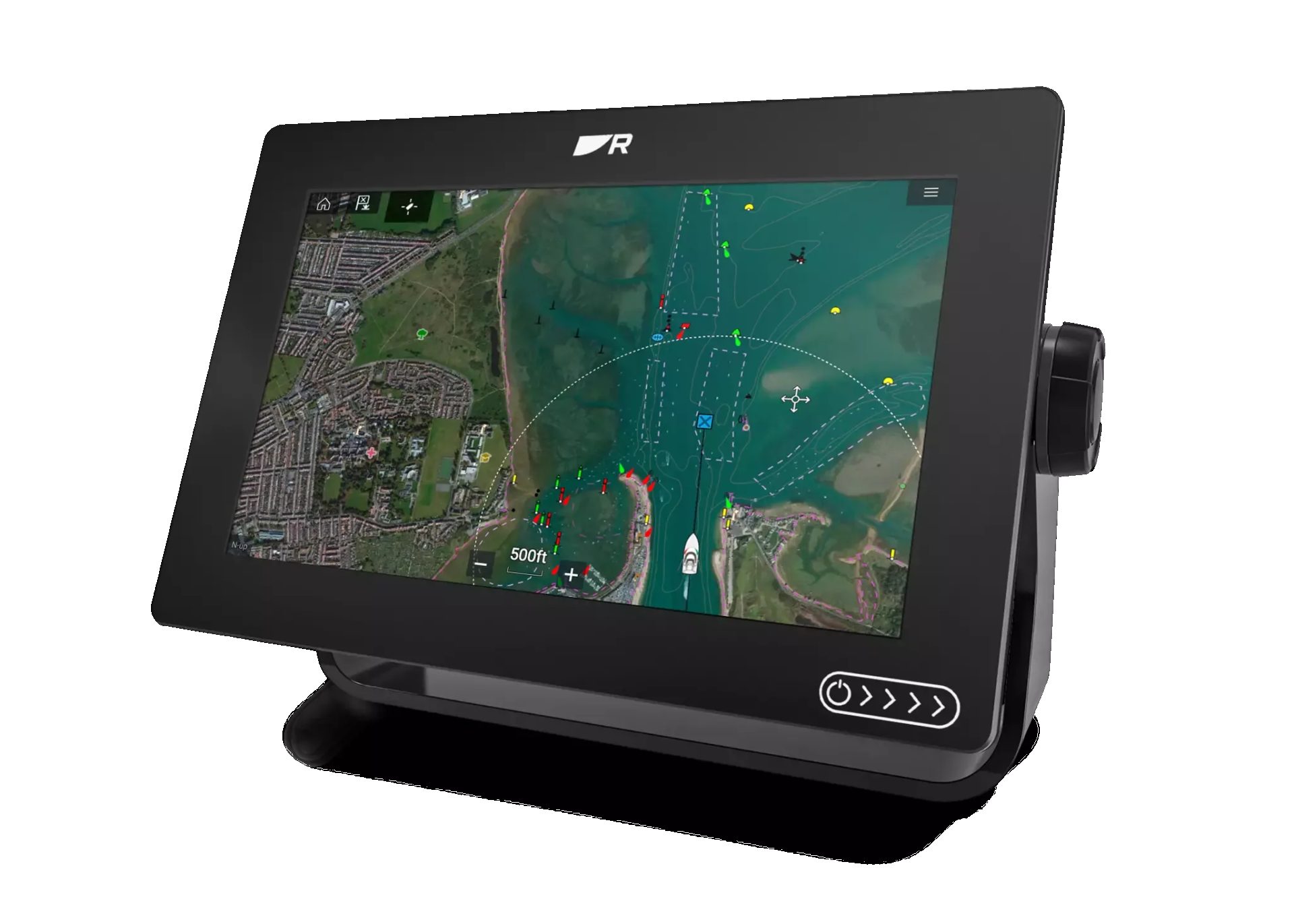

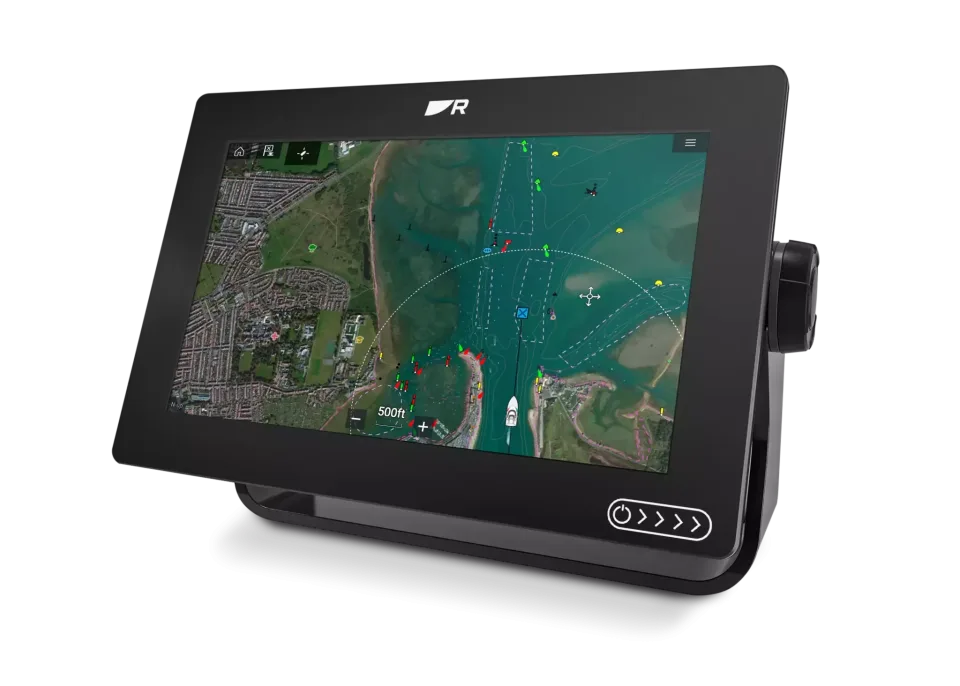

AXIOM+ 9 - 9" MFD,
SKU: E70636
£1,395.00
inc. VAT
AXIOM+ 9, Multi-function 9" Display, Charts not included
£1,395.00
inc. VAT
Product Description
All-in-One Chartplotter, Plus More
Axiom®+ is a new generation of Axiom chartplotters upgraded with all-weather higher resolution displays that are 25 percent brighter than the previous generation. Axiom+ displays are equipped with a powerful quad-core processor for industry-leading speed and responsiveness.
Seamlessly redraw charts and expand Axiom+ with solid state radar, and FLIR thermal cameras or add a marine camera and navigate with ClearCruise Augmented Reality. Axiom+ features the renowned LightHouse operating system, so you can easily navigate and expand your system.
Performance Tuned
Fast and fluid chart redraw of LightHouse, Navionics and C-MAP electronics charts.
Powerful quad-core processor, plus increased onboard storage for personal data and apps.
Smart and intuitive LightHouse OS makes navigating easy.
Ready to Expand - Network with multiple displays, radars, engines, marine cameras, and more.
Maximum Visibility
Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color.
Improved viewing with new LightHouse color themes, including Day, Dusk and Night mode.
25 percent brighter (up to 1,800 nits)
HydroToughTM
Axiom+ features HydroTough nano-coated, impact-resistant screens that dispels water, oil, and smudges.
All-weather HydroTough technology delivers improved color and contrast and accurate touch controls - even when wet.
Make Smarter Navigation Decisions
Add an AIS (automatic identification receiver) and safely navigate busy waterways with AIS target overlays
Upgrade to ClearCruise Augmented Reality and visualize AIS targets, navigation aids, and waypoints in high-definition video.
Avoid obstacles with optional Quantum and Cyclone radars and Doppler target tracking.
Technical Specifications
| ODEL | Axiom+ 7. | Axiom+ 9 | Axiom+ 12 |
| Display Size | 7.0 inch High Density IPS | 9.0 inch High Density IPS | 12.1 inch High Density IPS |
| Display Resolution | 1024 x 600 (WSVGA) | 1280 x 720 (WXGA) | 1280 x 800 (WXGA) |
| Display Type | Multitouch with HydroTough™ rugged hydrophobic coating | ||
| Brightness | 1,500 nits | 1,500 nits | 1,800 nits |
| Viewing Angle | 85° Top, Bottom, Left, Right | 85° Top, Bottom, Left, Right | 88° Top, Bottom, Left, Right |
| Dimensions W x H x D | 210 x 142 x 77mm 7.92 x 5.24 x 3.0in (Excluding trunnion and cables) | 244 x 158 x 77mm 9.65 x 6.22 x 3.0in (Excluding trunnion and cables) | 314 x 217 x 77mm 12.36 x 8.54 x 3.0in (Excluding trunnion and cables) |
| Weight | 3 lbs | 5 lbs | 6.5 lbs |
| Mounting Options | Surface, Flush, Trunnion, (Front installation bracket available) | ||
| Waterproof Rating | IPX6 / IPX7 | ||
| Operating Temperature Range | -25°C to +55°C (-13°F to +131°F) | ||
| Storage Temperature Range | -30°C to +70°C (-22°F to +158°F) | ||
| Voltage | 12V DC (8V to 16V DC) | ||
| Power Consumption (Full brightness) | 7.34 Watts. RV Sonar version 9.84 Watts | 8.95 Watts. RV Sonar version 11.98 Watts | 15.48 Watts. RV Sonar version 19.96 Watts |
| GNSS / GPS | Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required | ||
| Sonar Type (Built-in) | RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D | ||
| Sonar Connections | 25pin RealVision™ type connector | ||
| Sonar Depth | High CHIRP Sonar = 900 feet (274m) | DownVision™ = 600 feet (183m) | SideVision™ = 300 feet (91m) | RealVision™ 3D = 300 feet (91m) | ||
| External Sonar Option | Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet | ||
| Radar | Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars | ||
| AIS | Yes - NMEA2000 compatible | ||
| Autopilot Control | Yes - Evolution Autopilot | ||
| Thermal Night Vision | Yes FLIR AX8, M232, M300 Series, M400, M500 | ||
| Video / Camera | Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras) | ||
| Weather | GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM - N. America Only | ||
| Audio | NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio | ||
| Digital Switching | Yes - Empirbus & C-Zone compatible | ||
| Remote Control | Yes Optional RMK-10 (A80438) | ||
| Ethernet | 1 x 10/100 Mbit/s Network (RayNet) | ||
| NMEA0183 | No | ||
| NMEA2000 | NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter | ||
| SeaTalkNG | Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box) | ||
| USB | 1 x USB microAB | ||
| Wi-Fi | WiFi - 802.11 a/b/g/n | ||
| BlueTooth | Bluetooth v4.0 | ||
| Cartography | Lighthouse Charts, Navionics, and C-MAP compatible | ||
| Waypoint/Routes/Tracks (Wpts/Rts/Trk) | 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts | ||
| Internal Memory | 16 GB Solid State | ||
| External Memory | 1x MicroSD Card Slot | ||
| Languages | 24 | ||
| Conformances | NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210 | ||
| Languages | 24 | ||
| Conformances | NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210 | ||
