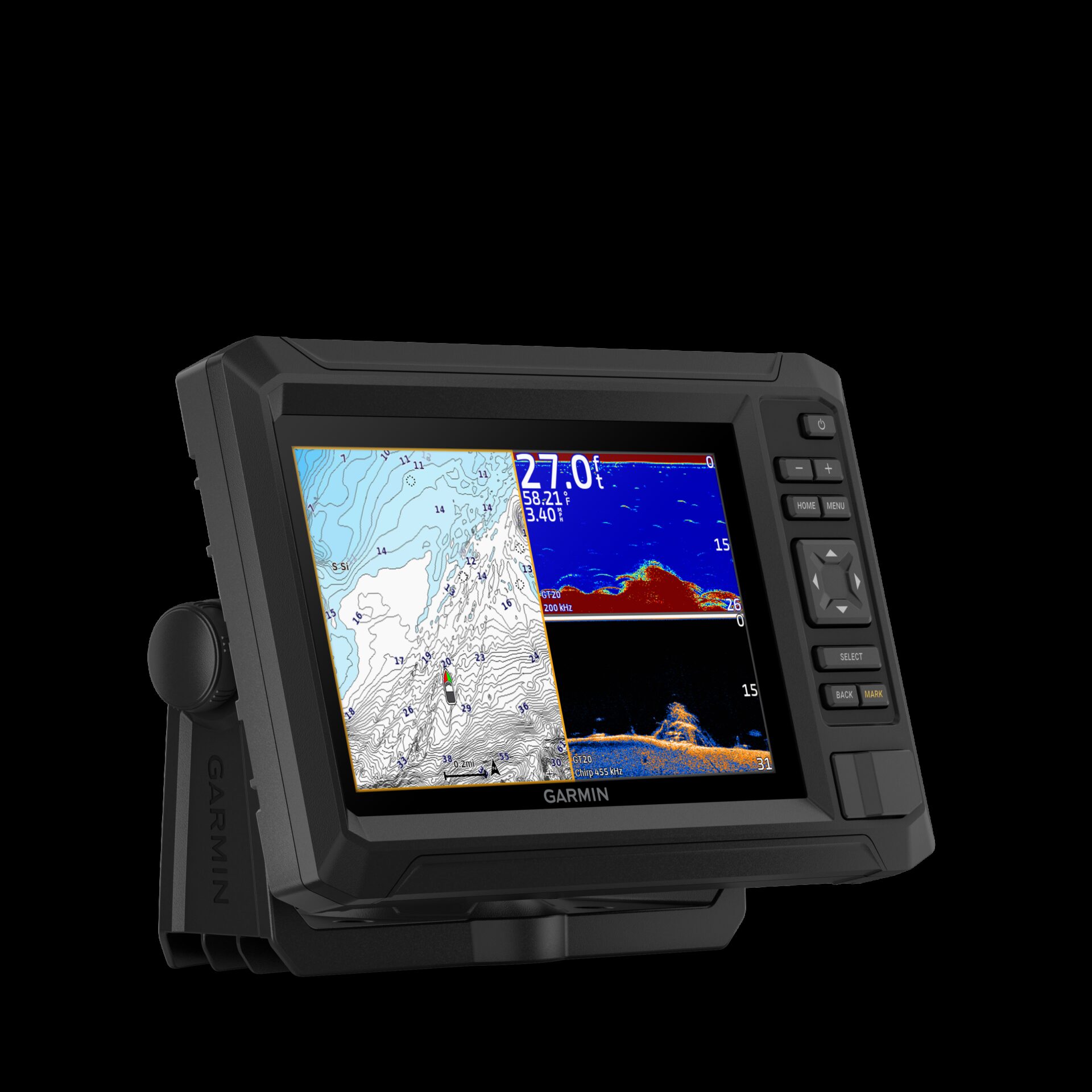

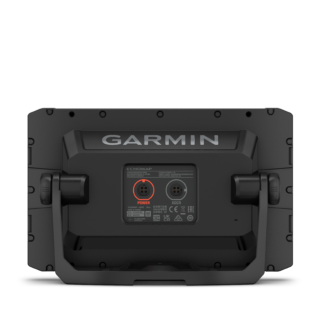

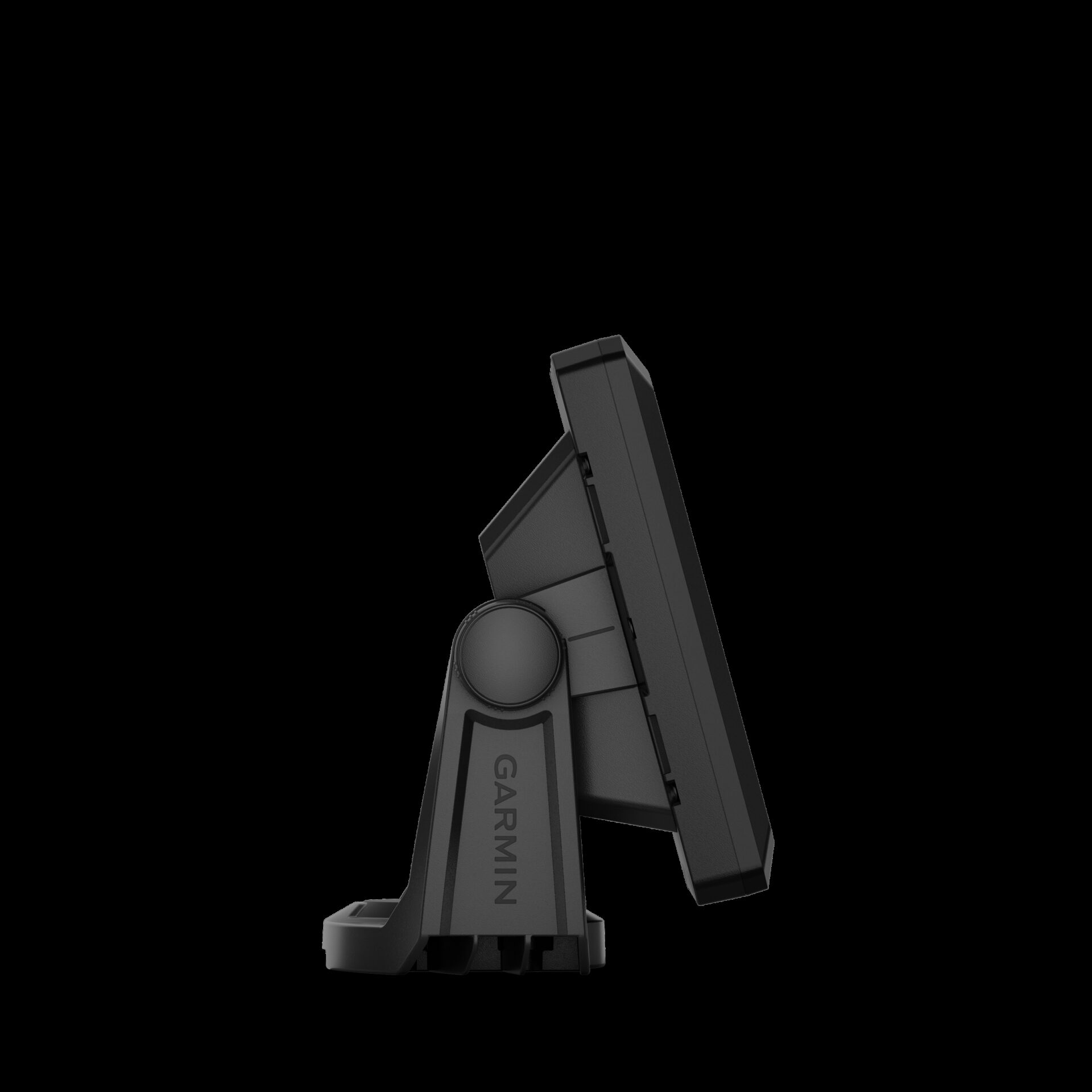

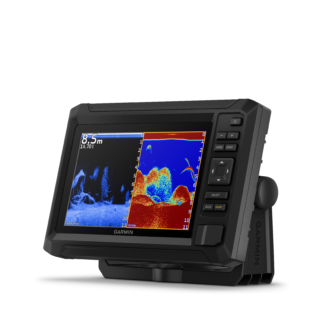

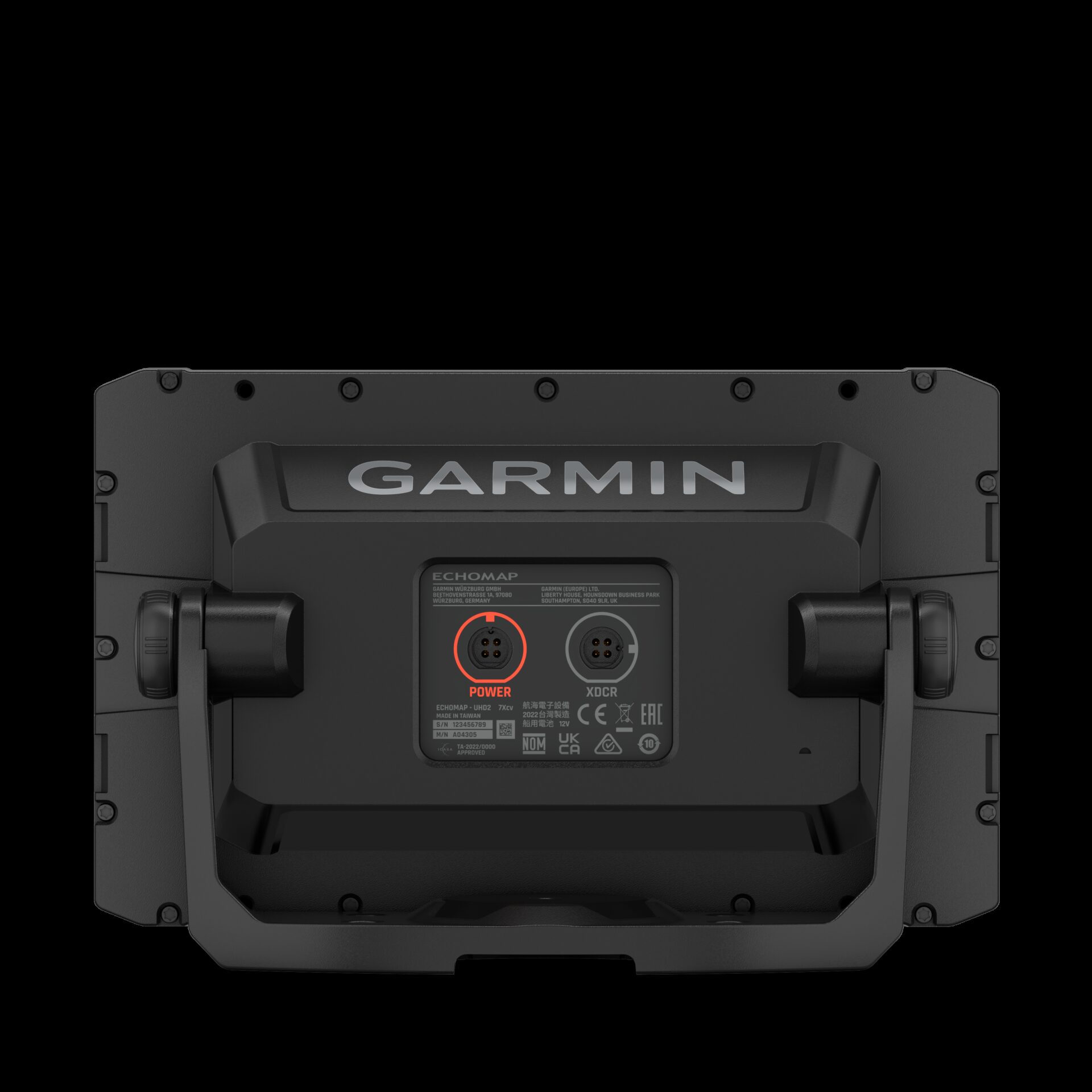

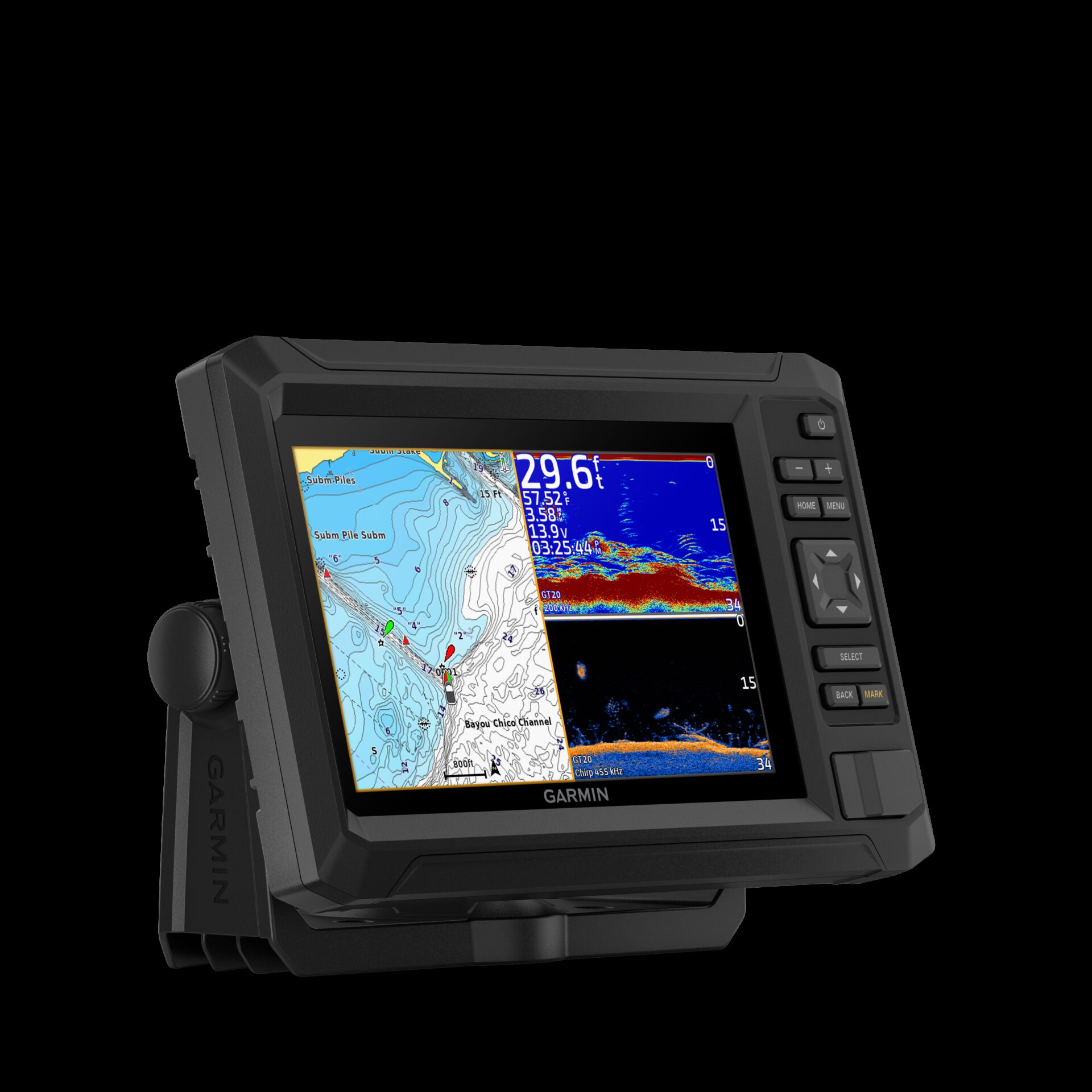

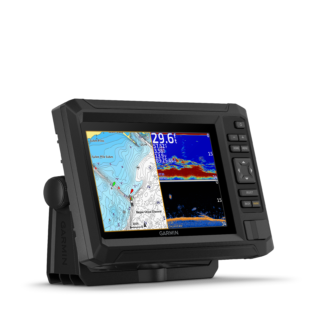

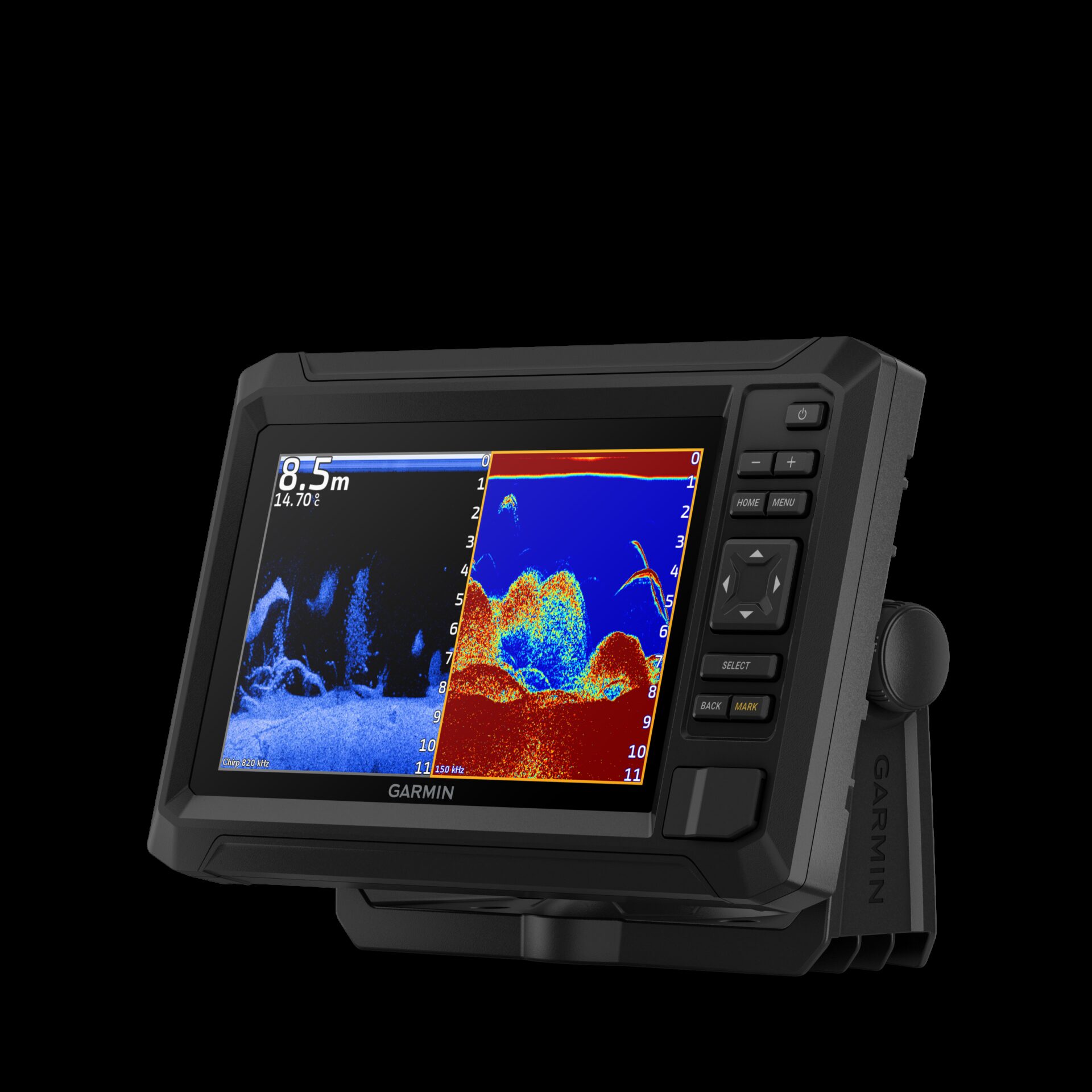

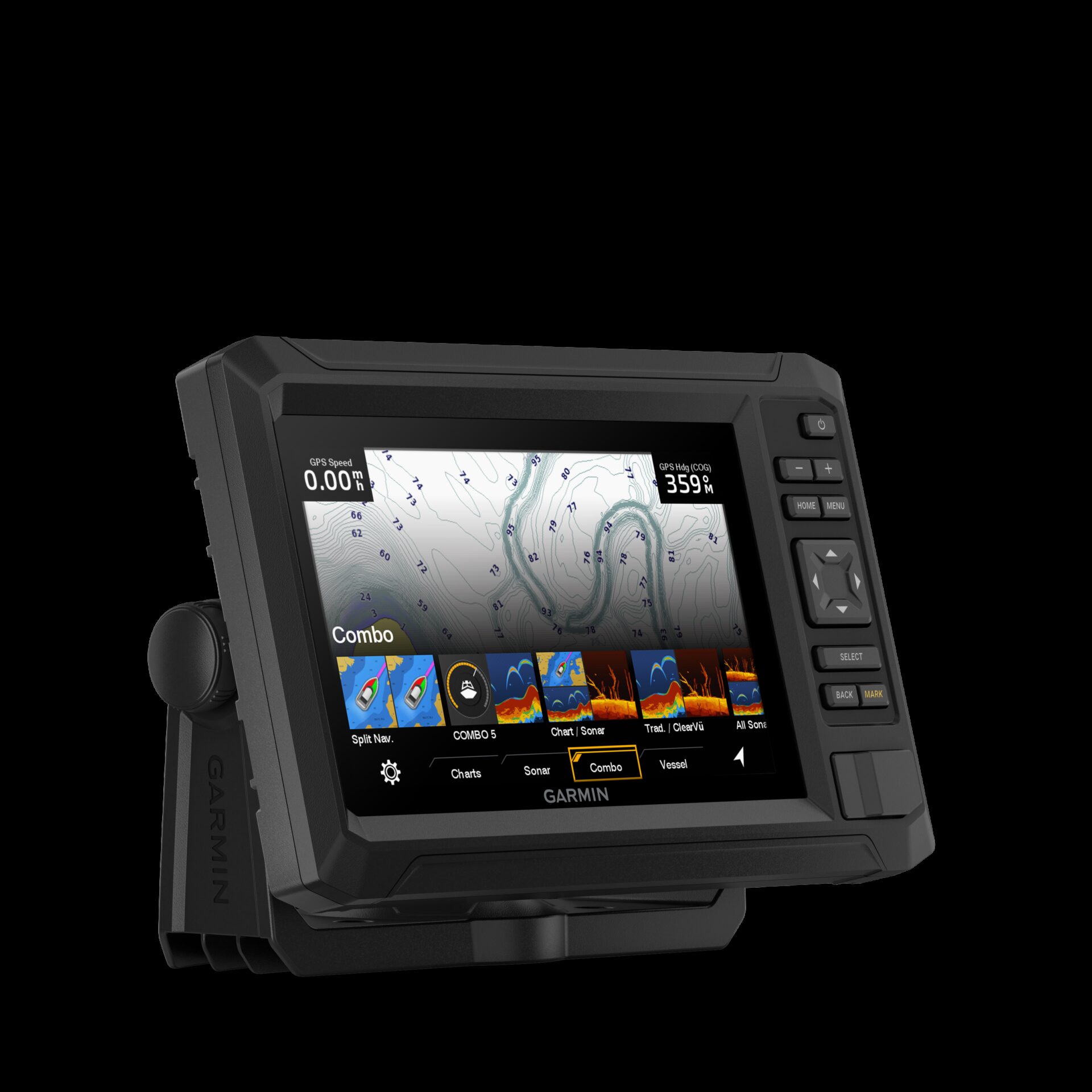

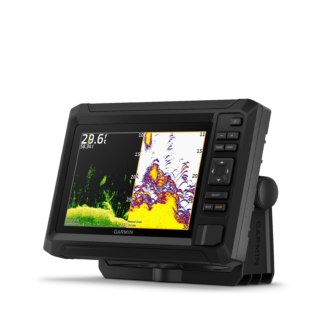

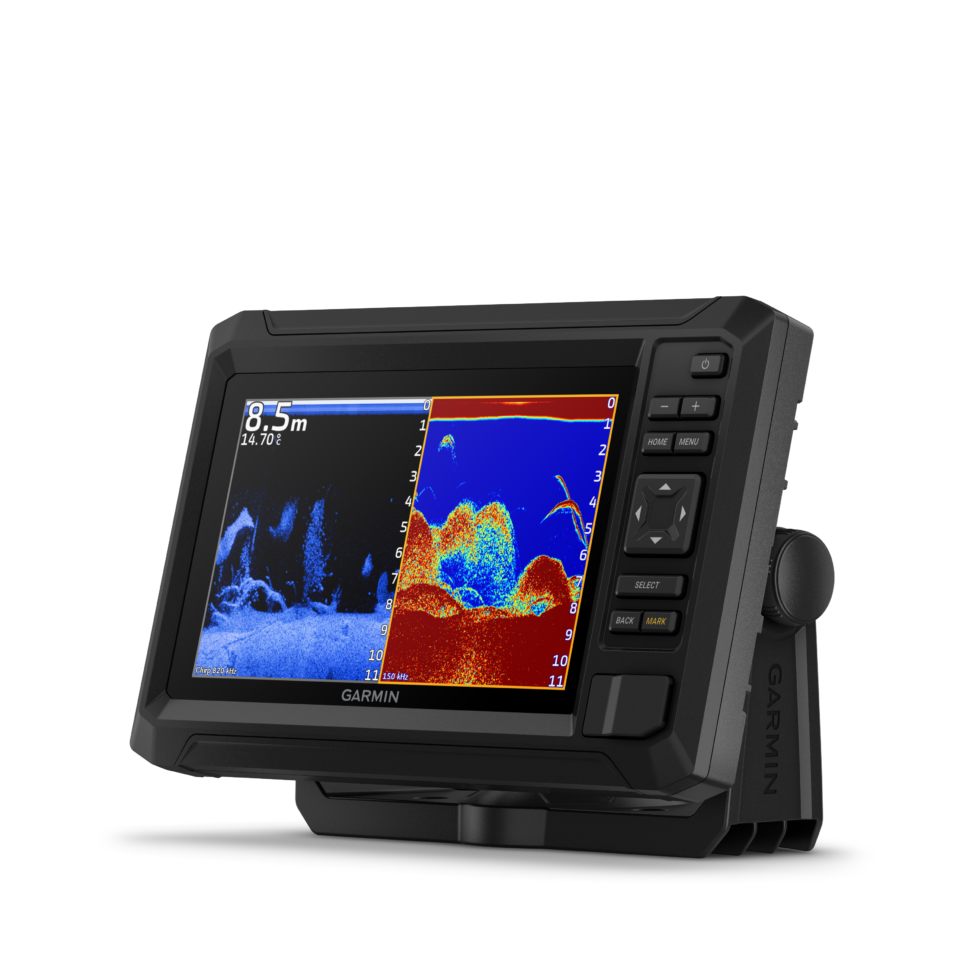

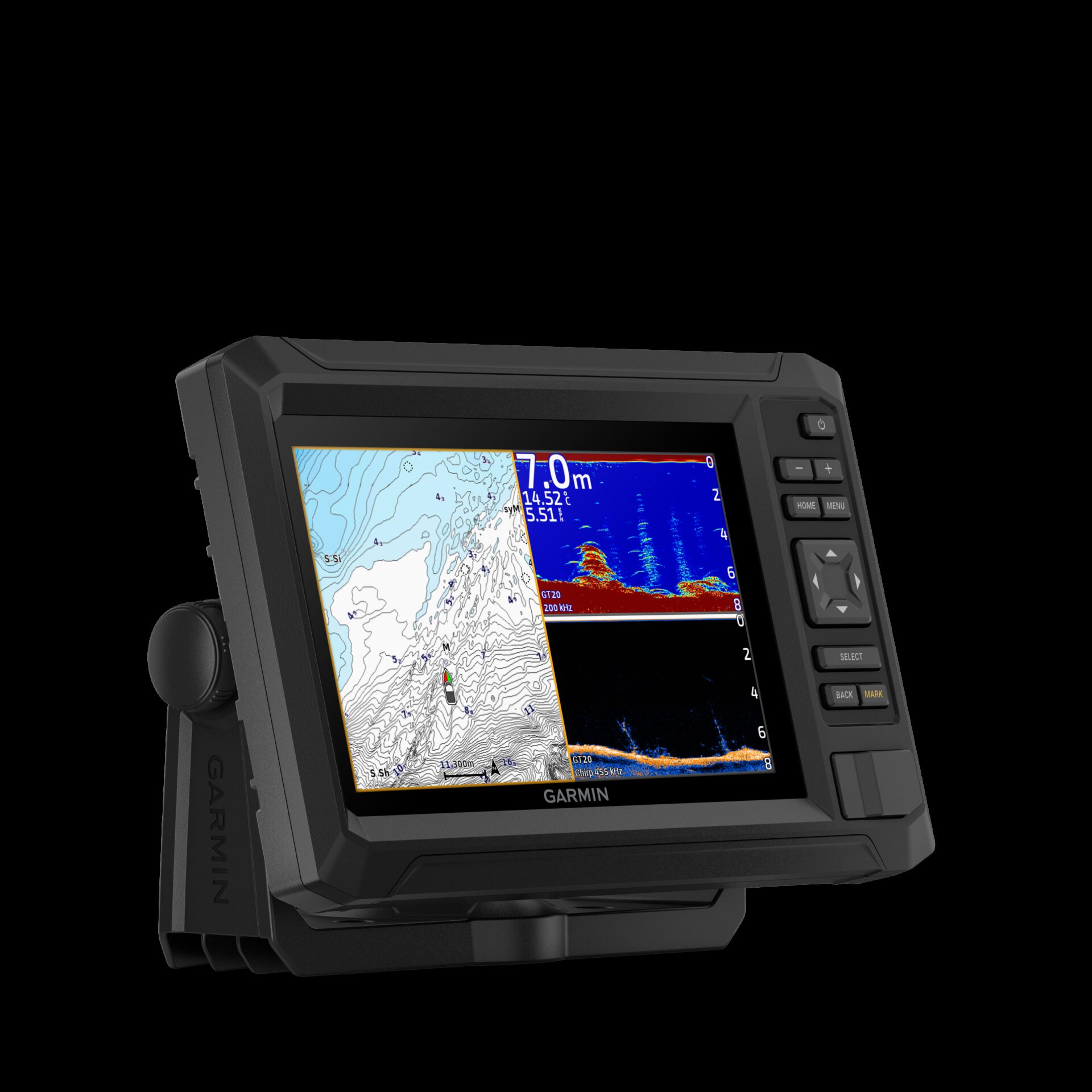

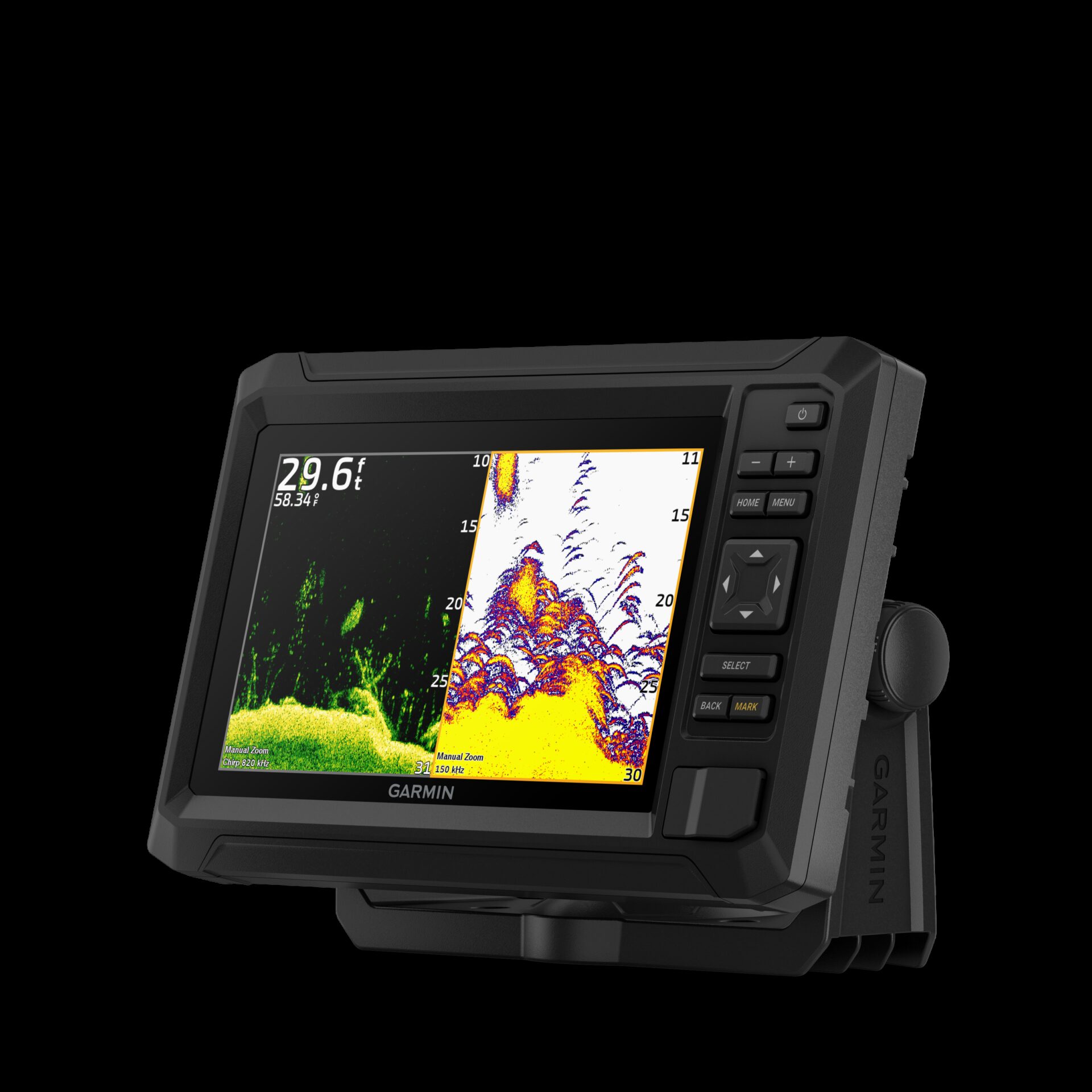

ECHOMAP™ UHD2 7" Chartplotter
ECHOMAP UHD2 7x HR 1000 30 ECHOMAP UHD2 7x HR 1000 32 ECHOMAP UHD2 7x HR 1002 49 ECHOMAP UHD2 7x HR 1002 59 ECHOMAP UHD2 7x HR 1002 61 ECHOMAP UHD2 7x HR 1002 65 ECHOMAP UHD2 7x HR 1003 ECHOMAP UHD2 7x HR 1004 ECHOMAP UHD2 7x HR 1005
Garmin

ECHOMAP™ UHD2 7" Chartplotter

SKU: 010-02593-01
£649.99
inc. VAT
All Electronics Products All Fishfinders plotters Products
ECHOMAP™ UHD2 72cv with GT20-TM Transducer
£649.99
inc. VAT

Product Description

WHY TALK TO A LOCAL WHEN YOU CAN FISH LIKE ONE?

They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 5″ and 7″ chartplotters with clear, crisp sonar and mapping.

Enjoy No. 1 in mapping3 with our Garmin Navionics+ and Garmin Navionics Vision+.

The bright 5″ or 7″ keyed display is made for convenience.

Get double the views1 with Garmin CHIRP traditional and ClearVü scanning sonars                                                                 (transducer sold separately)

What’s under the water looks even better with high-contrast vivid colour palettes.

Wi-Fi® connectivity2 between compatible chartplotters makes it easy to share info.

Product Video

Technical Specifications

General
Dimension9.1″ x 5.6 x 2.6″ (23.2 x 14.3 x 6.7 cm)
Weight1.5 lbs (0.7 kg)
Water ratingIPX7
Display TypeWVGA, TN
Display Size6.1″ x 3.4″ (15.5 x 8.7 cm)
Display Resolution800 x 480 pixels

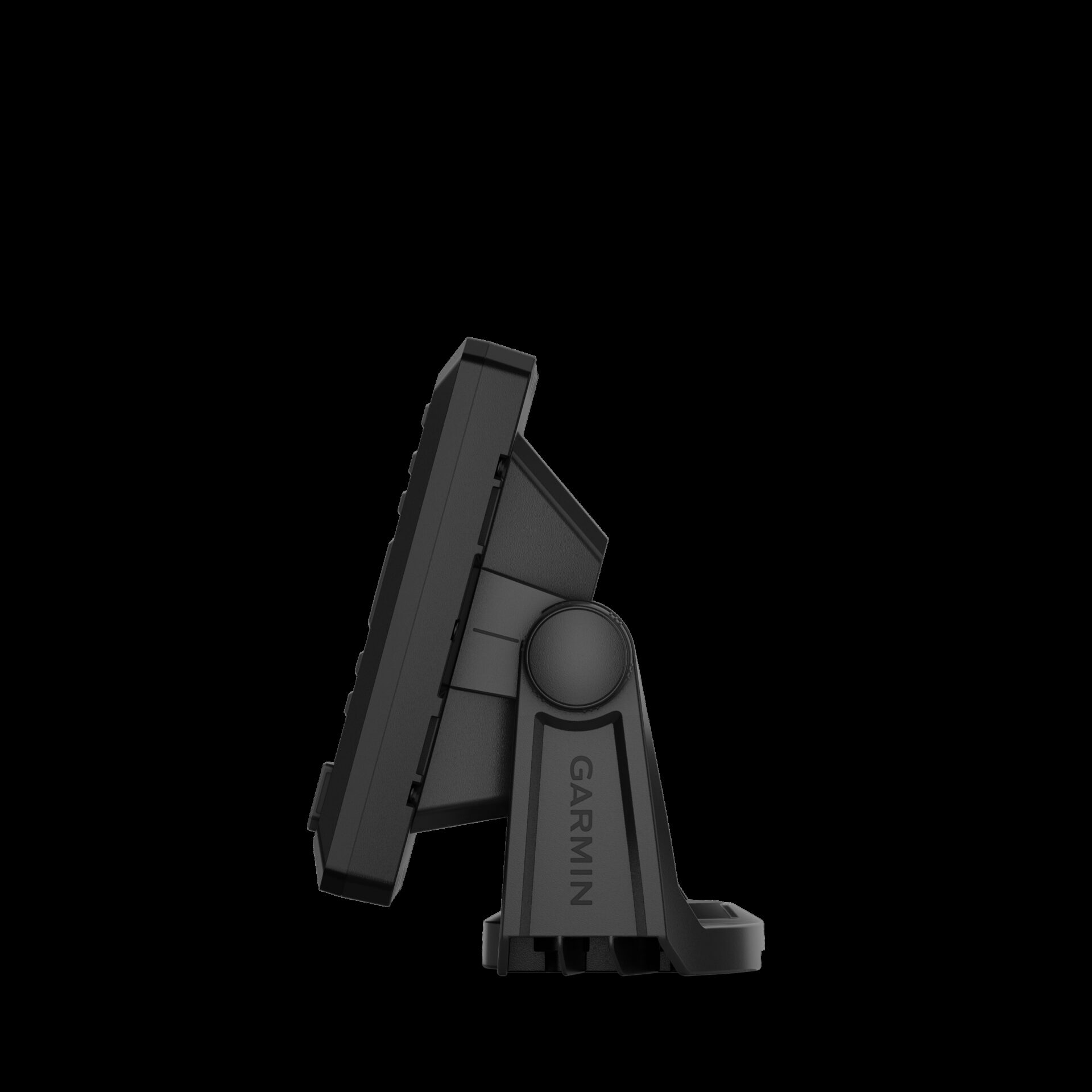

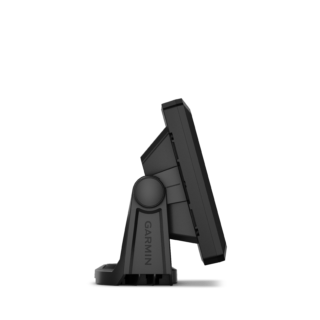

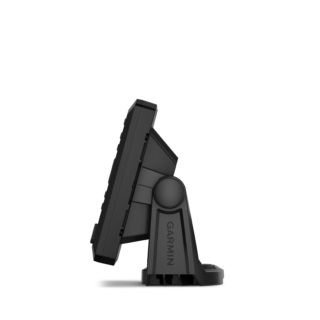

Mounting OptionsBail or flush
InputKeyed
Maps & memory
Accepts Data Cards1 microSD™ card; 32 GB maximum size
Waypoints5000
Track points50000
Tracks50 saved tracks
Navigation Routes100
Sensors
GPSYes
GalileoYes
Has built-in receiverYes
Receiver5 Hz
Supports WAASYes
Built-in maps
Built-in Auto Guidance+Yes (downloadable via ActiveCaptain app)
Garmin Navionics+ Inland & CoastalYes (see Additional)
Garmin Navionics+™ (Coastal)Yes (see Additional)
Garmin Navionics+ (Inland)Yes (see Additional)
Optional map support
BlueChart g3Yes
BlueChart g3 VisionYes
Garmin Navionics+™Yes
Garmin Navionics Vision+™Yes
Garmin Quickdraw ContoursYes
Chartplotter features
ActiveCaptain Mobile Planning Compatibleyes
Electrical features
POWER INPUT9 to 18 Vdc
Typical current draw at 12 Vdc1 A
Maximum current draw at 12 Vdc1.5 A
Maximum power usage at 10 Vdc18W
Sonar features & specifications
Displays sonarYes
Power output500W
Traditional sonar (dual frequency/beam)Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVüBuilt-in 260/455/800 kHz
Networking & Connections
4-pin transducer ports1
Garmin Wi-Fi network (local connection)Yes
Security Information
Security updates until at least (YYYY-MM-DD)2024-10-25
Additional
Additional
  • Garmin Navionics+ (coastal): 74cv U.S., 75cv U.K./Ireland
  • Garmin Navionics+ (inland): 73cv U.S. lakes
  • Tide tables: 53cv, 54cv, 55cv, 73cv, 74cv, 75cv
