M10 Enclosure Vent and Plug

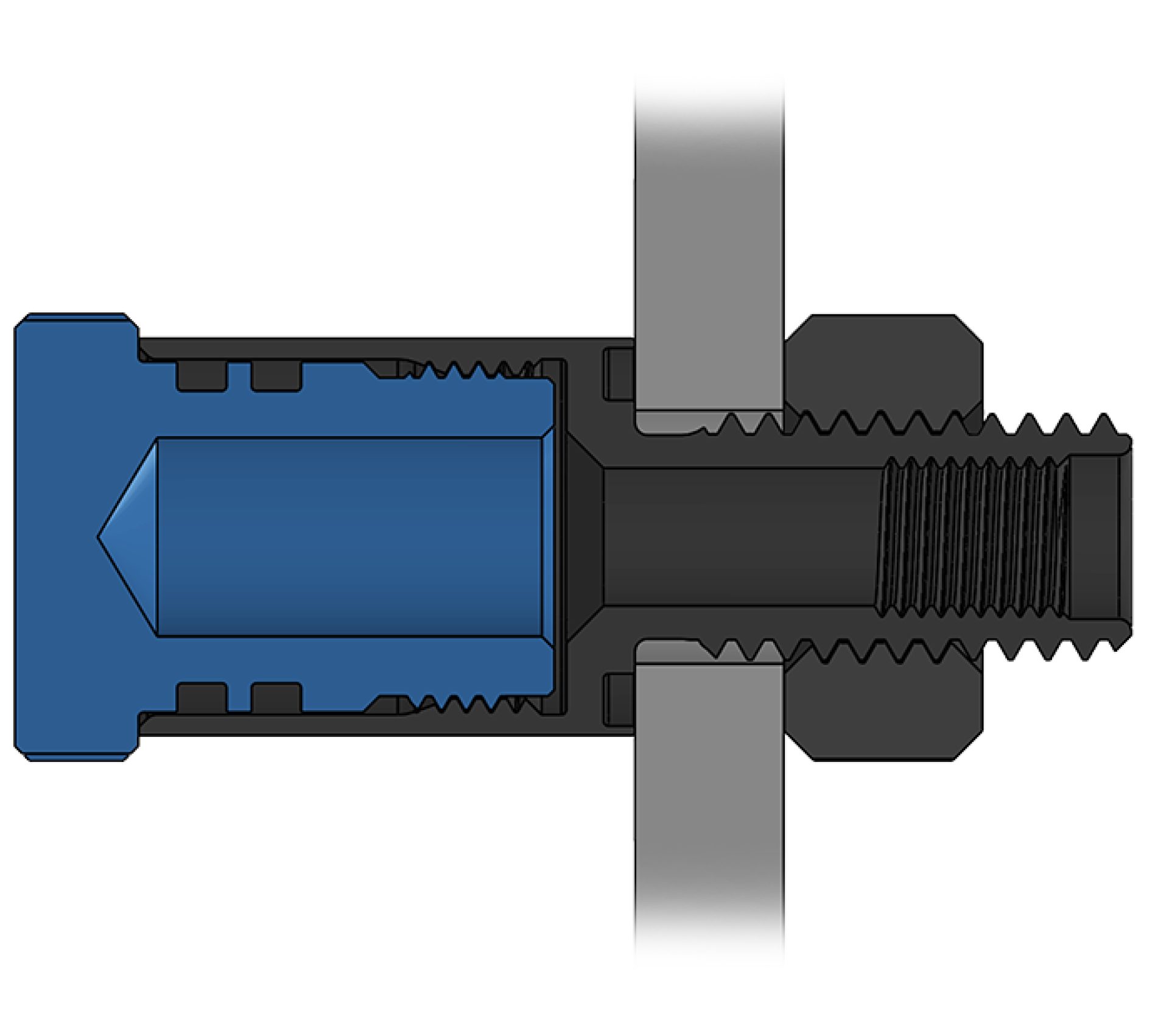

VENT M10 R1 RP 1 1 VENT M10 PLUG R1 RP 1 VENT CROSS SECTION PICTURE ASSEMBLY
Blue Robotics

M10 Enclosure Vent and Plug

SKU: BR-100783
£11.99
inc. VAT
All Cables, Penetrators and Connectors Products

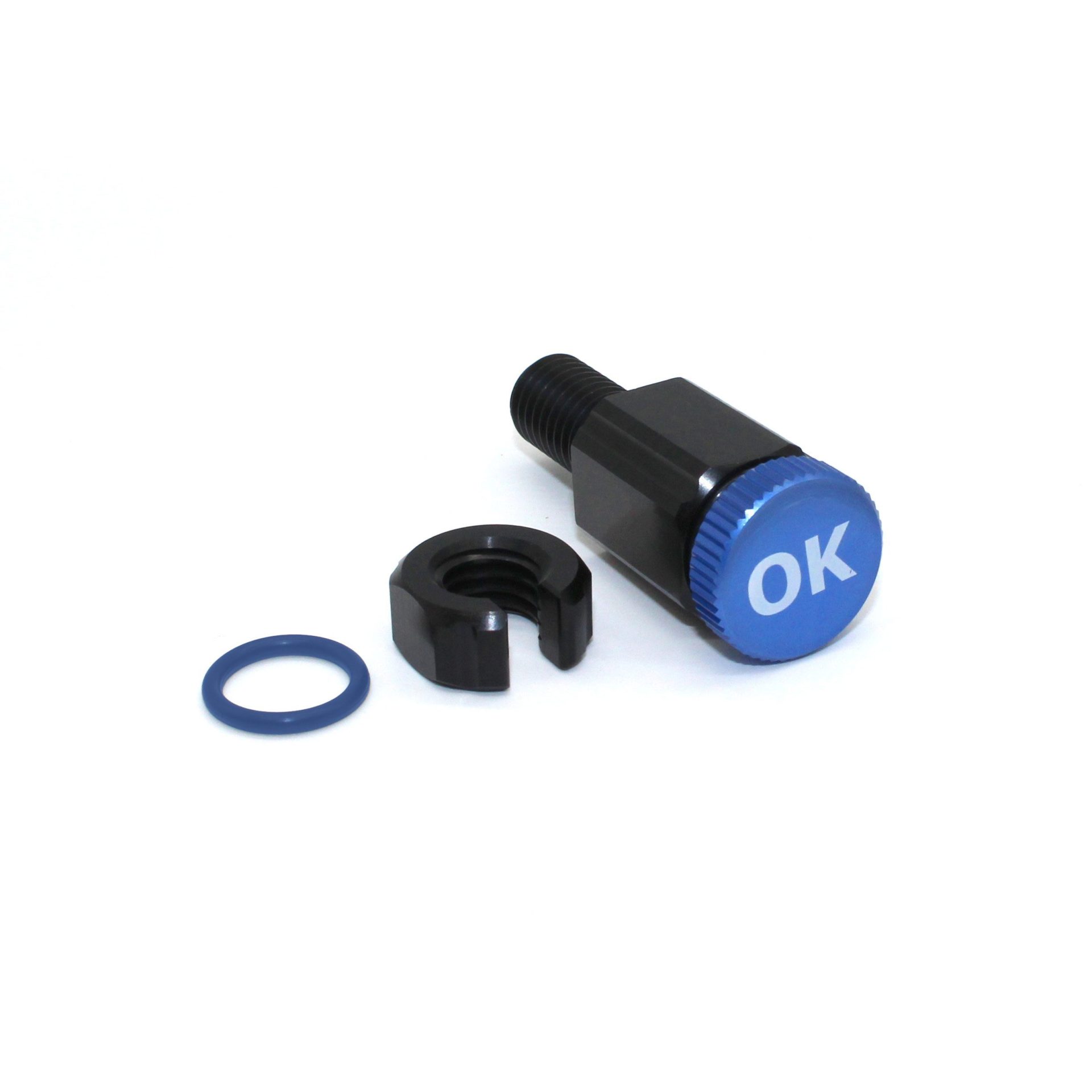

This vent allows trapped pressure to escape from an enclosure after it has been closed. It includes a threaded plug with a double O-ring seal to open and close the vent.
£11.99
inc. VAT

Product Description

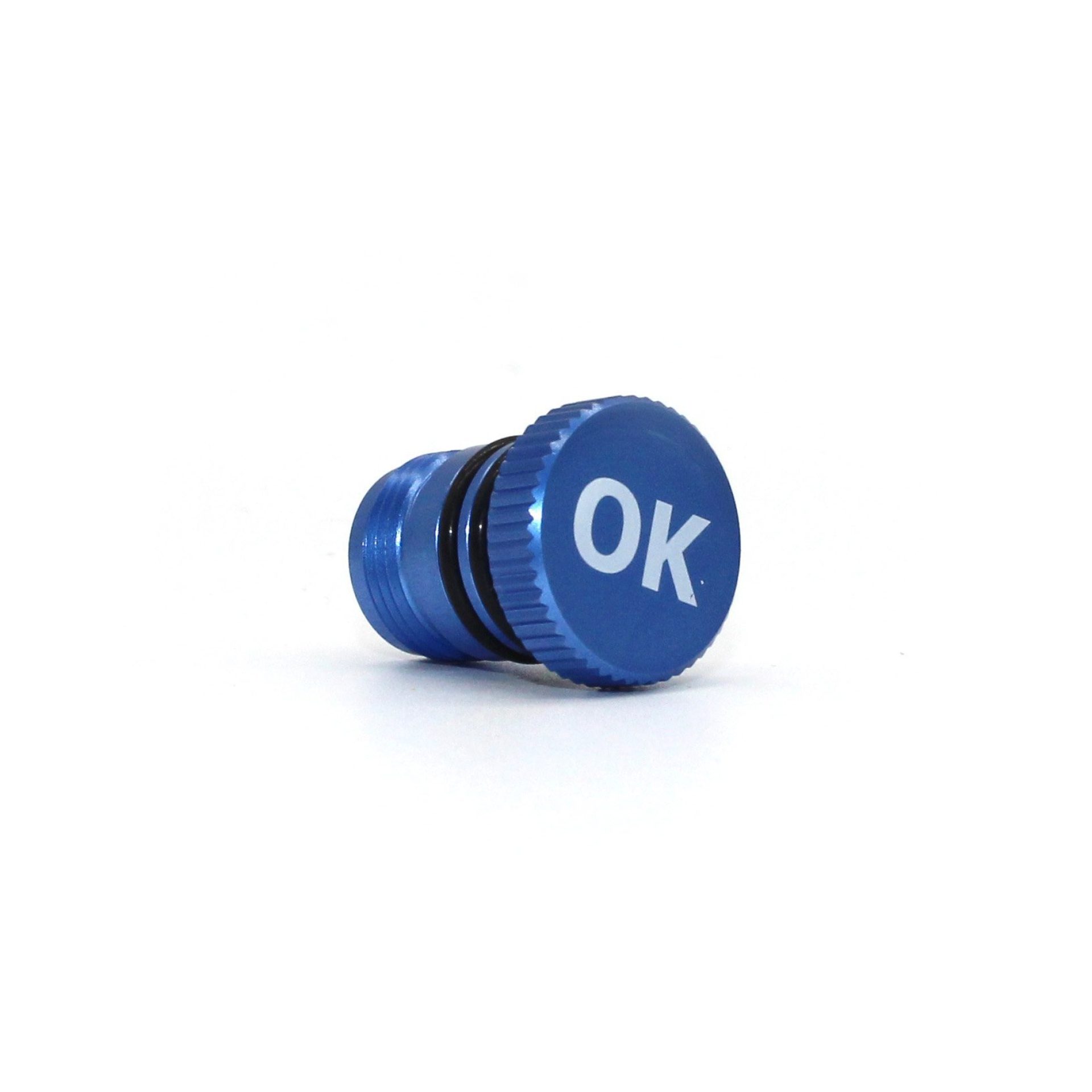

When the end caps and flanges are installed on our watertight enclosures, the air inside is compressed a bit and tries to push the enclosure open. This vent allows you to quickly and easily release the pressure and then seal things back up. You can also use it to vacuum-check your enclosure, ensuring there’s no leaks. It’s based on our standard M10 threaded bulkhead design with an added “plug” that fits in to seal it. The plug is sealed with double O-rings and screws into the bulkhead.

Technical Specifications

ParameterValue
Performance
Temperature Rating-40 to 60°C-40 to 140°F
Maximum Rated Depth (seawater)1000 m3280 ft
Design Lifetime¹3 years or 500 cycles to rated depth
Tools
Compatible Bulkhead WrenchBR-100977-010
Recommended Installation Torque3.5 N⋅m
Physical
Recommended Through Hole Diameter10.2 mm
Bulkhead ThreadM10 x 1.5
Bulkhead Thread Length20 mm
Bulkhead/Nut Wrench Flats16 mm
Overall Assembled Height From Endcap25 mm
Overall Outer Diameter18 mm
Bulkhead O-ring SizeAS568-013 Buna-N 70A
Plug O-ring Size1.5 x 11.5 mm Buna-N 70A
Bulkhead/ Plug Material7075-T6 Anodized Aluminum
Wetted MaterialsBuna-N Rubber
Molykote 111 Compound
7075-T6 Anodized Aluminum
In Air Weight (No Nut)14.3 g
In Water Weight (No Nut)8.5 g
¹ Design life was used to inform testing in an accelerated environment, does not reflect warranty period.
