Blue Robotics

NavLight

SKU: BR-102340

£89.99

inc. VAT

The NavLight is a bright white LED light that’s visible at night and during the day. It has an input signal that can be controlled by a microcontroller and can be used for USVs, buoys, or underwater with a 1,000 meter depth rating. It has an M14 thread for panel mount installation.

£89.99

inc. VAT

Product Description

Want everybody to know you have a cool USV??? Add the NavLight to be sure to catch their eye!

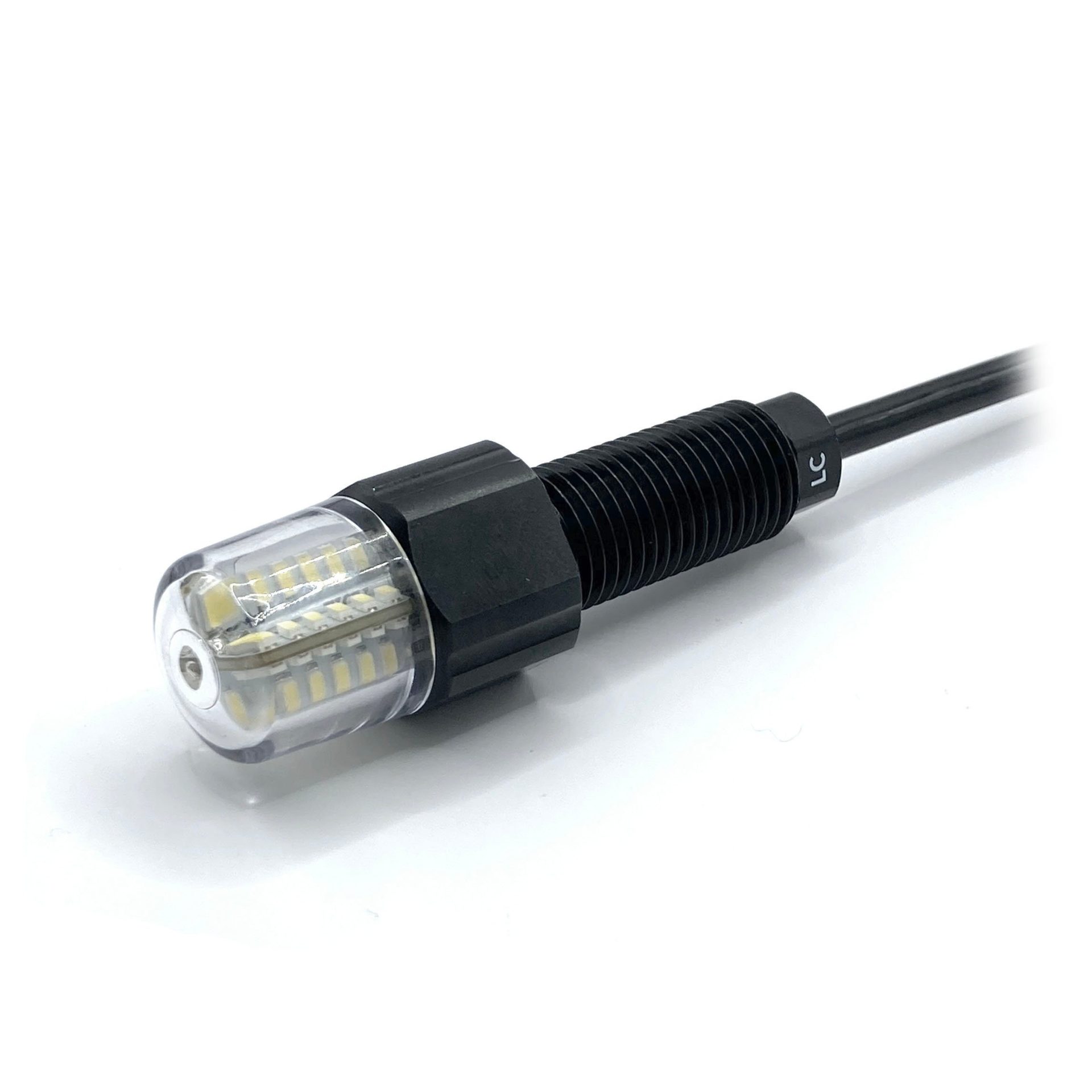

The NavLight is a high-brightness LED light designed to make USVs, buoys, and other marine craft visible from a long distance. It’s extremely compact with a G4 bulb in an M14 penetrator form factor.

The light runs on 5-12 V, draws up to 2.5 W of power, and outputs approximately 180 lumens of light. Internal circuitry allows it to be controlled by an input signal from a microcontroller like an Arduino or the Navigator Flight Controller so you can turn the light on and off or create flashing signals. If you don’t have a control device, simply connect the input signal to power to turn the light on.

The Navigation Light can also be used in subsea applications and has a 1,000 meter depth rating when installed on an end cap or when coupled with a WetLink Penetrator installed on the end of the cable. That allows you to mount it anywhere on your vehicle—it’s not restricted to use on an enclosure end cap.

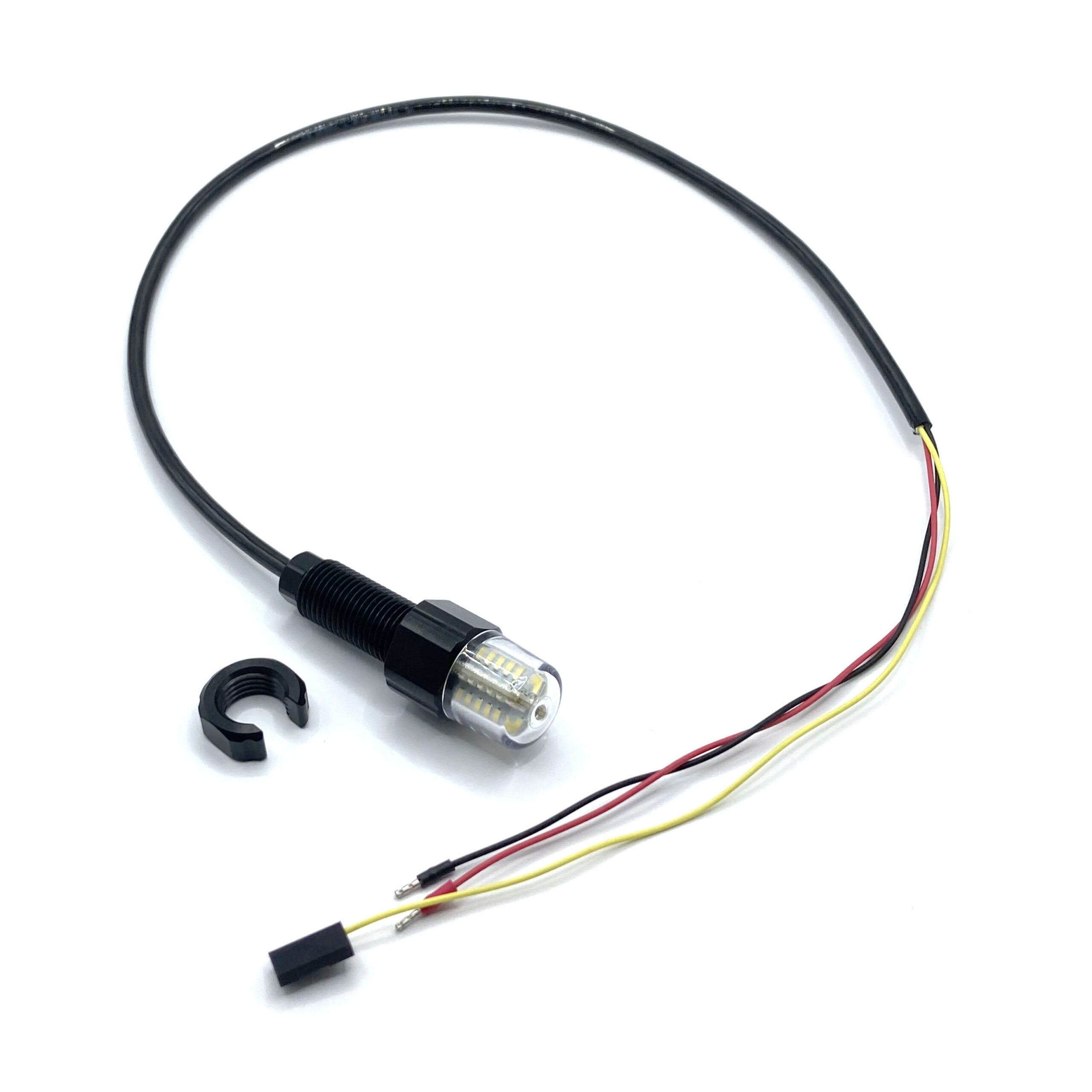

The light comes with a 60 cm cable length and O-ring and nut for installation. Check out the usage guide for more details.

Technical Specifications

Parameter	Value
Performance
Maximum Rated Depth (seawater)	1000 m	3281 ft
Design Lifetime¹	3 years or 500 cycles to rated depth
Temperature Rating (air)	-25 to 60°C	-13 to 140°F
Temperature Rating (water)	0 to 40°C	32 to 104°F
Electrical
Supply Voltage² (Vin)	5–12 V
Power Draw	2.5 W
Default Mode	Normally on
Signal Protocol	To turn light off, pull signal (yellow) wire to ground
Signal Max Voltage Input	Vin
Signal Max Current Output	1.1 mA
Light
Lumens³	180 lm
Color Temperature	6000K
Cables and Connectors
Cable Length	400 mm (jacket) 590 mm (red, black conductor) 620 mm (yellow conductor)

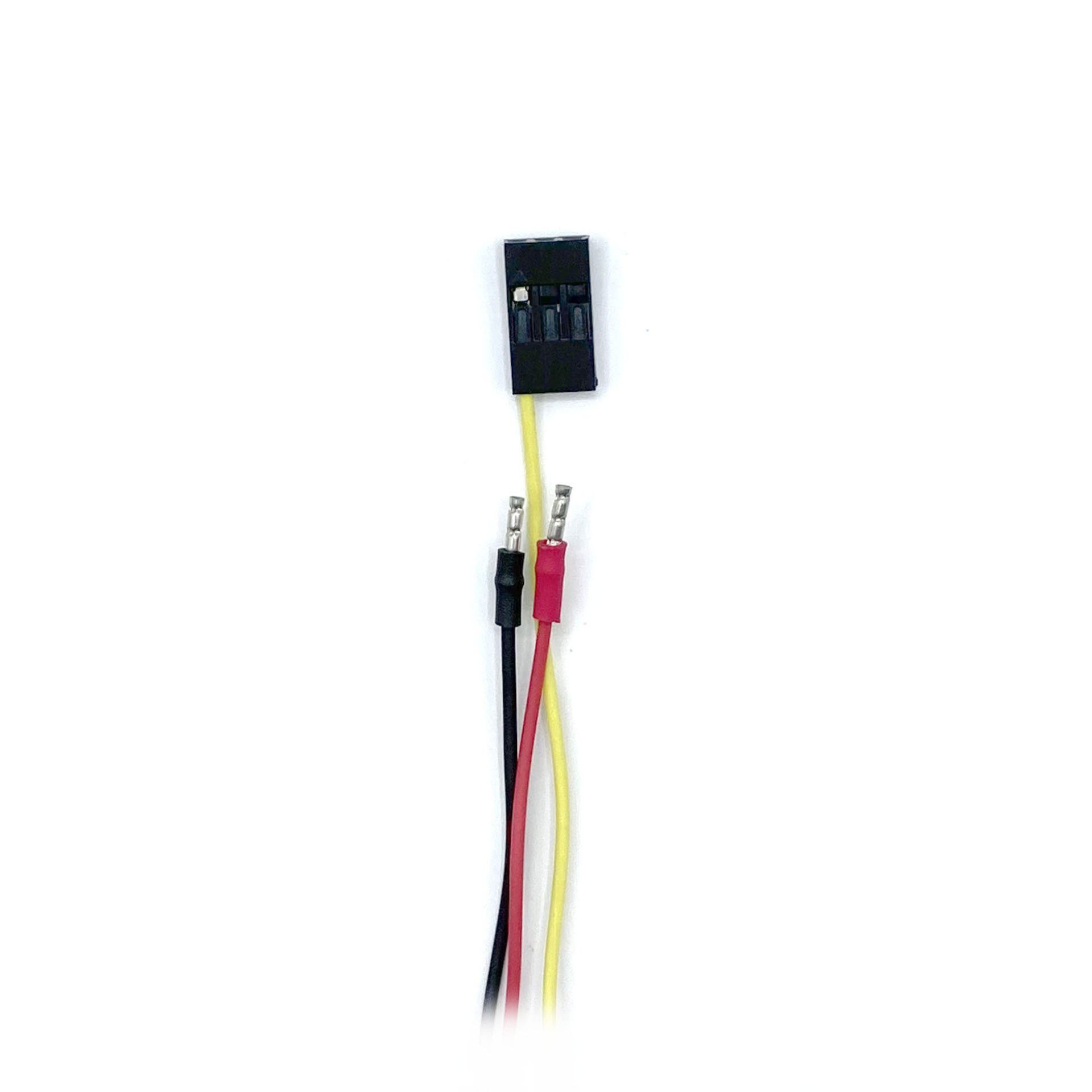

Connectors	Red (positive): 22 AWG ferrule Black (negative): 22 AWG ferrule Yellow (signal): 3 position 0.1" header
Cable Used	BR-101050
Compatible WetLink Penetrator (cable end)	M06-4.5mm-LC M10-4.5mm-LC
Tools
Compatible Bukhead Wrench	BR-100977-014
Recommended Installation Torque	3.5 Nm
Physical
Recommended Thru Hole Diameter	14.2 mm
Bulkhead Thread	M14 x 1.5
Bulkhead Thread Length	30 mm
Bulkhead/Nut Wrench Flats	20 mm
Overall Assembled Height From Endcap	33.7 mm
Overall Outer Diameter	22 mm
Bulkhead/Lens O-ring Size	1.5x15 mm Buna-N 70A
Bulkhead/ Plug Material	Aluminum 7075-T6, type III anodized
Wetted Materials	Buna-N Rubber Molykote 111 Compound Aluminum 7075-T6, type III anodized UV Stabilized Polycarbonate
In Air Weight (no nut)	38 g	1.34 oz
¹ Design life was used to inform testing in an accelerated environment, does not reflect warranty period. ² Light functions up to 6S (25.2V) but signal will not function correctly after 12V. ³ In the horizontal plane.
