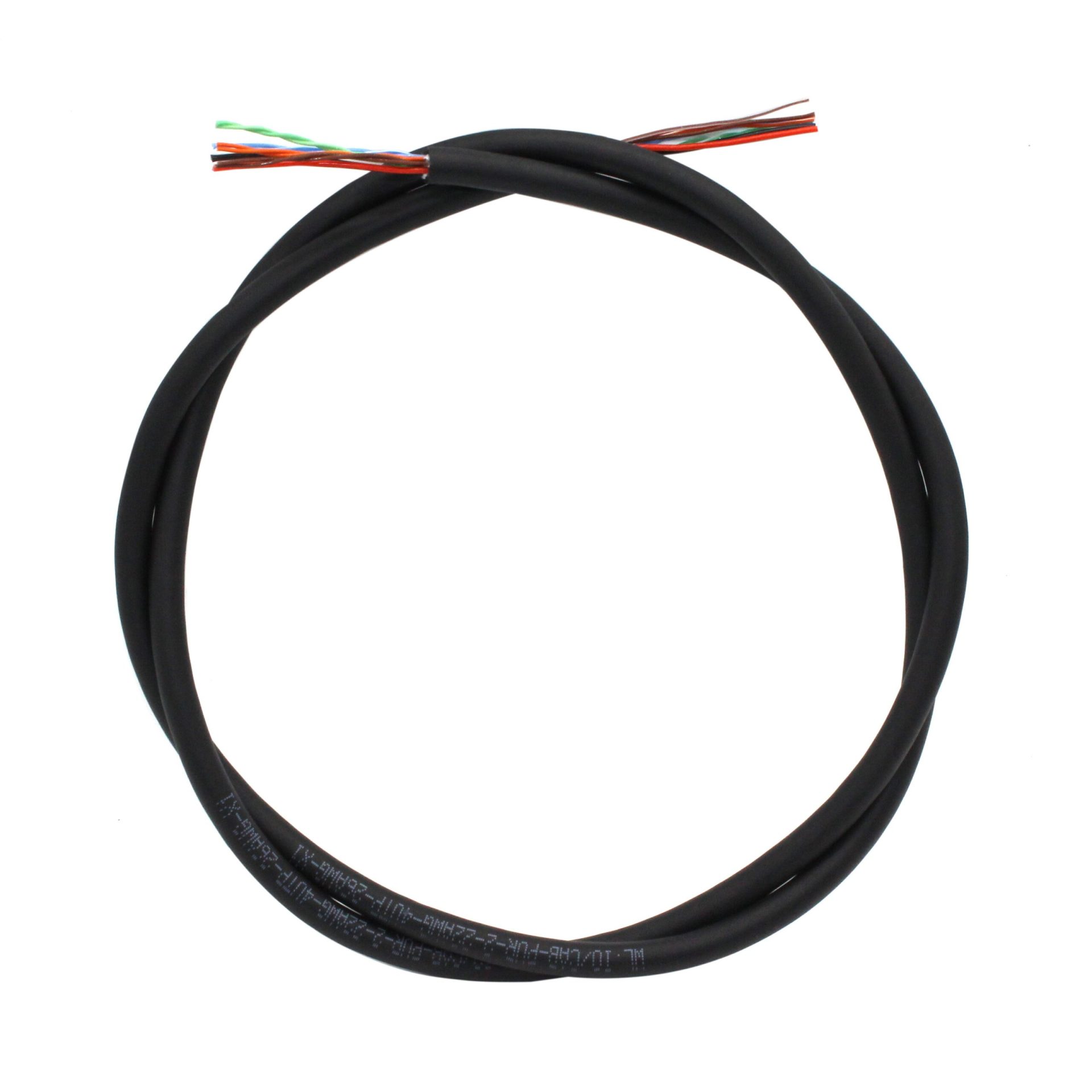

PUR Subsea Cable - (by the meter) Ethernet and Power Cable (2 x 22AWG, 4x UTP 26 AWG)

SKU: BR-100897
£12.99
inc. VAT
This cable has separate wires for Ethernet and power transmission, making it a useful cable for many different types of underwater connections! Ethernet is unshielded 26 AWG twisted pairs and the power is thicker 22 AWG to handle higher current applications. It’s compatible with the WLP-M10-7.5MM-LC WetLink Penetrator.
£12.99
inc. VAT

Product Description

These cables are built for a wide range of subsea applications, custom made with a pressure-extruded polyurethane jacket and flexible conductors. They are very tough and abrasion resistant.

These cables are used in countless other applications!

Technical Specifications

CableLumen/Gripper CablePing CableEthernet and Power Cable
Construction3-conductors, jacket4-conductors, powder separator, jacket2-conductor 22 AWG, 4-unshielded twisted pairs 26 AWG, filler, wrap, jacket
Diameter4.5 mm4.5 mm7.5 mm
Outer JacketPressure-extruded polyurethanePressure-extruded polyurethanePressure-extruded polyurethane
Wrap--2-layer non-woven wrap
Filler--String
Number of Conductors342 x 22 AWG
8 x 26 AWG
Conductor Gauge22 AWG24 AWG22 AWG
26 AWG (UTP)
Conductor InsulationPolypropylenePolypropylenePolypropylene (22 AWG)
FEP (UTP)
Conductor Insulation ColorsBlack, red, yellowBlack, white, green, redBlack
Red
Blue, blue/white
Brown, brown/white
Green, green/white
Orange, orange/white
Static Minimum Bend Radius15 mm15 mm24 mm
Compatible WetLink PenetratorM06-4.5mm-LC
M10-4.5mm-LC
M06-4.5mm-LC
M10-4.5mm-LC
M10-7.5mm-LC
