PUR Subsea Cable - (by the meter) Ping Cable (4 conductors, 24 AWG) (by the meter)

SKU: BR-100452
£5.99
inc. VAT

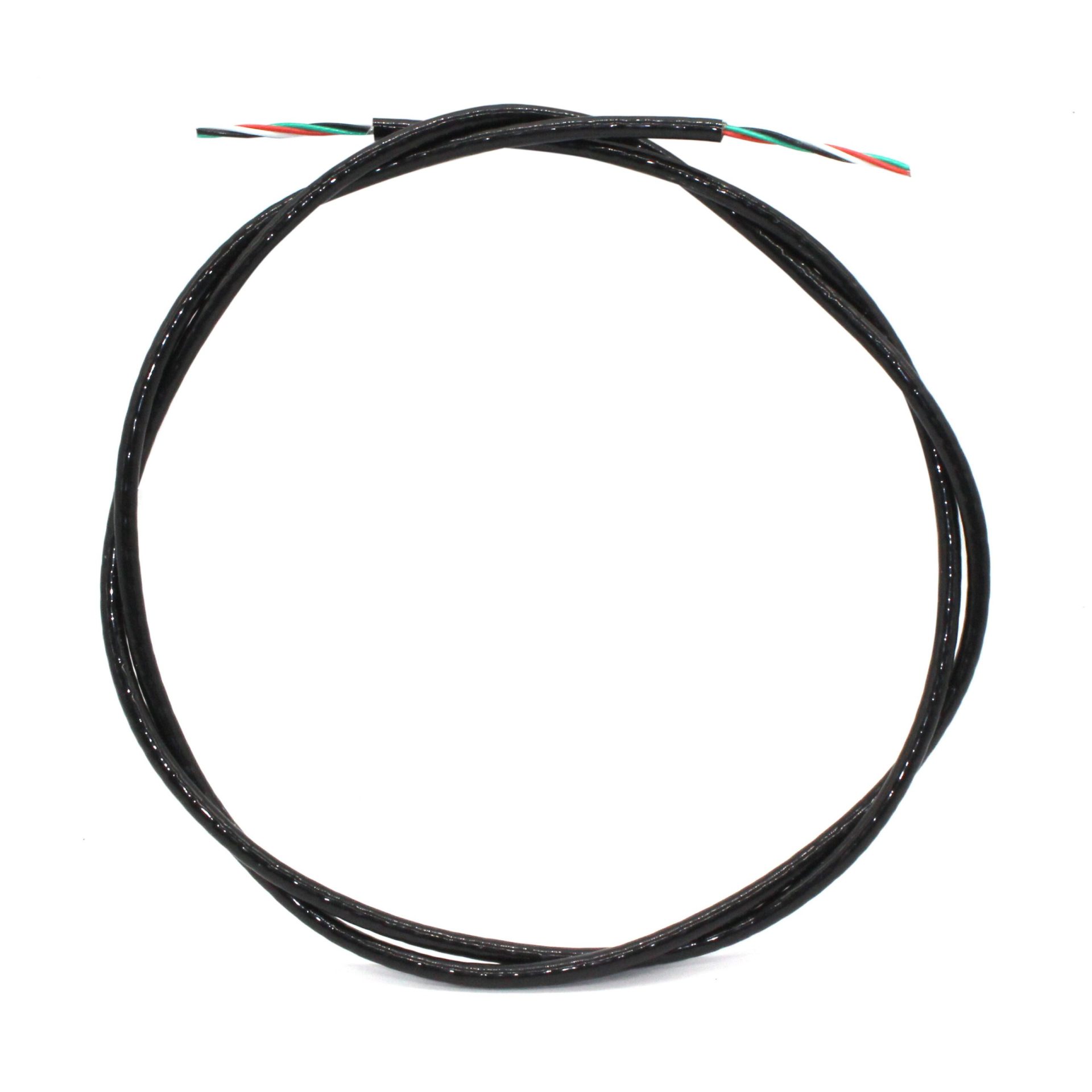

This 4-conductor cable is used on the Ping Echosounder. The cable is made with a pressure-extruded polyurethane jacket and flexible 24 AWG conductors. It’s compatible with the WLP-M06-4.5MM-LC and WLP-M10-4.5MM-LC WetLink Penetrator.
£5.99
inc. VAT

Product Description

These cables are built for a wide range of subsea applications, custom made with a pressure-extruded polyurethane jacket and flexible conductors. They are very tough and abrasion resistant.

This cable are used in the Ping Echosounder

Technical Specifications

CableLumen/Gripper CablePing CableEthernet and Power Cable
Construction3-conductors, jacket4-conductors, powder separator, jacket2-conductor 22 AWG, 4-unshielded twisted pairs 26 AWG, filler, wrap, jacket
Diameter4.5 mm4.5 mm7.5 mm
Outer JacketPressure-extruded polyurethanePressure-extruded polyurethanePressure-extruded polyurethane
Wrap--2-layer non-woven wrap
Filler--String
Number of Conductors342 x 22 AWG
8 x 26 AWG
Conductor Gauge22 AWG24 AWG22 AWG
26 AWG (UTP)
Conductor InsulationPolypropylenePolypropylenePolypropylene (22 AWG)
FEP (UTP)
Conductor Insulation ColorsBlack, red, yellowBlack, white, green, redBlack
Red
Blue, blue/white
Brown, brown/white
Green, green/white
Orange, orange/white
Static Minimum Bend Radius15 mm15 mm24 mm
Compatible WetLink PenetratorM06-4.5mm-LC
M10-4.5mm-LC
M06-4.5mm-LC
M10-4.5mm-LC
M10-7.5mm-LC
