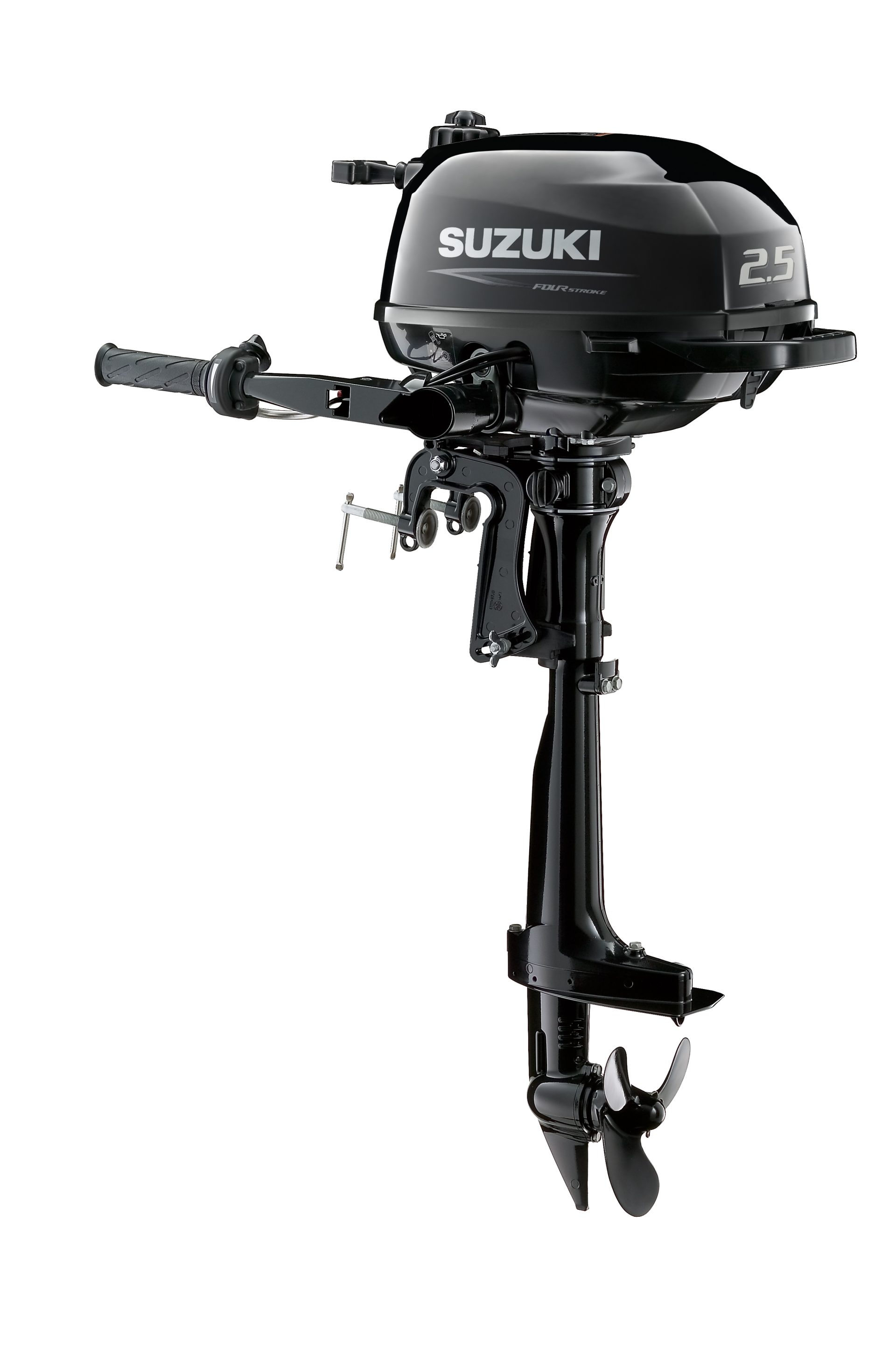

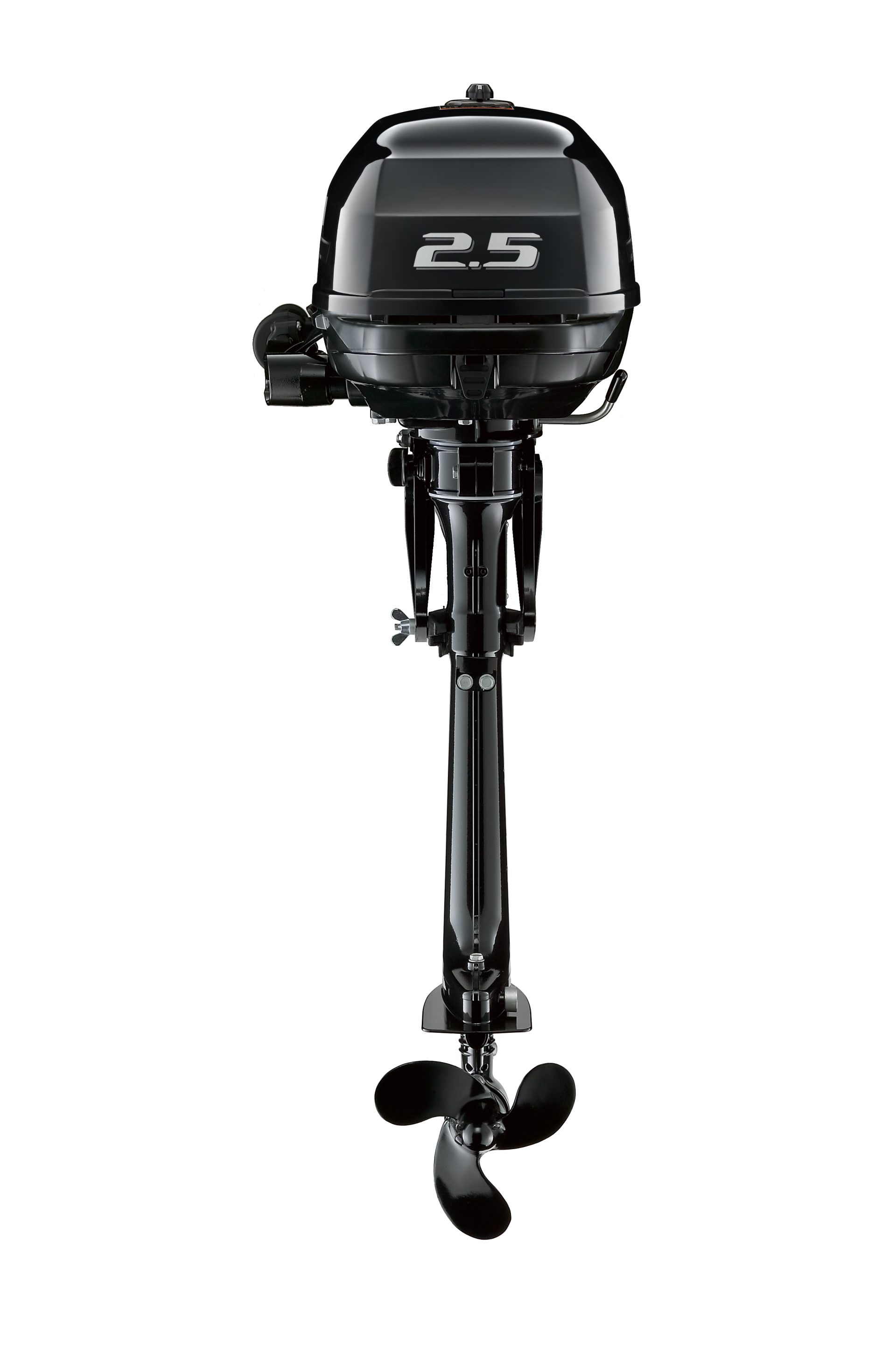

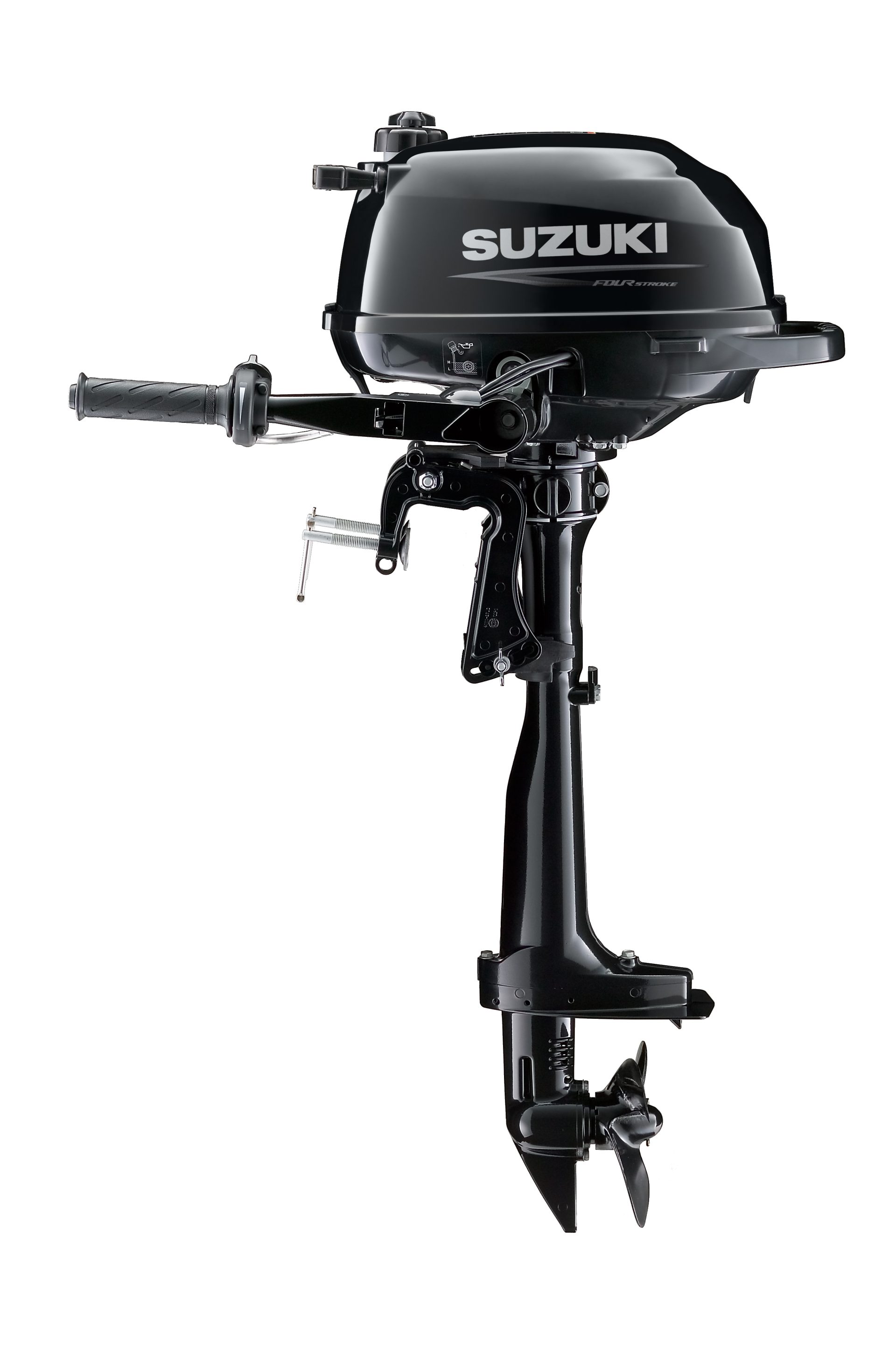

Suzuki DF2.5 outboard

Shaft Length

Short (381mm) - Long (508mm)

Colour

Pearl Nebular Black

Steering Type

Tiller

Tilt

Manual

Starter

Manual

Weight

Short -13.5 Long -14

DIMENSIONS AND WEIGHTS

Recommended transom height

Short 381mm (15in) - Long 508mm (20in)

Weight:

Short 13.5kg - Long -14Kg

Bore x Stroke:

48 x 38mm

Propeller Selection (pitch):

5.3/8"

ENGINE SPECIFICATION

Starting System:

Manual

Engine Type:

OHV

Fuel Delivery System:

Carburettor

No. of Cylinders:

1

Piston Displacement:

68cc

Maximum Output:

1.8KW

Full Throttle Operating Range:

5,250 - 5,750

Steering:

Tiller

Oil Pan Capacity:

0.38L

Fuel Tank Capacity:

Integral 1.0L

Ignition System:

Digital CDI

Engine Mounting:

Bushing Type

Trim Method:

Manual Trim and Tilt

Gear Ratio:

2.15:1

Gear Shift:

F-N

Exhaust:

Above Prop Exhaust
