Watertight Enclosure Clamps

SKU: BR-102710-003
Select variant...
inc. VAT
All Enclosures, Buoyancy and Ballast Products

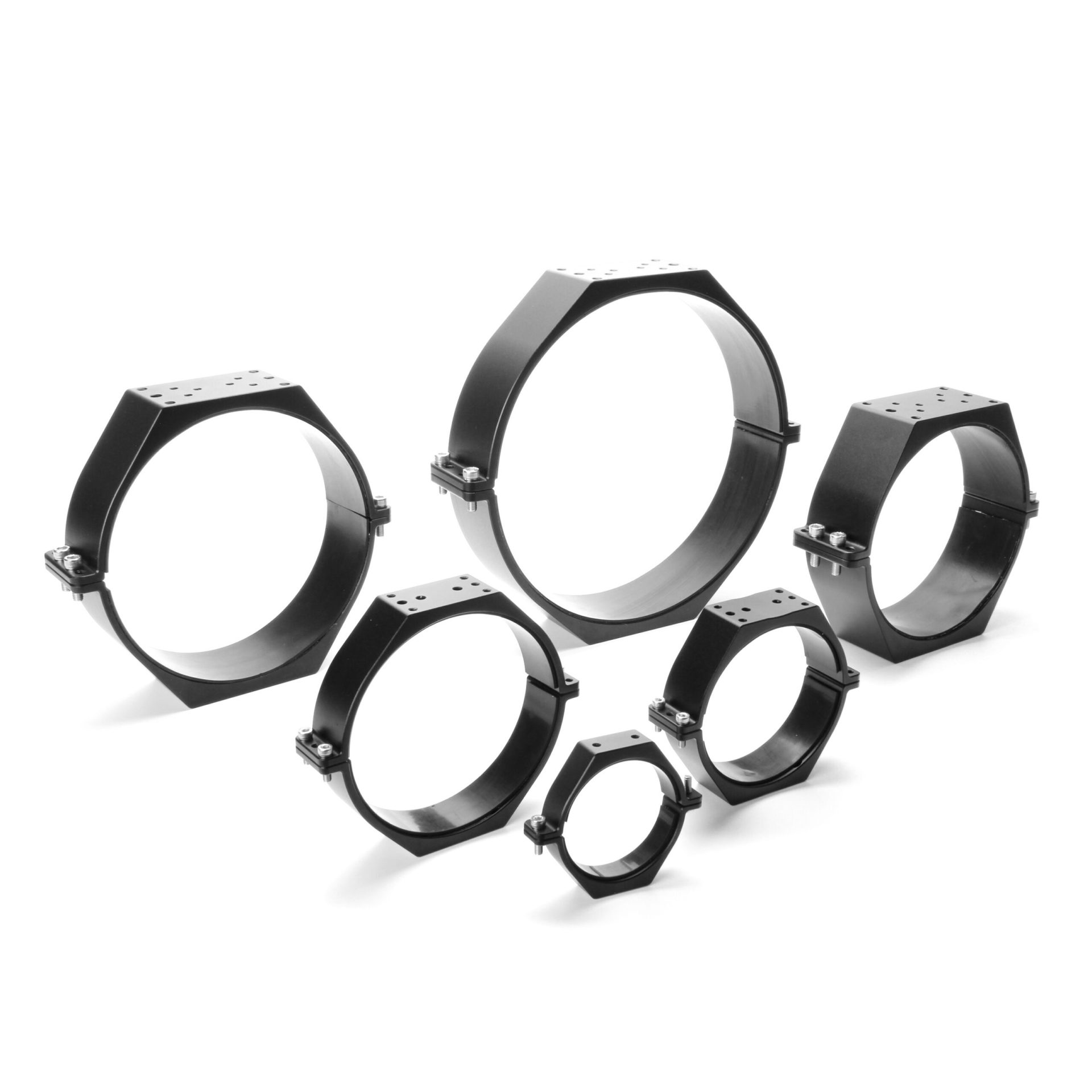

The Enclosure Clamps are available for all diameters of Watertight Enclosure for easy mounting on a vehicle. They can be attached to each other to create unique enclosure configurations.
Select variant...
inc. VAT

Product Description

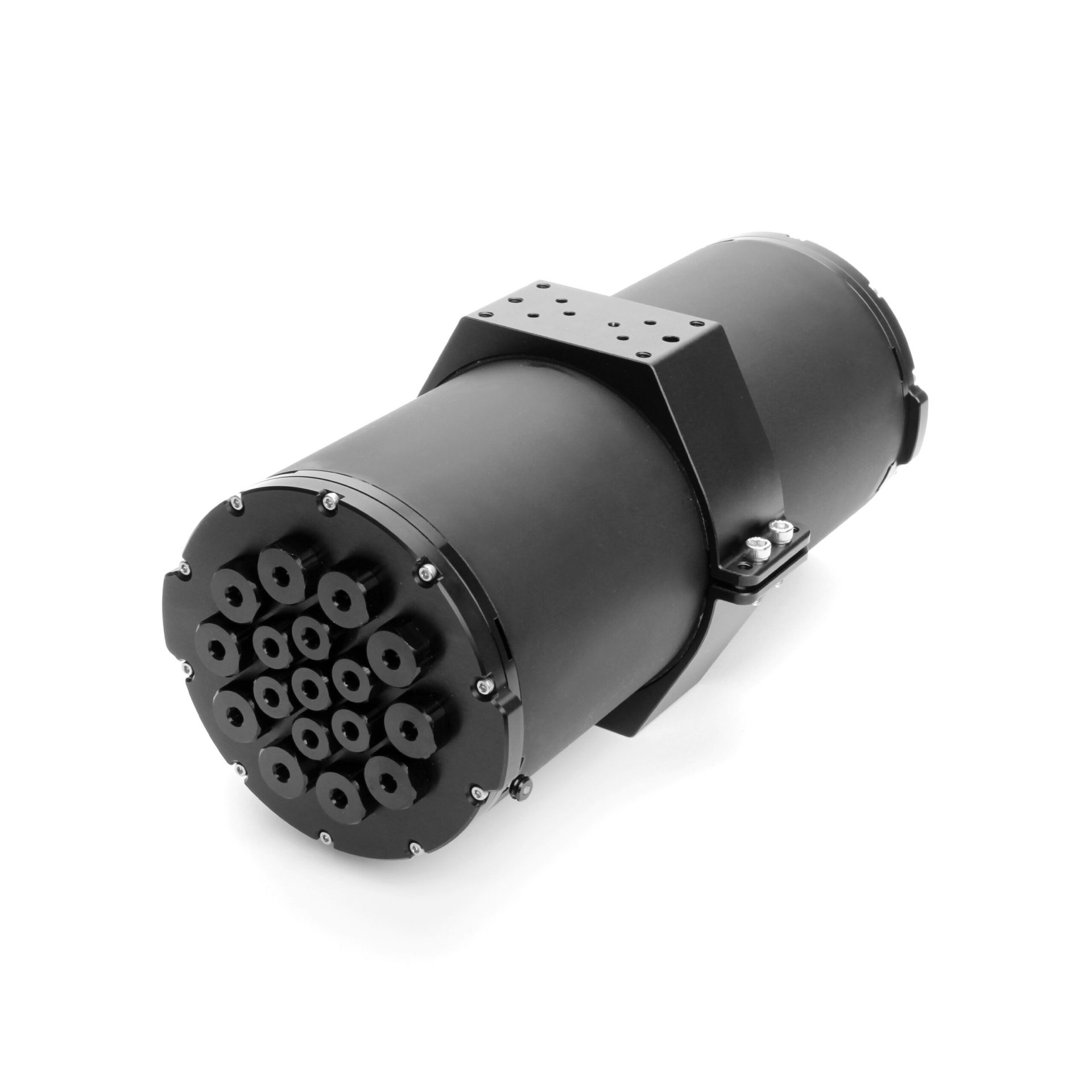

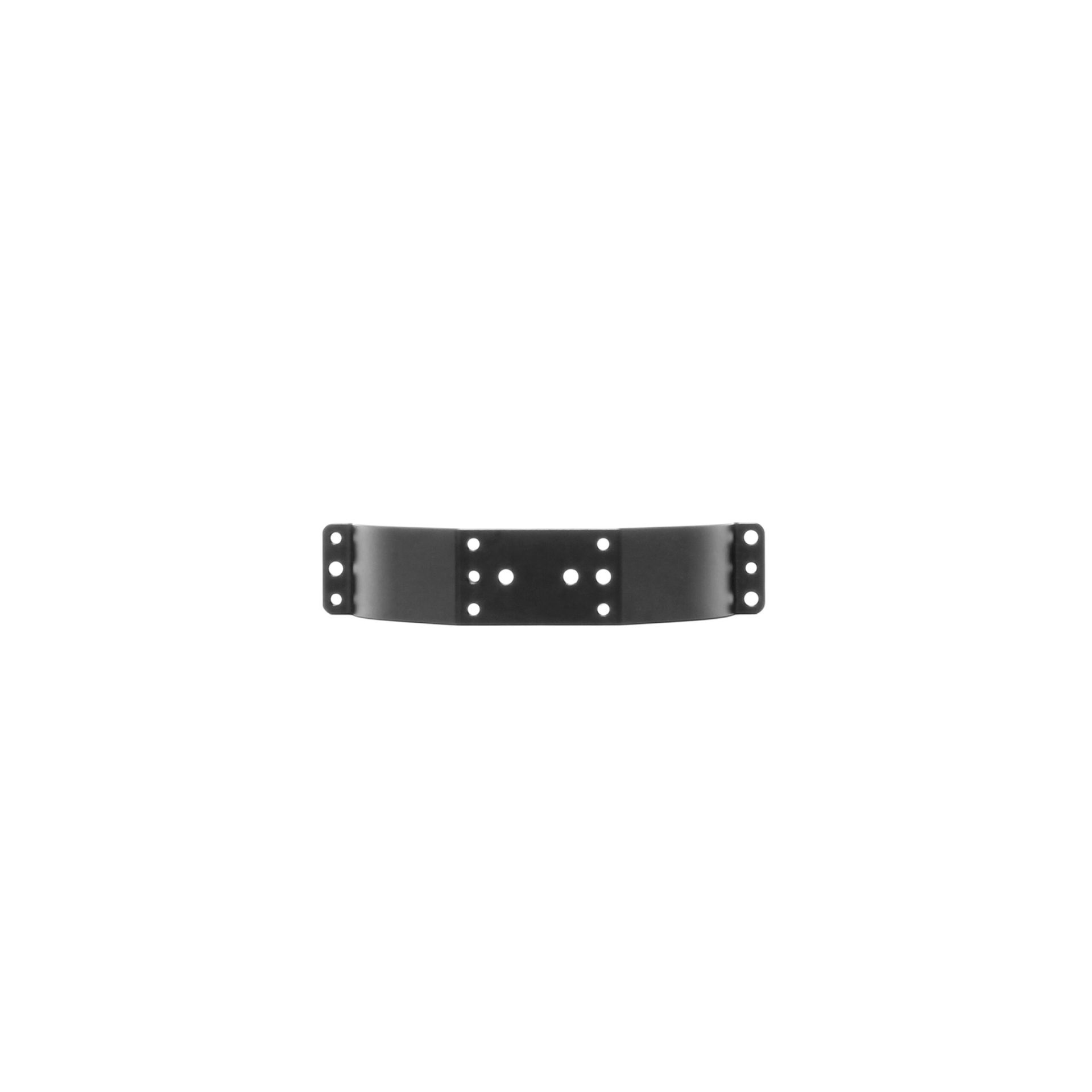

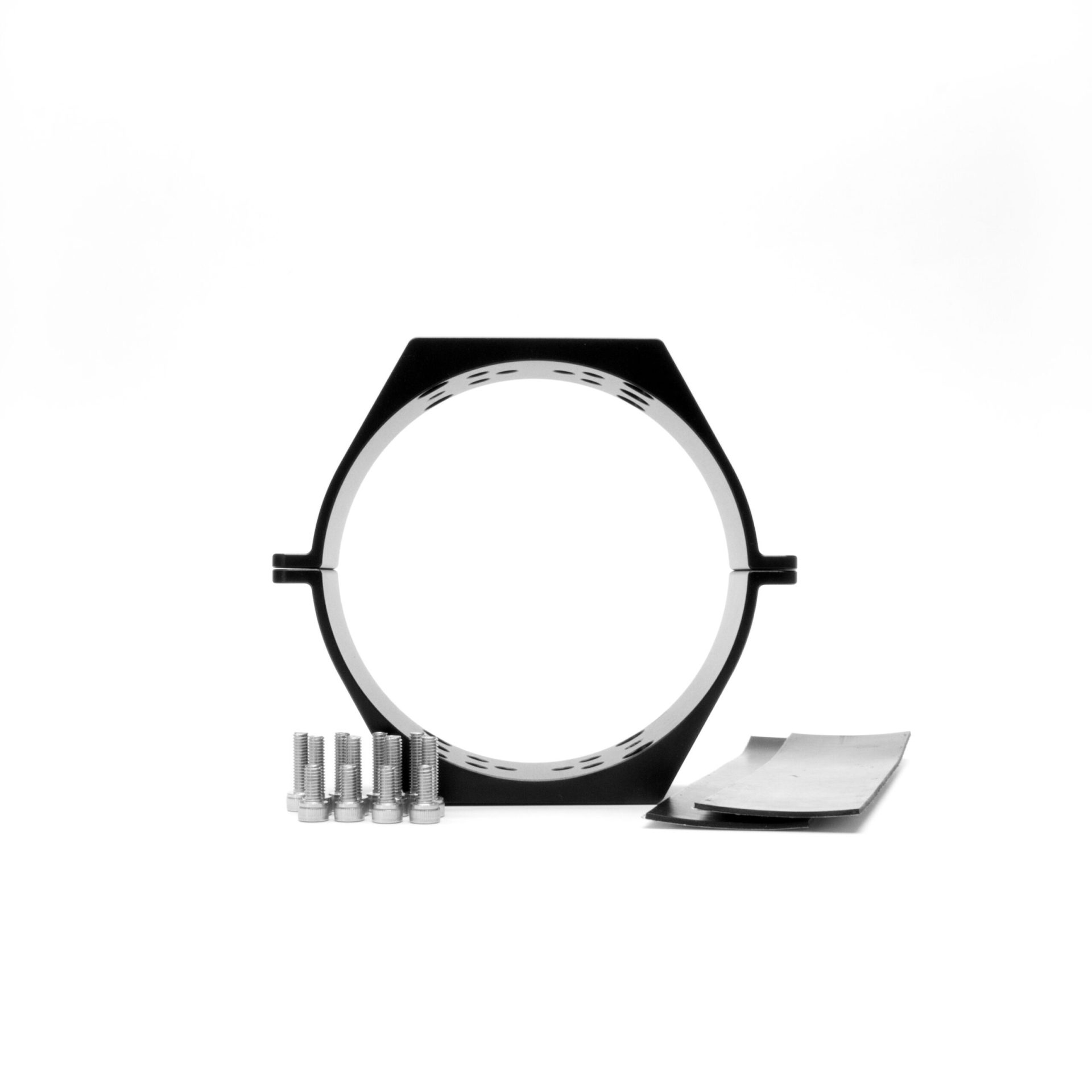

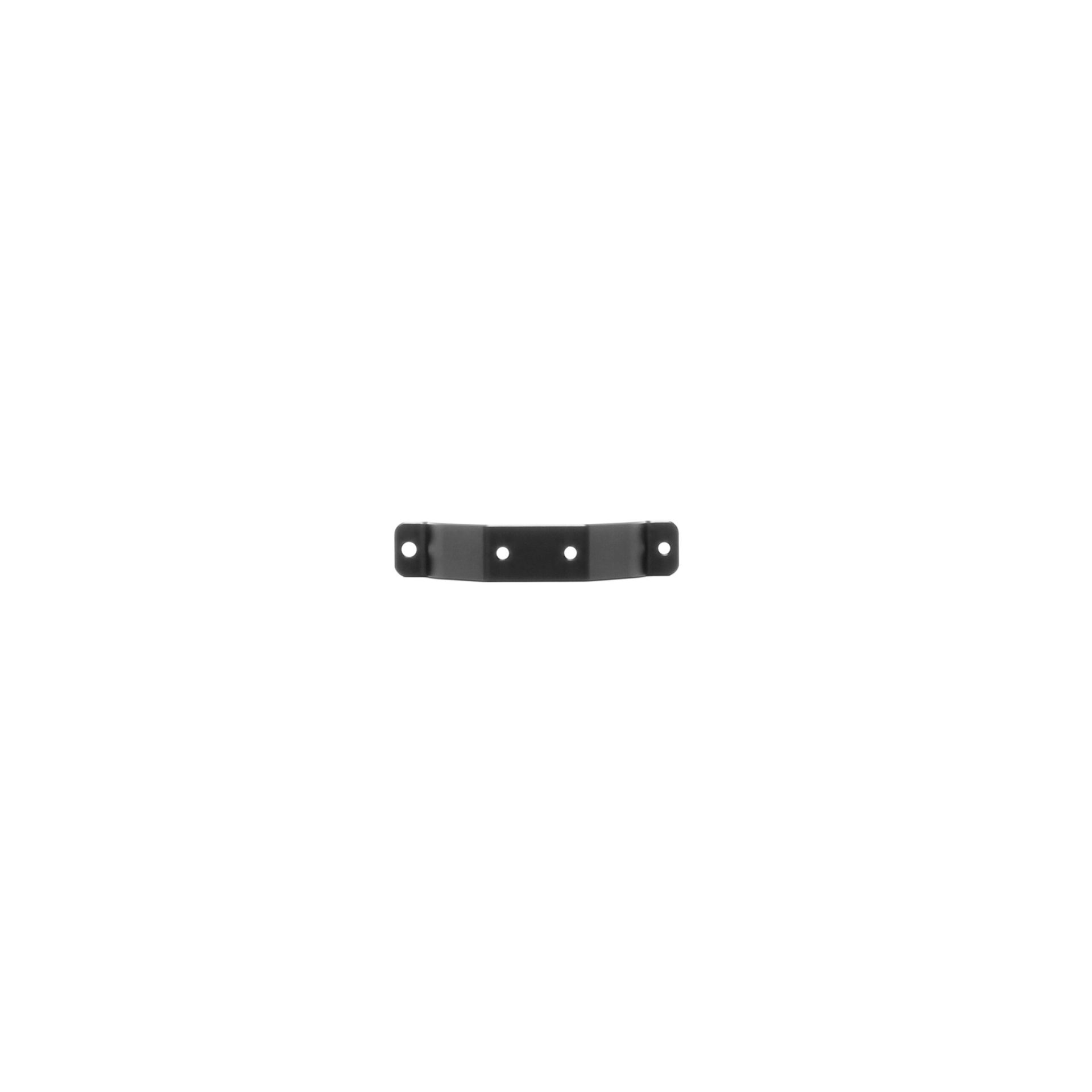

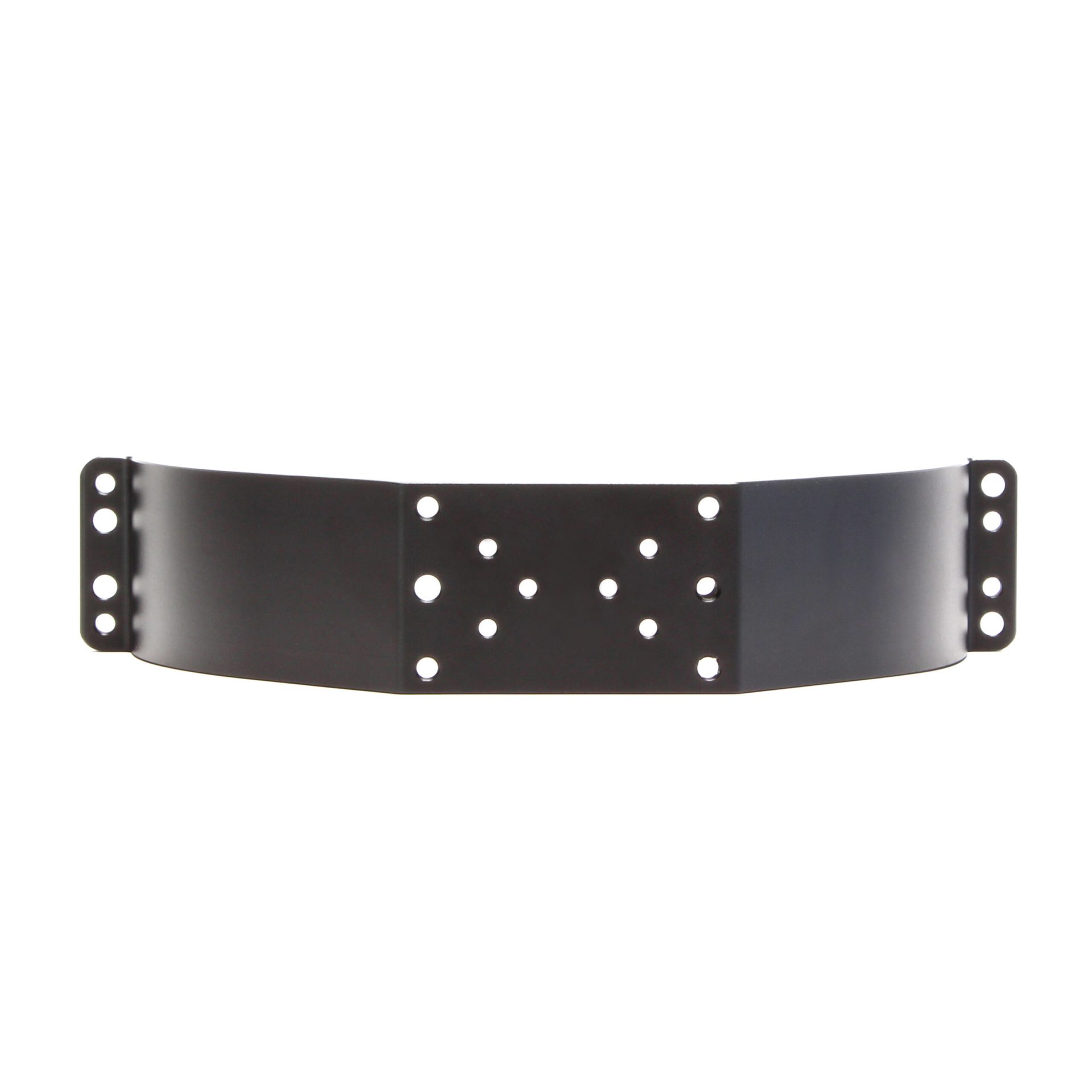

These anodized aluminum clamps for cylindrical Watertight Enclosures provide a simple and easy mounting solution. The threaded mounting holes allow the watertight enclosure to be mounted flush to the structure of your vehicle or on a Payload Skid for the BlueROV2.

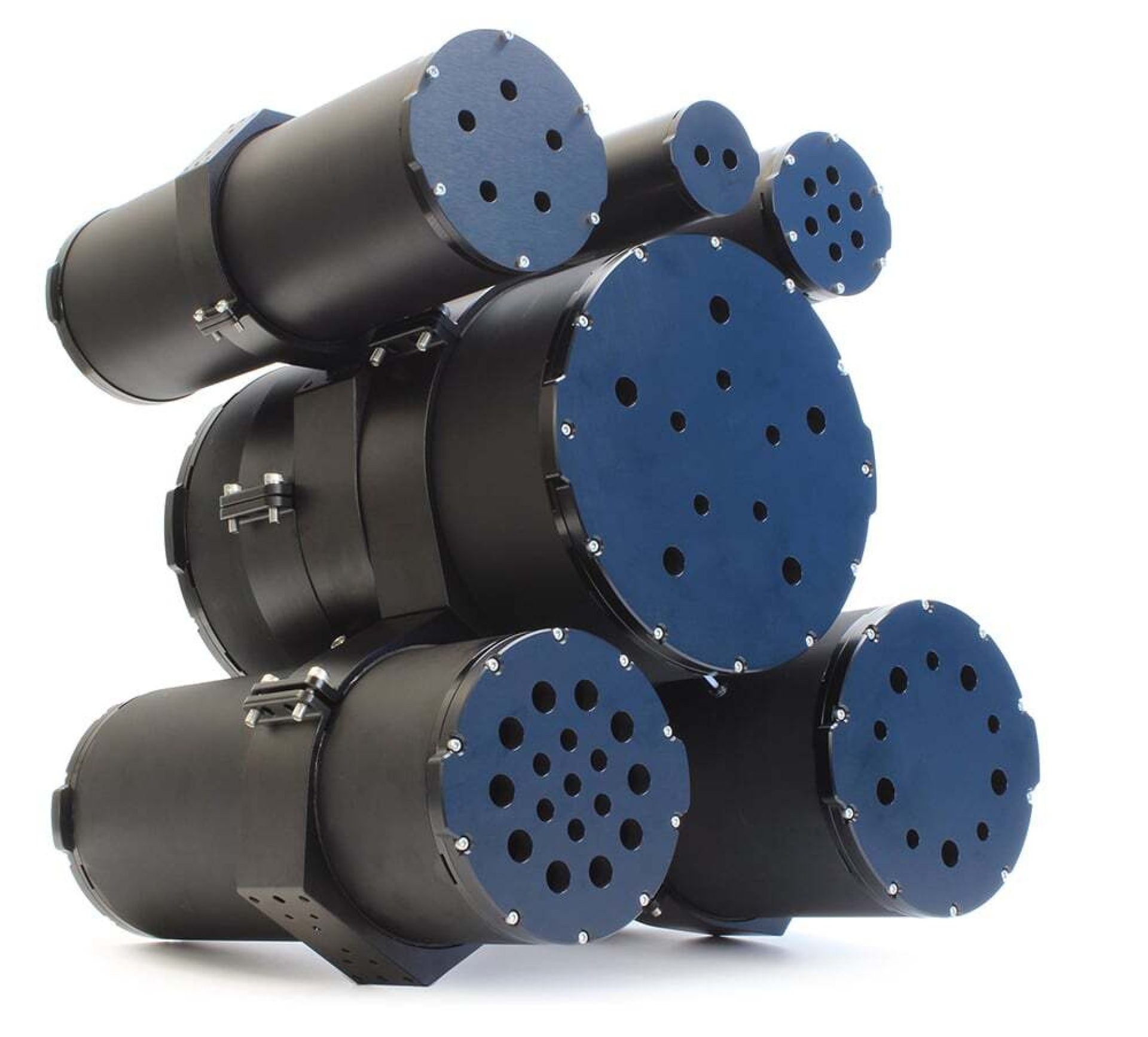

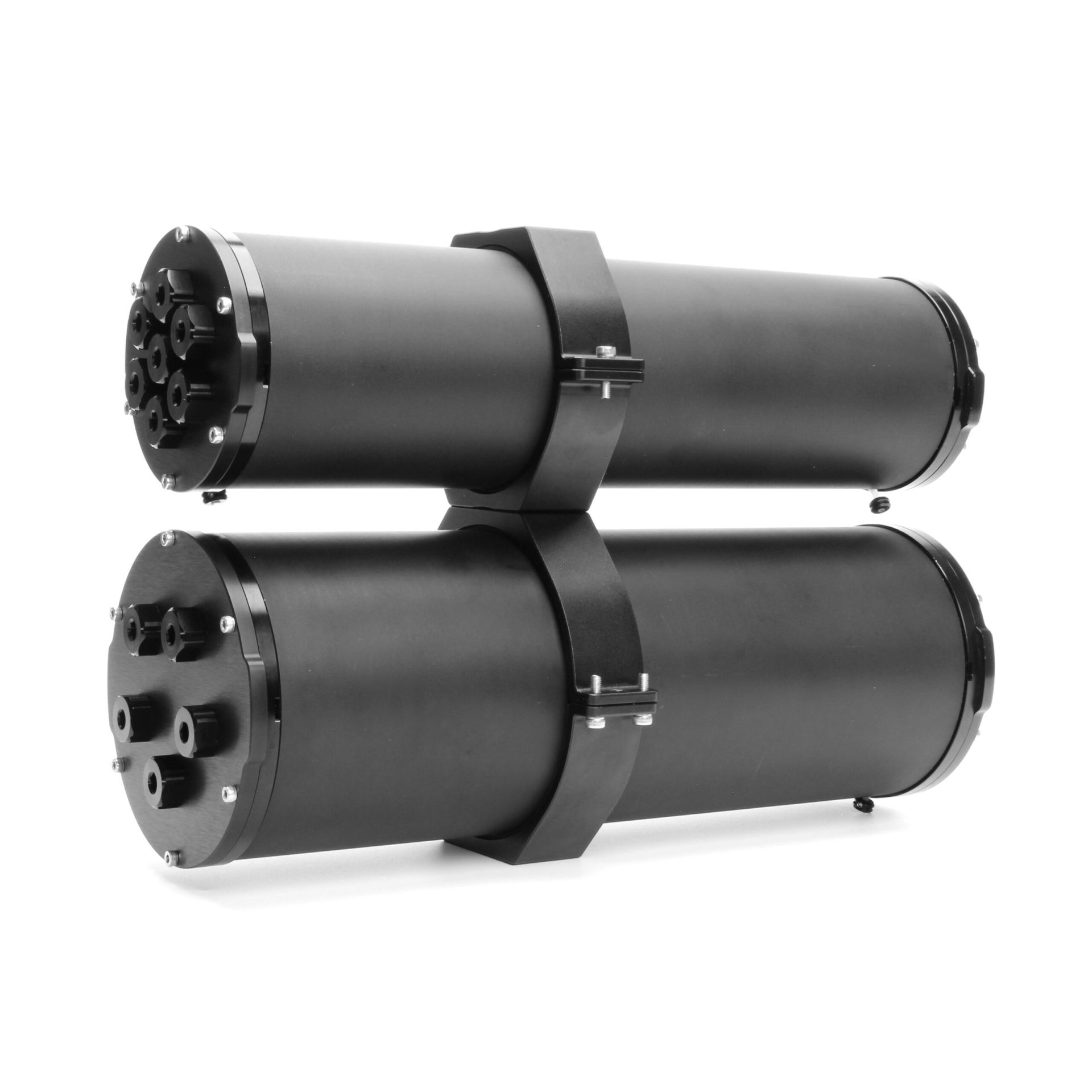

The unique mounting hole pattern allows any clamp to attach to any other clamp, opening up all sorts of possibilities for custom enclosure configurations.

Technical Specifications

Series DiameterMaterialsLength (A)Height (B)Length (C)Radius (D)Width (E)Clamping Screw Holes (F)Mounting Screw Holes (G)Weight ¹Part Number
50 mm (2")Aluminum 6061-T6, type III anodized
Buna-N 50A
Stainles steel 316		87.2 mm35.9 mm27 mm30.85 mm17.0 mmM4x0.72x M4x0.754 gBR-102710-002
75 mm (3")119.4 mm50.0 mm47 mm46.05 mm30.0 mm4x M4x0.7161 gBR-102710-003
100 mm (4")144.9 mm62.8 mm47 mm58.75 mm30.0 mm192 gBR-102710-004
130 mm (5")177.8 mm78.1 mm80 mm71.35 mm53.0 mmM6x1.04x M6x1.0599 gBR-102710-005
150 mm (6")203.1 mm90.6 mm80 mm83.95 mm53.0 mm645 gBR-102710-006
200 mm (8")255.6 mm116.1 mm80 mm109.1 mm53.0 mm822 gBR-102710-008
¹ In air weight of two clamps, rubber strips, and clamping hardware.
