WetLink Bulkhead Wrench - M10

WetLink Bulkhead Wrench - M10

£16.99

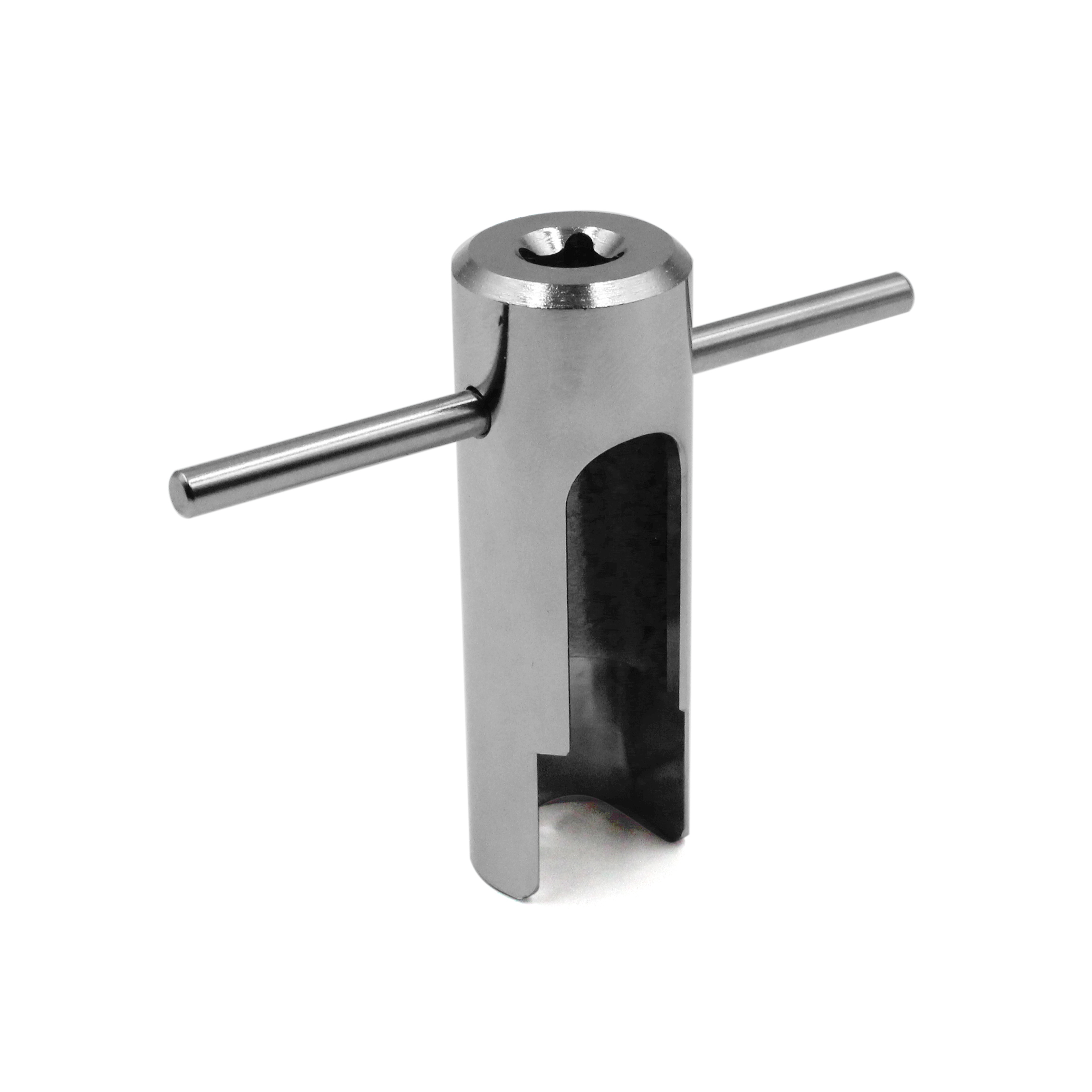

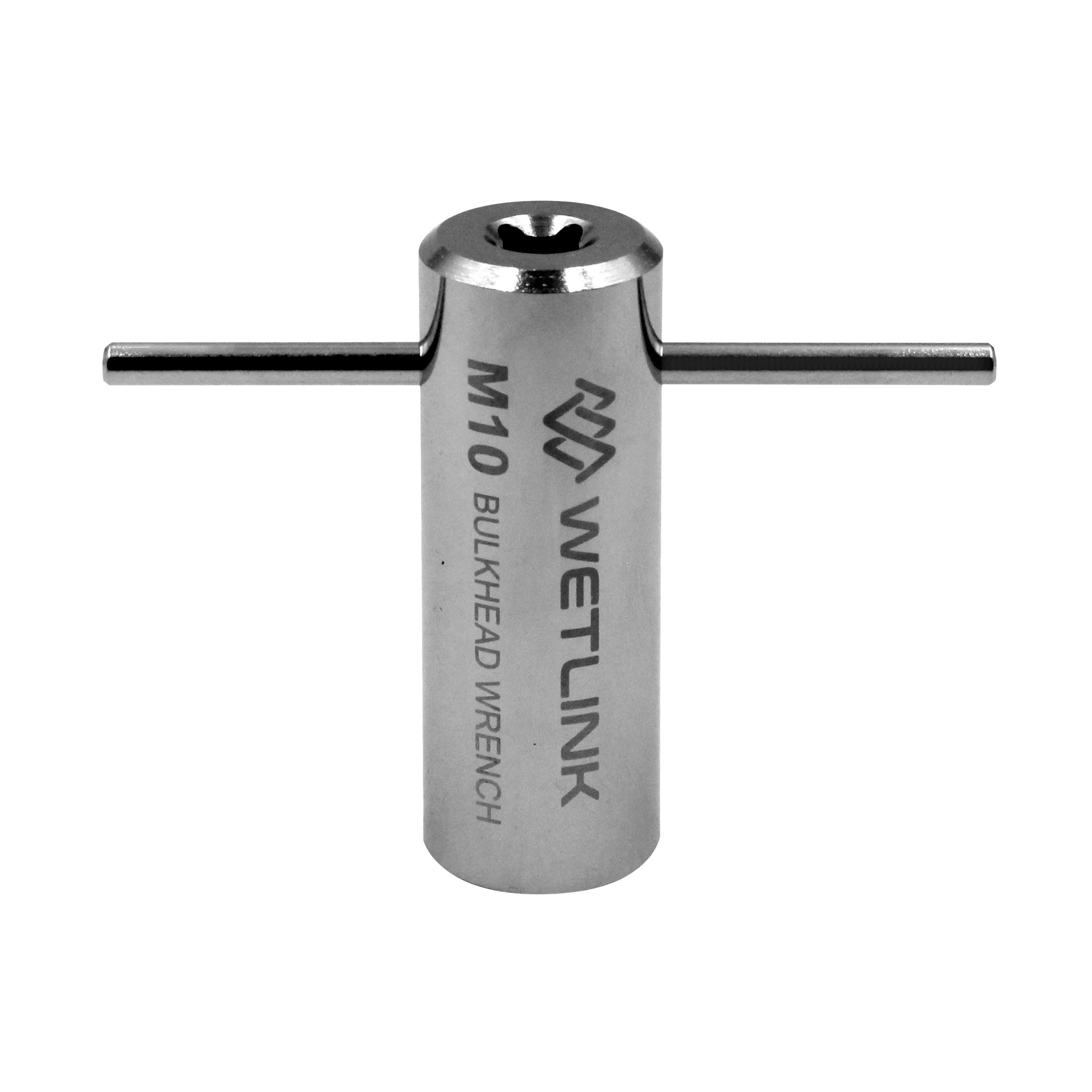

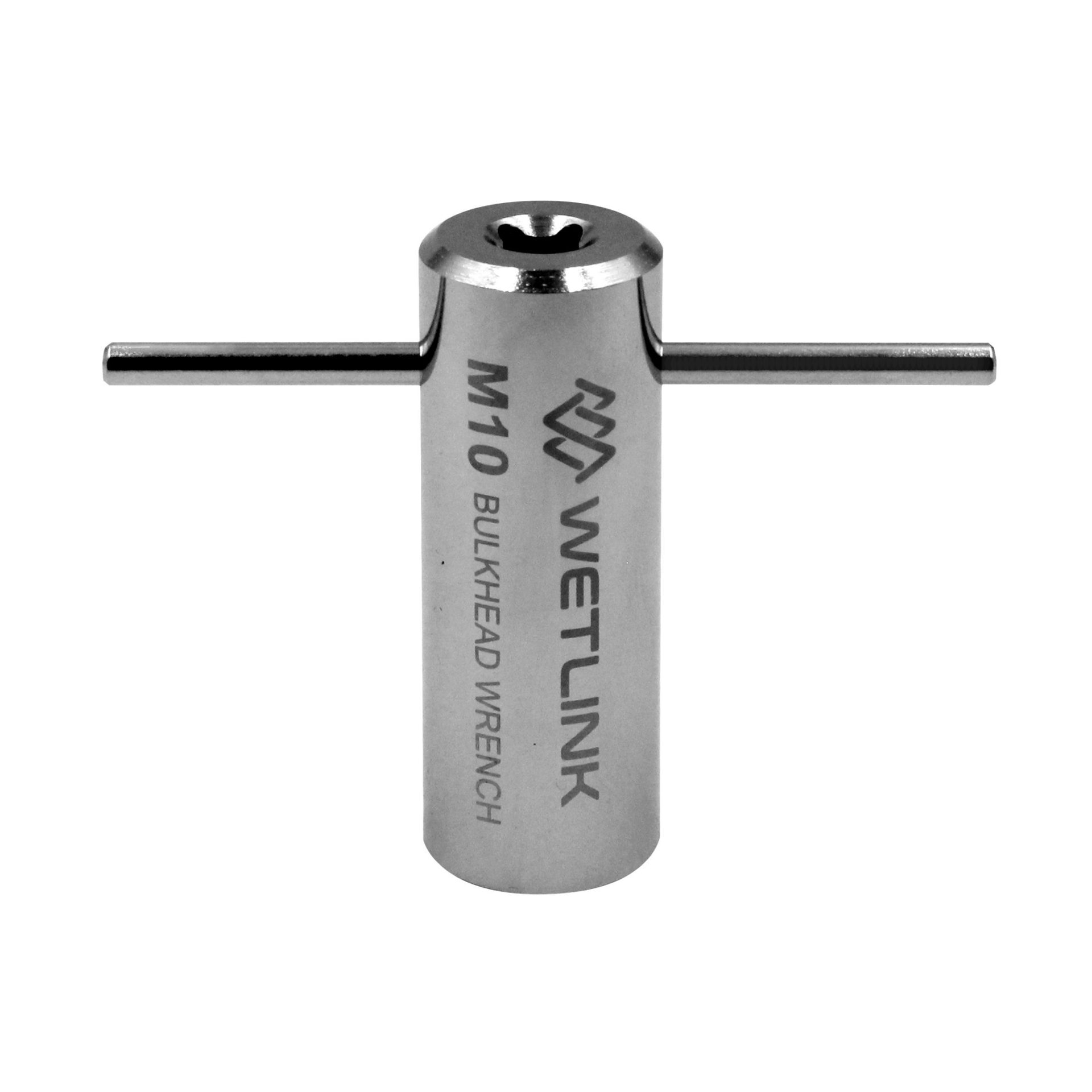

Easily and securely tighten cable penetrators and bulkheads in tight quarters with this specially designed wrench! It’s made of hardened tool steel for a long life and has a square drive socket adapter to be used with a socket wrench.
£16.99

Product Description

The cable penetrators and bulkheads have wrench flats that making tightening relatively easy, but when you pack a bunch of them together it gets more difficult. That’s particularly true with the 18-hole end-cap used on the BlueROV2. This specially designed wrench makes it easy to tighten penetrators in tight spaces.

The wrench is made of hardened chrome-plated steel and includes a lever bar designed to apply just the right amount of torque to tighten the penetrator. This tool is a great addition to your field toolbox!

Note: We recommend tightening the penetrators with your fingers and then use this wrench to tighten them an additional ~1/16 of a turn. When done, you should not be able to remove the penetrators by hand.

Technical Specifications

Specifications

Bulkhead Wrench SizeM06M10M14
Part NumberBR-100977-006BR-100977-010BR-100977-014
MaterialChrome-plated steel hardened to HRC 32-36
Square Drive Size1/4 in (6.3 mm)3/8 in (9.5 mm)
Wrench Flats12 mm16 mm20 mm
Penetrator CompatibilityAll M06 size bulkheadsAll M10 size bulkheadsAll M14 size bulkheads

WLP Tool Information

Seal SizeBulkhead SizeBulkhead WrenchBulkhead/Nut Flat SizeBulkhead Installation TorquePlug WrenchPlug Hex SizePlug Installation Torque ²
4.5M06BR-100977-00612 mm1 N⋅mBR-100369-01111 mm14 N⋅m
4.5M10BR-100977-01016 mm3.5 N⋅mBR-100369-01111 mm14 N⋅m
5.5, 6.5, 7.5, 8.5M10BR-100977-01016 mm3.5 N⋅mBR-100369-01414 mm14 N⋅m
9.5M14BR-100977-01420 mm3.5 N⋅mBR-100369-01818 mm20 N⋅m
¹ The WetLink Penetrator Assembly Block is compatible with all WetLink Penetrator sizes.
² Plug installation torque is for known tested cables. Untested cables may need a higher installation torque to fully seat the plug.
