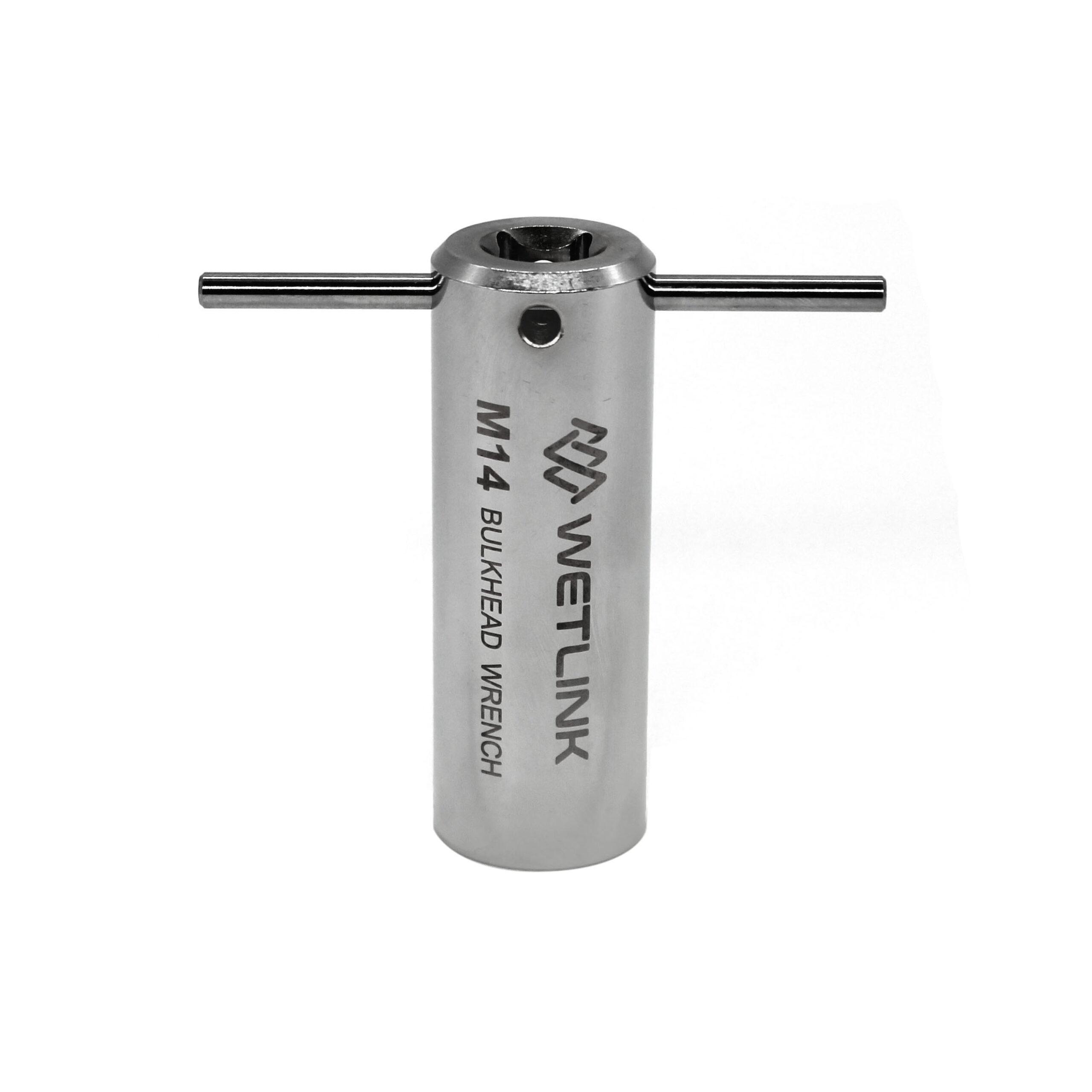

The cable penetrators and bulkheads have wrench flats that making tightening relatively easy, but when you pack a bunch of them together it gets more difficult. That’s particularly true with the 18-hole end-cap used on the BlueROV2. This specially designed wrench makes it easy to tighten penetrators in tight spaces.
The wrench is made of hardened chrome-plated steel and includes a lever bar designed to apply just the right amount of torque to tighten the penetrator. This tool is a great addition to your field toolbox!
Note: We recommend tightening the penetrators with your fingers and then use this wrench to tighten them an additional ~1/16 of a turn. When done, you should not be able to remove the penetrators by hand.
Bulkhead Wrench Size | M06 | M10 | M14 |
---|---|---|---|
Part Number | BR-100977-006 | BR-100977-010 | BR-100977-014 |
Material | Chrome-plated steel hardened to HRC 32-36 | ||
Square Drive Size | 1/4 in (6.3 mm) | 3/8 in (9.5 mm) | |
Wrench Flats | 12 mm | 16 mm | 20 mm |
Penetrator Compatibility | All M06 size bulkheads | All M10 size bulkheads | All M14 size bulkheads |
Seal Size | Bulkhead Size | Bulkhead Wrench | Bulkhead/Nut Flat Size | Bulkhead Installation Torque | Plug Wrench | Plug Hex Size | Plug Installation Torque ² |
---|---|---|---|---|---|---|---|
4.5 | M06 | BR-100977-006 | 12 mm | 1 N⋅m | BR-100369-011 | 11 mm | 14 N⋅m |
4.5 | M10 | BR-100977-010 | 16 mm | 3.5 N⋅m | BR-100369-011 | 11 mm | 14 N⋅m |
5.5, 6.5, 7.5, 8.5 | M10 | BR-100977-010 | 16 mm | 3.5 N⋅m | BR-100369-014 | 14 mm | 14 N⋅m |
9.5 | M14 | BR-100977-014 | 20 mm | 3.5 N⋅m | BR-100369-018 | 18 mm | 20 N⋅m |
¹ The WetLink Penetrator Assembly Block is compatible with all WetLink Penetrator sizes. ² Plug installation torque is for known tested cables. Untested cables may need a higher installation torque to fully seat the plug. |
