Products

WetLink Cable Splice Kit

SKU: BR-101170
£20.99
inc. VAT

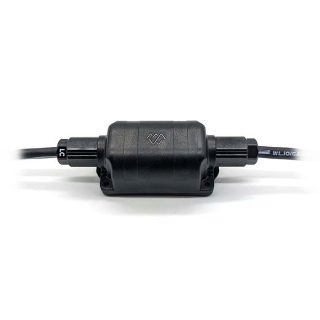

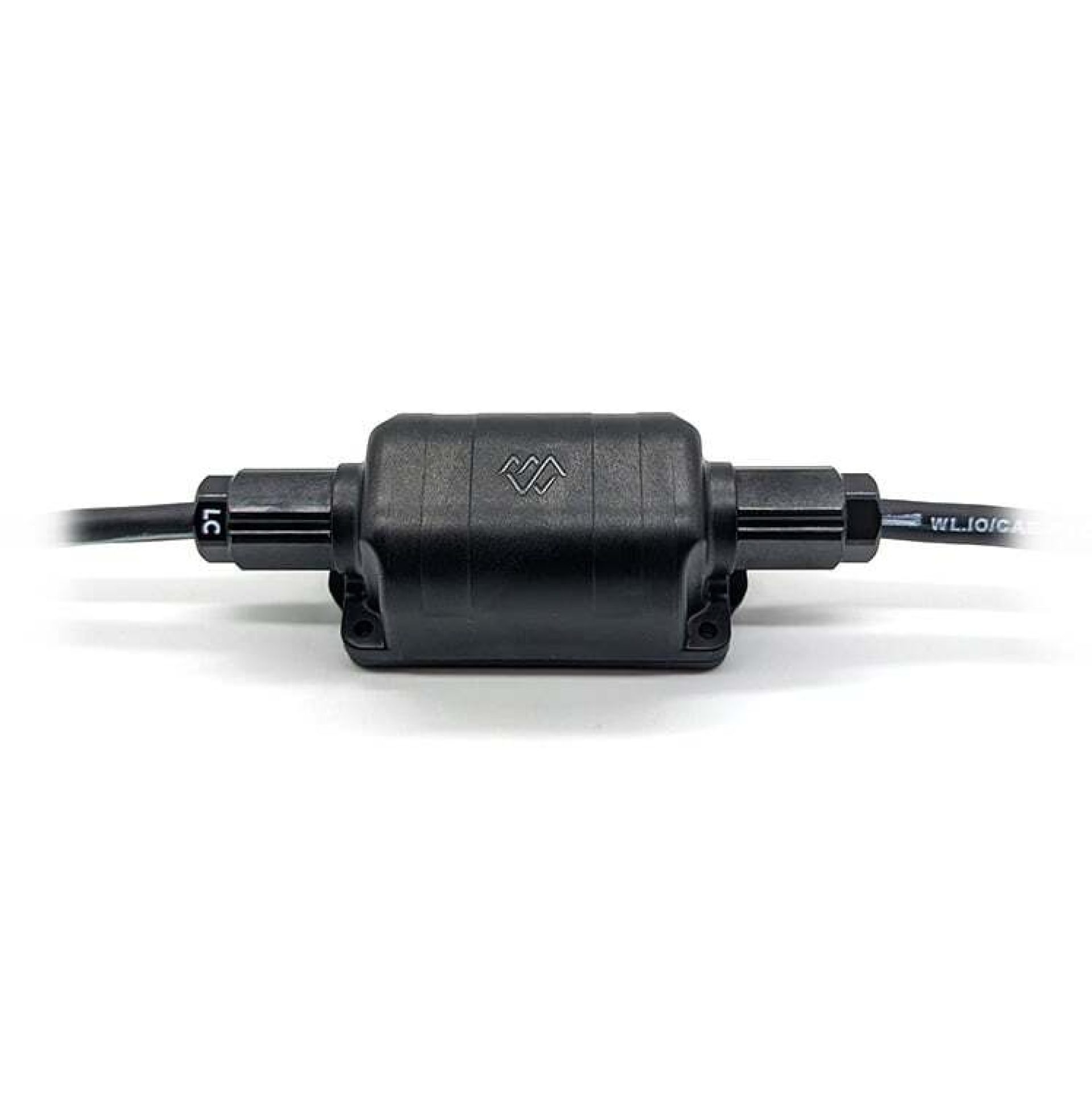

The WetLink Cable Splice Kit allows you to connect two cable ends without any messy potting compounds, molds, or curing time. Install WetLink Penetrators, connect the wire ends internally, and you have a splice ready to go to 500 meter depth!
£20.99
inc. VAT

Product Description

The WetLink Cable Splice Kit is a revolutionary alternative to the adhesive-based splice kits that are common in subsea work. Kits like the 3M™ Scotchcast™ Cable Splicing Kits require you to mix and pour urethane potting compound into a mould and wait for it to cure. It’s a finicky process that takes time and leaves lots of room for variation and error.

The WetLink Cable Splice solves that! It’s pottingless, requires no moulds, and has no cure time! You can make a high-pressure cable splice in just minutes.

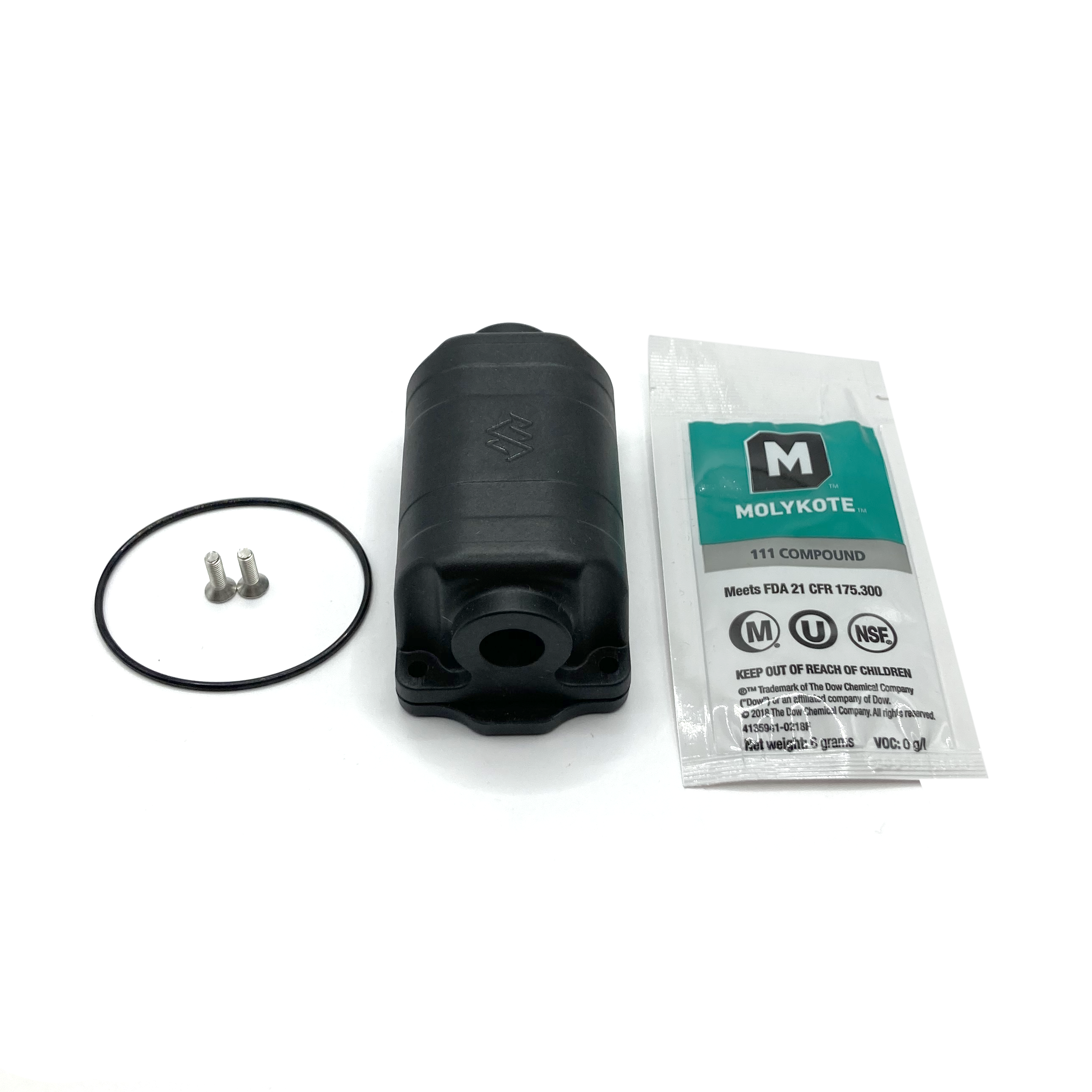

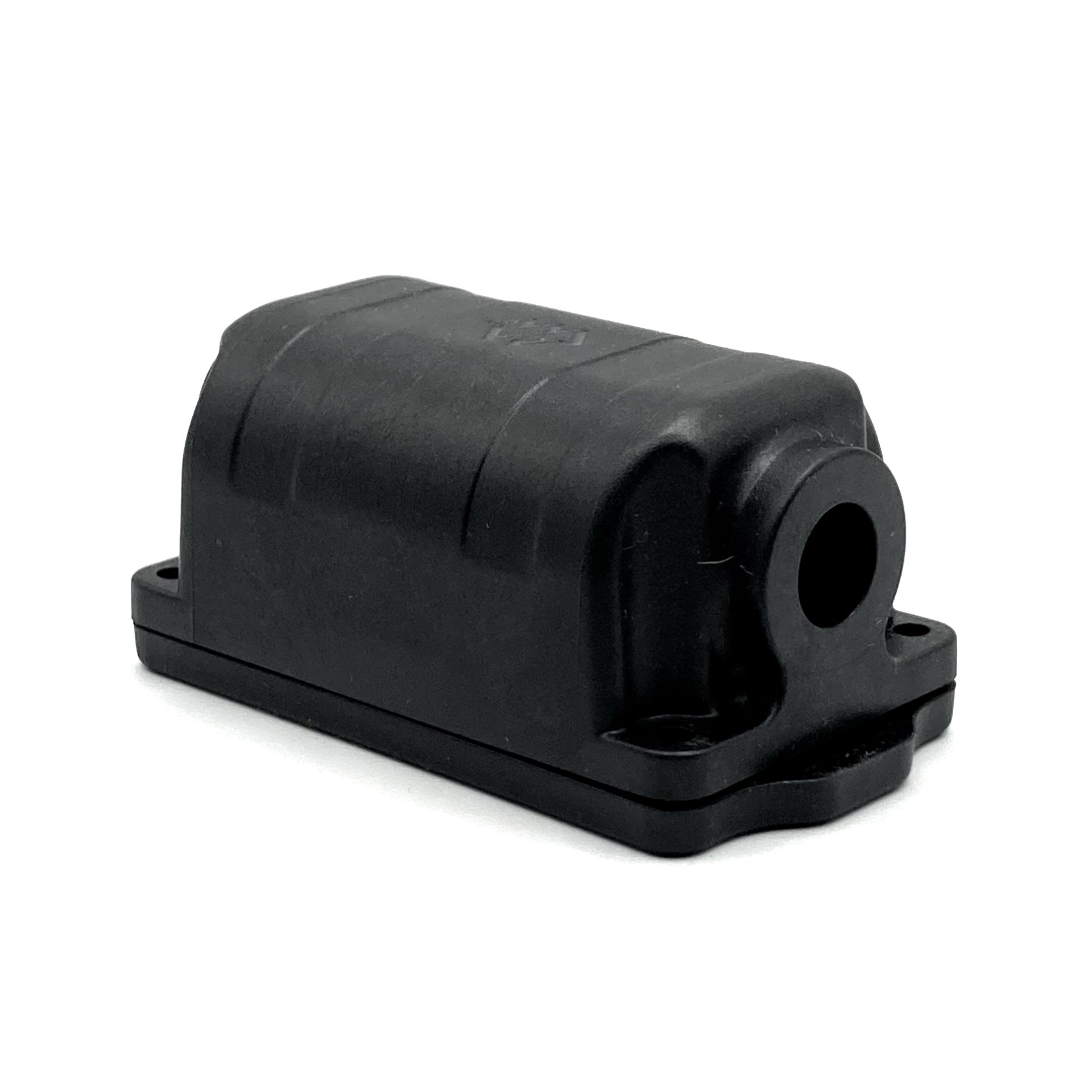

This kit includes a small box, made with high-strength polycarbonate plastic, with holes on either end for the WetLink Penetrators, which seal to just about any cable with a compression gland seal. To use this kit, you’ll need a few items:

You’ll need:

  • 1 x WetLink Cable Splice Kit (this product)
  • 2 x M10 WetLink Penetrators for your cable diameter

Goodbye, messy potting compound! Hello, WetLink! 👋

Technical Specifications

Specifications

ParameterValue
Performance
Temperature Rating (air)-25–60°C-13–140°F
Temperature Rating (water)0–40°C32–104°F
In Air Weight (No penetrators)64 g2.25 oz
In Water Weight (No penetrators)-11.2 g-0.4 oz
Maximum Rated Depth (seawater)500 m1640 ft
Design Lifetime¹3 years or 500 cycles to rated depth
Tools
Compatible Bulkhead WrenchBR-100977-010
Recommended Penetrator Installation Torque3.5 Nm
Lid Screw SizeM3x0.5 - 10
Lid Screw Hex Key Size2 mm
Physical
Internal Dimensions (Length x Width x Height)49 x 29 x 20 mm
Thru Hole Diameter10.1 mm
Mounting Hole Diameter3.2 mm
Mounting Hole Spacing32 x 60 mm
Lid O-Ring Size44 x 1.5 mm
Wetted MaterialsPolycarbonate 30% glass-filled
Buna-N
Molykote 111 compound
Stainless steel 316
¹ Design life was used to inform testing in an accelerated environment, does not reflect warranty period.

FAQs

Didn't find your answer?

Don't hesitate to contact us.
