WetLink Penetrator Blank (No Hole) - M06
WetLink Penetrator Blank (No Hole) - M06
£3.99

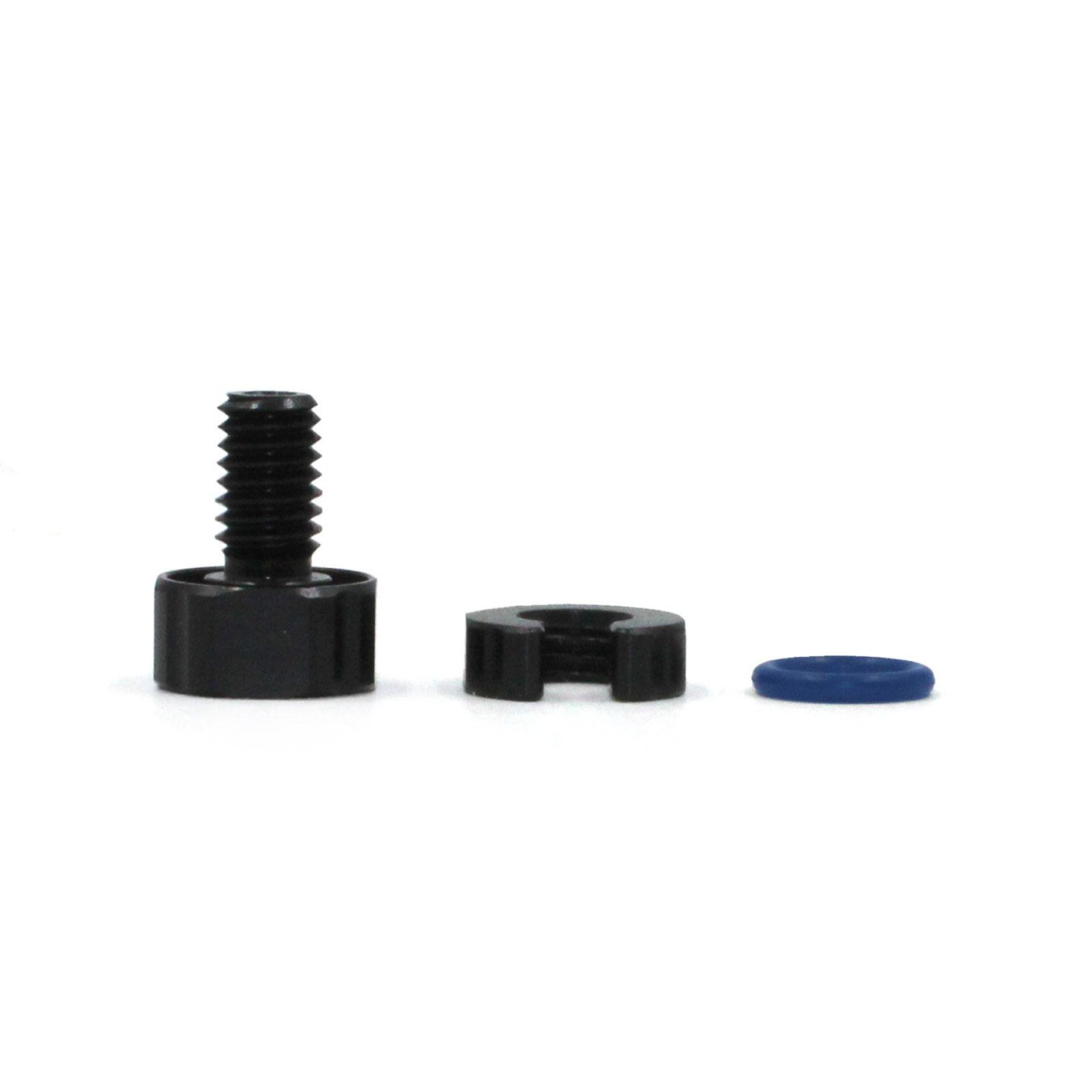

This WetLink Penetrator Blank is used to seal any unused holes on your watertight enclosure with a high-pressure seal. Each set includes a bulkhead, O-ring, and nut. It’s rated to 1000 meter (3,280 feet) water depth! We recommend the Bulkhead Wrench for easy installation!
£3.99
Product Description
This cable penetrator blank is provided with no hole. You can use it to seal an extra hole on a watertight enclosure! This blank features a hex socket for ease of installation!
The WetLink Penetrator (WLP) is our patent-pending, next-generation solution for low-cost, high pressure, high reliability sealing of electrical cables as they pass into enclosures or other devices. It’s rated to a depth of 1000 meters (3,280 feet) and compared to subsea connectors or penetrators, the WetLink Penetrator is a fraction of the cost while offering validated reliability that you can count on.
Technical Specifications
Specifications
| Parameter | M06 Thread | M10 Thread | M14 Thread |
|---|---|---|---|
| Part Number | BR-100434-006 | BR-100434-010 | BR-100434-014 |
| Performance Characteristics | |||
| Maximum Rated Depth (seawater) | 1000 m / 3280 ft | ||
| Design Lifetime¹ | 3 years or 500 cycles to rated depth | ||
| Temperature Rating | -40 to 60°C / -40 to 140°F | ||
| Tools | |||
| Compatible Bulkhead Wrench | BR-100977-006 | BR-100977-010 | BR-100977-014 |
| Physical | |||
| Bulkhead Thread Size | M6 | M10 | M14 |
| Bulkhead Thread Pitch | 1 mm | 1.5 mm | 1.5 mm |
| Bulkhead/Nut Wrench Flats | 12 mm | 16 mm | 20 mm |
| Hex Key | 3 mm | 6 mm | 6 mm |
| O-ring Size | 1.5 x 7 mm Buna-N 70A | AS568-013 Buna-N 70A | 1.5 x 15 mm Buna-N 70A |
| Overall Assembled Height from Endcap | 6 mm | 8 mm | 8 mm |
| Overall Thread Length | 10 mm | 20 mm | 25 mm |
| Overall Outer Diameter | 13 mm | 18 mm | 22 mm |
| Recommended Through Hole Size | 6.2 mm | 10.2 mm | 14.2 mm |
| Bulkhead Material | Aluminum 7075-T6, type II anodized | Aluminum 7075-T6, type III anodized | |
| In Air Weight (no nut) | 2.3 g | 6.6 g | 11.8 g |
| In Water Weight (no nut) | 1.5 g | 4.2 g | 9.3 g |
| Recommended Installation Torque (bulkhead or nut) | 1 N⋅m | 3.5 N⋅m | 3.5 N⋅m |
| ¹ Design life was used to inform testing in an accelerated environment, does not reflect warranty period. | |||
