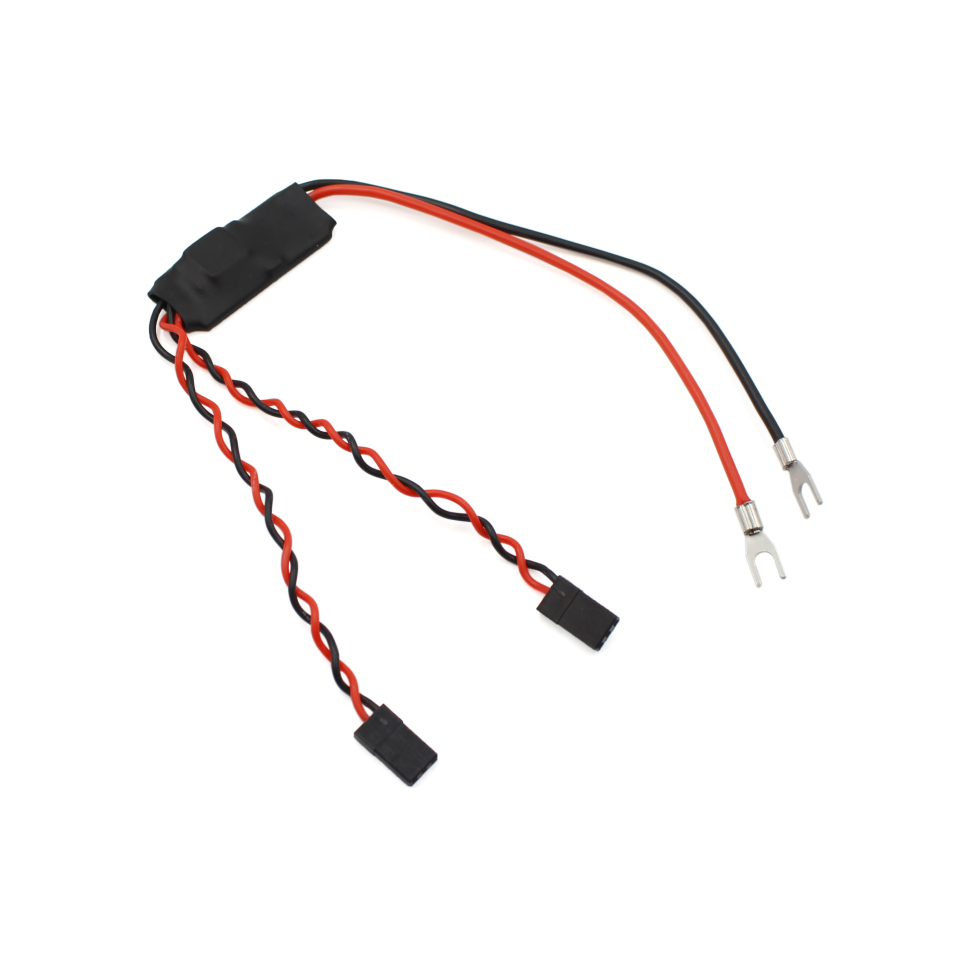

5V 6A Power Supply
SKU: BR-100869
£31.99
inc. VAT
£31.99
inc. VAT
Product Description
This power supply provides 5v power at up to 6A. It accepts input voltages from 7v to 26v and uses a switching converter with minimal heat loss. It comes with two standard servo-style connectors, making it easy to use to power the Navigator or Pixhawk 5v rail for servos, the Raspberry Pi, or other 5v devices.
Technical Specifications
| Parameter | Value | |
|---|---|---|
| Electrical | ||
| Supply Voltage | 7-26V | 2S-6S Li-po/Li-ion Battery |
| Output Voltage | 5 Volts DC | |
| Output Current (Max) | 6 Amps (combined output) | |
| Input Connector | Non-Insulated Spades | |
| Output Connectors | 3 position 0.1” (2.54mm) Crimp Connector Housing | |
| Physical | ||
| Length | 37 mm | 1.45 in |
| Width | 18 mm | 0.71 in |
| Height | 6 mm | 0.24 in |
| Input Wire Length | 140 mm | 5.5 in |
| Output Wire Length | 115 mm | 4.5 in |
