Basic ESC

SKU: BR-100344
£39.99
inc. VAT
An electronic speed controller (ESC) is necessary to run any three-phase brushless motor like Blue Robotics’ thrusters and motors.
£39.99
inc. VAT

Product Description

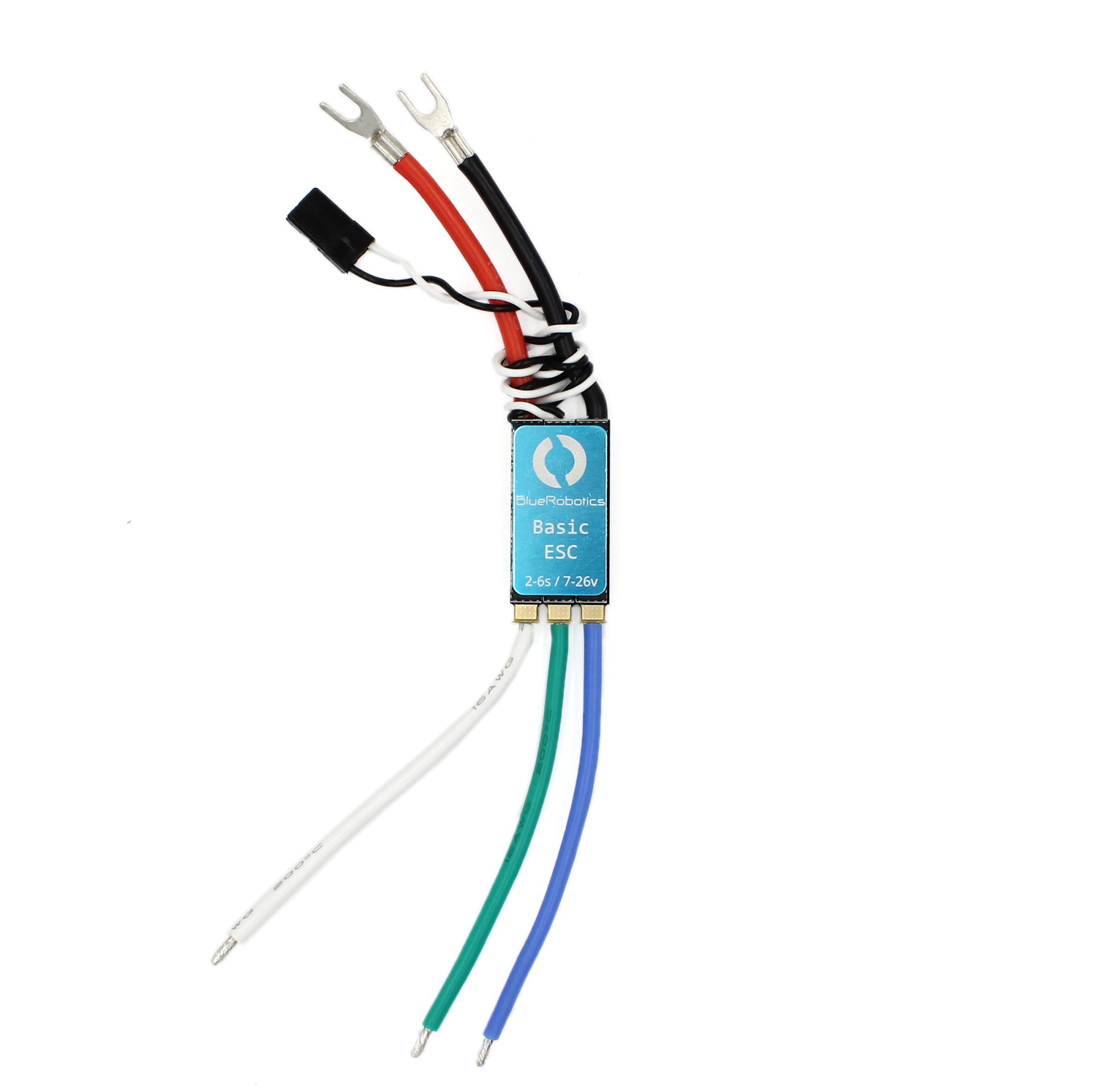

An electronic speed controller (ESC) is necessary to run any three-phase brushless motor like Blue Robotics’ thrusters and motors. This 30 amp ESC is sufficient for the T200 thruster and runs the BLHeli_S firmware.

Key Features

  • Simple, robust brushless electronic speed controller
  • Compact form factor
  • Forward/reverse rotation direction for forward/reverse thrust
  • Customizable settings in an easy-to-use interface
  • High-efficiency, low-heat design optimized for minimal cooling environments

Technical Specifications

ParameterValue
Electrical
Voltage7-26 V (2-6S)
Max Current (Constant)30 A (depending on cooling)
Physical
Weight16.3 g0.036 lb
Power ConnectorsSpade terminals for No. 6 screw
Motor ConnectorsTinned wire ends
Signal Connector3-pin servo connector (0.1” pitch) (ground, blank, signal)
Pulse Width Signal
Signal Voltage3.3-5 V
Max Update Rate400 Hz
Initialize/Stop1500 μs
Max forward1900 μs
Max reverse1100 μs
Signal Deadband+/- 25 μs (centered around 1500 μs)
Firmware Defaults
DirectionalityBidirectional (center throttle is zero/stopped)
Thermal ProtectionTemperatureMotor Power Limit
 ≥140℃75%
 ≥145℃50%
 ≥150℃25%
 ≥155℃0%
