BlueROV2 Electronics Enclosure (Aluminium - 300m)

Blue Robotics

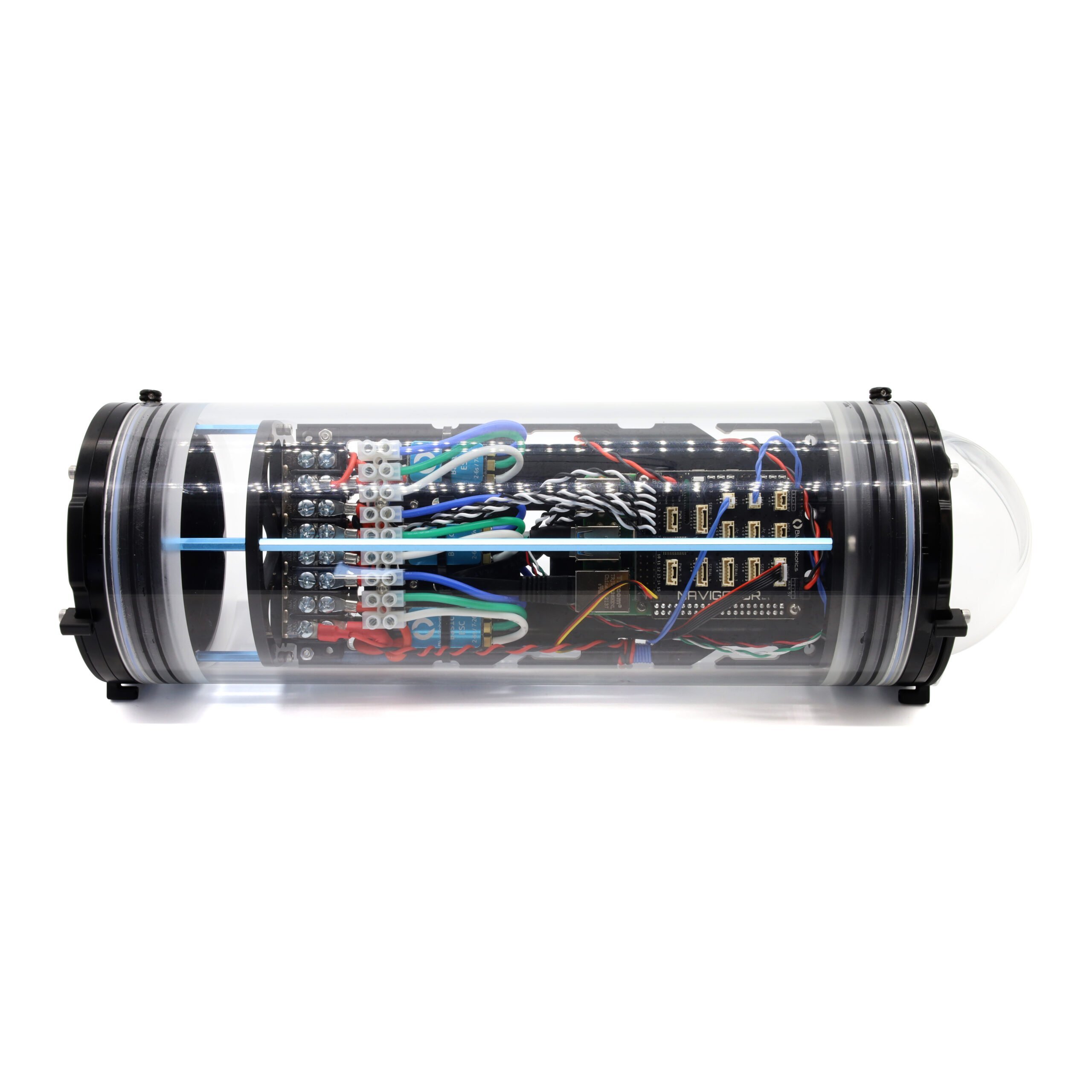

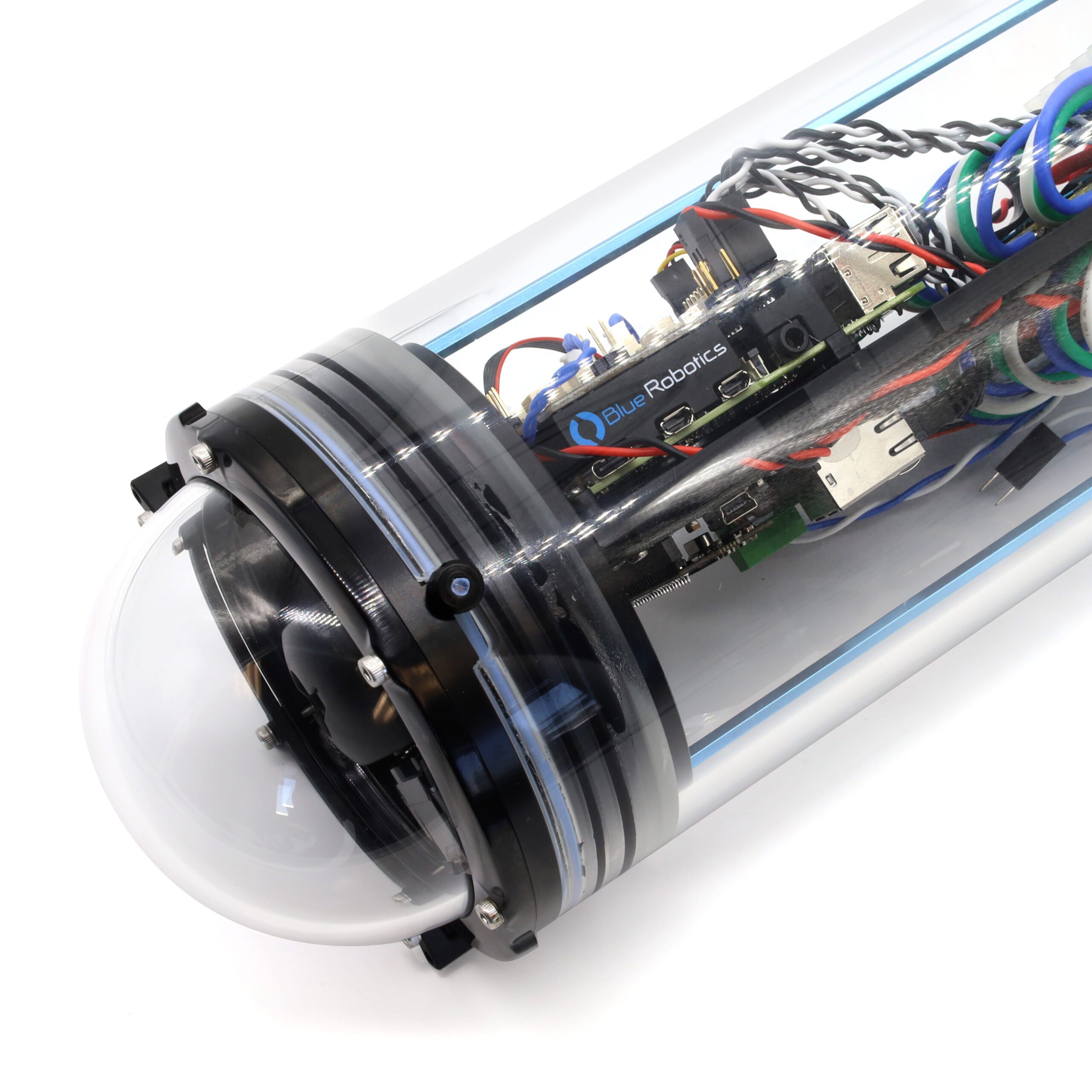

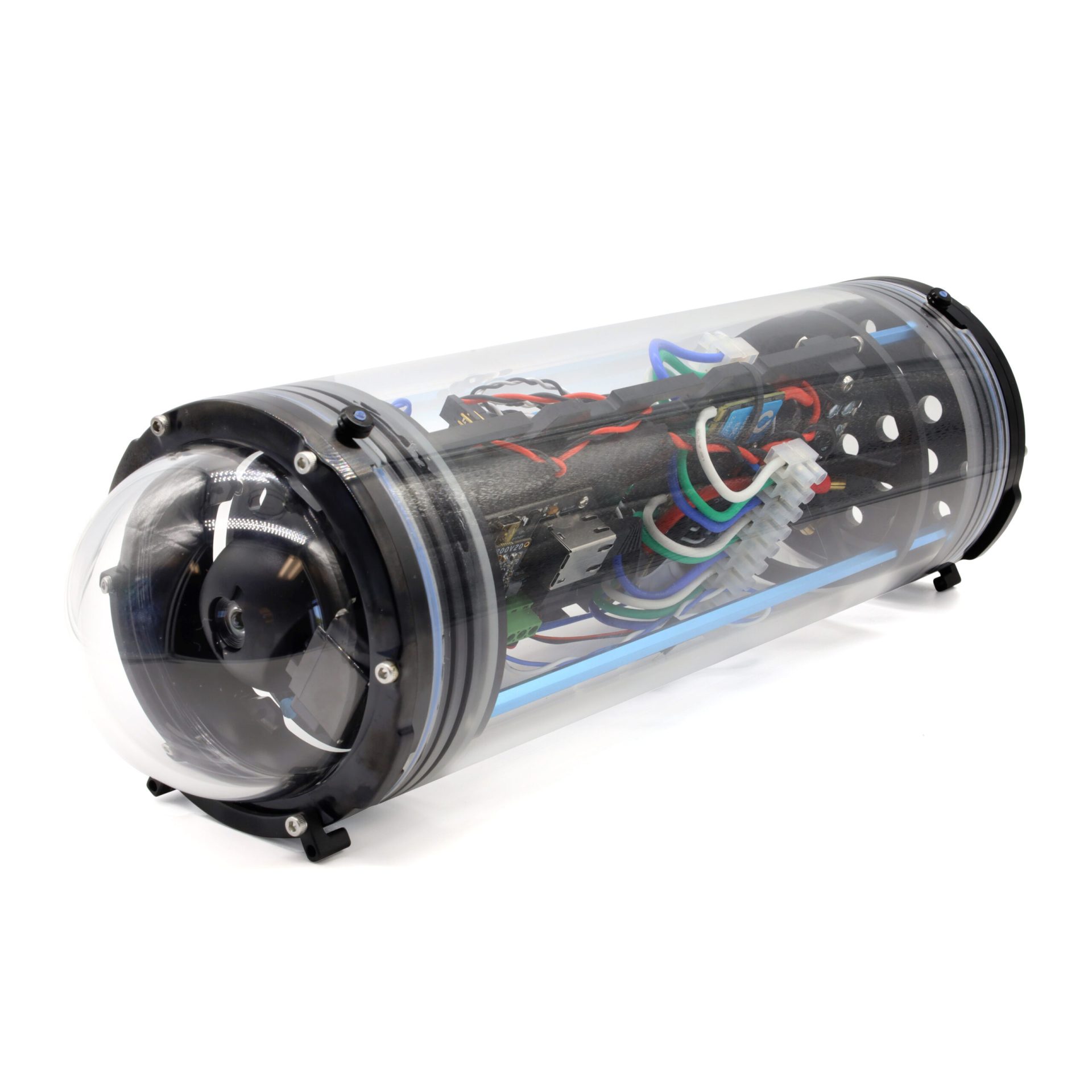

BlueROV2 Electronics Enclosure (Aluminium - 300m)

SKU: BR-100656-001

£2,400.00

inc. VAT

All BlueROV2 Products

Pre-assembled and tested with the BlueROV2 electronics, this enclosure is ready-to-integrate into your custom ROV frame or other application. It includes the 18-hole end cap with nothing installed. At minimum, we recommend including a Pressure Relief Valve, a pressure sensor like the Bar30 Pressure/Depth Sensor and the Power Cable Set to connect to a battery enclosure.

£2,400.00

inc. VAT

Product Description

This product includes the enclosure and electronics from the BlueROV2, pre-wired and ready to go! This is an excellent option if you are building a custom ROV frame and need a ready to use electronics and control solution!

Technical Specifications

Parameter	Value
Physical
Length	380 mm	15 in
Width	114 mm	4.5 in
Height	114 mm	4.5 in
Weight in Air	2.25 kg	5 lb
Cable Penetrator Holes	18x M10
Main Tube (Electronics Enclosure)	Blue Robotics 4" series WTE
Performance
Maximum Rated Depth	Depth rating depends on attached components. Please see component depth ratings table below.
Temperature Range	0–30°C	32–86°F
ESC	6x Blue Robotics Basic 30A ESC
Sensors
IMU	6-DOF IMU (on Navigator)
Compass	Dual 3-DOF magnetometers (on Navigator)
Internal pressure	Internal barometer (on Navigator)
Current and Voltage Sensing	Blue Robotics Power Sense Module
Camera Tilt
Tilt Range	+/- 90 degree camera tilt (180 total range)
Tilt Servo	Hitec HS-5055MG
Camera
Field of View (Underwater)	110 degrees (horizontal)
Light Sensitivity	0.01 lux
Resolution	1080p
Control System
Tether Interface Board	Fathom-X Tether Interface Board
Autopilot	Blue Robotics Navigator
Control Software	ArduSub + BlueOS
