BlueROV2 Electronics Enclosure (Acrylic - 100m)

SKU: BR-100656-002
£2,200.00
inc. VAT

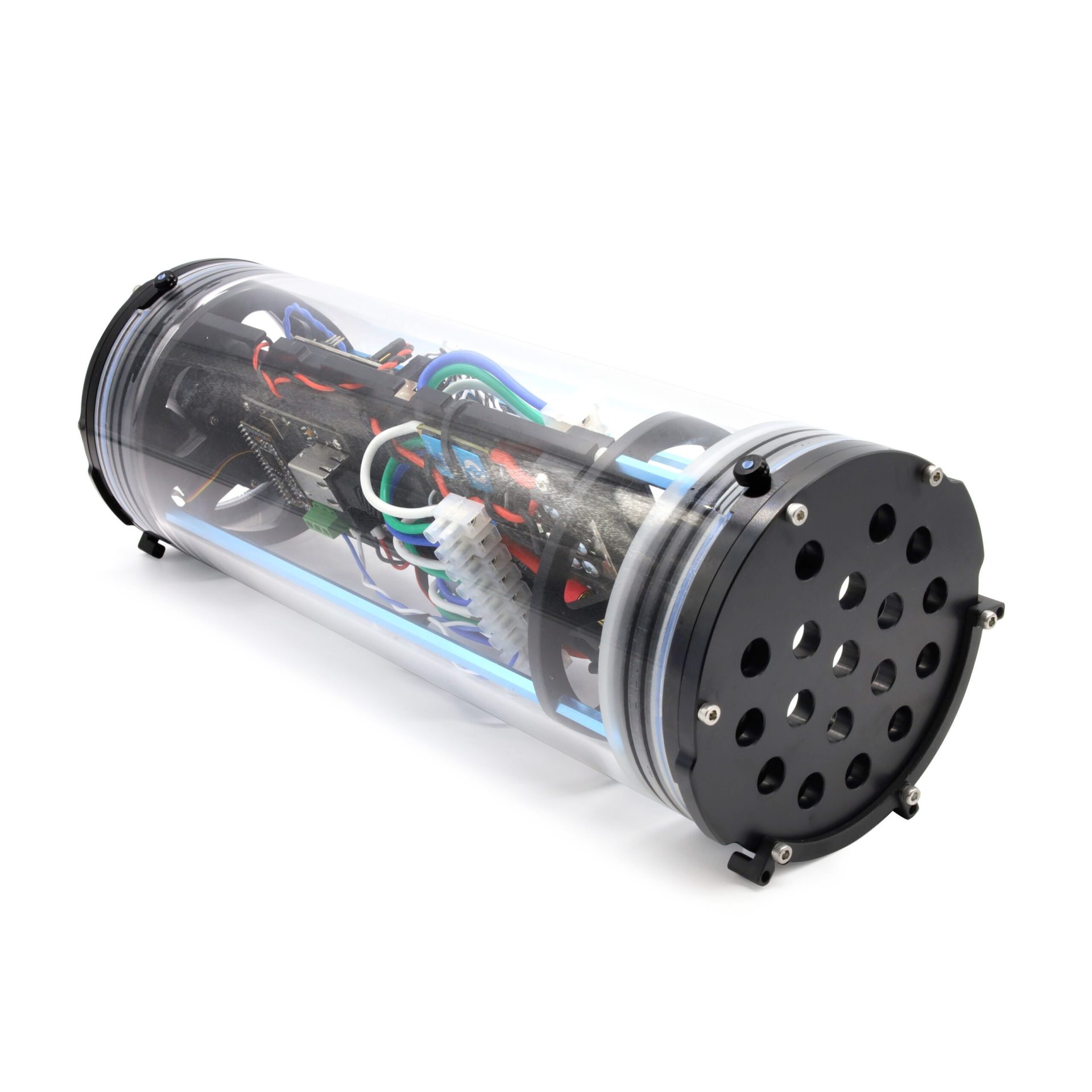

Pre-assembled and tested with the BlueROV2 electronics, this enclosure is ready-to-integrate into your custom ROV frame or other application. It includes the 18-hole end cap with nothing installed. At minimum, we recommend including a Pressure Relief Valve, a pressure sensor like the Bar30 Pressure/Depth Sensor and the Power Cable Set to connect to a battery enclosure.
£2,200.00
inc. VAT

Product Description

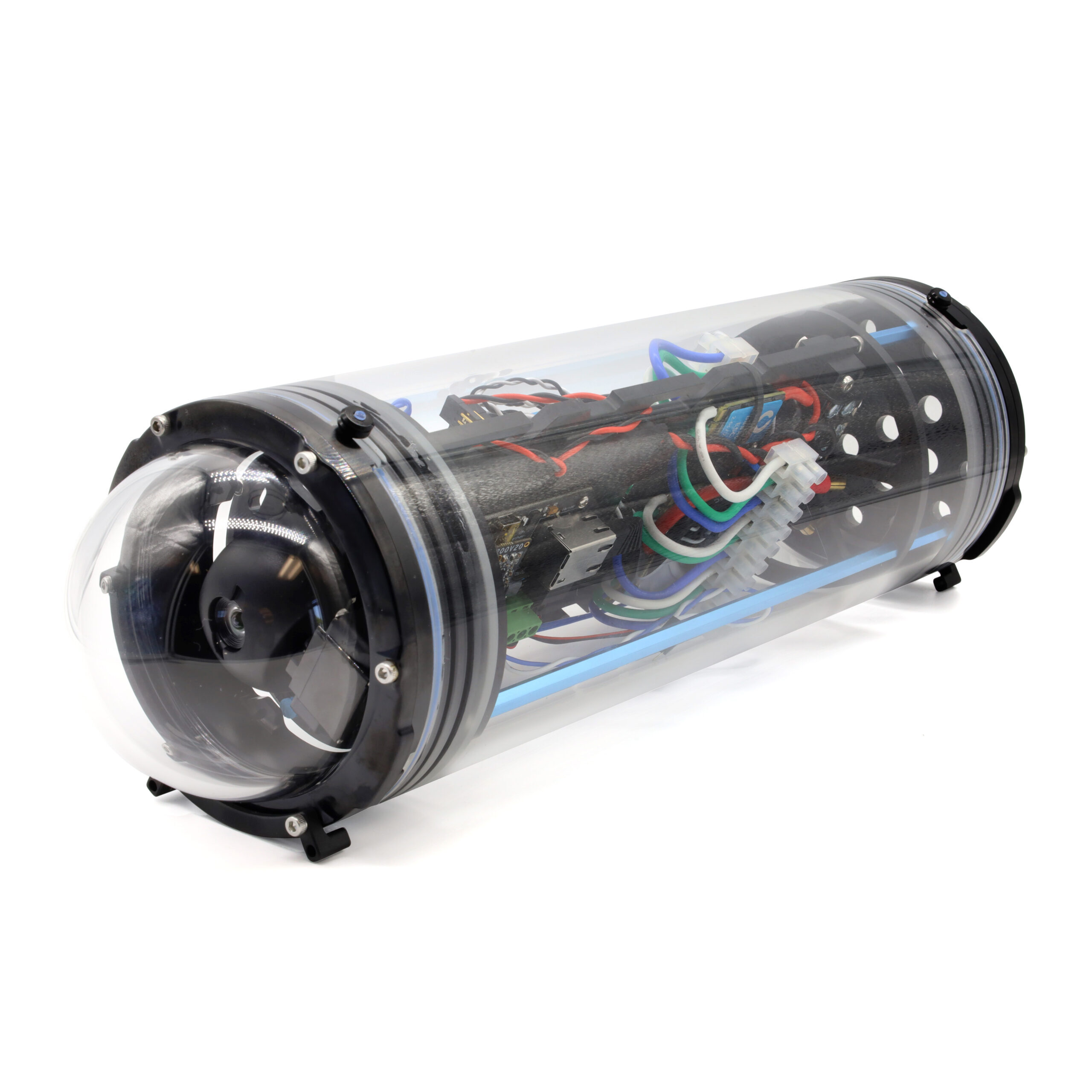

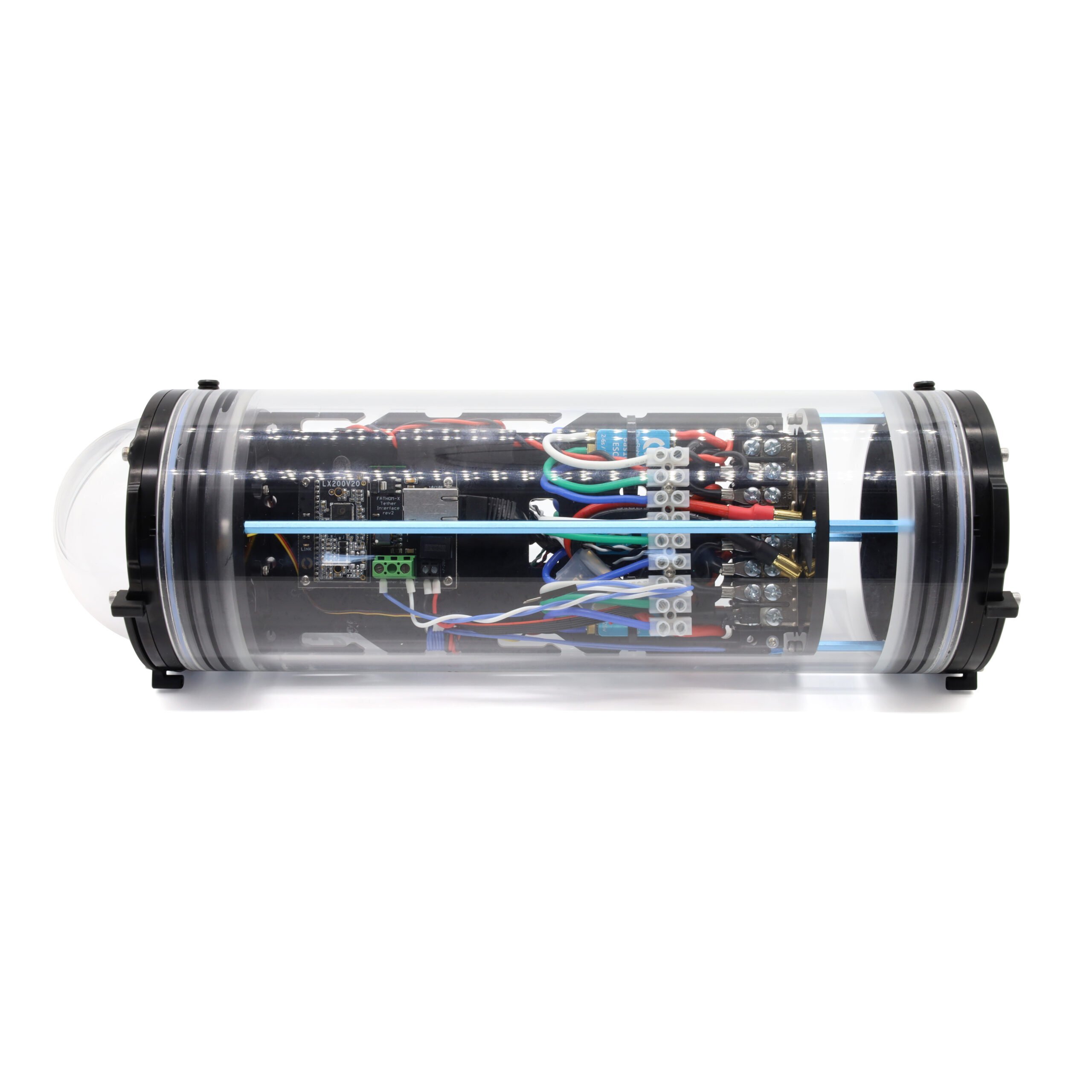

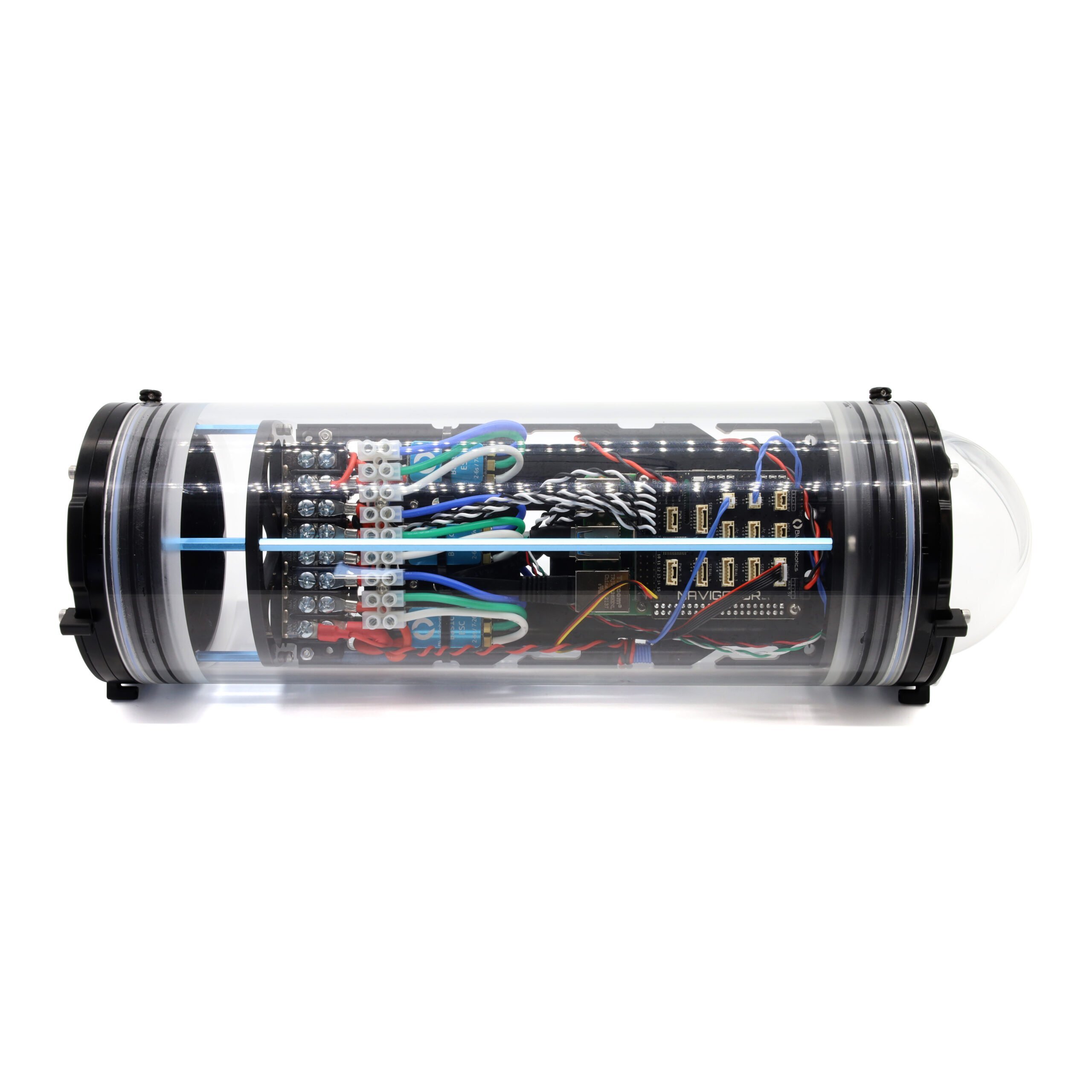

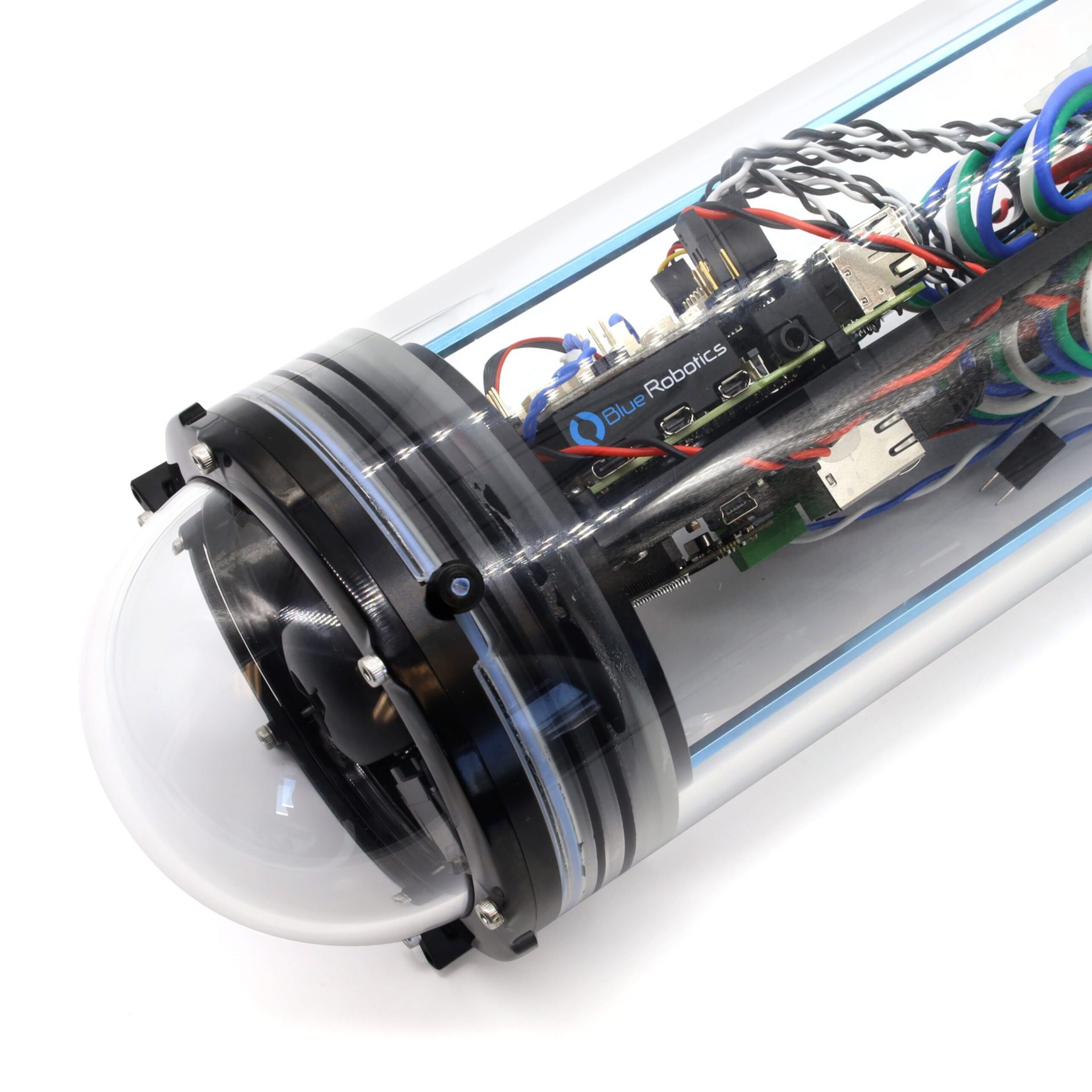

This product includes the enclosure and electronics from the BlueROV2, pre-wired and ready to go! This is an excellent option if you are building a custom ROV frame and need a ready to use electronics and control solution! - Please note the dome material is changing from acrylic to hardened polycarbonate

Technical Specifications

ParameterValue
Physical
Length380 mm15 in
Width114 mm4.5 in
Height114 mm4.5 in
Weight in Air2.25 kg5 lb
Cable Penetrator Holes18x M10
Main Tube (Electronics Enclosure)Blue Robotics 4" series WTE
Performance
Maximum Rated DepthDepth rating depends on attached components. Please see component depth ratings table below.
Temperature Range0–30°C32–86°F
ESC6x Blue Robotics Basic 30A ESC
Sensors
IMU6-DOF IMU (on Navigator)
CompassDual 3-DOF magnetometers (on Navigator)
Internal pressureInternal barometer (on Navigator)
Current and Voltage SensingBlue Robotics Power Sense Module
Camera Tilt
Tilt Range+/- 90 degree camera tilt (180 total range)
Tilt ServoHitec HS-5055MG
Camera
Field of View (Underwater)110 degrees (horizontal)
Light Sensitivity0.01 lux
Resolution1080p
Control System
Tether Interface BoardFathom-X Tether Interface Board
AutopilotBlue Robotics Navigator
Control SoftwareArduSub + BlueOS
