Camera Tilt System (USB Camera)

SKU: BR-101025

£61.99

inc. VAT

This camera tilt system provides up/down pitch tilting for a camera and attaches directly to the 4″ Series Electronics Tray. Used on the BlueROV2.

£61.99

inc. VAT

Product Description

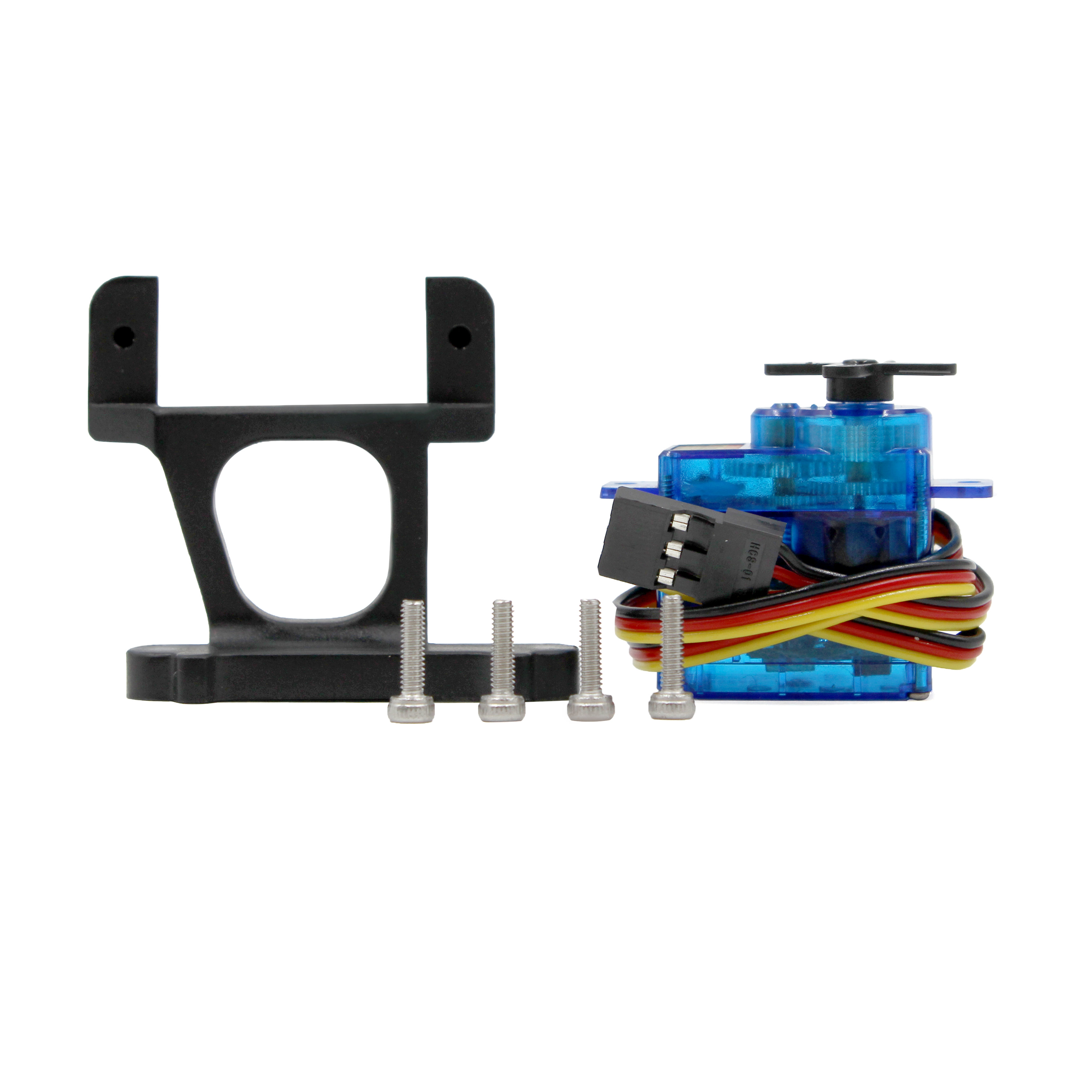

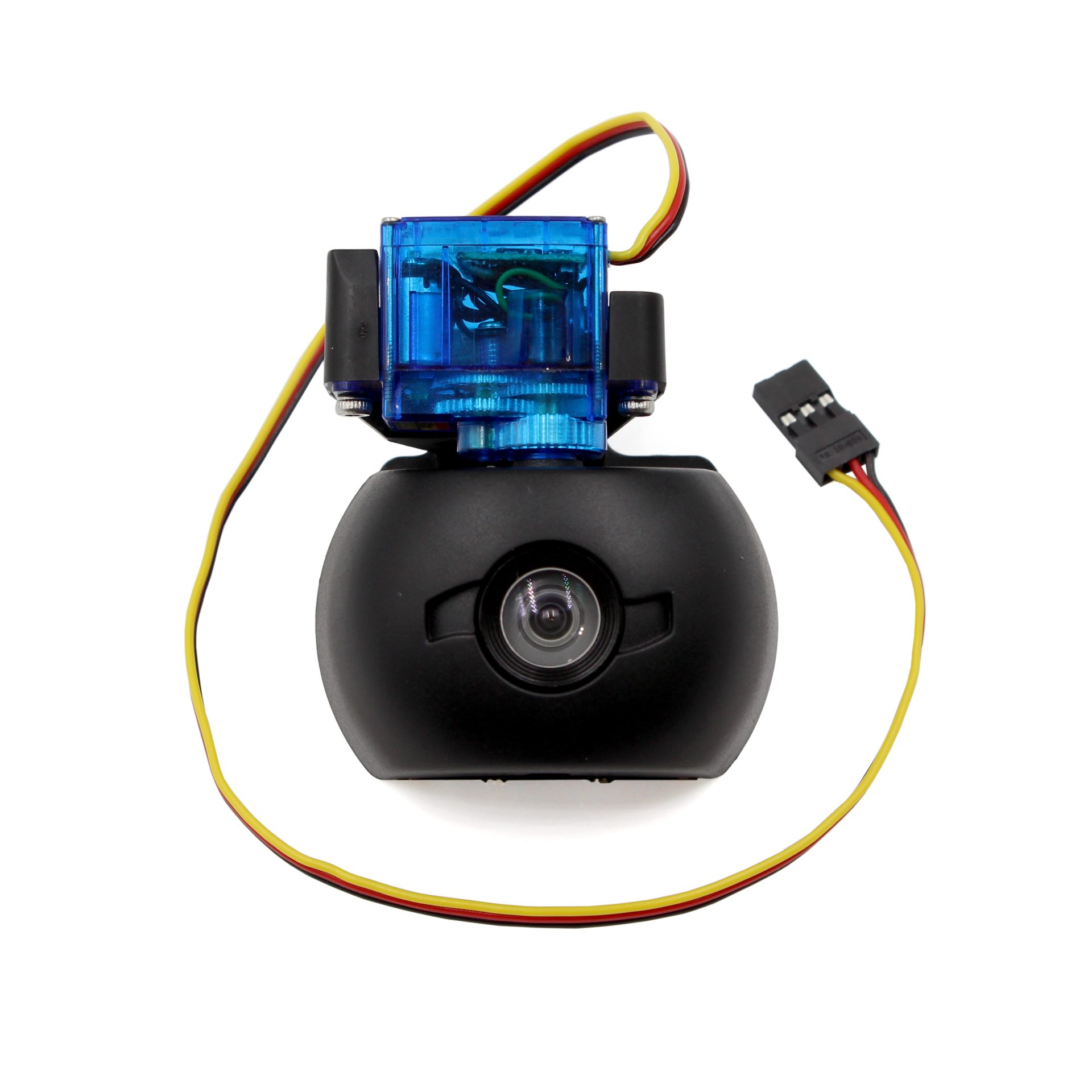

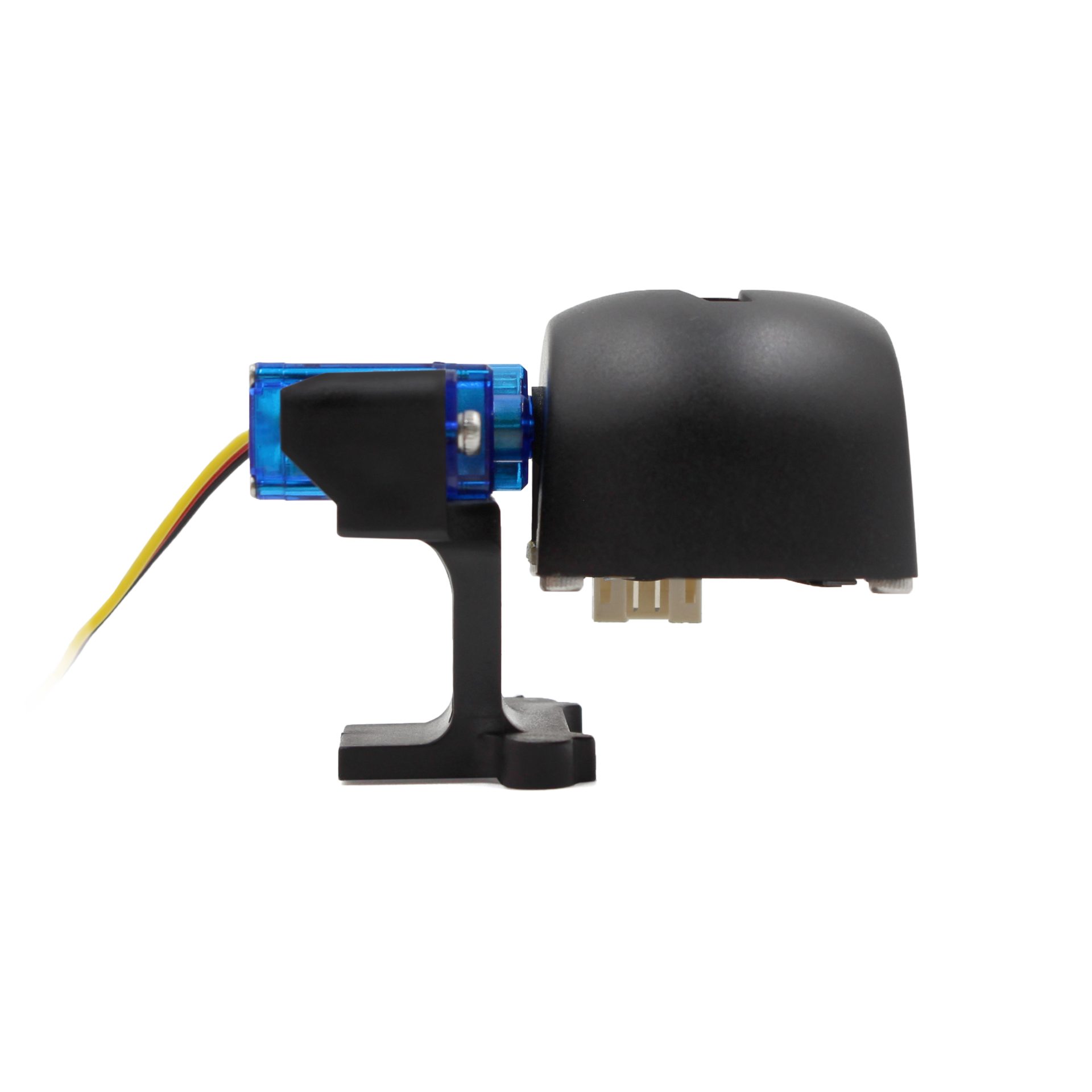

The Camera Tilt System is a tilting camera mount which works seamlessly with the Watertight Enclosure for ROV/AUV (4″ Series) and the Electronics Tray (4″ Series). The tilting servo is the high-quality digital HS-5055MG servo with metal gears. The camera mounts are compatible with our Low-Light HD USB Camera. We have also made the 3D CAD files freely available so that you can modify them to fit your camera or servo!

The Camera Tilt System has proven itself as a stable, robust camera tilting system on the BlueROV2.

Technical Specifications

Parameter	Value
Electrical
Control Signal	Standard 3-5V Pulse Width Control 1500 μs – neutral 1100 μs – 45 ° counter-clockwise 1900 μs – 45 ° clockwise
Speed	0.20 s/60° @ 4.8V 0.17 s/60° @ 6.0V
Torque	18 oz/in @ 4.8V 22 oz/in @ 6.0V	1.2 kg/cm @ 4.8V 1.5 kg/cm @ 6.0V
Physical
Dimensions	0.89in x 0.45in x 0.95in	22.6mm x 11.4mm x 23.9mm
Weight	0.02 lb	9.4 g
Electrical Connector	3-pin female (0.1″ pitch)
Cable Length	7.0 in	178 mm
