Deepwater Exploration explore HD Heavy (1000m) Camera

SKU: DWE-EHDHUSB-WL-SL
£680.00
inc. VAT
Underwater Camera explore HD Heavy (1000m)
£680.00
inc. VAT

Product Description

The explore HD Heavy is the ultimate upgrade from its predecessor, packed with groundbreaking features that make it a true revolution in underwater vision. Boasting a brand new backside illuminated (BSI) sensor that uses Sony's STARVIS technology, this camera offers unmatched low light performance and dynamic range. The new military-grade aluminum alloy casing provides incredible resistance to galvanic corrosion, while the sapphire crystal front element adds durability and scratch resistance. This, in combination with our patent pending technology, offers an extreme depth rating of 1000 meters.

The explore HD Heavy is designed to take on advanced computer vision applications, bridging the gap between autonomy and underwater robots. And when paired with our DWE OS software, the possibilities are endless!

But that's not all - the explore HD Heavy and DWE OS software work seamlessly together, allowing for advanced multi-stream capabilities of up to 7 cameras at the same time with low latency and bandwidth. Say goodbye to limitations and hello to endless possibilities!

Standard Cable Length: 1 meter - this option is the standard fisheye lens other lens options may be available at extra cost.

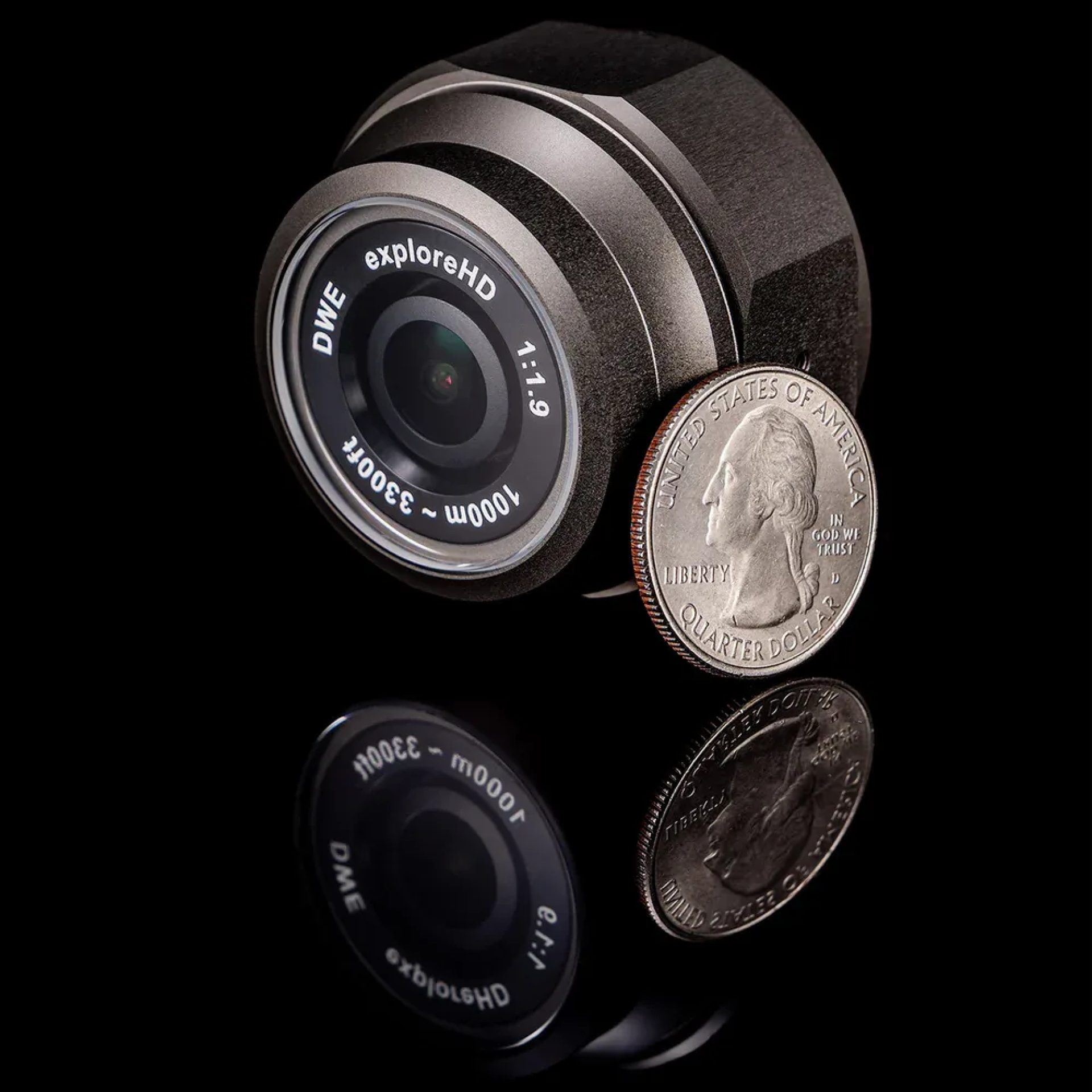

The exploreHD Heavy's housing is is precision-machined from a high-strength aluminum alloy, providing superior corrosion resistance and structural durability. Ideal for long-term subsea operations, it ensures reliable performance at depths up to 1000m.

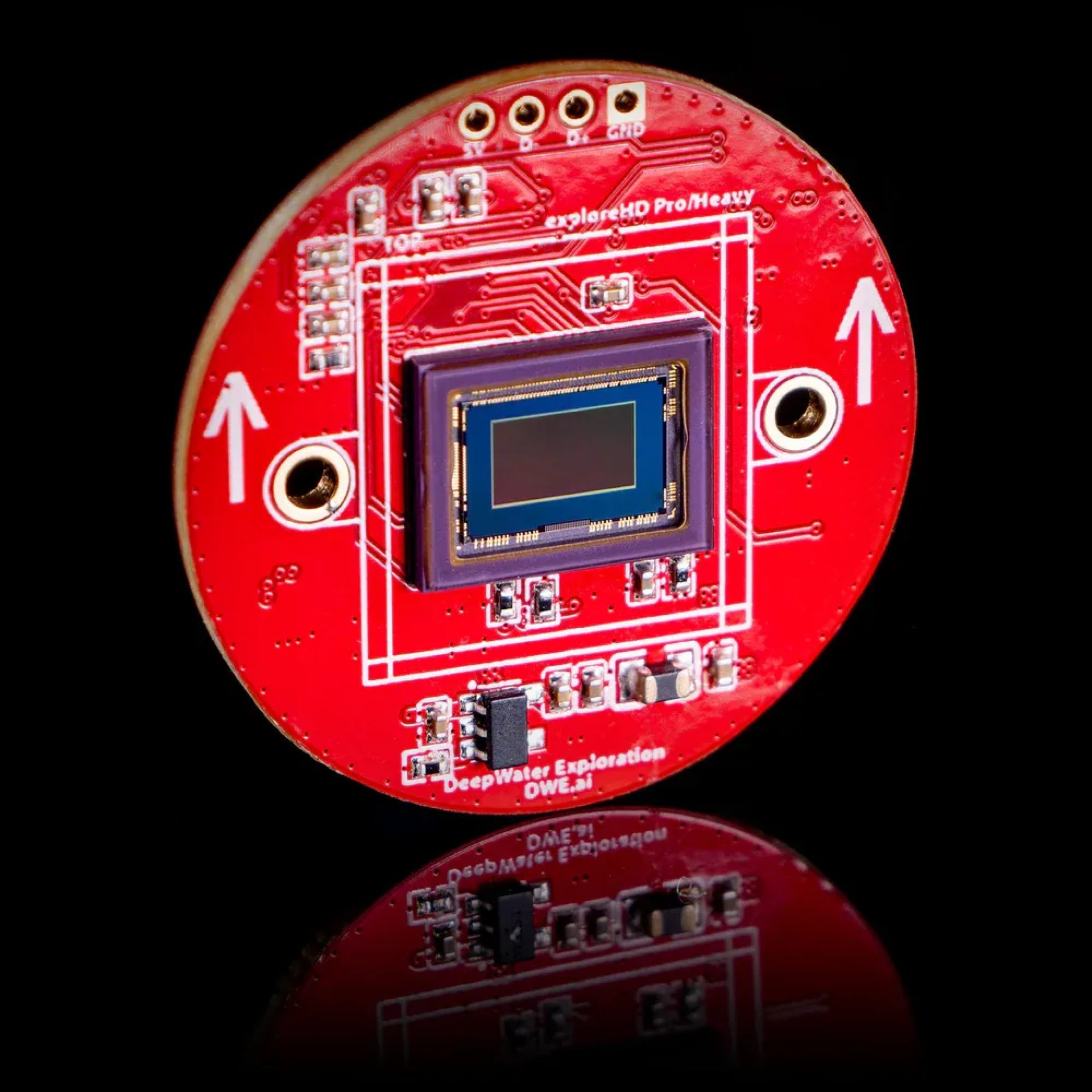

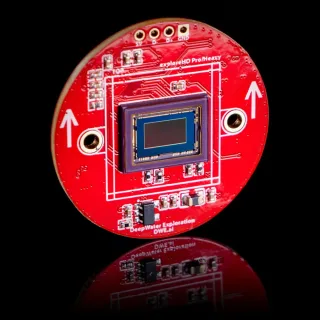

The exploreHD Heavy is equipped with an advanced backside-illuminated (BSI) sensor, designed to maximize light sensitivity for superior low-light imaging and enhanced dynamic range. This next-generation upgrade, combined with a redesigned camera PCB, ensures clearer details, reduced noise, and improved visibility in deep-sea environments.

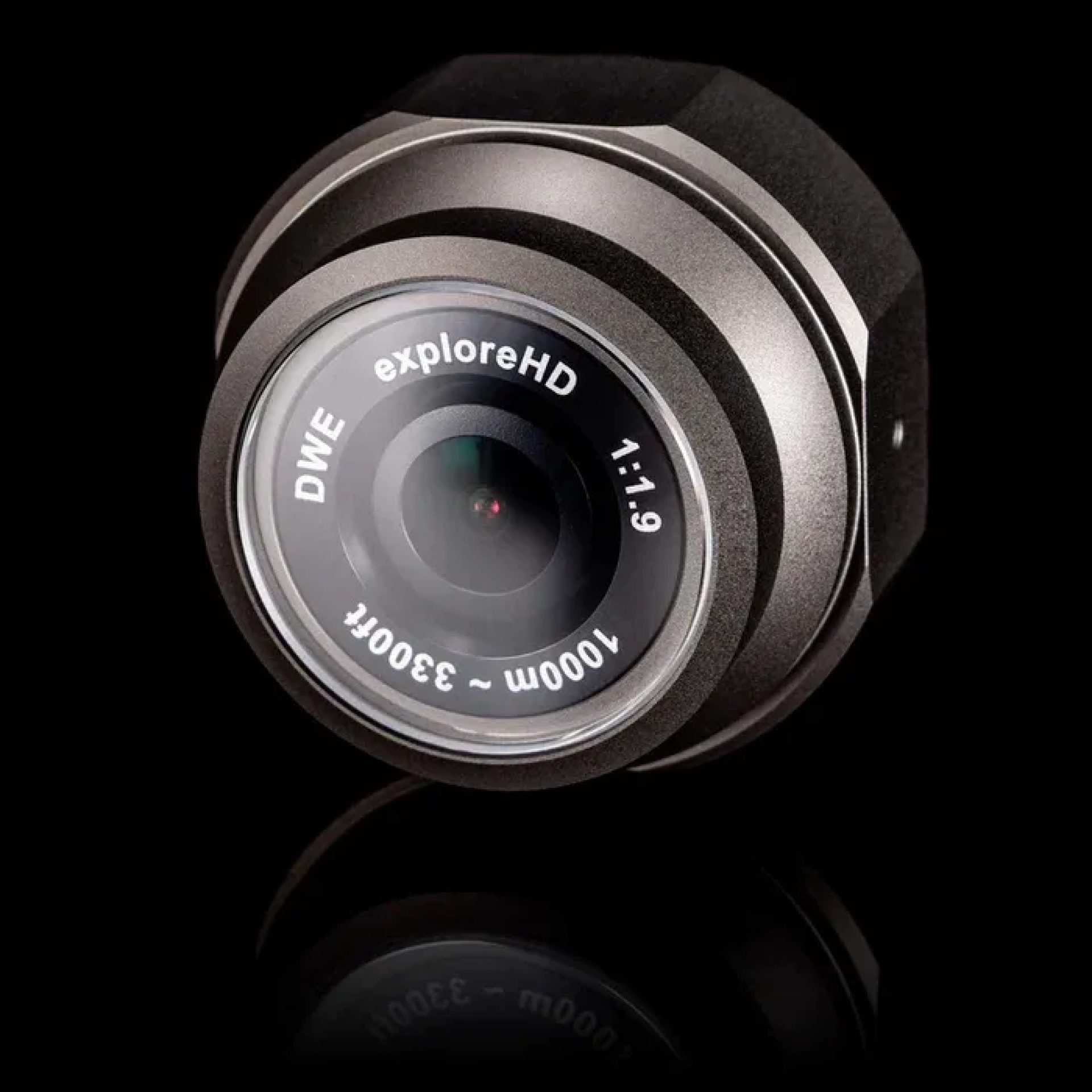

The exploreHD Heavy features a 3mm thick sapphire crystal lens with an anti-reflective (AR) coating, providing exceptional scratch resistance and clarity. Crafted to withstand high-pressure and abrasive environments, this durable lens ensures reliable performance in the harshest conditions.

Technical Specifications

exploreHD Technical Specifications





Technical Specifications



Water-Resistance Specifications

  • All Connectors
  •
    Depth Rating1000m
    Ingress Protection RatingIP69K+ equivalent
    Safety Margin50%



Physical Specifications

  • Epoxy/WetLink
  • Mass in Air120 grams
    Weight in Water50 grams
    Material CompositionNaval-grade, Corrosion Resistant Aluminum - Dark Gray, Abrasion-Resistant, Hard-Anodized Coating
    Front PortDomed Scratch-Resistant Sapphire with internal AR Coating



Power Specifications

  • Standard
    Operating Voltage5V
    Operating CurrentSee MJPEG/H.264
    Operating WattageSee MJPEG/H.264
    Minimum Wattage0.004W
    Maximum WattageSee MJPEG/H.264
  • MJPEG

    Operating Current250mA
    Operating Wattage1.25W
    Maximum Current260mA
    Maximum Wattage1.3W
  • H.264

    Operating Current300mA
    Operating Wattage1.5W
    Maximum Current320mA
    Maximum Wattage1.6W



Pinout Specifications



Pinout
BlackGround
Red5V
Yellow/GreenD+ (Data Positive)
WhiteD- (Data Negative)



Image Sensor Specifications



Image Sensor1/2.8” Sony Exmor™ STARVIS CMOS
Sensor ColorRGB
Sensor TypeRolling Shutter
Max Resolution1920x1080
Max Framerate30fps with H.264/MJPEG
Color Channels3
Bits Per Channel8 bits
Compression FormatsH.264, MJPEG, YUY2
ConnectionUSB 2.0 High Speed / UVC Compliant



Resolutions and Framerates

  • MJPEG - 1920x1080, 1280x720, 800x600, 640x480, 640x360, 352x288, 320x240
    • @30fps, @25fps, @20fps, @15fps, @10fps
  • H.264  - 1920x1080, 1280x720, 800x600, 640x480, 640x360, 352x288, 320x240
    • @30fps, @25fps, @20fps, @15fps, @10fps
  • YUY2 - Resolutions:1920x1080

    • @5fps

    Resolutions: 1280x720

    • @10fps, @5fps

    Resolutions: 800x600

    • @15fps, @10fps, @5fps

    Resolutions:640x480, 640x360, 352x288, 320x240

    • @30fps, @25fps, @20fps, @15fps, @10fps, @5fps

Lens Specifications

Standard
TypeFisheye
Focal Length2.65mm
Lens Aperturef/1.9
Minimum Focus Distance20-30cm
Horizontal FOV (In Air)138°
Vertical FOV (In Air)70°
Diagonal FOV (In Air)168°
Horizontal FOV (In Water)~82°
