Deepwater Exploration exploreHD (400m) Camera
SKU: DWE-EHDUSB-EP
£340.00
inc. VAT

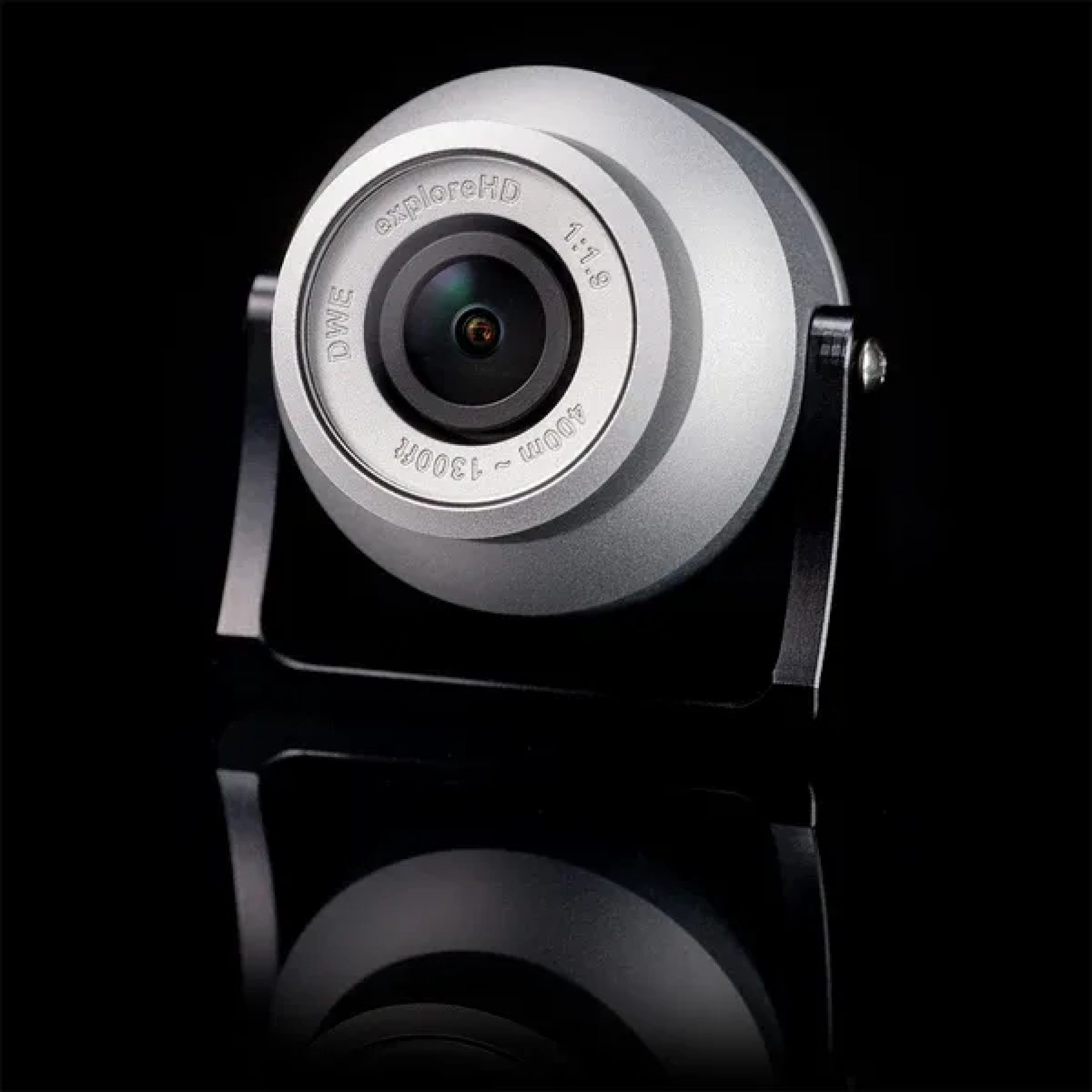

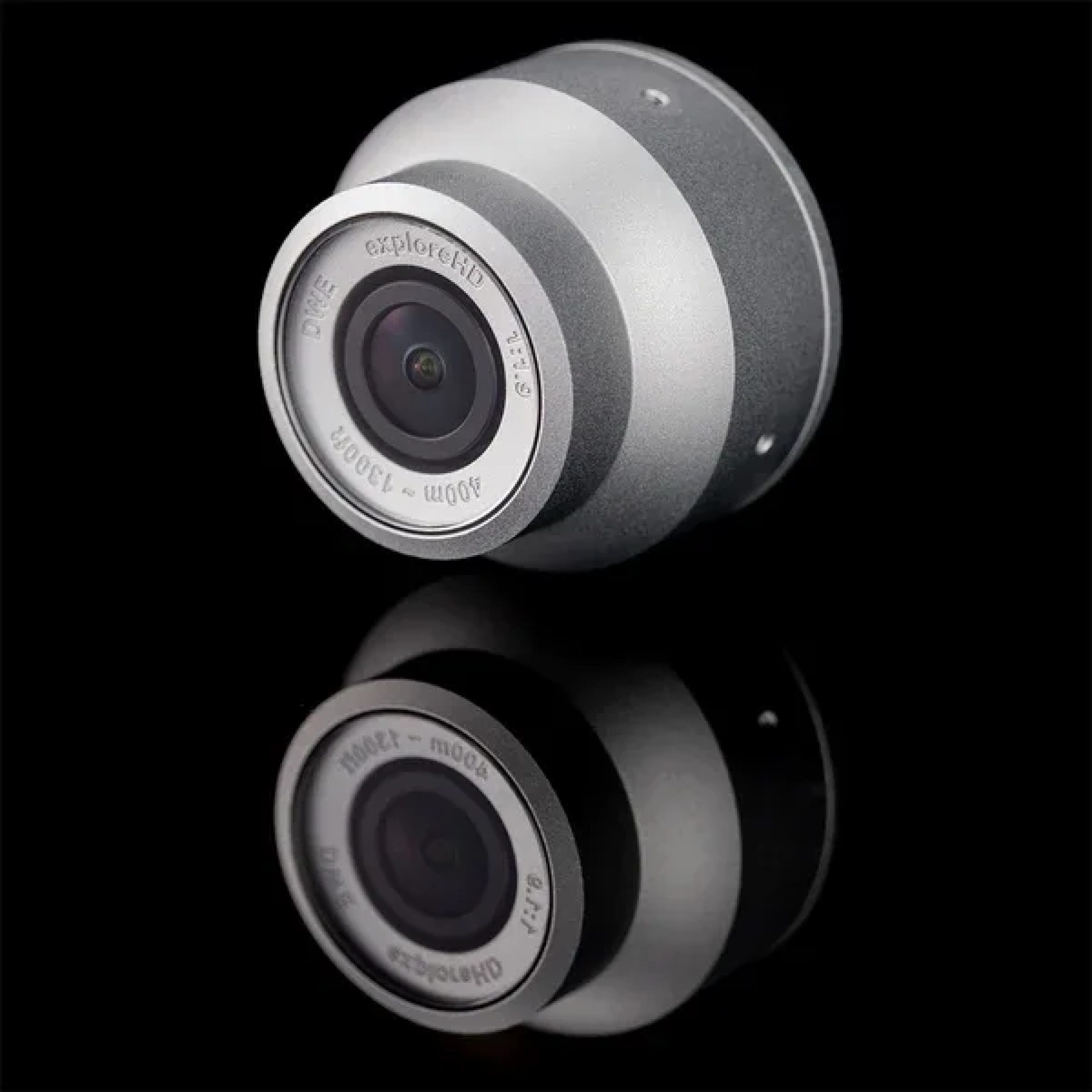

Underwater Camera explore HD (400m)
£340.00
inc. VAT
Product Description
This patented, UVC-compliant camera is the first to feature HD USB output while achieving a waterproof rating of IP69K. Equipped with a modern Sony sensor and a proprietary 4-layer PCB, you will be able to see in low light conditions like never before.
Thanks to careful tuning and AI image processing, exploreHDs have exceptional color fidelity, producing pleasing, natural images. With integrated H.264 compression technology and our open-source camera driver, you can stream up to 7 cameras simultaneously without major quality loss or latency. You can even stream an unlimited number of cameras together, provided that the bitrate is appropriately reduced.

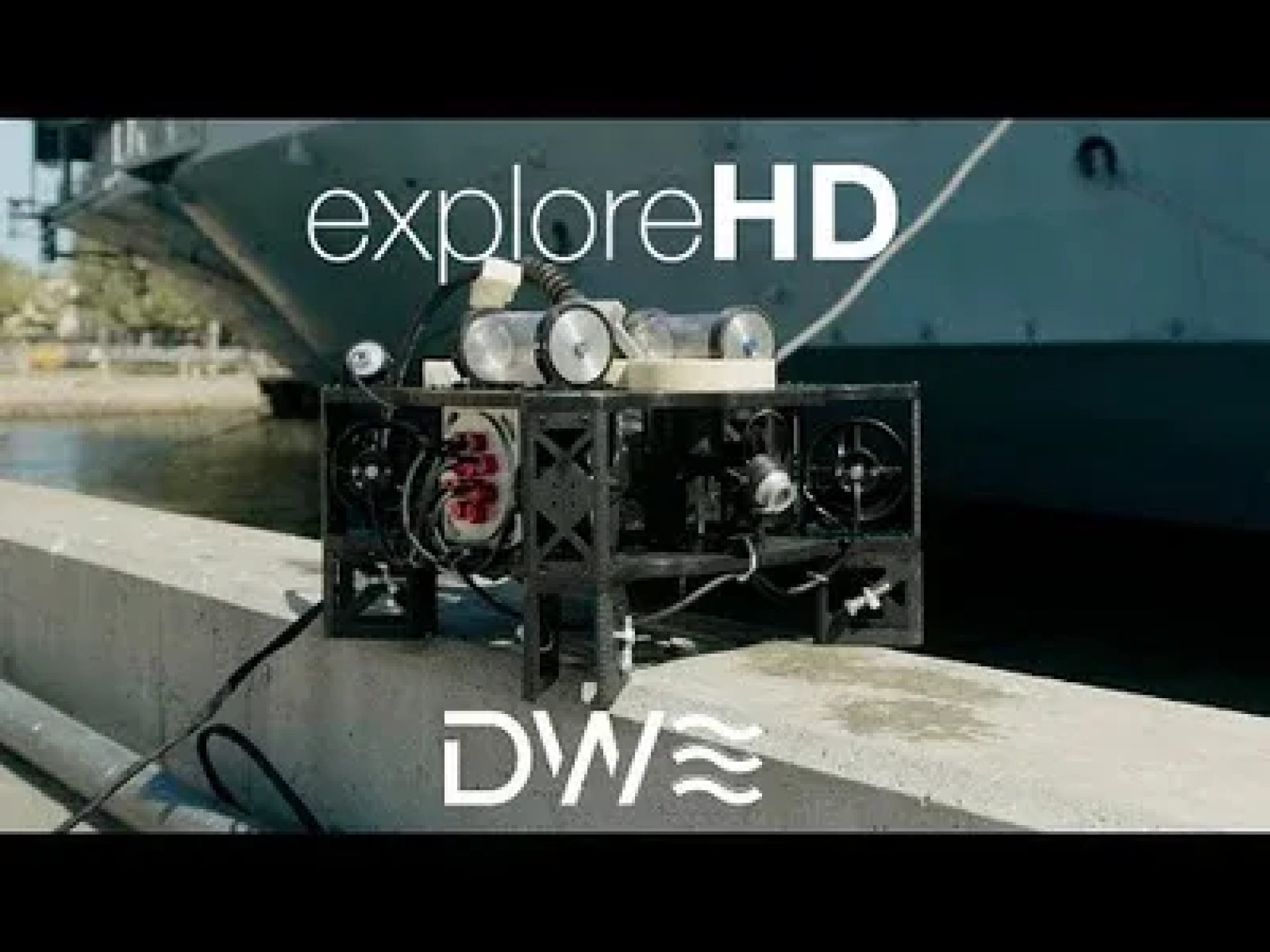

Furthermore, due to its UVC compliant nature, the exploreHD is the first plug and play machine vision capable subsea camera. This makes the exploreHD the perfect choice for anyone looking to make a truly modern multi-cam underwater setup.
Standard Cable Length: 1 meter
Technical Specifications
exploreHD Technical Specifications
Technical Specifications
Water-Resistance Specifications
- All Connectors
Depth Rating 400m Ingress Protection Rating IP69K+ equivalent Safety Margin 50%
Physical Specifications
- Epoxy/WetLink
Mass in Air 84 grams Weight in Water 44 grams Material Composition Aerospace-grade 6061-T6 alloy aluminum - Abrasion-resistant hard anodized coating Front Port Standard Depth-Resistant Glass
Power Specifications
Standard Operating Voltage 5V Operating Current See MJPEG/H.264 Operating Wattage See MJPEG/H.264 Minimum Wattage 0.004W Maximum Wattage See MJPEG/H.264 MJPEG Operating Current 180mA Operating Wattage 0.9W Maximum Current 200mA Maximum Wattage 1W H.264 Operating Current 250mA Operating Wattage 1.2W Maximum Current 260mA Maximum Wattage 1.3W
Pinout Specifications
| Pinout | |
|---|---|
| Black | Ground |
| Red | 5V |
| Yellow/Green | D+ (Data Positive) |
| White | D- (Data Negative) |
Image Sensor Specifications
| Image Sensor | 1/2.9” Sony Exmor™ CMOS |
| Sensor Color | RGB |
| Sensor Type | Rolling Shutter |
| Max Resolution | 1920x1080 |
| Max Framerate | 30fps with H.264/MJPEG |
| Color Channels | 3 |
| Bits Per Channel | 8 bits |
| Compression Formats | H.264, MJPEG, YUY2 |
| Connection | USB 2.0 High Speed / UVC Compliant |
Resolutions and Framerates
- MJPEG - 1920x1080, 1280x720, 800x600, 640x480, 640x360, 352x288, 320x240
- @30fps, @25fps, @20fps, @15fps, @10fps
- H.264 - 1920x1080, 1280x720, 800x600, 640x480, 640x360, 352x288, 320x240
- @30fps, @25fps, @20fps, @15fps, @10fps
YUY2 - Resolutions:1920x1080
- @5fps
Resolutions: 1280x720
- @10fps, @5fps
Resolutions: 800x600
- @15fps, @10fps, @5fps
Resolutions:640x480, 640x360, 352x288, 320x240
- @30fps, @25fps, @20fps, @15fps, @10fps, @5fps
Lens Specifications
| Standard | |
|---|---|
| Type | Fisheye |
| Focal Length | 2.65mm |
| Lens Aperture | f/1.9 |
| Minimum Focus Distance | 20-30cm |
| Horizontal FOV (In Air) | 138° |
| Vertical FOV (In Air) | 70° |
| Diagonal FOV (In Air) | 168° |
| Horizontal FOV (In Water) | ~82° |
Download
exploreHD 3.0 Assembly (Epoxy) STEP File - includes mounting bracket
xploreHD 3.0 (Epoxy) Technical Drawing (PDF)
