Blue Robotics

Ethernet Switch

SKU: BR-100457
£184.99
inc. VAT
All Communication, Control and Power Products

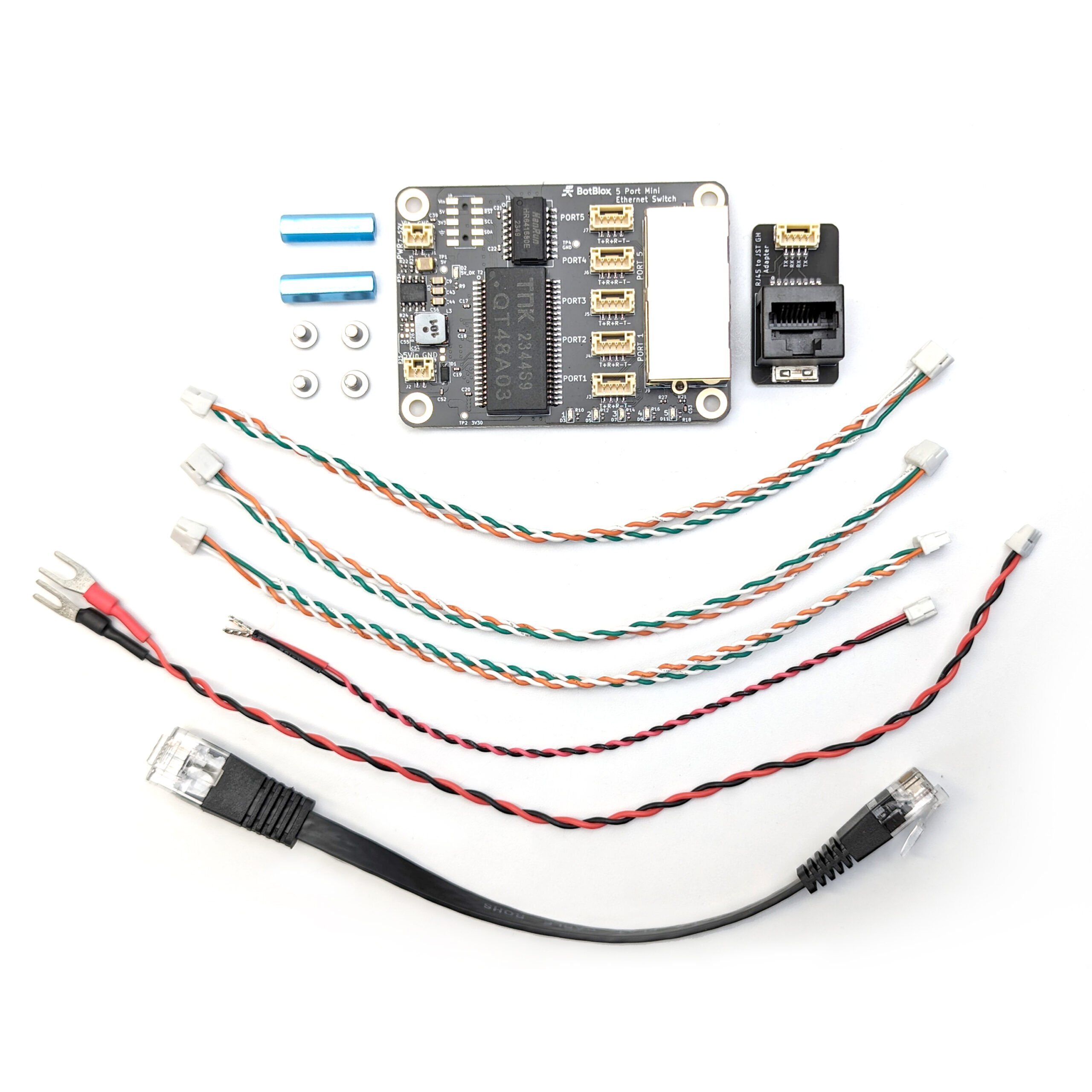

This compact 5-port Ethernet switch provides expandability to your BlueROV2, BlueBoat, or other vehicle system. It mounts directly on the Fathom-X Tether Interface Board and can be used standalone as well. Designed in collaboration with BotBlox of the UK, this switch is easy to use, requires no configuration, and is reliable under a wide range of conditions!
£184.99
inc. VAT

Product Description

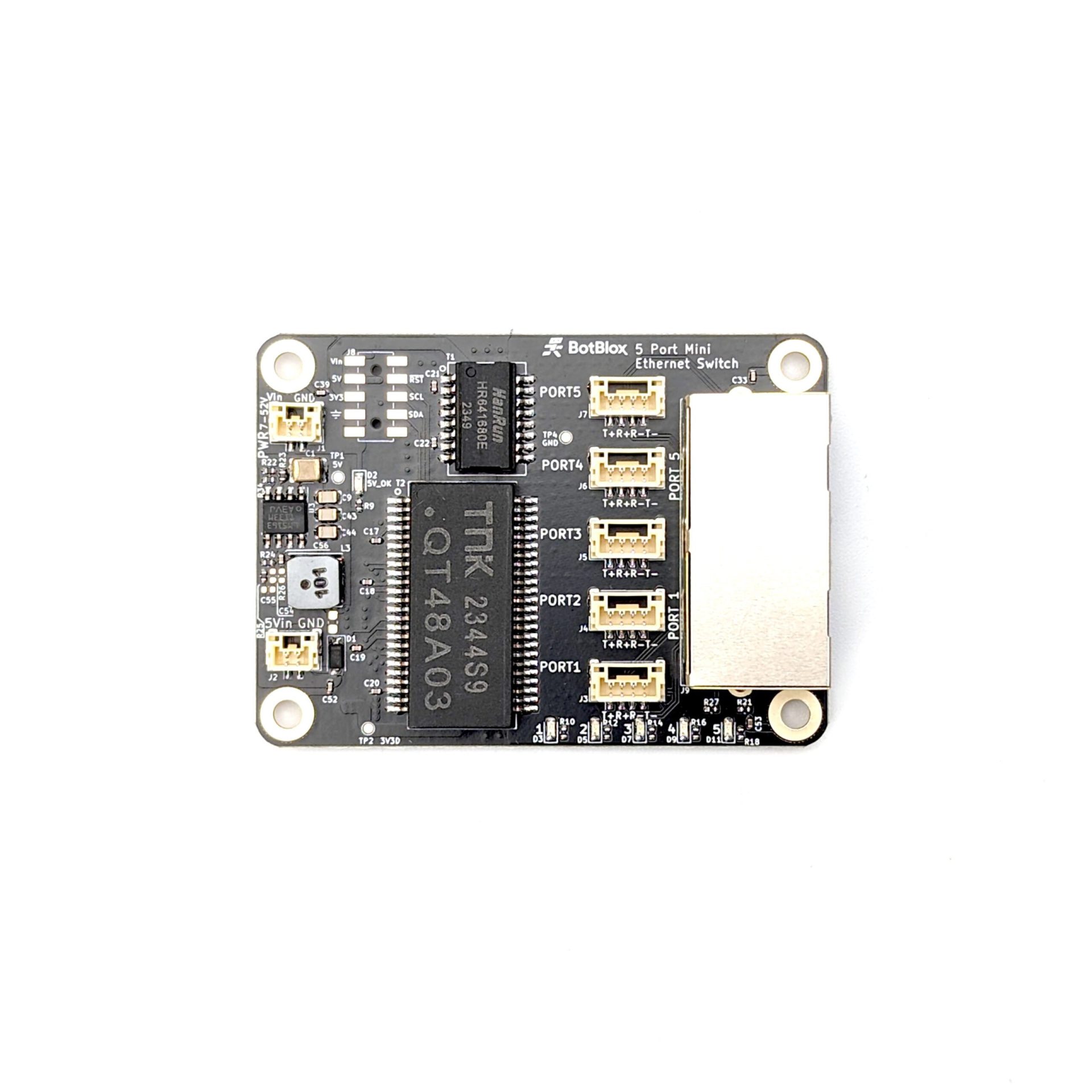

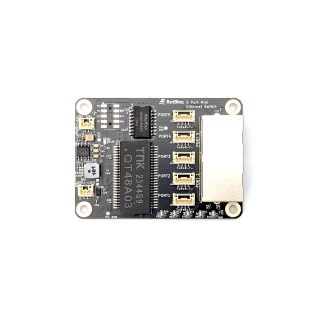

The Ethernet Switch is a 5-port 10/100 Ethernet switch designed to integrate perfectly with the BlueROV2 and BlueBoat, providing three additional Ethernet ports to connect accessories. This switch was designed in collaboration with BotBlox and leverages their extensive expertise on Ethernet switches for robotics applications!

Technical Specifications

ParameterValue
Electrical
Supply Voltage (wide range input)7–52 volts (reverse polarity protected)
Supply Voltage (5v input)5 volts
Idle Power Consumption300 mW
Max Power Consumption700 mW
Power over Ethernet (PoE)Not supported
Performance
Ethernet Speed100 Mbps
Ports5-ports
Physical
Operating Temperature-20 to +85°C
Storage Temperature-40 to +85°C
Dimensions64 x 46 mm
Screw Hole Spacing57 x 40 mm
Screw Hole Diameter3.3 mm
Cable Length (included accessory cable)150 mm
Connectors
JST GH Connector TypeBM04B-GHS-TBT(LF)(SN)(N) (on the PCB)
JST GH Plug Housing and Crimp Pins (not included)GHR-04V-S (housing)
MINI-SSHL-002T-P0.2 (pin)
Data Connector Pinout1 - TX+
2 - RX+
3 - RX-
4 - TX-
Power Connector TypeBM02B-GHS-TBT(LF)(SN)(N)
Power Connector Pinout1 - V+
2 - Ground
