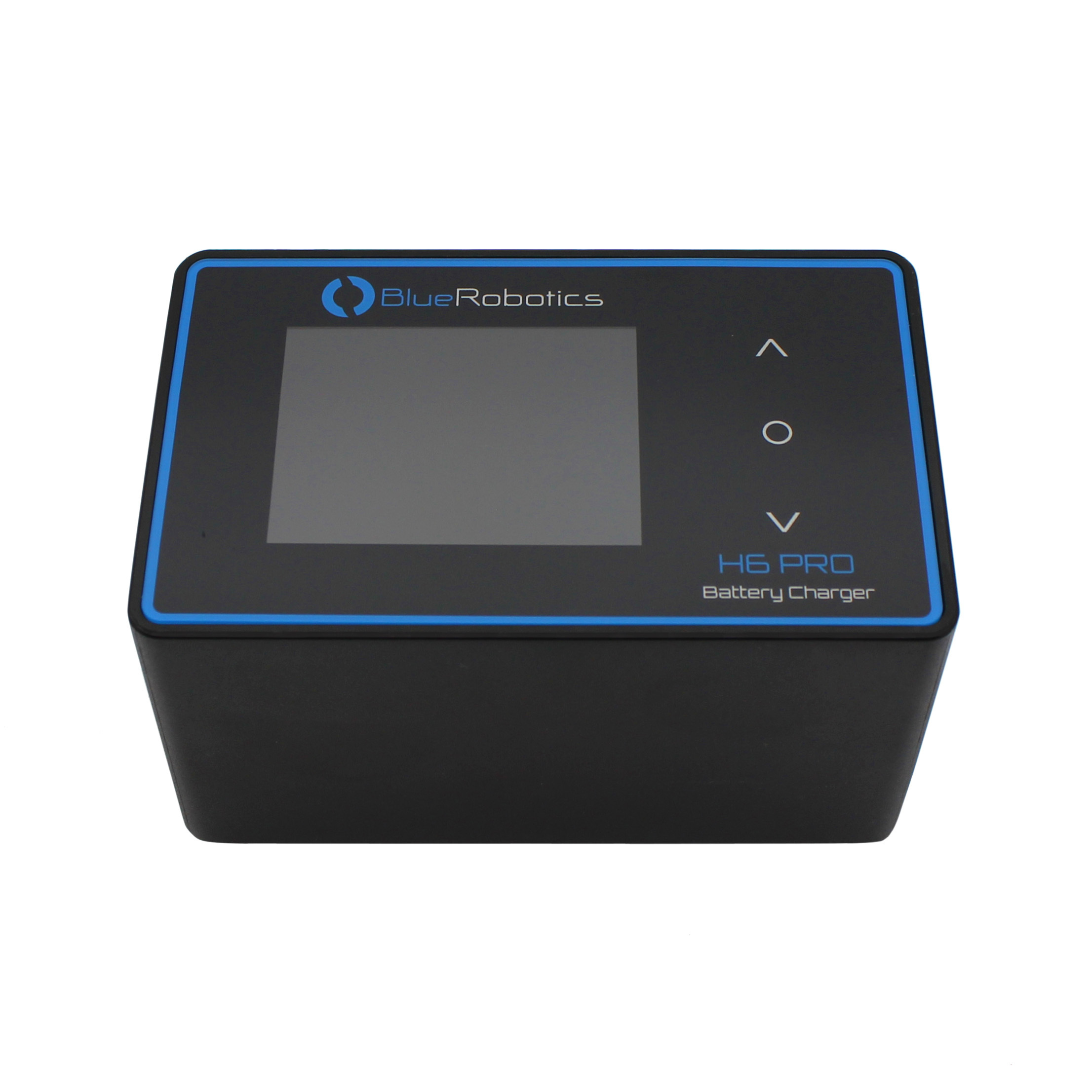

H6 PRO Lithium Battery Charger

SKU: BR-100377

£184.99

inc. VAT

All Communication, Control and Power Products

The H6 PRO Lithium Battery Charger is a high power AC/DC balance charger perfect for use with our high capacity lithium-ion batteries for the BlueROV2 and BlueBoat!

£184.99

inc. VAT

Product Description

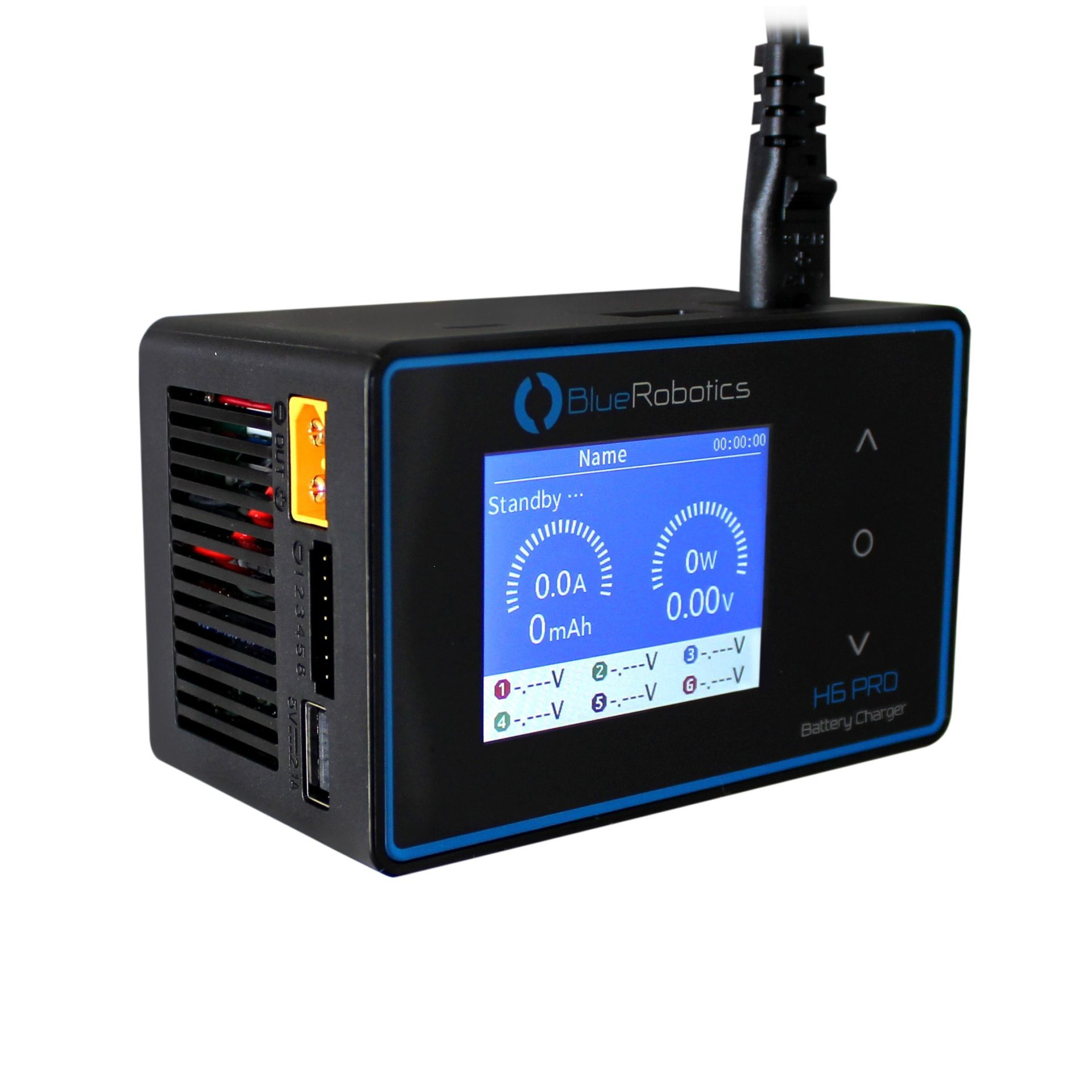

The H6 PRO Lithium Battery Charger is a high-power lithium balance charger, perfect for use with all Blue Robotics lithium batteries! With built-in balancing and discharge capability, your batteries can safely be kept in top condition for maximum performance and lifespan! A nominal fixed 10A charge current means you can fully charge a high-capacity lithium battery like our
Lithium-ion Battery (14.8V, 18Ah) in about 1–2 hours. For even more functionality, the firmware can be unlocked to enable charging other battery chemistries at variable currents.

Technical Specifications

Parameter	Value
Electrical

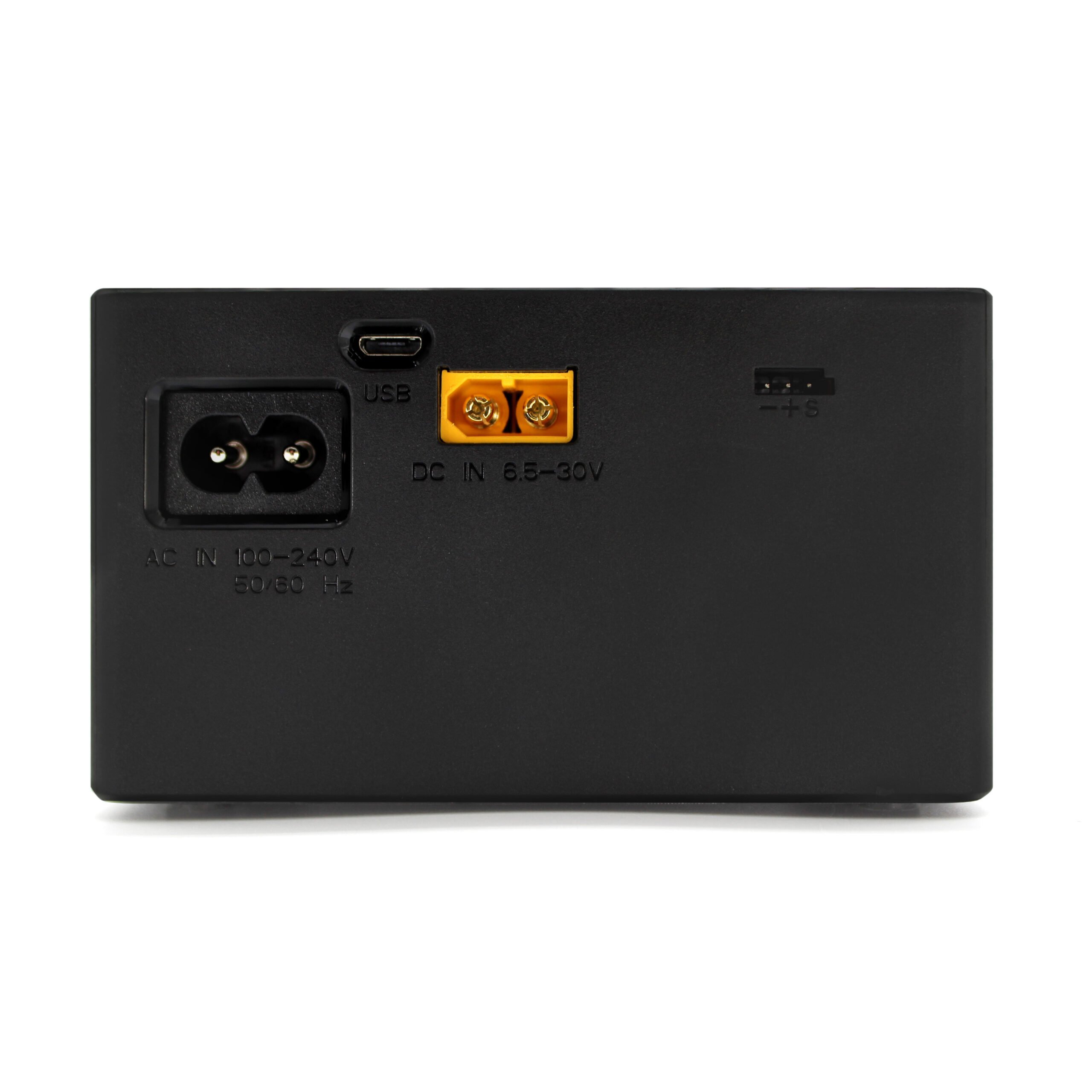

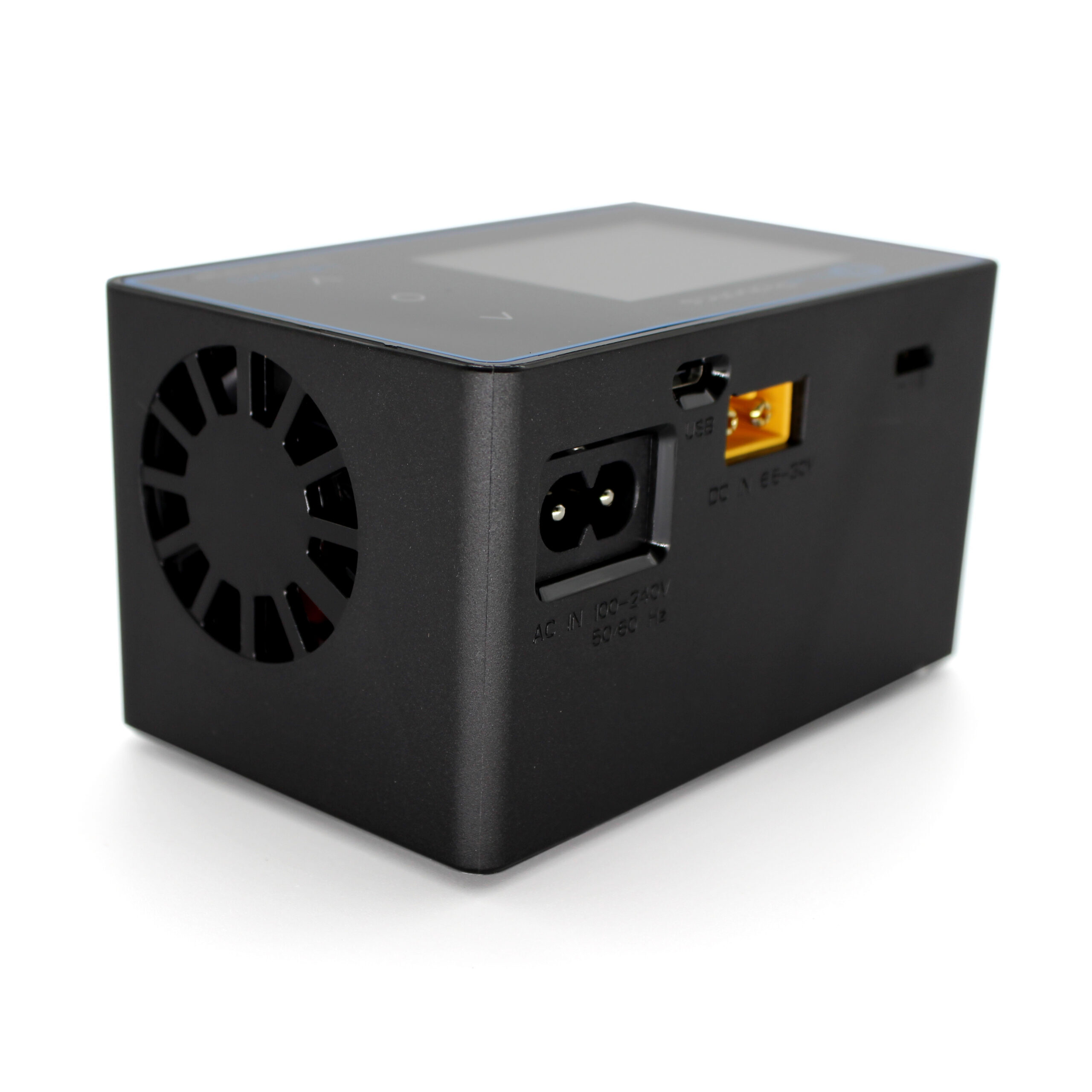

Input Voltage	100–240V AC	6.5–30V DC
Charge Power	AC 168W*	DC 168W*
Charge Current	10A*
Discharge Power	Internal Discharge 30W, Balance Port 10W
USB Output	5V / 2.1A
Balance Current	2000 mA
Battery Chemistry	Lithium-ion, lithium polymer*
Lithium Cell Count	4S, 6S*

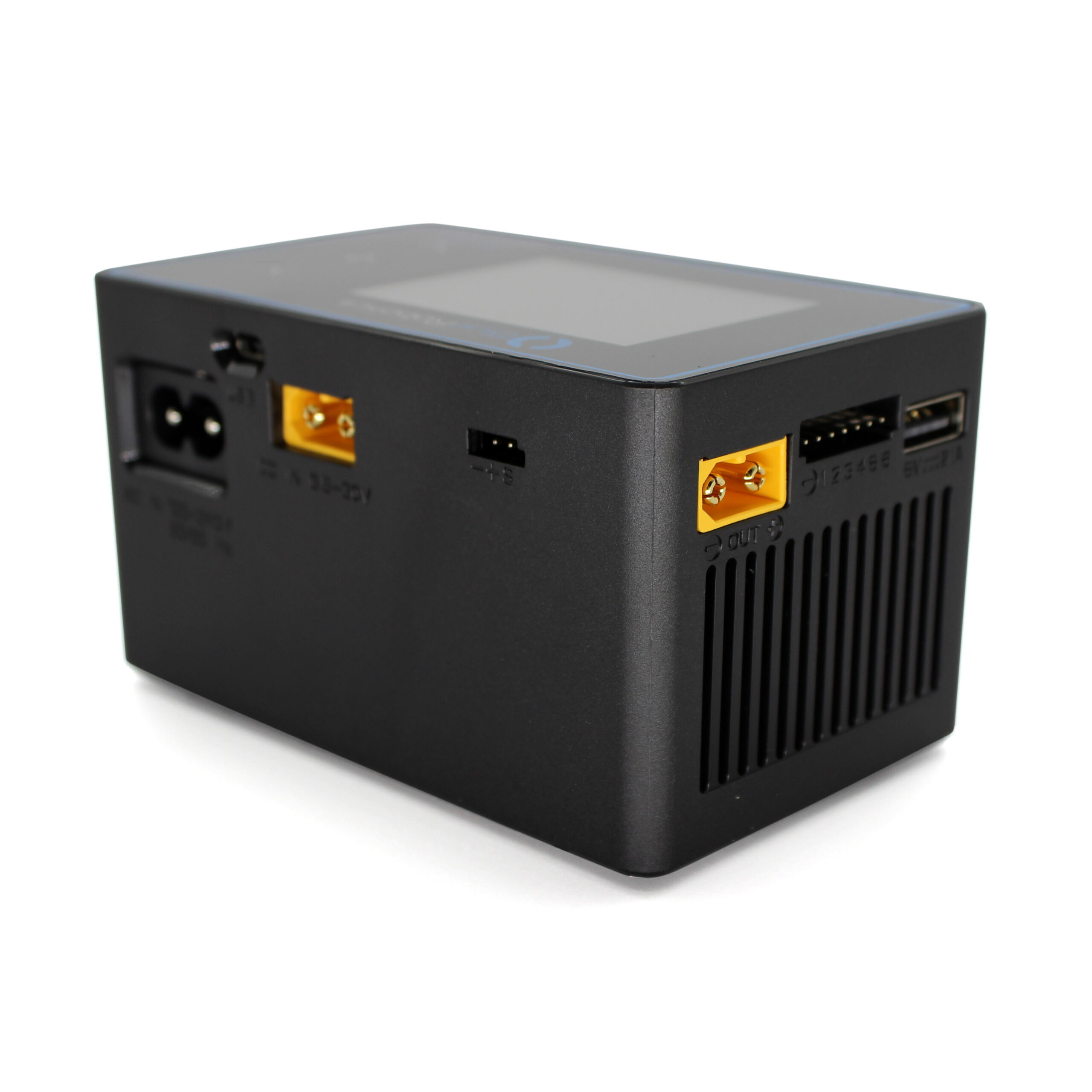

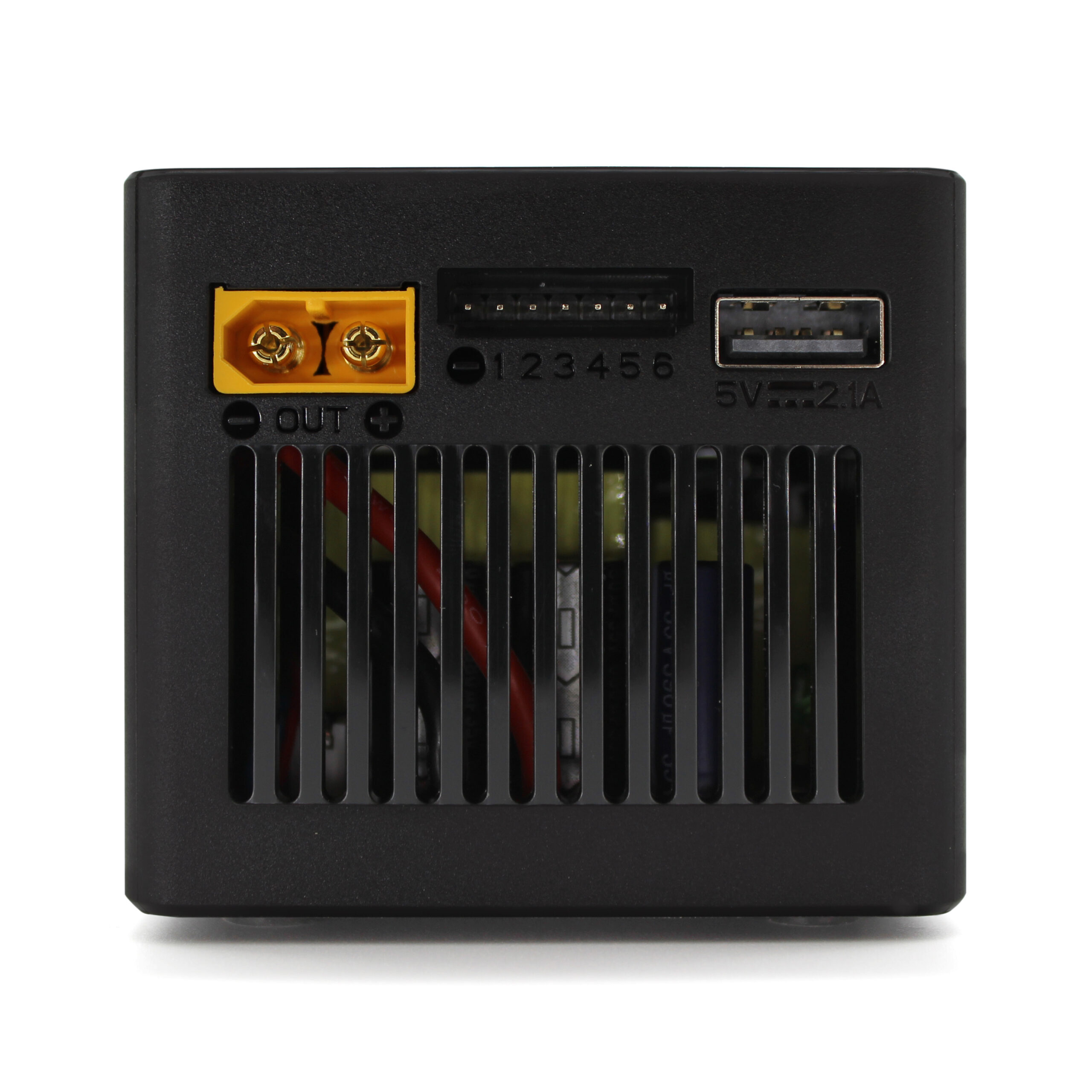

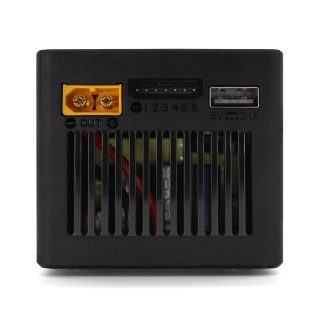

Charge Port	XT60
Balance Port	7 Pin JST-XH
Physical
Length	108 mm	4.3 in
Width	67 mm	2.6 in
Height	60 mm	2.4 in
Weight	410 g	0.90 lb
Storage Temperature	-20–60°C	-4–140°F
Operating Temperature	0–40°C	32–104°F
Parameter is limited by default firmware, refer to the H6 PRO Firmware Unlock Guide* to load fully operational firmware enabling complete current, voltage, and chemistry adjustment with additional auxiliary functions.
