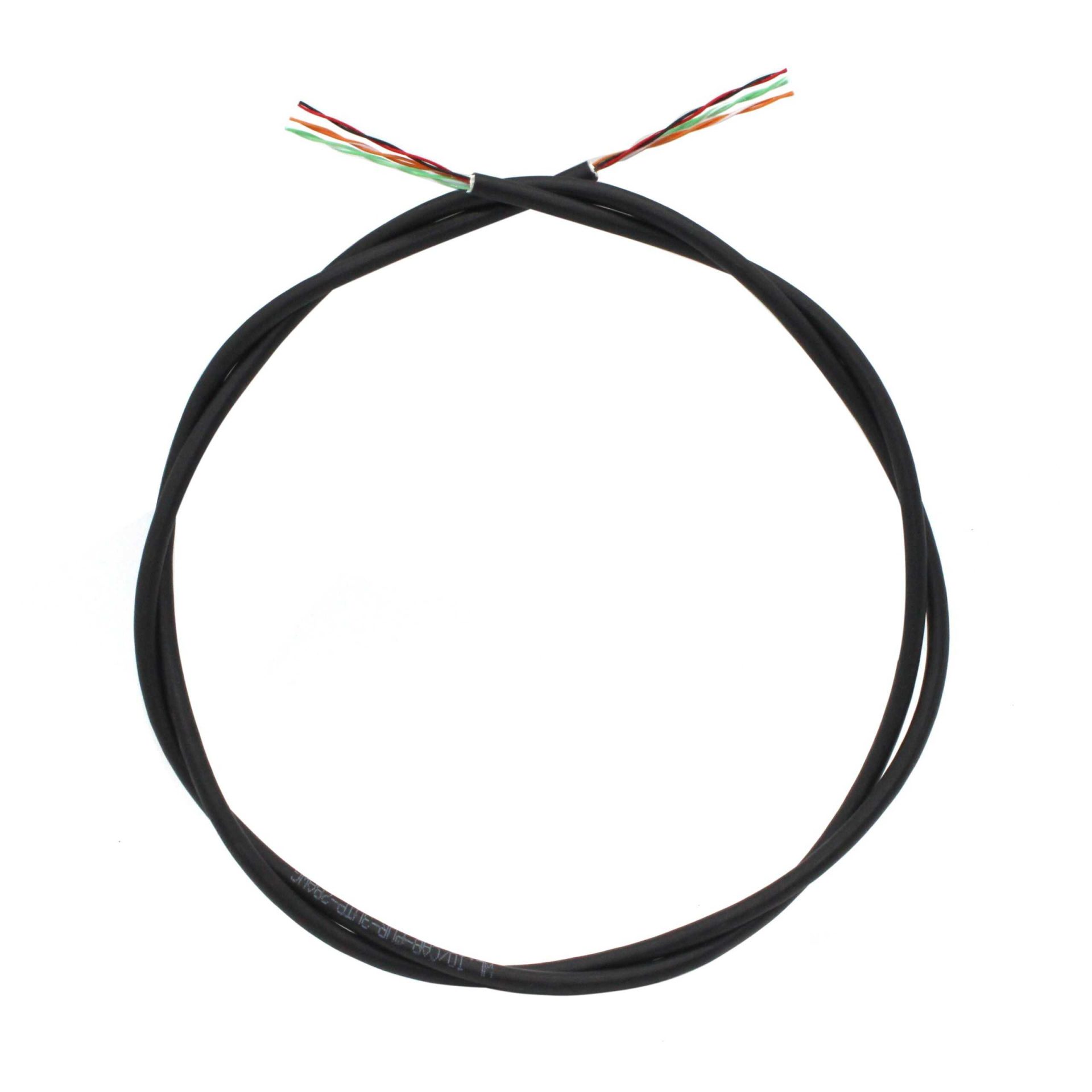

High-Temperature PUR Subsea Cable (by the meter) - Ping360 Cable (3 UTP, 28 AWG)

SKU: BR-100614
£10.99
inc. VAT
These cables are built specifically for use underwater and used in our products! A polyurethane jacket, PTFE tape, and FEP insulated conductors make for a rugged cable that can carry a lot of power. Sold by the meter (3.3 ft) and cut to length when you order.
£10.99
inc. VAT

Product Description

These cables are built for a wide range of subsea applications and designed to carry high currents underwater. The cables are custom made with a pressure-extruded polyurethane jacket, and flexible conductors. Each conductor is insulated with FEP, which can handle high temperatures without melting, and chemically etched to ensure excellent adhesion to potting compounds and glues. They’re really tough and abrasion resistant!

These cables are used in the T200 Thruster, T500 Thruster, the Ping360 Sonar, and in countless other applications!

Technical Specifications

CableHigh Power CableT200 CableT500 CablePing360 Cable
Construction2-conductors, tape wrap, jacket3-conductors, tape wrap, jacket3-conductors, fabric wrap, jacket3-unshielded twisted pairs, tape wrap, jacket
Diameter8.3 mm6.4 mm9.0 mm5.5 mm
Outer JacketPressure-extruded polyurethanePressure-extruded polyurethanePressure-extruded polyurethanePressure-extruded polyurethane
WrapPTFE tapePTFE tapeNonwoven fabricPTFE tape
Filler----
Number of Conductors2336
Conductor Gauge12 AWG16 AWG12 AWG26 AWG
Conductor InsulationFEPFEPFEPFEP
Conductor Insulation ColorsRed, blackWhite, green, blueWhite, green, blueblack, red
orange, orange/white
green, green/white
Static Minimum Bend Radius26 mm18 mm30 mm20 mm
Compatible WetLink PenetratorM10-8.5mm-LCM10-6.5mm-LCM14-9.5mm-HCM10-5.5MM-LC
