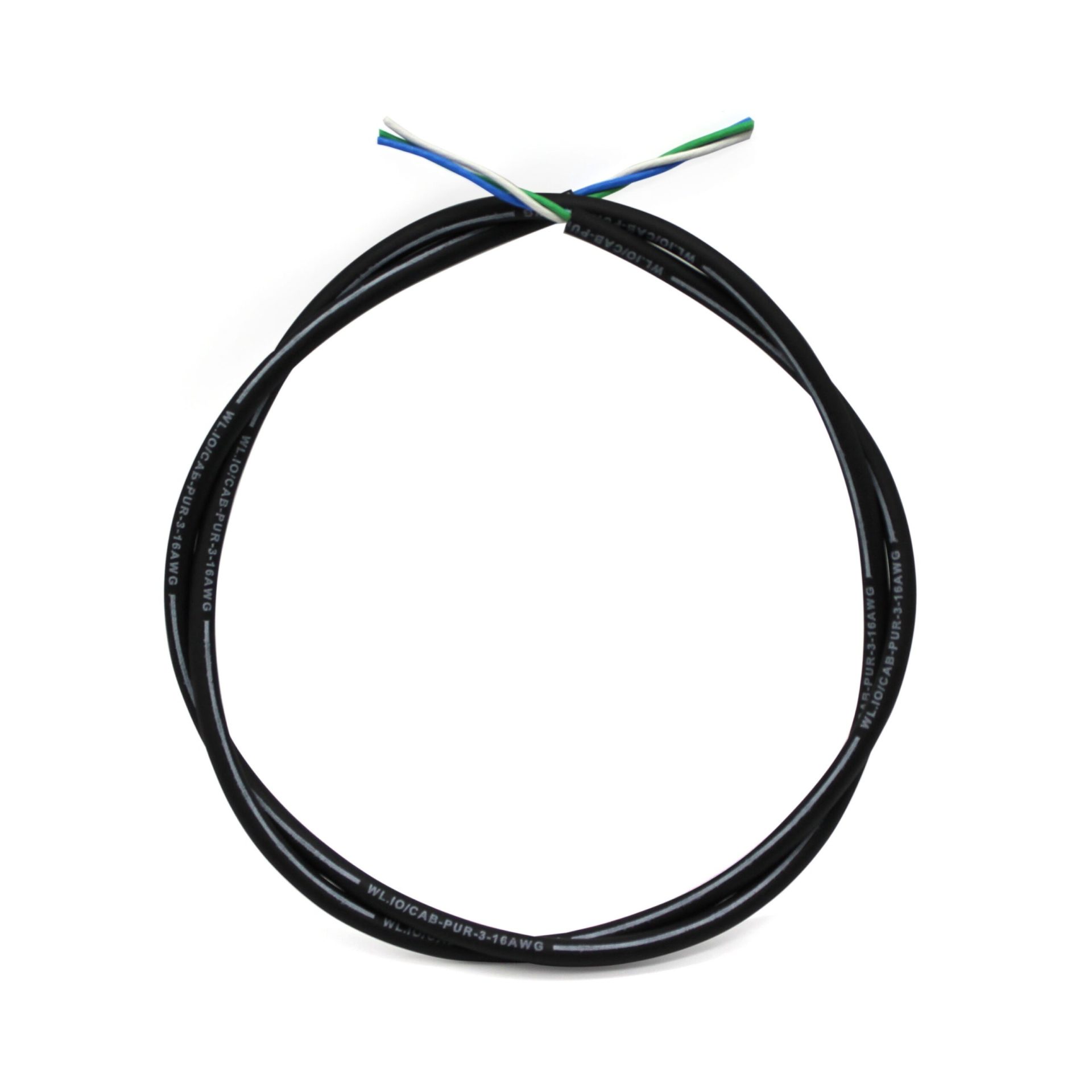

High-Temperature PUR Subsea Cable (by the meter) - T200 Thruster Cable (3 conductors, 16 AWG)
High-Temperature PUR Subsea Cable (by the meter) - T200 Thruster Cable (3 conductors, 16 AWG)
£15.99
These cables are built specifically for use underwater and used in our products! A polyurethane jacket, PTFE tape, and FEP insulated conductors make for a rugged cable that can carry a lot of power. Sold by the meter (3.3 ft) and cut to length when you order.
£15.99
Product Description
These cables are built for a wide range of subsea applications and designed to carry high currents underwater. The cables are custom made with a pressure-extruded polyurethane jacket, and flexible conductors. Each conductor is insulated with FEP, which can handle high temperatures without melting, and chemically etched to ensure excellent adhesion to potting compounds and glues. They’re really tough and abrasion resistant!
These cables are used in the T200 Thruster, T500 Thruster, the Ping360 Sonar, and in countless other applications!
Technical Specifications
| Cable | High Power Cable | T200 Cable | T500 Cable | Ping360 Cable |
|---|---|---|---|---|
| Construction | 2-conductors, tape wrap, jacket | 3-conductors, tape wrap, jacket | 3-conductors, fabric wrap, jacket | 3-unshielded twisted pairs, tape wrap, jacket |
| Diameter | 8.3 mm | 6.4 mm | 9.0 mm | 5.5 mm |
| Outer Jacket | Pressure-extruded polyurethane | Pressure-extruded polyurethane | Pressure-extruded polyurethane | Pressure-extruded polyurethane |
| Wrap | PTFE tape | PTFE tape | Nonwoven fabric | PTFE tape |
| Filler | - | - | - | - |
| Number of Conductors | 2 | 3 | 3 | 6 |
| Conductor Gauge | 12 AWG | 16 AWG | 12 AWG | 26 AWG |
| Conductor Insulation | FEP | FEP | FEP | FEP |
| Conductor Insulation Colors | Red, black | White, green, blue | White, green, blue | black, red orange, orange/white green, green/white |
| Static Minimum Bend Radius | 26 mm | 18 mm | 30 mm | 20 mm |
| Compatible WetLink Penetrator | M10-8.5mm-LC | M10-6.5mm-LC | M14-9.5mm-HC | M10-5.5MM-LC |
