I2C Level Converter

SKU: BR-100087
£29.99
inc. VAT

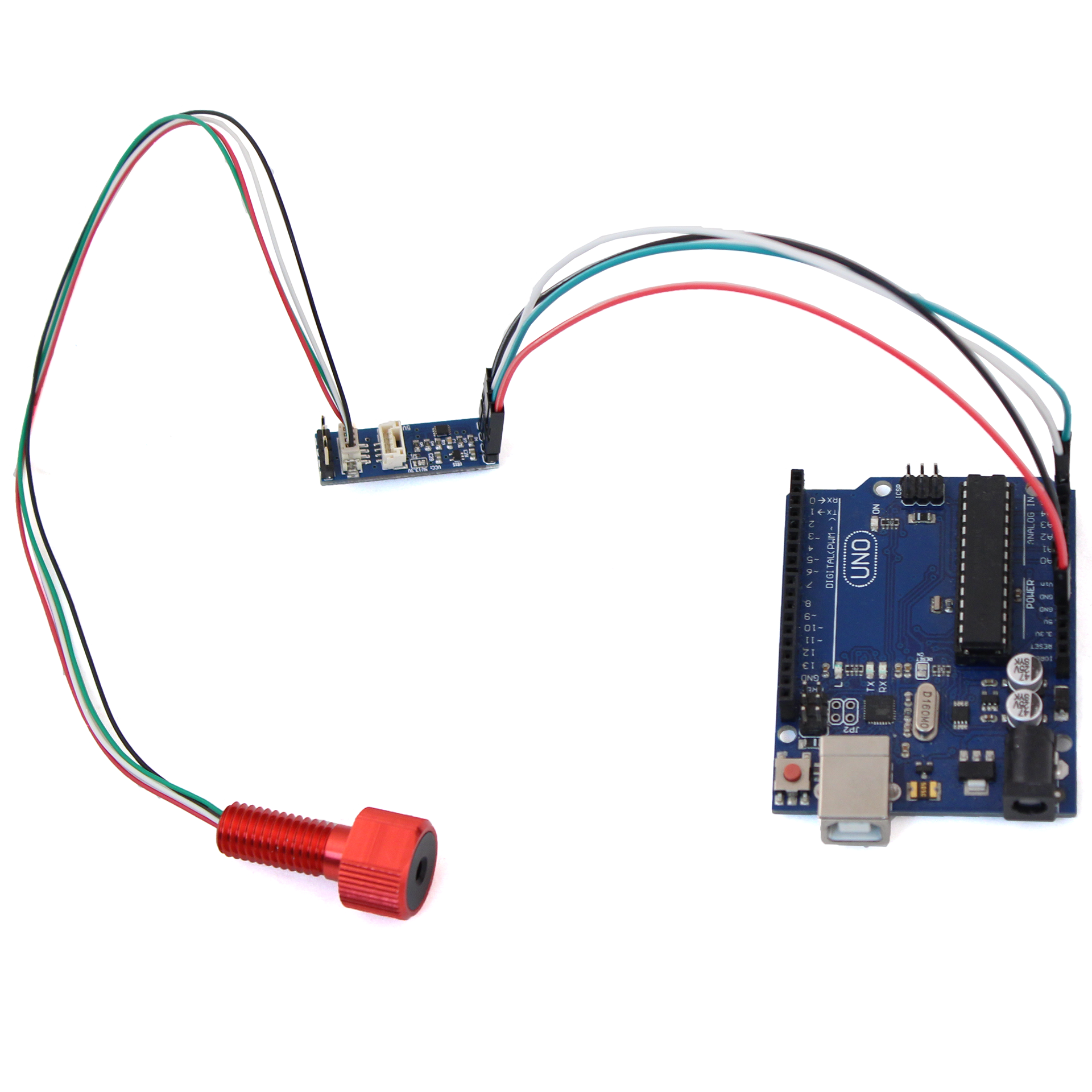

The I2C Level Converter allows you to run 3.3v logic sensors like the Bar30 or Celsius and other accessories off of a 5v logic device like the Arduino Uno!
£29.99
inc. VAT

Product Description

The I2C Level Converter allows you the run 3.3v logic sensors like the Bar30 or Celsius and other accessories off of a 5v logic device like the Arduino Uno!

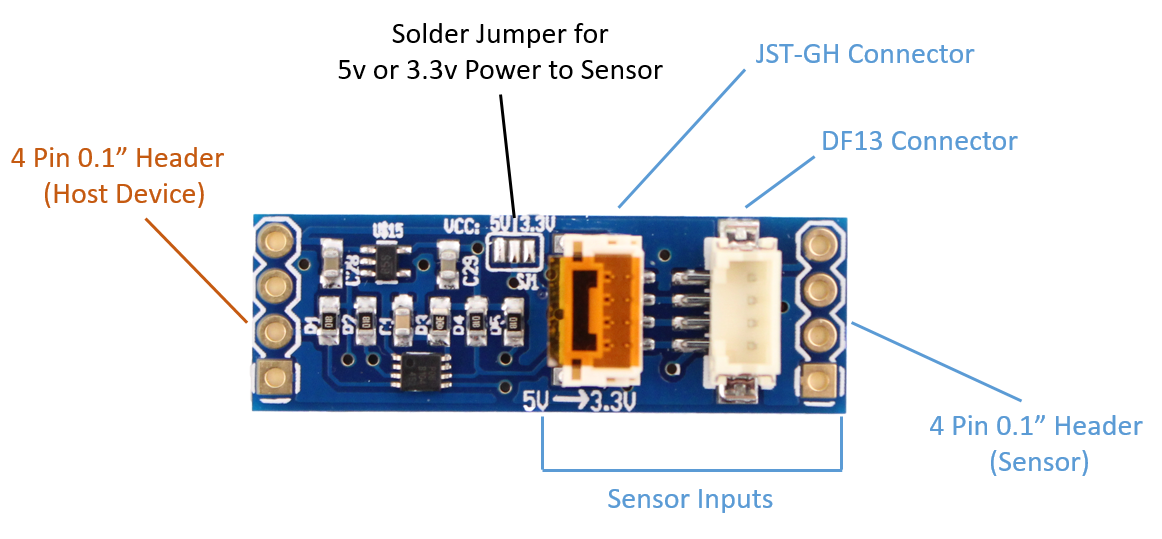

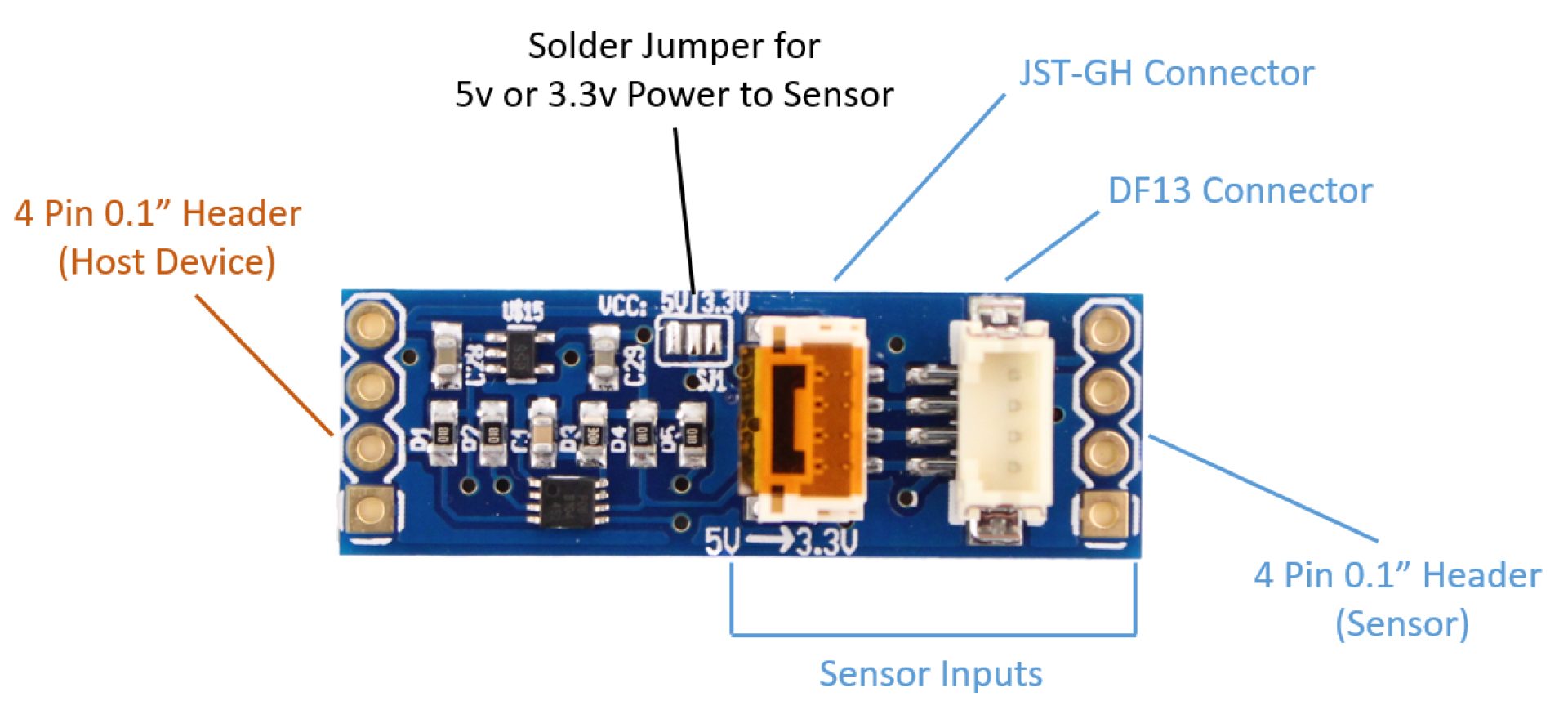

A selectable solder jumper lets you run 5v or 3.3v power to your sensor, independent of the 3.3v I2C logic. Built in four pin DF13, Dronecode Mini standard JST-GH, and 0.1″ header pin connectors provide maximum flexibility and ease of use.

Technical Specifications

ParameterValue
Operating Voltage3.3 V–5V
Max Current @ 3.3V Vout150 mA
Output Connector4 pin 0.1” header
Input Connector4 pin 0.1” header + JST GH + DF13
