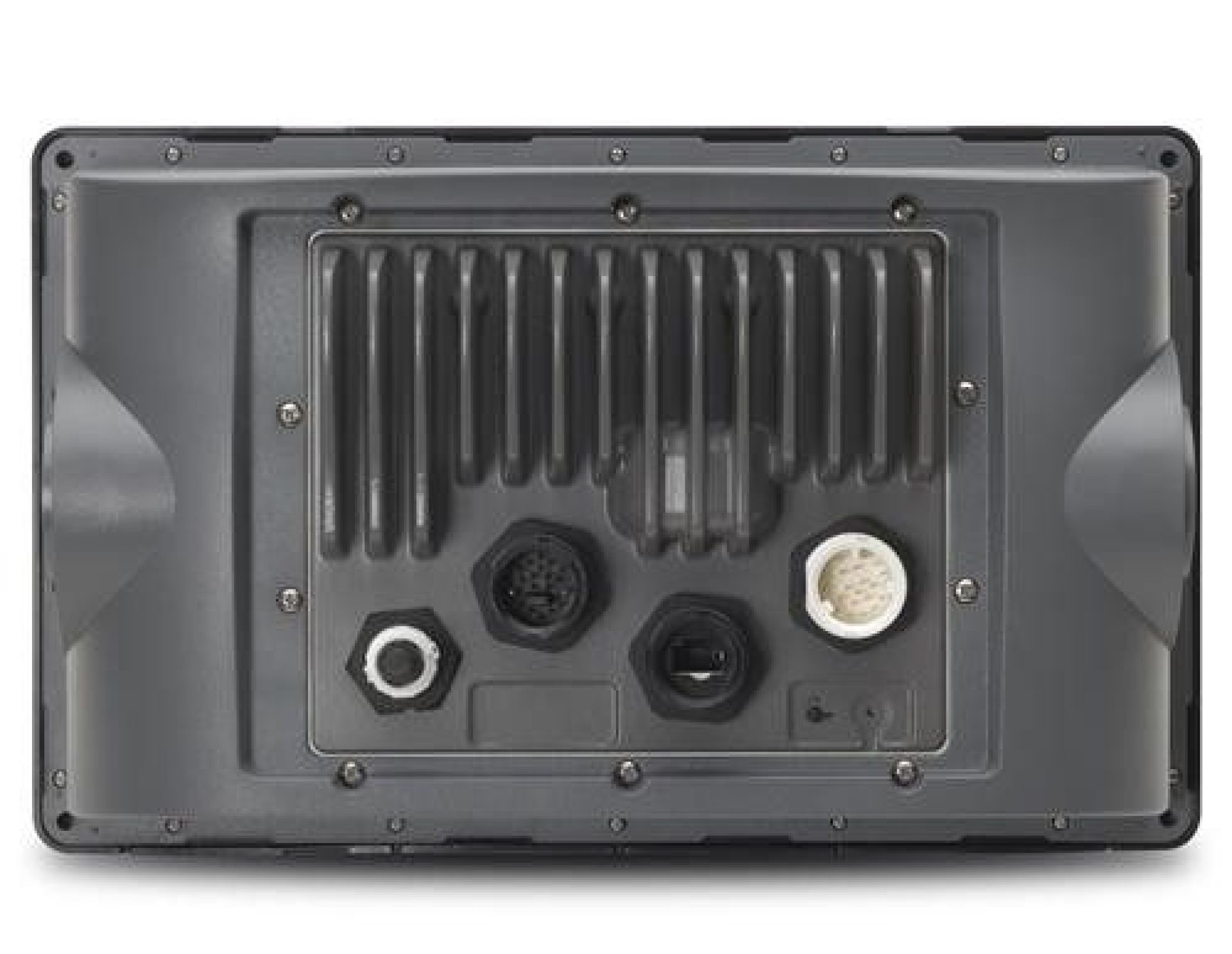

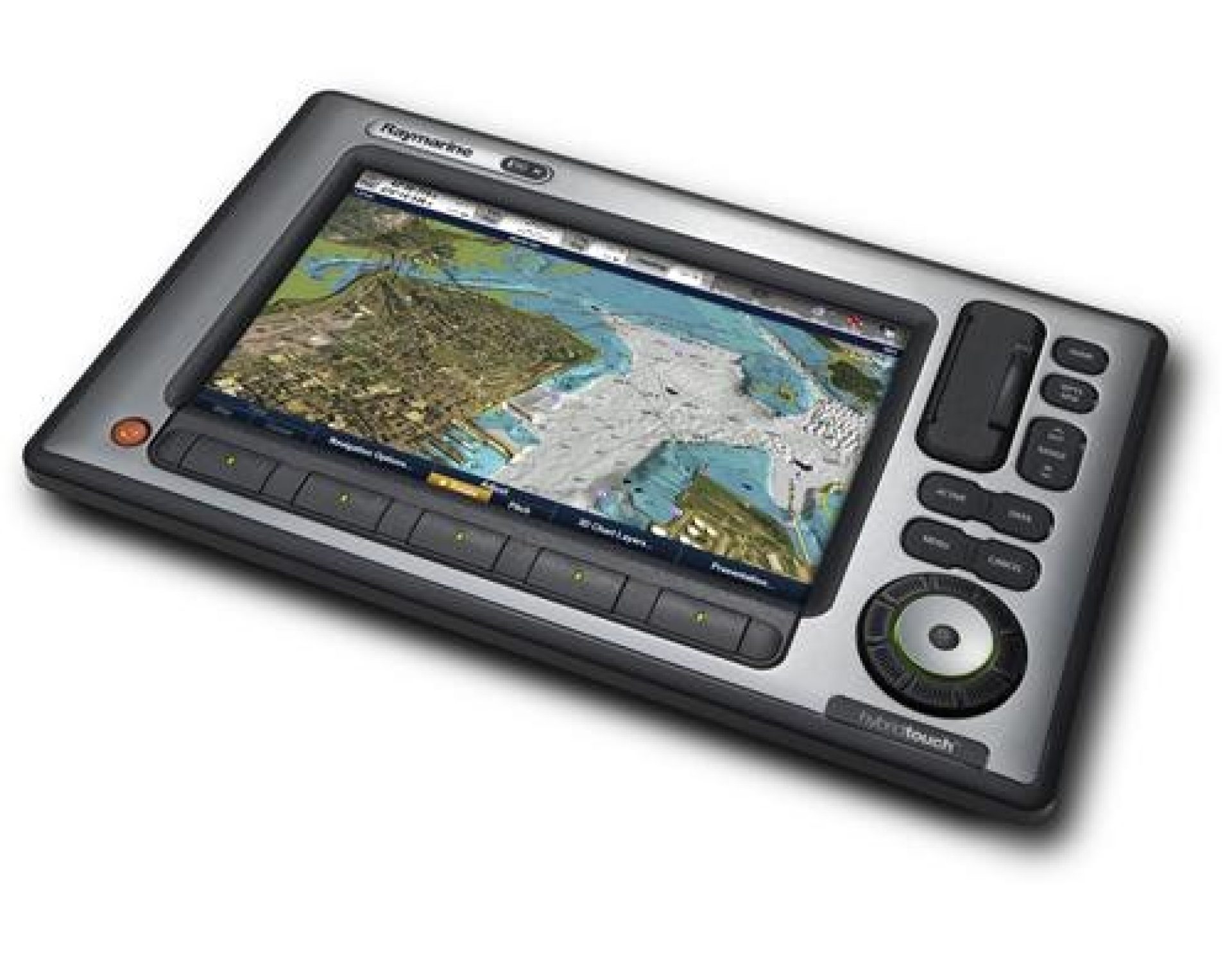

| General |
| | Data Display Capabilities | GPS, Chartplotter, Fishfinder, Radar, External Video (Composite), CDI(Course Deviation Indicator), and customizable Data Bar display | |
| | Dimensions | E90W: 12.46" x 7.74" x 6.14” (316.4 x 196.5 x 155.9) | Depth measurement includes power cable |
| | Display (LCD) Size | E90W: 9" | |
| | Display Colors | 16.7M | |
| | Display Resolution | E90W: 800 x 480 pixels (wide VGA) | |
| | Display Type | Sunlight viewable color TFT LCD | |
| | Mounting Methods | Console mounting hardware included. Trunnion mounting kit sold separately | |
| | Operating Temperature Limits | 14°F to 122°F (-10°C to 50°C) ambient air at 95% RH | |
| | Power Consumption | 32 Watts (typical) | |
| | Voltage Range | 10.7–32 volts (12/24v nominal) | |
| | Waterproofing | CFR46/IPX6 standards | |
| | Weight | E90W: 8.5lbs (3.85kg) | |
| | Approvals CE - Conforms to FCC - Compliant with | Essential requirements of 1995/5/EC, 1989/336/EC. CFR47 Parts 2 & 80 | |
| | Humidity Limit | up to 95% at 35°C non-condensing | |
| | Display Windows | Chart, Radar, Fishfinder, CDI, Video, Data, Weather, Engine Monitor, Tutorial | |
| | Screen Functions | Full, half and quarter screens available dependant on function. Also 3 window page with 2 x 1/4 page windows and 1 x 1/2 page window. | |
| | Illumination | Screen and keypad: 0 to 100% in 64 steps Day/Night Mode | |
| | Languages | English (US), English (UK), Italian, French, Spanish, German, Norwegian, Dutch, Swedish, Danish, Portuguese, Finnish, Icelandic, Chinese, Russian, Greek, Japanese, Korean | |
| | System Alarms | Alarm Clock, Anchor, Arrival, Deep, Shallow and Fishing Depth, MOB, Offtrack, Temperature, Timer | |
| | Navigation Alarms | Arrival Alarm, Offtrack XTE Alarm | |
| Human Interface |
| | hybridtouchTM | Touchscreen user interface | |
| | | Full functionality also available using hard keys | |
| User Interface |
| | User Interface | UI refresh | |
| Interfaces |
| | Network Configurations | Single, dual or mult-display configurations. | |
| | SeaTalkhs Network | 1 port | |
| | SeaTalkhs Network | Supports up to 5 display nodes in one network and maximum 8 nodes including displays and sensors | Optional network switch required |
| | NMEA interface | 3 inputs (configurable baud rate) | |
| | | 2 outputs | |
| | NMEA 0183 Input | GLL, GGA, GLC, GTD, VTG, BWC, BWR, RMA, RMB, RMC, XTE, VHW, HDG, HDM, HDT, DBT, DPT, APB, VLW, MWV, WPL, RTE, DSC and ZDA. Selectable to 4800, 4800 Navtex, 9600 Navtex or 38,400 AIS | |
| | NMEA Output - User selectable | APB, BWC, BWR, DBT, DPT, GGA, GLL, MTW, RMA, RMB, RMC, RSD, TTM, VLW, VHW, VTG, WPL, VHF/DSC and ZDA | |
| | Seatalk Interface | 1 port | |
| | SeaTalk Input | Depth,SOG,COG, Position, Waypoint Number, Range/ Bearing, TTG, Boat Speed, Time, XTE, Heading, Wind, Data, Log/Trip, Pilot Status, Temperature, MOB and Cursor Position | |
| | SeaTalk Output | Cursor Data, Guard Zone and Navigational Data bridged from NMEA | |
| | SeaTalk2/NMEA2000 | 1 port | Also supports SeaTalkng (Next Generation data bus) connectivity. Adapter cables required for SeaTalkng and NMEA2000 |
| | Video Input | Composite Video (NTSC or PAL) Input (BNC connector). Optional video cable adds 3 additional composite video (NTSC or PAL) via BNC connectors. | |
| | Video Output | VGA output via optional Video accessory cable. User selectable output as pass thru native display resolution or scaled 720p (1280 x 720) display resolution | |
| | Line Audio Alarm Output | Line audio alarm output via optional Video accessory cable | |
| Chartplotter |
| | Cartography | Embedded Navionics ready-to-navigate Cartography: ROW Charts (Rest Of the World) | |
| | Cartography | Compatible with Navionics Charts on CompactFlash cards | |
| | Chart Scaling | 1/32nm (if cartographic detail is available) to 4000nm | |
| | Waypoints | 3000 waypoints entered via touch, cursor, lat/lon, range and bearing from present position or at boat’s position. 16 character name can be assigned. Waypoint symbols and groups. Additional storage available on CompactFlash cards. | |
| | Waypoint Transfer | Waypoints database via NMEA and CompactFlash cards. Software also available to convert waypoints to Excel file. | |
| | Man Overboard (MOB Mode) | Mark placed with course line; readout shows range, bearing, lat/lon of MOB and time elapsed since MOB. | |
| | Seamless 2D-3D view | Transition between 2D and 3D views by adjusting Pitch angle | |
| | 2D Presentation Modes | Active motion/planning mode; Head up, Course up or North up (selectable True or Mag-netic); Relative, Autorange, True Motion or Vessel offset Screen; Radar or chart-chart synchronization | |
| | Routes | A route plan may contain up to 50 waypoints. Up to 150 routes can be stored in the units internal memory. Additional storage available on CompactFlash cards. SmartRoute to create a route from track history. | |
| | Track History | 15 tracks with up to 3000 points in each can be stored in the units internal memory. Track optimization reduces number of points used or user selectable time or distance interval. Additional storage available on CompactFlash cards. | |
| | Radar/Chart Overlay | Radar image can be overlaid on all screen charts | |
| | Radar/Chart Synchronization | To synchronize radar range and chart scale | |
| | Chart-Chart Synchronization | To synchronize position, rotation and range of synchronised chart windows. | |
| | Aerial Overlay | Overlay of aerial photography on the chart | |
| | Weather Overlay | Nowrad overlay on chart and access to Weather Reports from chart window | |
| | AIS Overlay | Switch AIS symbols on/off. Display heading/speed vectors and ROT. View detailed AIS data, safety critical target data, ALR and SRM messages. Set up a safe zone. | |
| | Navigation Information | Own boats position in lat/lon, XTE, TTG and SOG/COG selectable. Bearing and distance to waypoint. Bearing and distance to cursor and ETA. | |
| | 3D Presentation Modes | Active motion/planning mode; Head up, Course up, or North Up; Adjust rotation and pitch; Vessel offset | |
| | 3D/2D Display | Declutter, Waypoint name; 2D View: Heading Vector, COG Vector, Tide Arrow, Wind Arrow; 3D View: Transducer cone, Depth scale, , Adjust exaggeration, | |
| | Alarms | Anti-collision alarm (based on chart data) | |
| Fishfinder |
| | Transducer | Transom-mount, in-hull or thru-hull options | |
| | Digital Sounder Modules | Compatible with the DSM30, DSM300, and DSM400 | |
| | Receiver Type | Patented Raymarine HD Digital receiver technology | |
| | Power Output | Dependant on Digital Sounder Module | |
| | Frequency | Dependant on Digital Sounder Module | |
| | Alarms | Fish Alarm, Fish Depth Alarm, Shallow and Deep Fish Limit | |
| | A-Scope Display | Displays Sonar Returns in real time | |
| | Bottom Coverage Display | Shows the diameter of the transducer beam where it meets the bottom. | |
| | Bottom Lock | Displays echoes directly above the bottom | |
| | Range Markers | Easily see how far the boat is from a target on the echo sounder screen | |
| | Target Detection | Sonar fish echo with target depth readout | |
| | Zoom | 2,3,4x and user programmable Zoom Scales | |

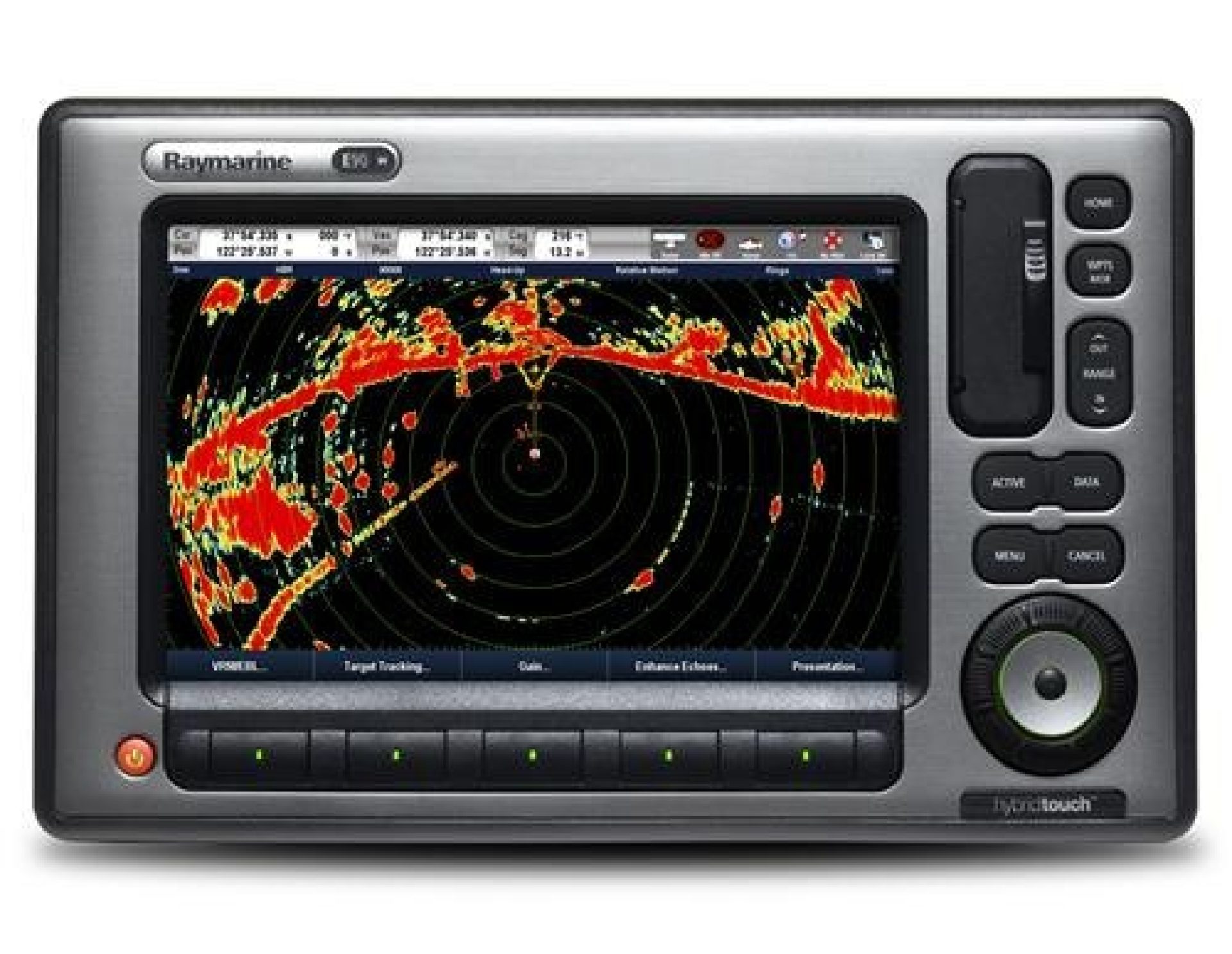

| Radar |
| | Radar Support | Support for all Digital, HD Digital & Super HD Digital Radars | |
| | Image Type | Color Radar Support (HD & SHD Radars Only) | |
| | Range Scales (Range Rings) | 1/8 (1/16) nm to 72 (12) nm dependant on scanner. Performance limited by scanner type and position. | |
| | Range Ring Accuracy | Better than +/- 1.5% of the max. range scale in use, or 22m (72 ft.), whichever is the greatest. | |
| | Bearing Accuracy | +/- 1° | |
| | Variable Range Markers | 2 x VRM’s, readout nm, sm, km | |
| | Electronic Bearing Lines | 2 x EBL’s, floating if required, resolution 1° | |
| | Bearing Scale | 360° graduated at 10° intervals 2° small ticks 10° large ticks | |
| | Minimum Range | 23m (25 yds) | |
| | Range Discrimination | 23m (25 yds) | |
| | Presentation Modes | Head up, Course up or North up (selectable True or Mag-netic) Relative or True Motion | |
| | Scanner Control | Interference rejection, standby/transmit modes, pulse selection, Tune, Rain, FTC and Sea controls, with selection of manual or automatic control of gain, sea clutter and tune (Auto GST) | |
| | Compass Input | NMEA 0183 (required for fast heading data, suitable for MARPA), or SeaTalk | |
| | Waypoint Display | Create waypoints and target waypoint displayed with User control of symbols and groups | |
| | MARPA | Manual acquisition of up to 25 targets (dependent upon scanner type), automatic tracking, dangerous target alarms, safe zone, target history, true or relative vectors, CPA graphics and indication of target speed/ course, bearing/ range, CPA and TCPA. | |
| | Guard Zone Alarm | 2 guard zones, selectable sensitivity level, audible alarm | |
| | Automatic Tuning | Auto control of gain, sea clutter and tune | |
| | Off Center Function | In Relative Motion, 1/3 or 2/3 | |
| | Wakes | 10s, 30s, 1 min, 5 min & 10 min options | |
| | Target Expansion | Operator selectable with 2 levels available | |
| | Timed TX | Rotation periods: 10, 20 or 30 scans Repetition periods: 3, 5, 10 or 15 minutes | |
| | AIS Overlay | Switch AIS symbols on/off. Display heading/speed vectors and ROT. View detailed AIS data, safety critical target data, ALR and SRM messages. Set up a safe zone. | |
| | Dual Range | Dual range capable with digital radar scanners | |
| | Dual Radar | Can support connection of 2 digital radar scanners (not simultaneous operation) | |

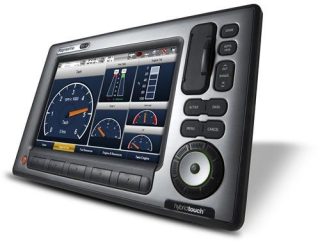

| Instrument and Engine Data |
| | Data Pages | 5 pages available. Pre-defined (Navigation, Waypoint, Route, Fishing or Sailing) or user-configured | |
| | Data Available | Vessel position, active waypoint, TTG, VMG - Waypoint, depth, COG, SOG, heading, speed, set/drift, trip, log, ground log, ground trip, rudder, local time and date, sea temperature, app wind, true wind, VMG wind, ground wind XTE, compass, locked heading, w | |
| | Engine Pages | 5 pages available. Pre-defined (engine, engine and fuel, fuel resources, engine and resources, twin engines or triple engine support) or user-configured. | |
| | Engine Data | Tacho, boost pressure, alternator, oil pressure, coolant temperature, engine hours, fuel level (tanks 1 & 2), fuel rate, total fuel, load | |
| AIS |
| | AIS Suppport | Support for class B AIS | Supports silent mode |
| | Target Symbols | Sleeping, activated, selected, dangerous and lost | |
| | Target Information | AIS vectors, buddy tracking, safety critical data and full AIS data. | |
| | Collision Avoidance | Safe zones and safety messages | |
| | Alarms | Local alarm messages, lost targets | |
| NAVTEX |
| | Alerts | Incoming message (selectable categories) | |
| | Message List | Sorting | |
| Weather |
| | Type | SIRIUS Marine Weather | |
| | Weather Elements | Storm cast, waves, Canadian radar, lightning, wind, sea surface temperature, observations stations, city weather, NOWRad, storm tracks, surface pressure | |
| | Animated Weather Graphics | Weather forecast, weather radar history | |
| | Weather Reports | Tropical statements, marine warnings, marine zone forecasts, marine watchbox | |
| General |
| | Storage Temperature | -4°F to 149°F (-20°C to +65°C) ambient air at 95% RH | |
