Vent Plug
Vent Plug
£4.99
Have you misplaced your Vent Plug for your Enclosure Vent and Plug? No problem!
£4.99
Product Description

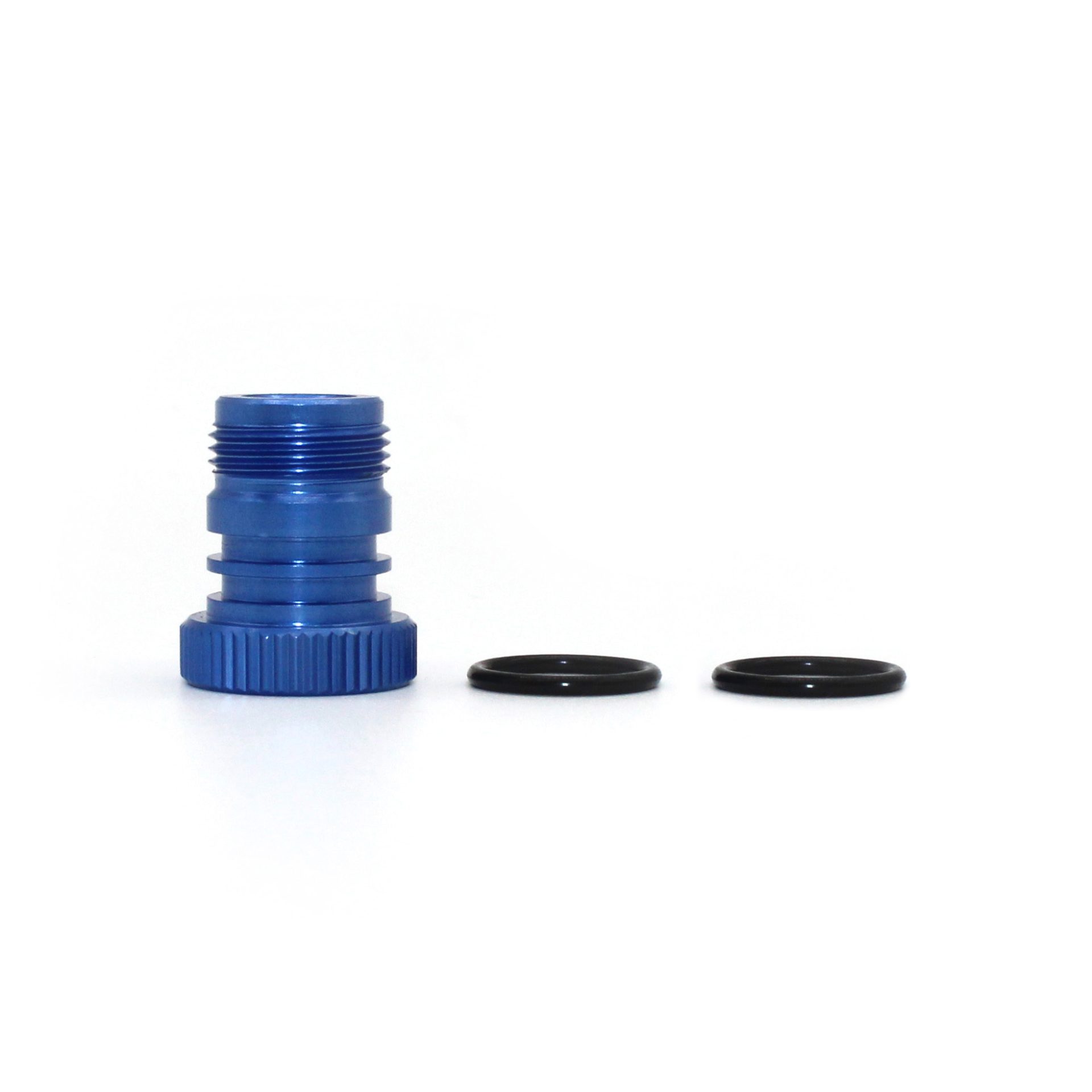

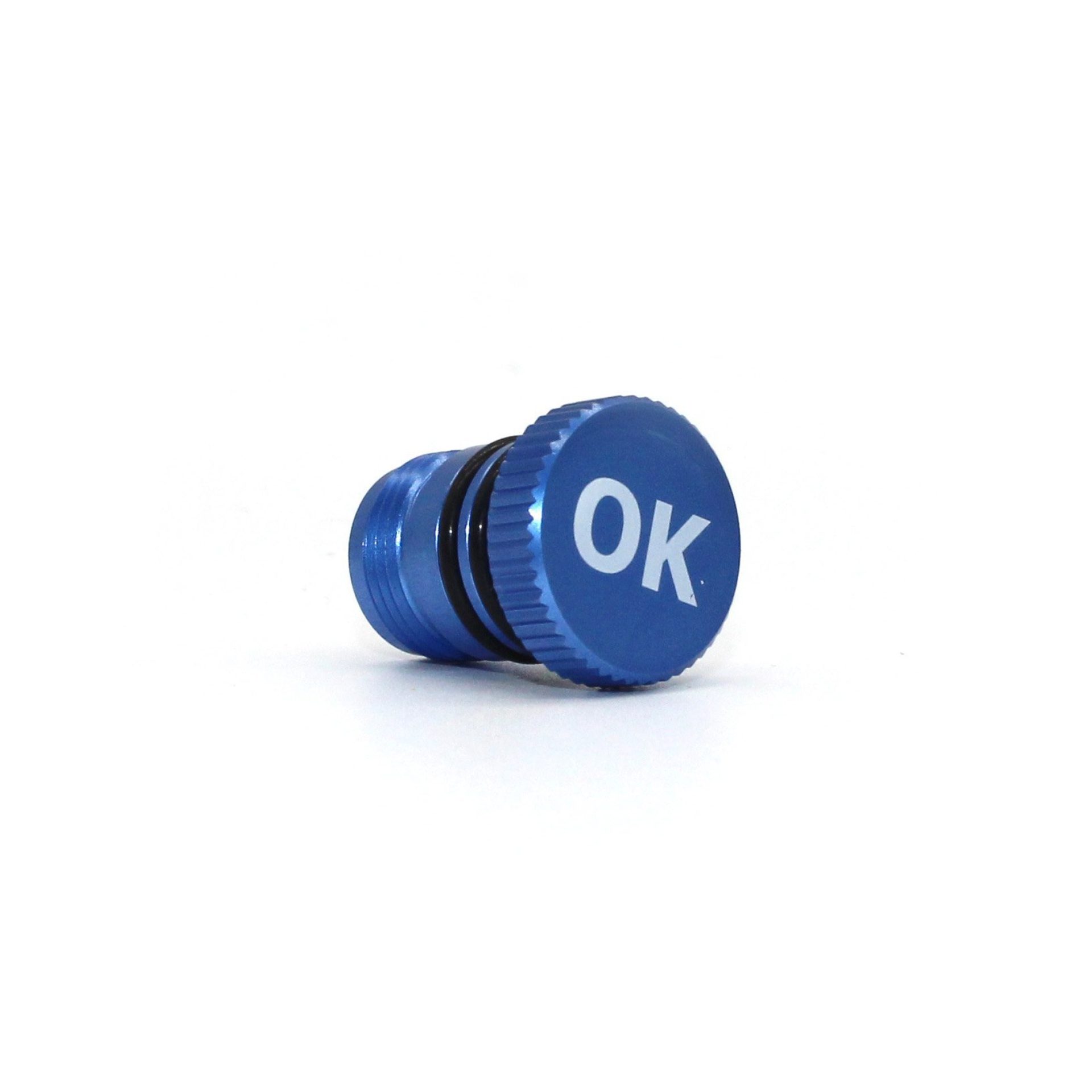

This is a spare Vent Plug for the Enclosure Vent and Plug. It tightens into the vent penetrator and has dual O-rings for a reliable seal.
Technical Specifications
| Parameter | Value | |
|---|---|---|
| Performance | ||
| Maximum Rated Depth (seawater) | 950 m | 3116 ft |
| Design Lifetime¹ | 3 years or 500 cycles to rated depth | |
| Temperature Rating (air) | -25 to 60°C | -13 to 140°F |
| Temperature Rating (water) | 0 to 40°C | 32 to 104°F |
| Physical | ||
| O-ring Size | 1.5 x 11.5 mm Buna-N 70A | |
| Plug Material | 7075-T6 Anodized Aluminum | |
| Wetted Materials | Buna-N Rubber Molykote 111 Compound 7075-T6 Anodized Aluminum | |
| Weight | 7.6 g | |
| ¹ Design life was used to inform testing in an accelerated environment, does not reflect warranty period. | ||
