Products

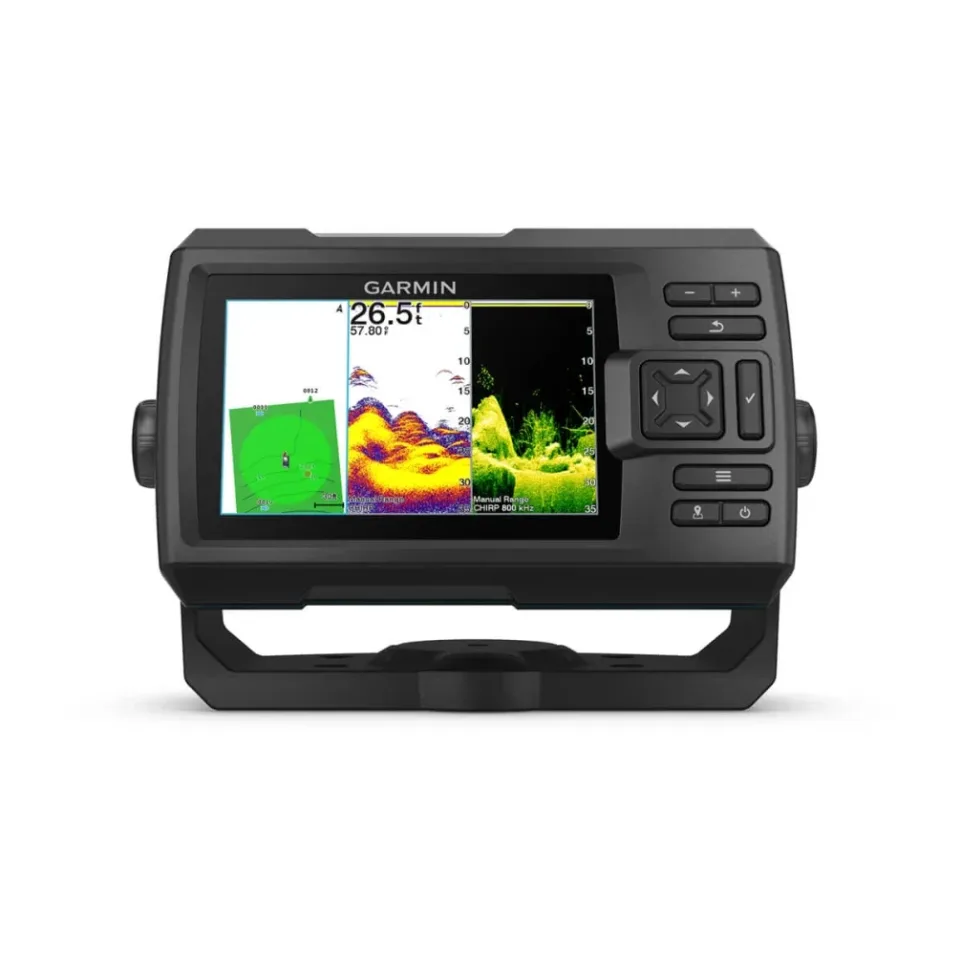

STRIKER™ Vivid 5cv

SKU: 010-02551-01
£340.00
inc. VAT
STRIKER™ Vivid 5cv With GT20-TM Transducer
£340.00
inc. VAT

Product Description

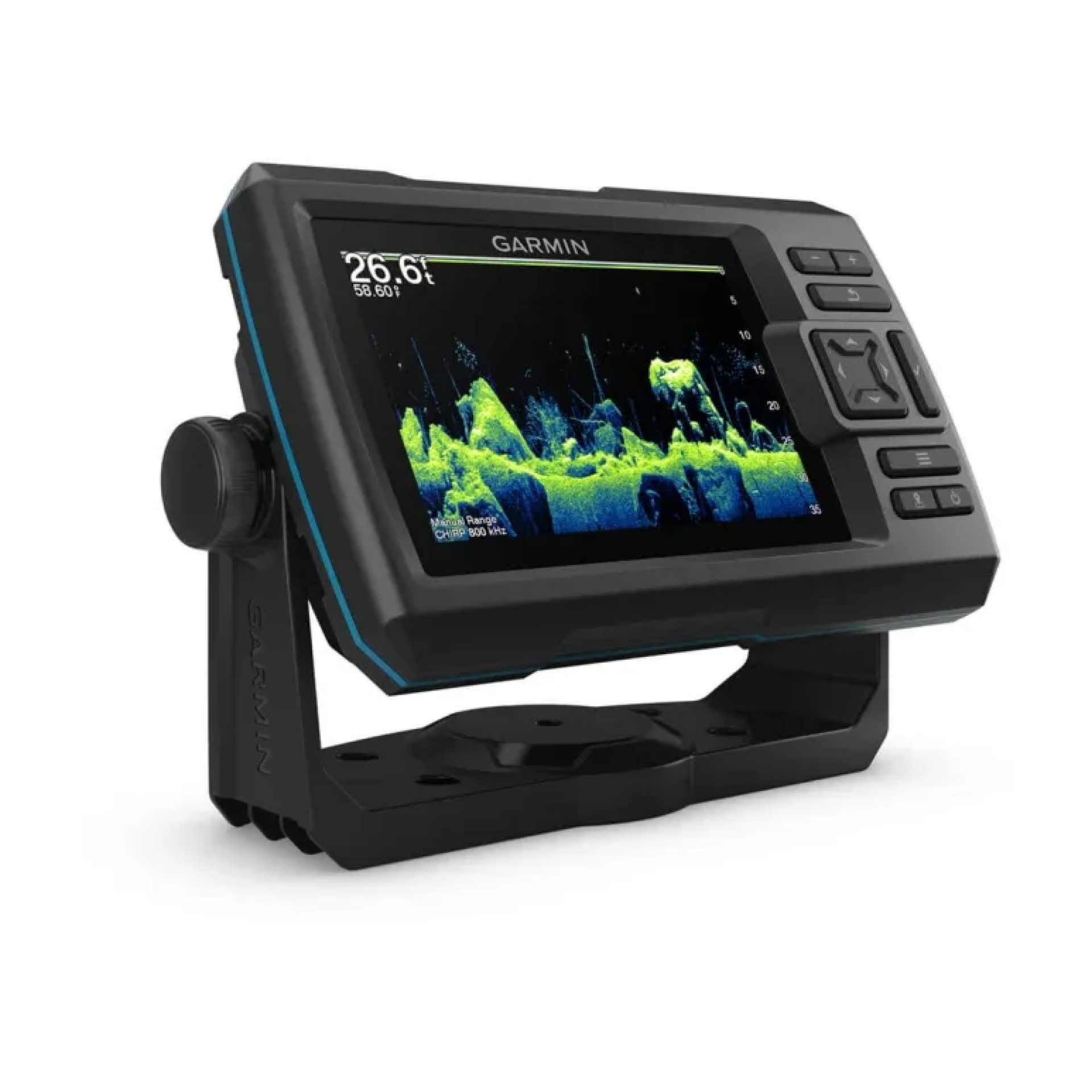

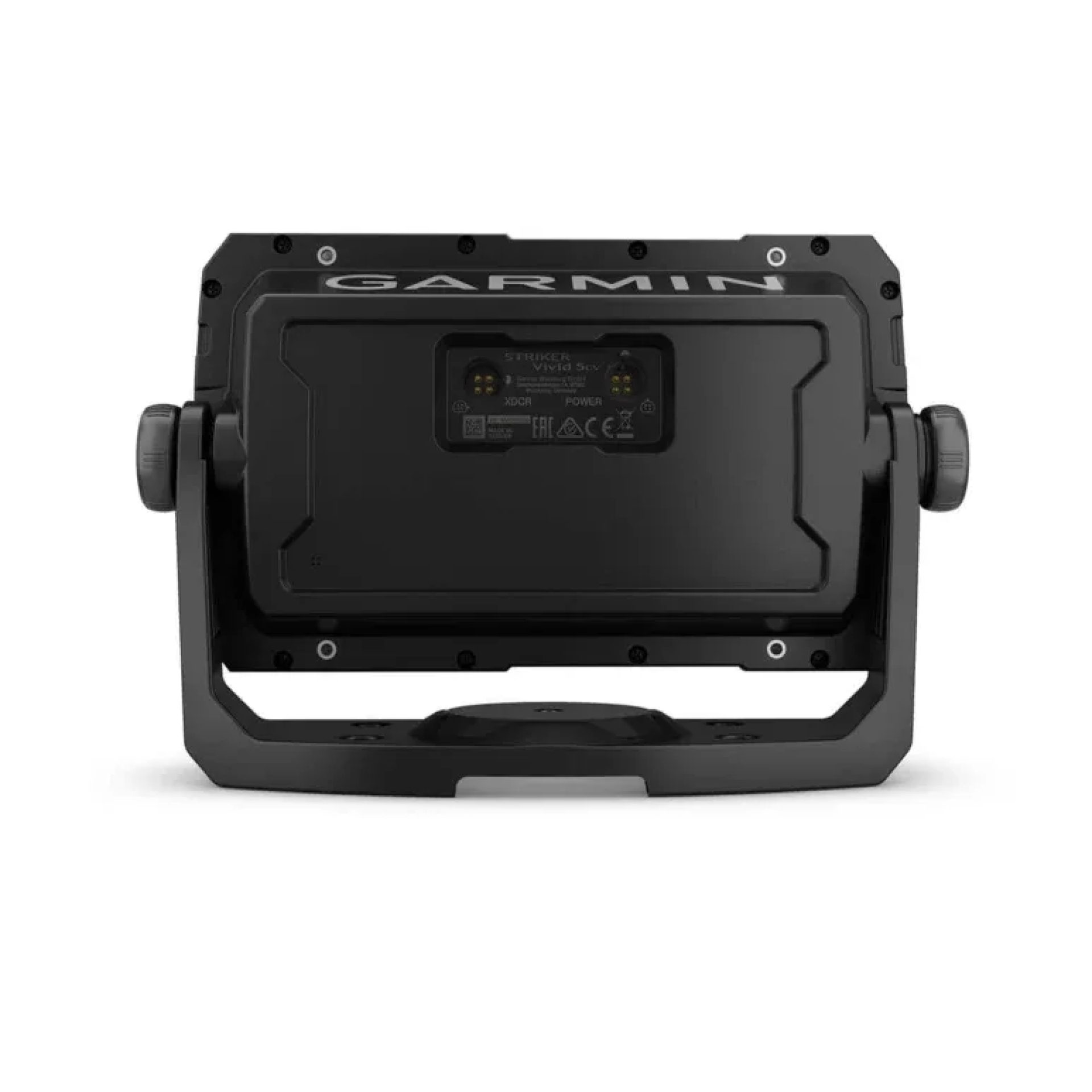

Garmin Striker Vivid 5cv fishfinder With GT20-TM Transducer

See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 5cv fishfinder with transducer.

CLEAR, COLORFUL SONAR

Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 4” fishfinder.

BUILT-IN SONAR

Use the included GT20 transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar.

WAYPOINT MARKING

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

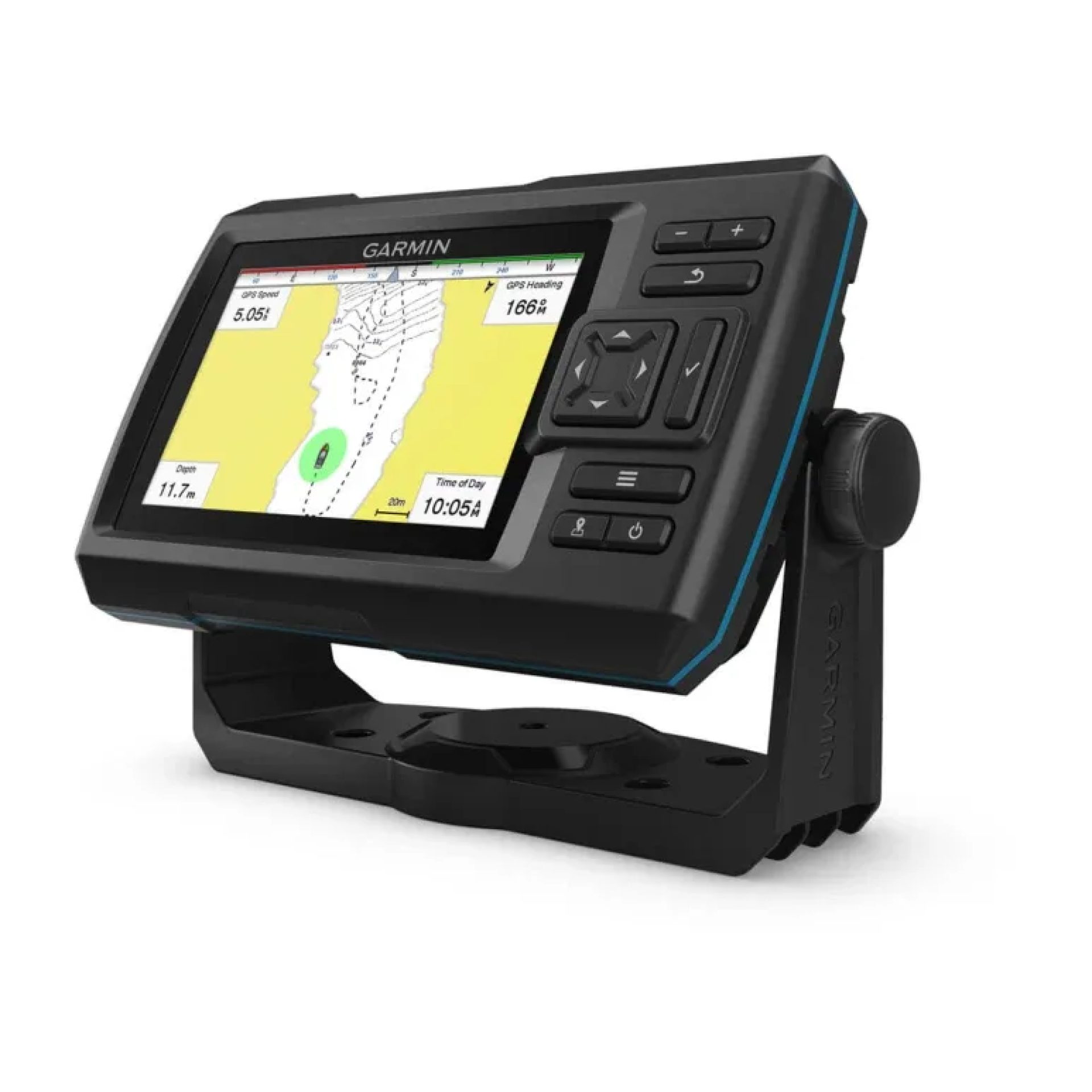

HIGH-SENSITIVITY GPS

Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

QUICKDRAW CONTOURS

Nobody knows the waters you fish better than you. With the STRIKER Vivid 4cv fishfinder, you can store up to 2 million acres of maps with 1’ contours.

INCLUDED HARDWARE

The STRIKER Vivid 4cv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

Technical Specifications

General
Dimension7.4’’ x 4.5’’ x 2.1’’ (18.8 x 11.6 x 5.4 cm)
Weight1.0 lb (0.5 kg)
Water ratingIPX7
Display TypeWVGA colour
Display Size2.6" x 4.3" (6.5 x 10.8 cm); 5.0" diag (12.8 cm)
Display Resolution800 x 480 pixels
Mounting Optionsflush, tilt/swivel
InputKeyed
Maps & memory
Waypoints/favourites/locations5000
Track points50,000
Tracks50
Navigation Routes100
Sensors
GPSYes
Has built-in receiverYes
Supports WAASYes
Optional map support
Garmin Quickdraw ContoursYes
Electrical features
POWER INPUT12 to 20 Vdc
Typical current draw0.40 A
Max current draw1.5 A
Power Consumption4.8
Sonar features & specifications
Displays sonarYes
Traditional sonar (dual frequency/beam)Built-in
ClearVüYes
FrequencyTraditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz
Transmit power500 W (RMS)
Bottom Lock (shows return from the bottom up)Yes
Water Temperature LogYes
Connections
4-pin transducer ports1
Fishfinder features
Split-screen zoomYes
Fish Symbol ID (helps identify fish targets)Yes
AutoGain Technology (minimises clutter, maximises targets)Yes
Adjustable depth line (measures depth of underwater objects)Yes
A-scope (real time display of fish passing through transducer beam)Yes
Water temperature sensor includedYes
Depth range shadingYes
Security Information
Security updates until at least (YYYY-MM-DD)2022-10-27
Additional
Additional
  • One 4-pin transducer port
  • Quickdraw Contours
  • Integrated GPS
  • Mark Waypoints
  • Course over Ground (COG)
  • Current draw @ 12V: 0.40A
