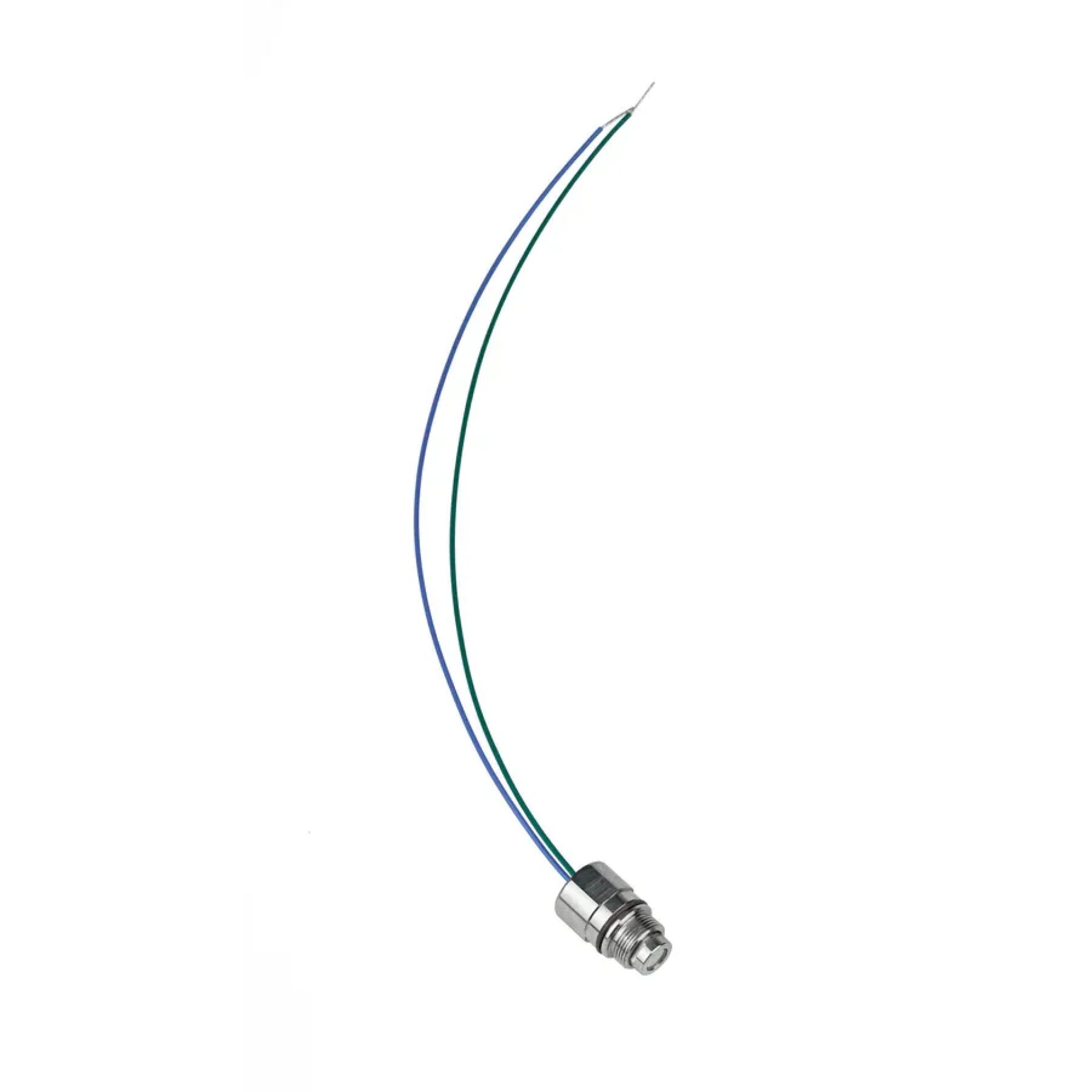

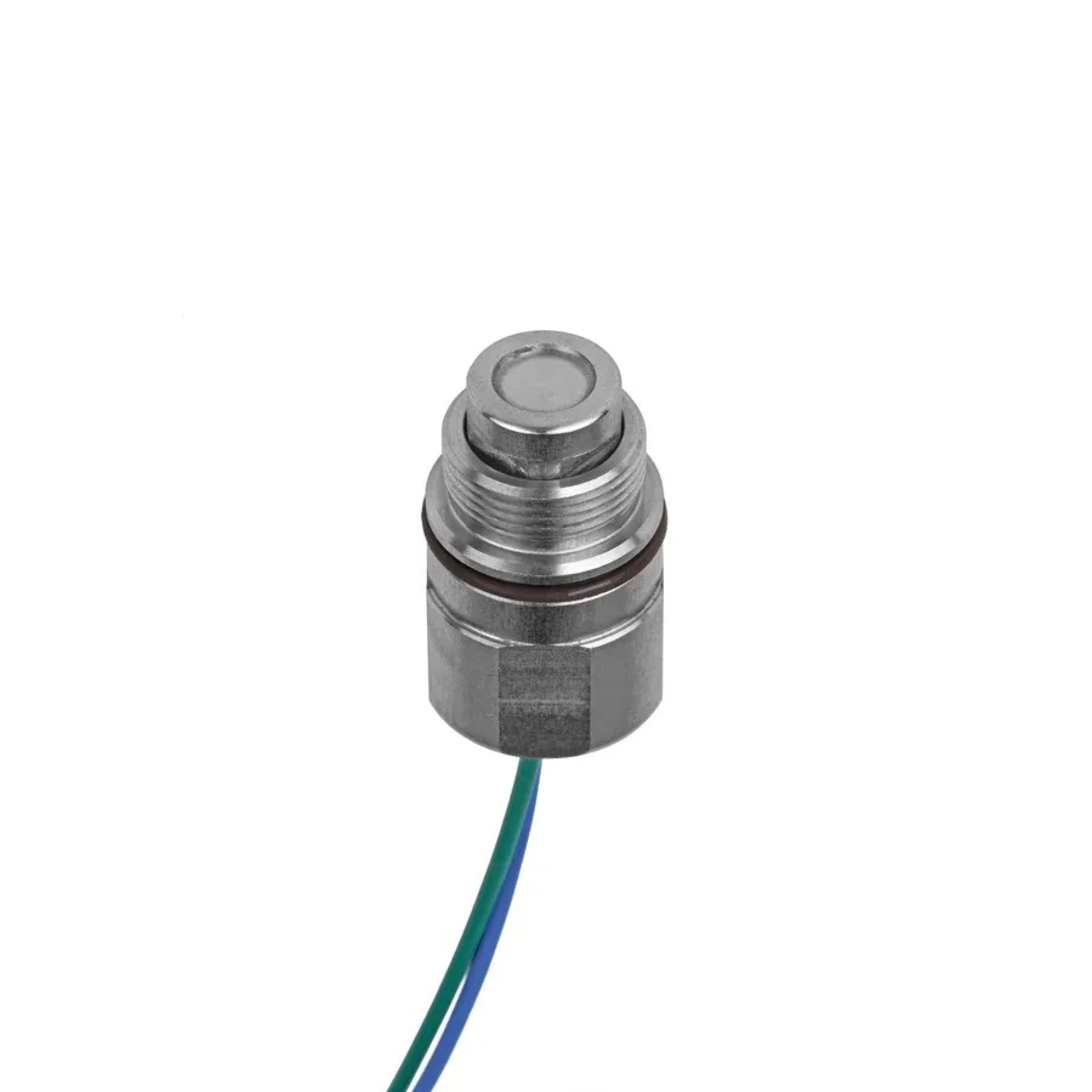

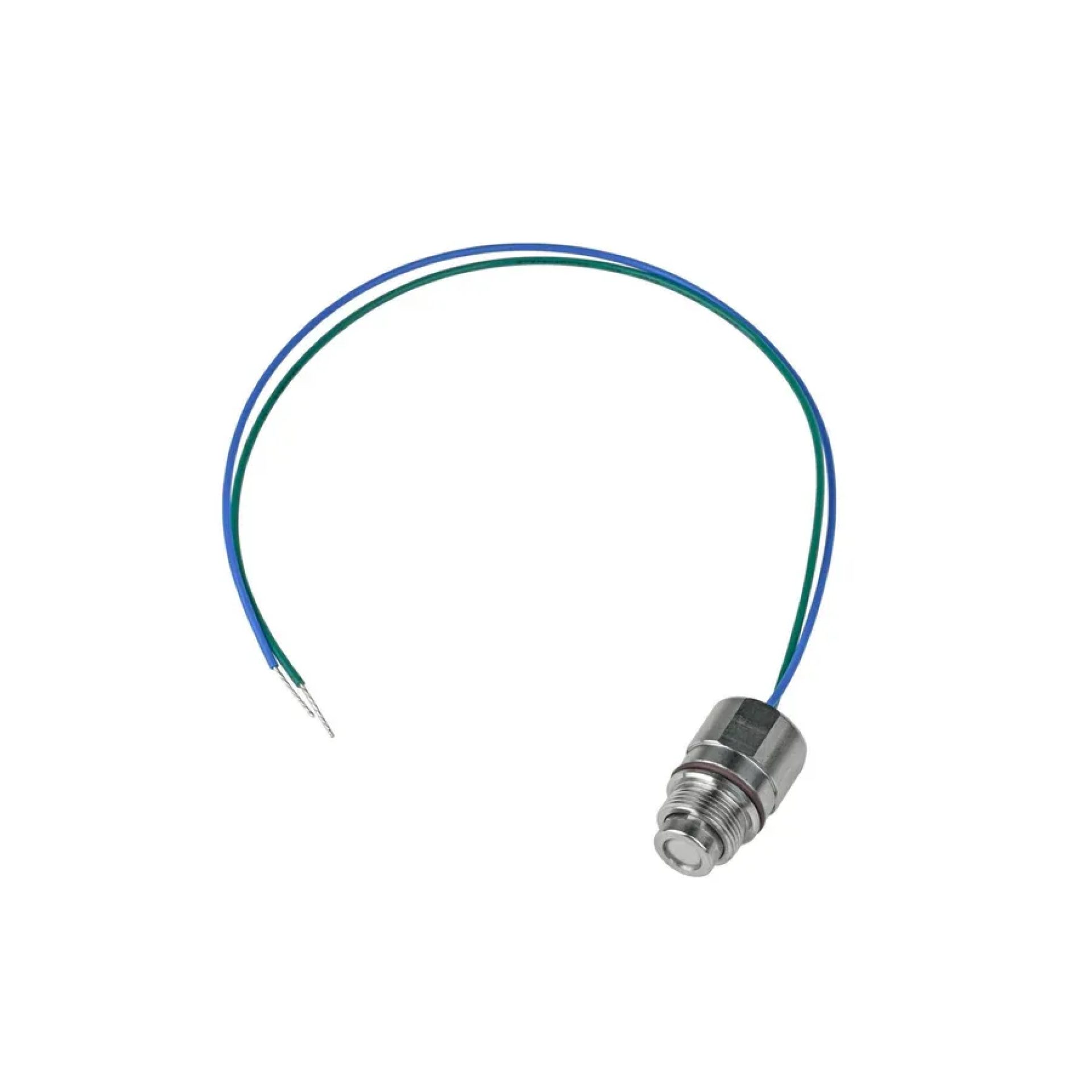

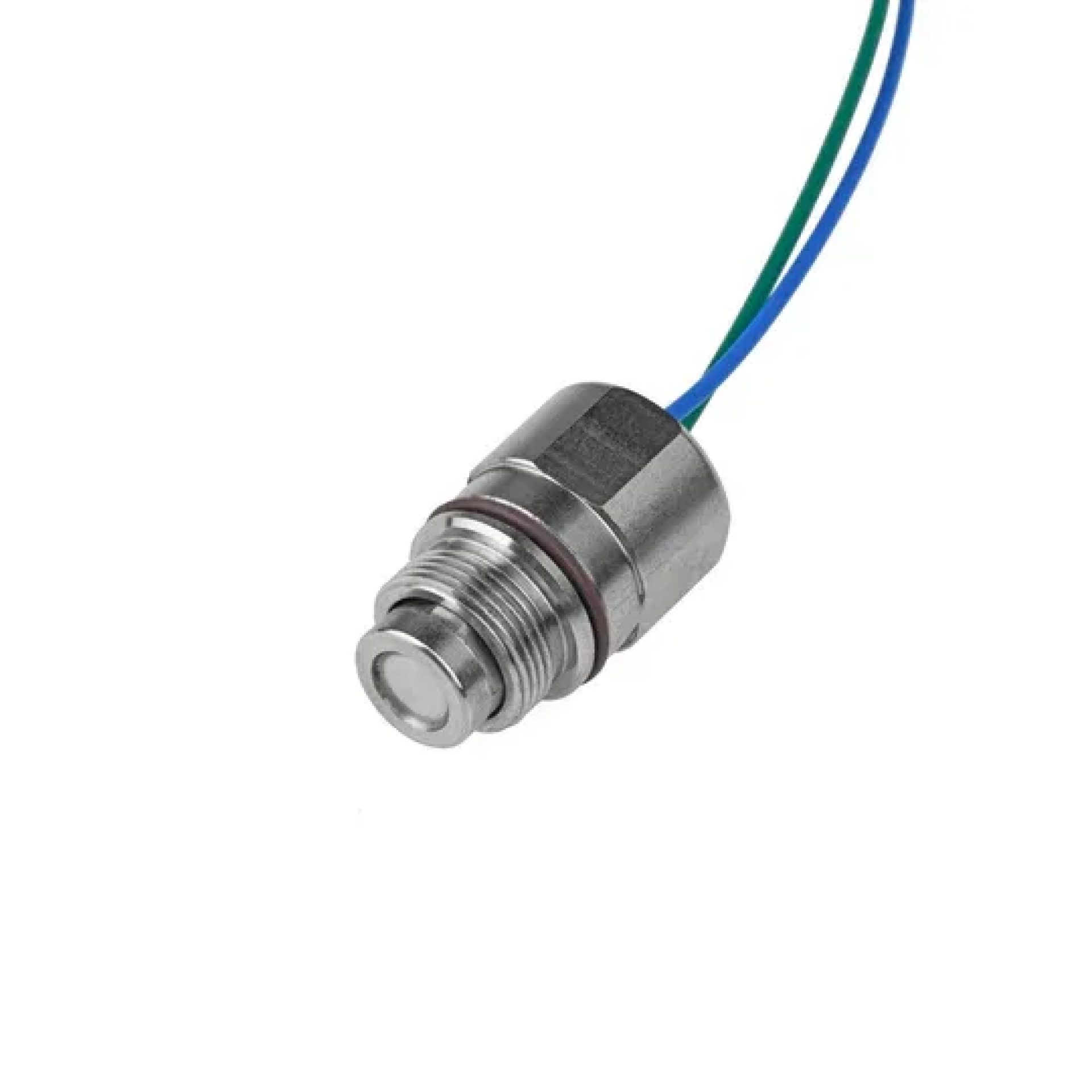

Subsea Embedded Push Button Switch (Non-Magnetic)

Built for subsea control applications, the Subsea Embedded Push Button Switch delivers reliable tactile feedback and water-resistant operation without interfering with sensitive electronic systems. Its non-magnetic stainless steel construction is specifically suited for use near sonar, compasses, or other devices affected by magnetic interference.

The switch operates in a momentary (tap) configuration — conduction is only active while pressed — with no self-latching function. Its internal components are pressure-sealed, verified through 480-hour testing at 1.2 MPa and over 30,000 actuation cycles, ensuring long-term durability and consistent performance under pressure.

Intended for shallow subsea or air environments, the switch supports electrical signals up to 50 mA at 12 V DC and is best used for triggering control signals or interface inputs. Installation requires attention to O-ring surface finish and a chamfered entry to ensure sealing integrity.

Maintenance is minimal, though the device may require rinsing after extended use in murky or saline water to remove buildup from tight crevices.
