WetLink Penetrator Blank (No Hole) - M10

SKU: BR-100434-010
£5.99
inc. VAT
All Cables, Penetrators and Connectors Products

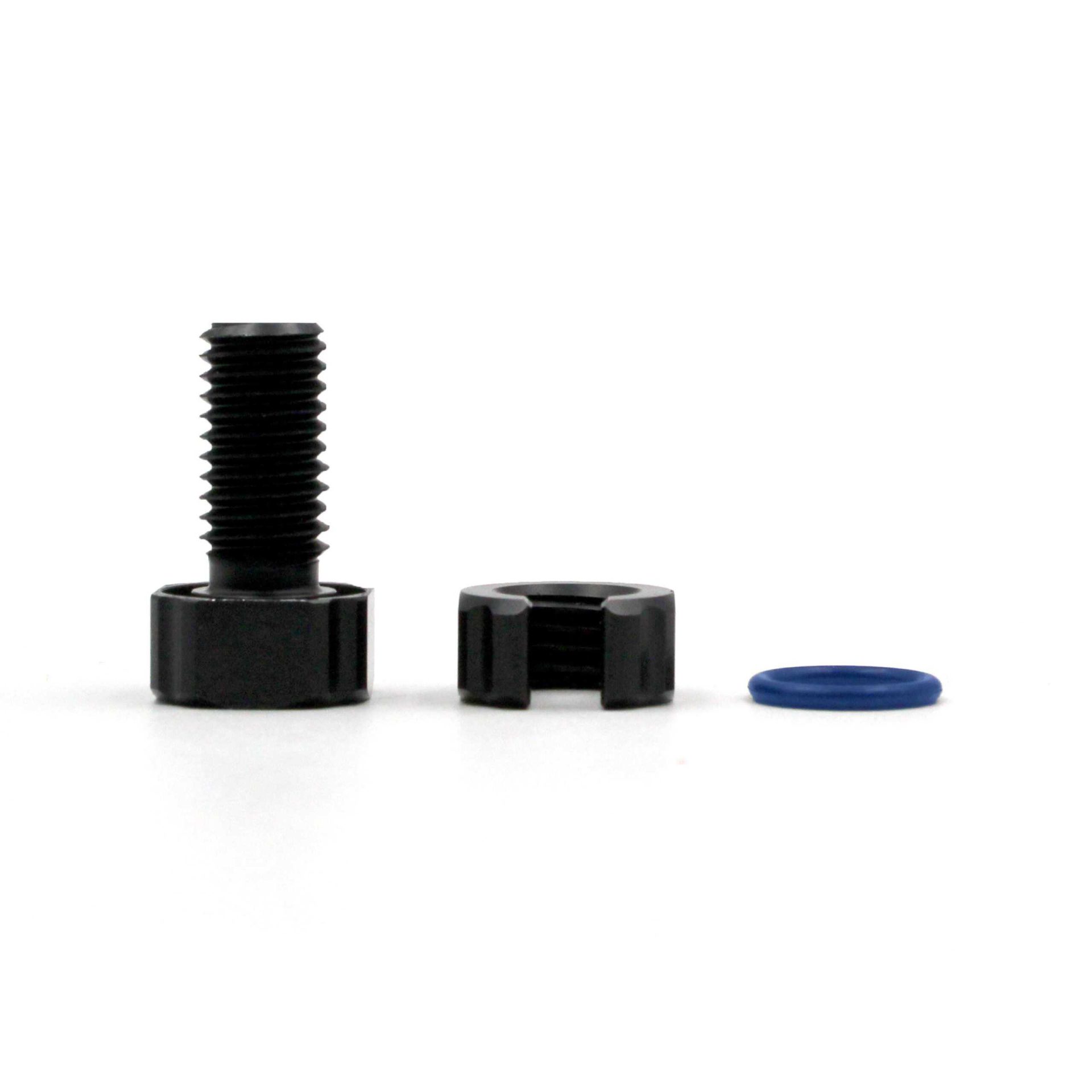

This WetLink Penetrator Blank is used to seal any unused holes on your watertight enclosure with a high-pressure seal. Each set includes a bulkhead, O-ring, and nut. It’s rated to 1000 meter (3,280 feet) water depth! We recommend the Bulkhead Wrench for easy installation!
£5.99
inc. VAT

Product Description

This cable penetrator blank is provided with no hole. You can use it to seal an extra hole on a watertight enclosure! This blank features a hex socket for ease of installation!

The WetLink Penetrator (WLP) is our patent-pending, next-generation solution for low-cost, high pressure, high reliability sealing of electrical cables as they pass into enclosures or other devices. It’s rated to a depth of 1000 meters (3,280 feet) and compared to subsea connectors or penetrators, the WetLink Penetrator is a fraction of the cost while offering validated reliability that you can count on.

Technical Specifications

Specifications

ParameterM06 ThreadM10 ThreadM14 Thread
Part NumberBR-100434-006BR-100434-010BR-100434-014
Compatible Bulkhead WrenchBR-100977-006BR-100977-010BR-100977-014
Bulkhead Thread SizeM6M10M14
Bulkhead Thread Pitch1 mm1.5 mm1.5 mm
Bulkhead/Nut Wrench Flats12 mm16 mm20 mm
Hex Key3 mm6 mm6 mm
O-ring Size1.5 x 7 mm Buna-N 70AAS568-013 Buna-N 70A1.5 x 15 mm Buna-N 70A
Overall Assembled Height from Endcap6 mm8 mm8 mm
Overall Thread Length10 mm20 mm25 mm
Overall Outer Diameter13 mm18 mm22 mm
Recommended Through Hole Size6.2 mm10.2 mm14.2 mm
In Air Weight (no nut)2.3 g6.6 g11.8 g
In Water Weight (no nut)1.5 g4.2 g9.3 g
Recommended Installation Torque (bulkhead or nut)1 N⋅m3.5 N⋅m3.5 N⋅m
Performance Characteristics
Maximum Rated Depth (seawater)1000 m / 3280 ft
Design Lifetime¹3 years or 500 cycles to rated depth
Temperature Rating-40 to 60°C / -40 to 140°F
Tools
Physical
Bulkhead MaterialAluminum 7075-T6, type II anodizedAluminum 7075-T6, type III anodized
¹ Design life was used to inform testing in an accelerated environment, does not reflect warranty period.
