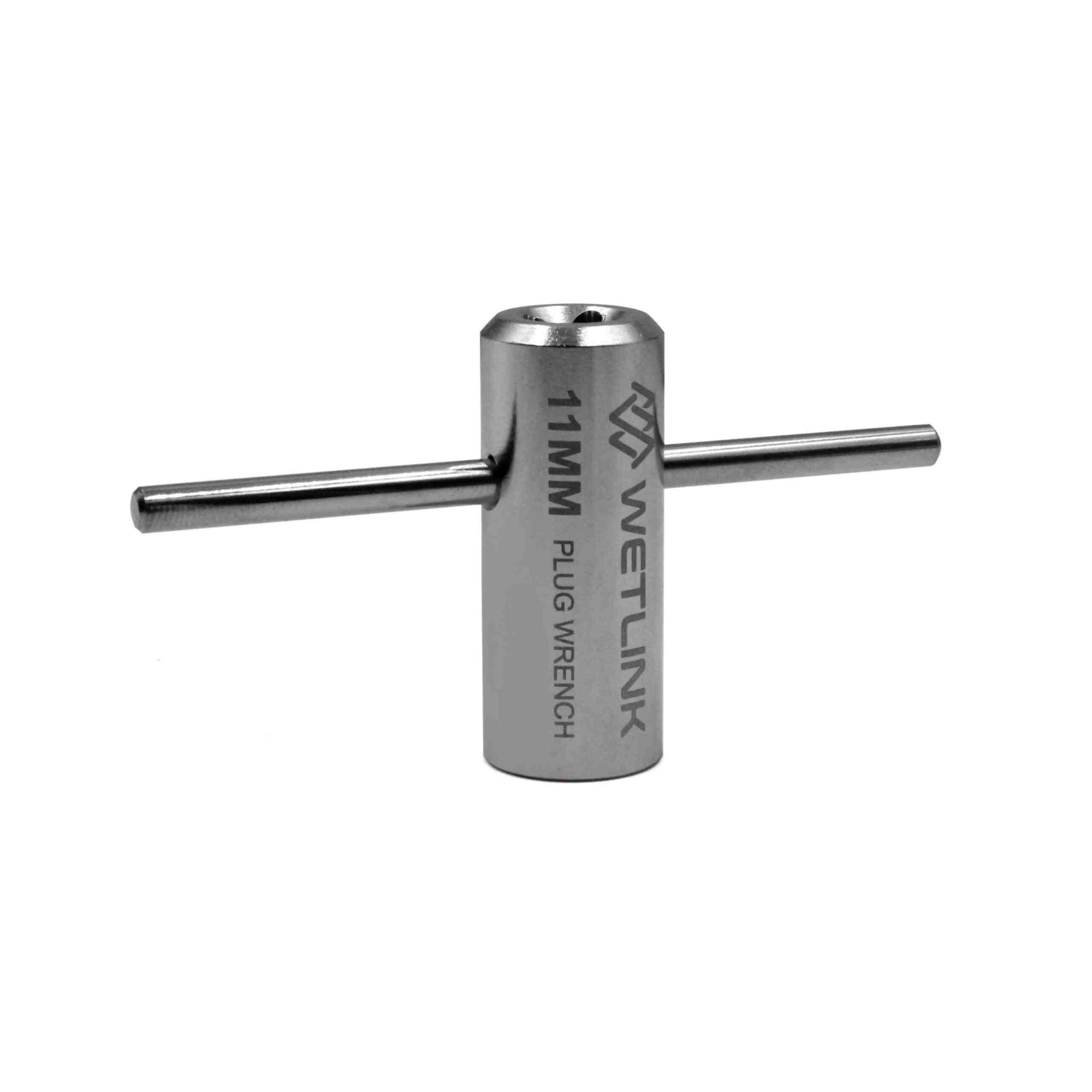

WetLink Penetrator Plug Wrench - 11 mm Hex (for 4.5 mm penetrators)

Blue Robotics

WetLink Penetrator Plug Wrench - 11 mm Hex (for 4.5 mm penetrators)

£15.99

This wrench makes it easy to install the plug of the WetLink Penetrator, creating a high-pressure seal with your cable. It can be turned by hand or with a socket driver and we recommend using it with the WetLink Assembly Block. It’s made of hardened tool steel for a long life.

£15.99

Product Description

The WetLink Penetrator Plug Wrench helps you assemble the WetLink Penetrator with ease. It’s designed to tighten the plug into the bulkhead with a slot in the side to account for the cable. The wrench can be used with the included lever bar or with a socket driver.

The wrench is made from hardened tool steel and designed to last!

We recommend using the plug wrench with the WetLink Assembly Block, which holds the penetrator bulkhead while tightening the plug.

Technical Specifications

Specifications

Plug Wrench Size	11 mm Hex	14 mm Hex	18 mm Hex
Part Number	BR-100369-011	BR-100369-014	BR-100369-018
Material	Chrome-plated steel hardened to HRC 32-36
Square Drive Size	1/4 in (6.3 mm)		3/8 in (9.5 mm)
Hex Size	11 mm	14 mm	18 mm
WetLink Penetrator Compatibility	All 4.5 mm WetLink Penetrators	All 5.5, 6.5, 7.5, 8.5 mm WetLink Penetrators	All 9.5 mm WetLink Penetrators

WLP Tool Information

Seal Size	Bulkhead Size	Bulkhead Wrench	Bulkhead/Nut Flat Size	Bulkhead Installation Torque	Plug Wrench	Plug Hex Size	Plug Installation Torque ²
4.5	M06	BR-100977-006	12 mm	1 N⋅m	BR-100369-011	11 mm	14 N⋅m
4.5	M10	BR-100977-010	16 mm	3.5 N⋅m	BR-100369-011	11 mm	14 N⋅m
5.5, 6.5, 7.5, 8.5	M10	BR-100977-010	16 mm	3.5 N⋅m	BR-100369-014	14 mm	14 N⋅m
9.5	M14	BR-100977-014	20 mm	3.5 N⋅m	BR-100369-018	18 mm	20 N⋅m
¹ The WetLink Penetrator Assembly Block is compatible with all WetLink Penetrator sizes. ² Plug installation torque is for known tested cables. Untested cables may need a higher installation torque to fully seat the plug.
