Battery Power Cable Set

SKU: BR-100259
£79.75
inc. VAT

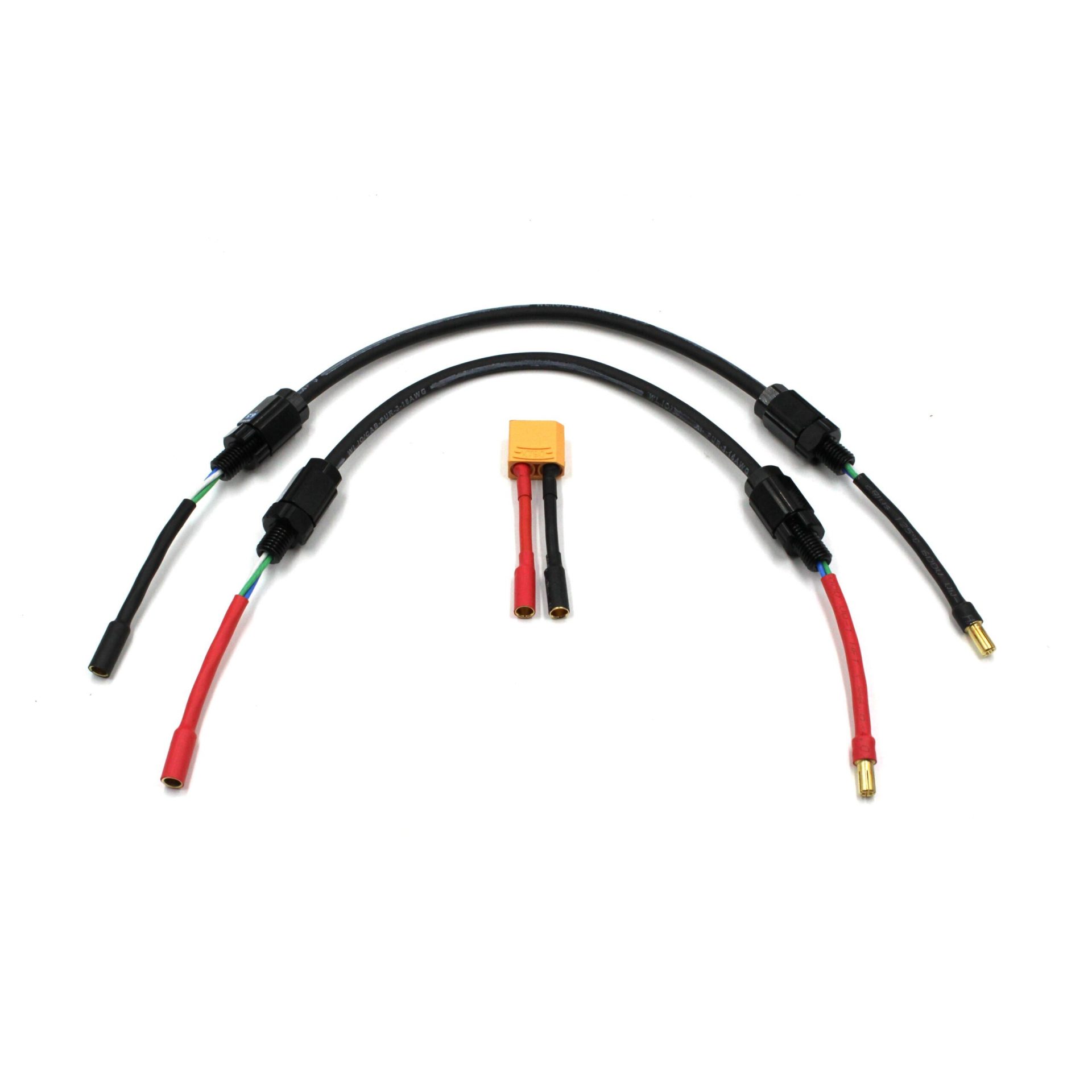

Battery power cable set for the BlueROV2 with pre-installed WetLink Penetrators and 5.5 mm bullet connectors.
£79.75
inc. VAT

Product Description

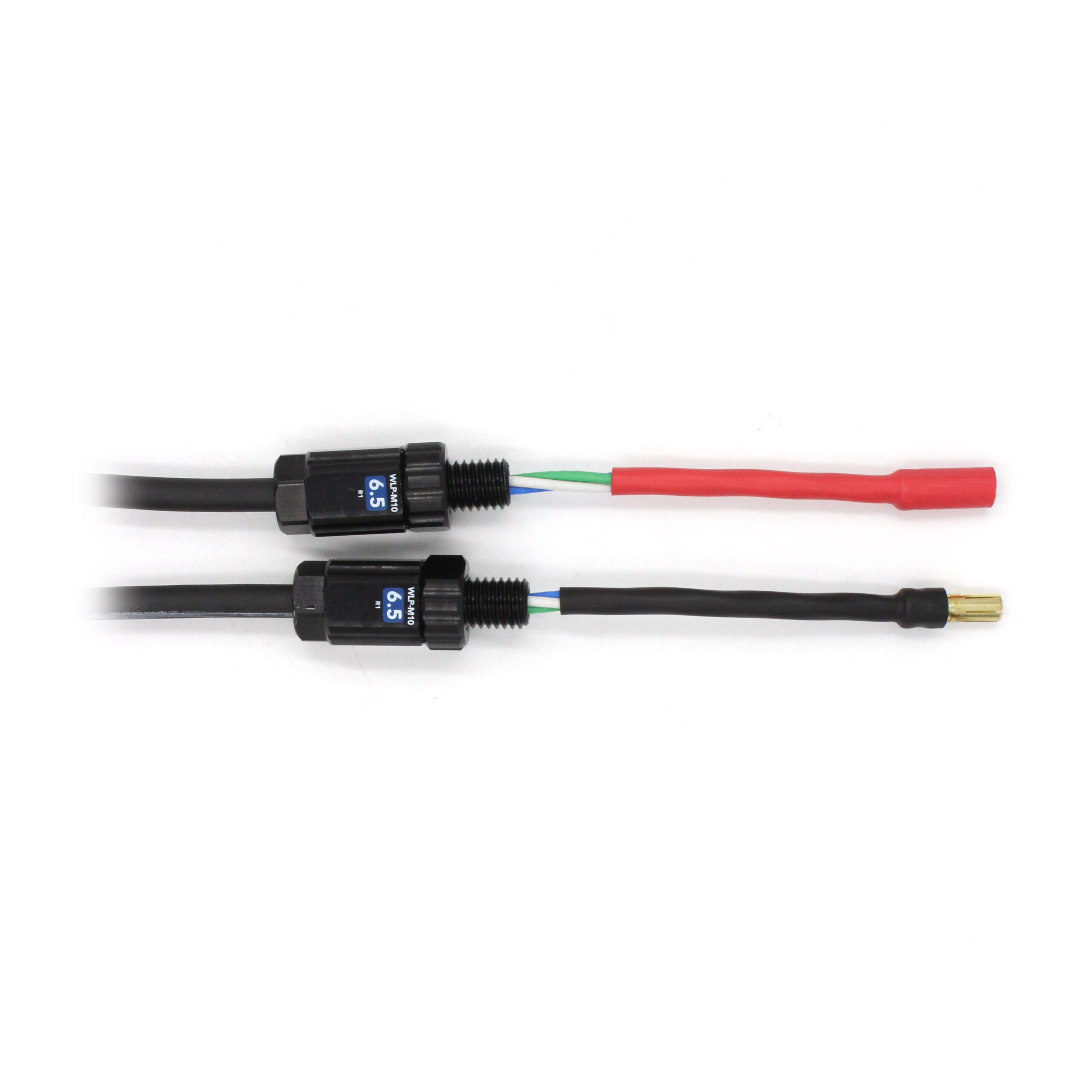

This is the power cable set on the BlueROV2 that connects the battery enclosure to the main electronics enclosure. It has preinstalled WetLink Penetrators and 5.5 mm bullet connectors.

These cables use the same three-conductor cable as our thrusters and the 6.5mm version of the WetLink Penetrator that work with that cable. With three 16 AWG conductors for both positive and negative, this is equivalent to a single 11 AWG wire, providing ample copper for efficient power transmission. The cables include red and black heat-shrink to indicate polarity when installed.

This cable can be used as a replacement on your BlueROV2 and it’s a great option if you’re building an ROV from scratch as well!

Technical Specifications

ParameterValue
Physical
Cable UsedBR-100997
Bullet Connectors5.5 mm Bullet
Included Adapter5.5 mm bullets to XT90
Overall Length489 +- 35 mm19.3 in +- 1.4 in
Length Between Penetrators258 +- 15 mm10.2 in +- 0.6 in
In Air Assembly Weight (cable pair)13.2 g0.47 oz
Performance Characteristics
Depth Rating950 m3116 ft
Design Lifetime¹3 years or 500 cycles to rated depth
Temperature Rating (air)²-25 to 60°C-13 to 140°F
Temperature Rating (water)²-4 to 40°C32 to 104°F
In Water Maximum Continuous Current³80 A
Tools
Recommended Bulkhead WrenchBR-100977-010
Torque Specifications
Bulkhead-Endcap or Nut-Bulkhead3.5 Nm
¹ Design life was used to inform testing in an accelerated environment, does not reflect warranty period.
² Sustained high temperatures can lead to performance loss over long periods of time.
³ Calculated as the total current through all conductors in parallel.
