BlueBoat Battery Splitter Cables (SPLITTER-CABLE-VP)

SKU: Br-101746

Select variant...

inc. VAT

These cables allow multiple batteries to be connected for discharge, charge, and balancing. Internal fuses prevent overcurrent, but this product must be used with extreme caution and a knowledge of lithium ion batteries. Only connect identical batteries at the same charge and balance state! Please use this product with caution and read the instructions to avoid risk of fire and injury!

Product Variant *

Select variant...

inc. VAT

Product Description

This is a component of the BlueBoat. We recommend choosing components from the BlueBoat Components page to make sure you get everything you need.

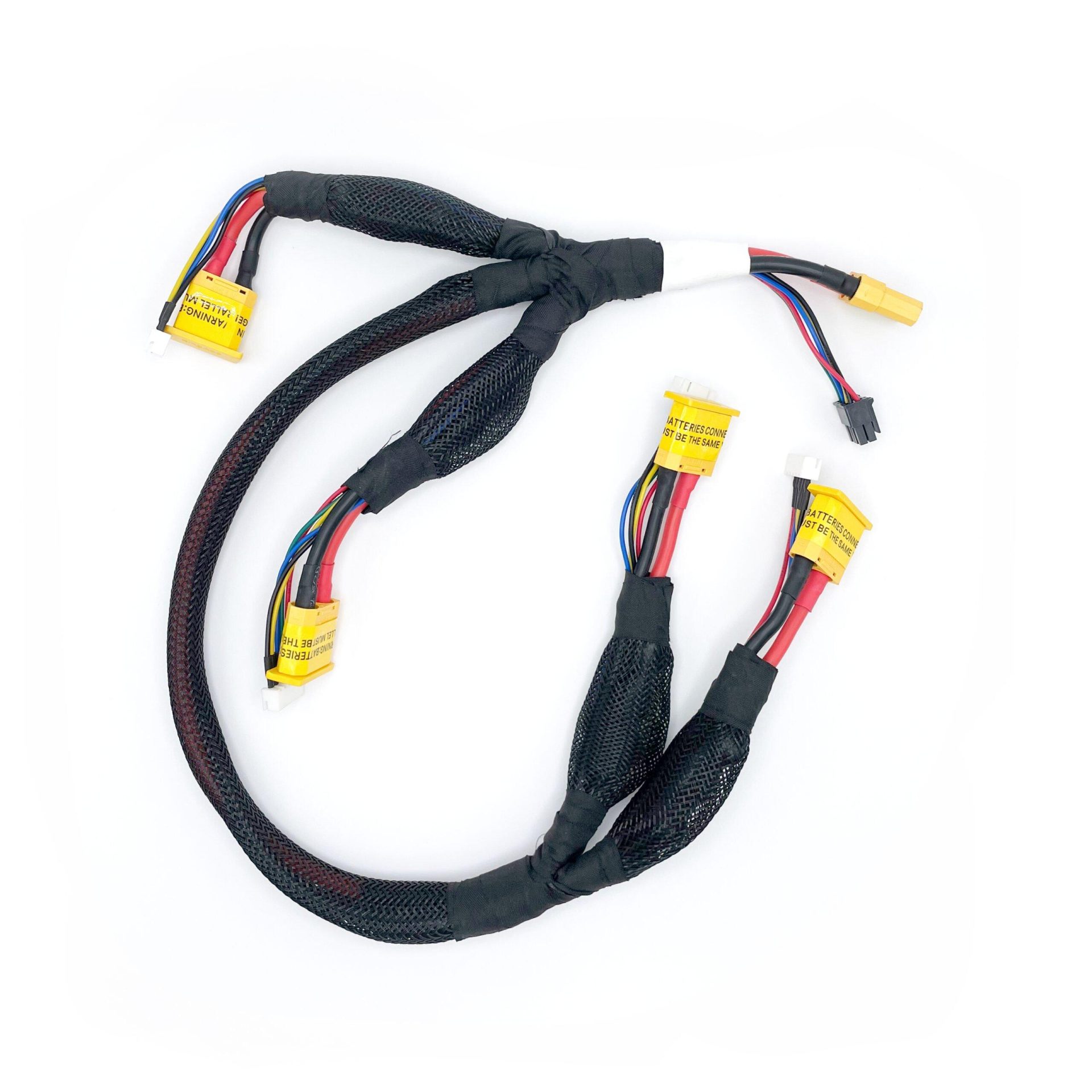

This cable connects multiple 4S or 6S lithium batteries together for discharge, charge, and balancing. There are fuses hardwired into each battery connection in the cable to protect against overcurrent situations. The batteries are connected via high current connectors and JST XH balance connectors. An additional XT90 and XH connector allows you to plug the group of batteries in as if it were one battery.

Important: This product must be used with extreme caution! Batteries connected in parallel should always be of a similar type, similar age and condition, and identical charge and balance state. Always connect the balance connectors to the battery. Anything other than this can cause damage or destruction of a battery resulting injury and/or property damage.

Technical Specifications

Specifications

Splitter Cable	4S Splitter Cable	6S Splitter Cable
Fuses (Each Battery)	50 A MIDI	100 A MIDI
Battery Connectors	XT90 (male)	QS8-S (male)
Balance Connectors	JST XH - 5 position	JST XH - 7 position
Recommended Min/Max Signal for M200 (µs, 6S only)	N/A	1200 minimum 1800 maximum
