Fathom Spool - Standard (150m)

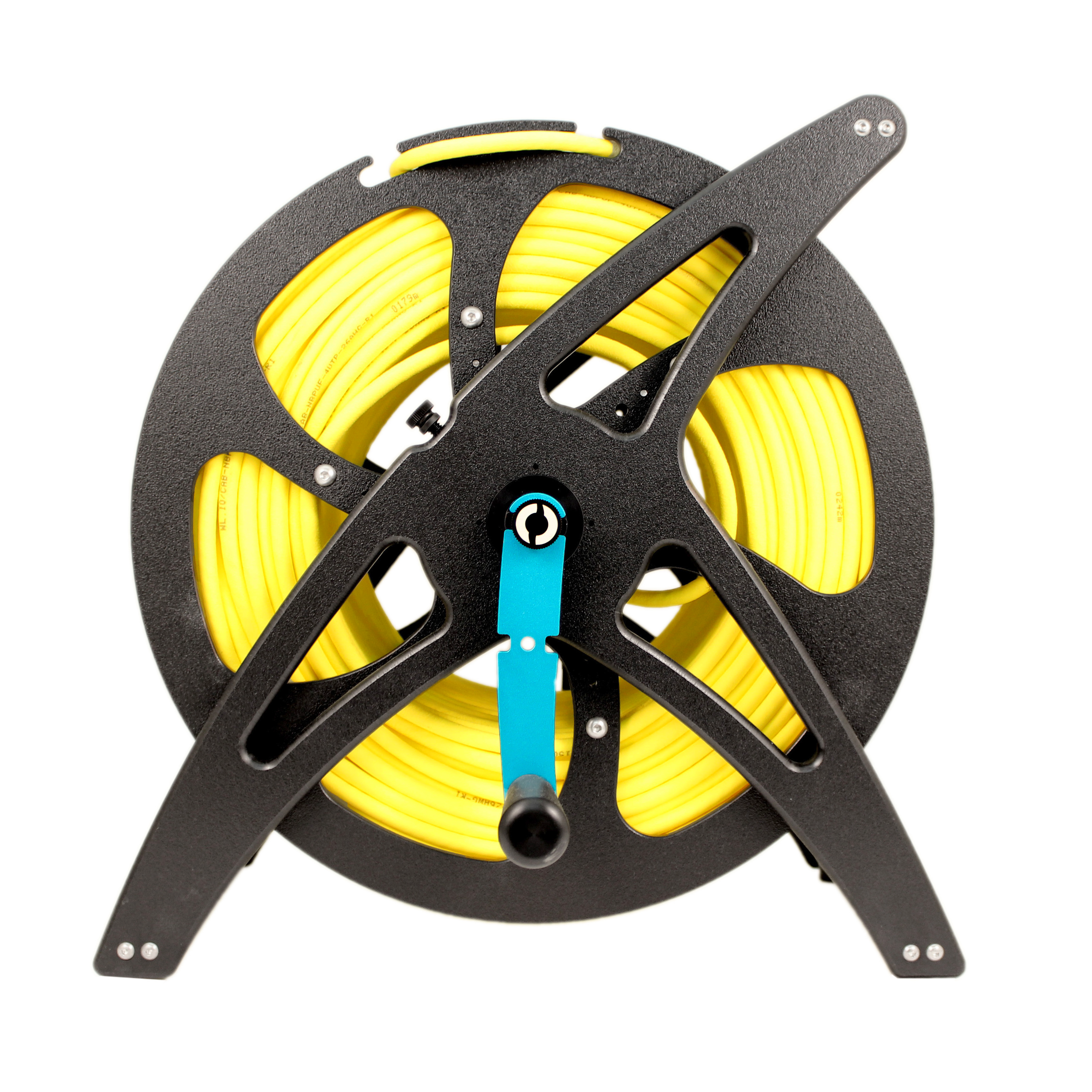

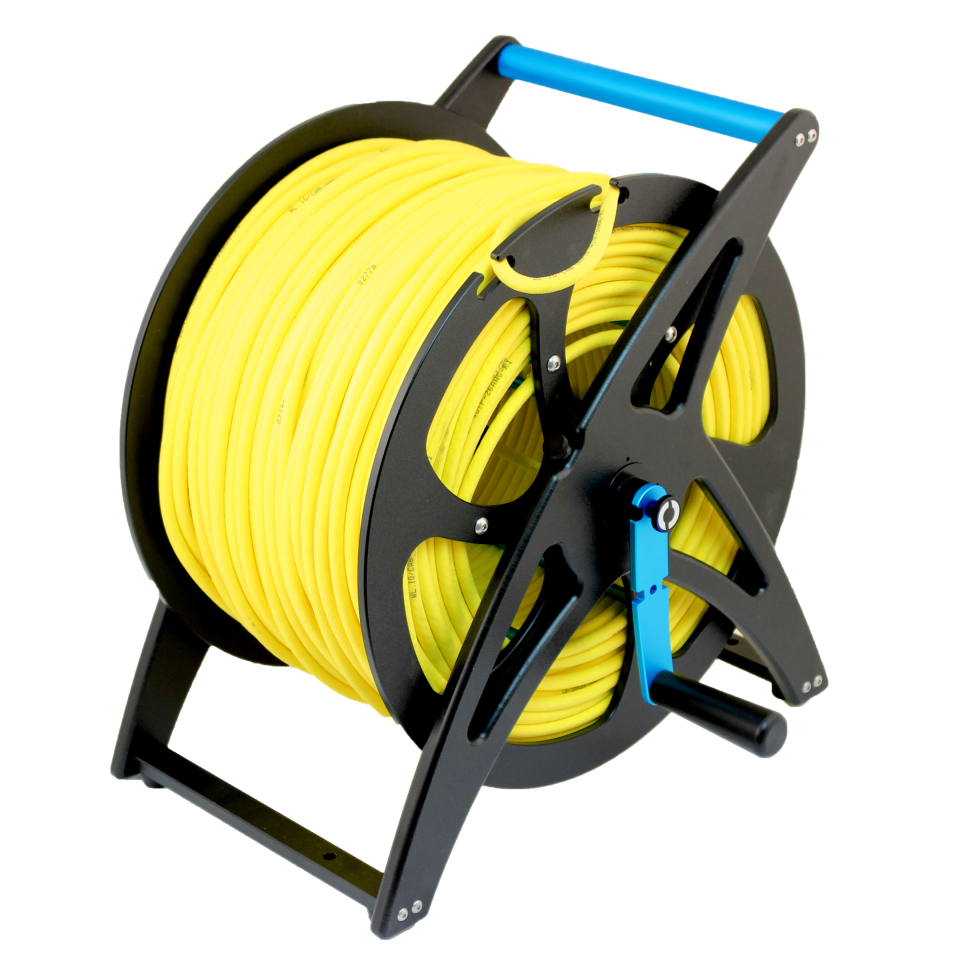

The Fathom Spool is a rugged and easy to use tether spool for the Fathom and Fathom Slim ROV tethers. An integrated slip ring provides connections for up to eight tether wires, even while the spool is rotating. It’s quick to set up and use in a variety of conditions. Full IP67 water resistance means it is splash-proof, and a reversible locking handle makes it easy to transport.

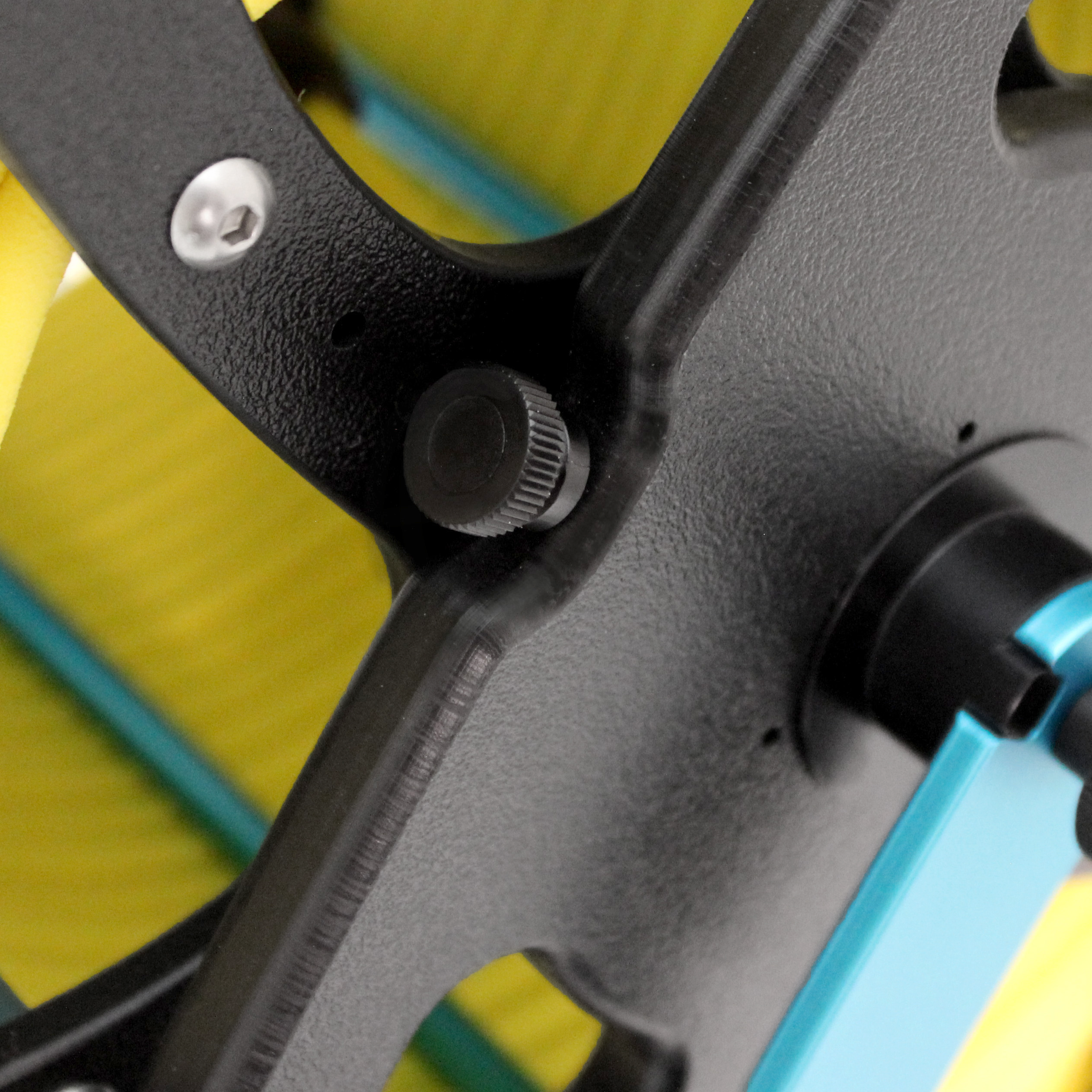

The spool also includes an adjustable drag brake to provide fine control over the resistance while spooling and unspooling. A locking feature in the spool side panels allows the tether to be secured for transport.

The crank handle can be removed with a single thumb screw, allowing it to be flipped around and reinstalled for easy transportation and locking of the spool.

The Fathom Spool comes as a partially-assembled kit with some simple assembly required. It has a Binder 770 connector on both the inside and outside of the spool so that to install the tether, you just plug it into the inner Binder 770 connector, attach a few restraints, and start spooling! An included 8 meter (26 ft) extension cable provides a connection from the outer connector on the spool to your FXTI and computer.

The Fathom Spool is available in two configurations—a standard width version capable of storing up to 150m of Fathom ROV tether, and a double wide large version capable of storing up to 300m.

Does not include tether! A Fathom-X Tether Interface (FXTI) topside box is required for use, as well as a tether with an installed Binder 770 connector.
