Newton Subsea Gripper

SKU: BR-100789
£717.99
inc. VAT

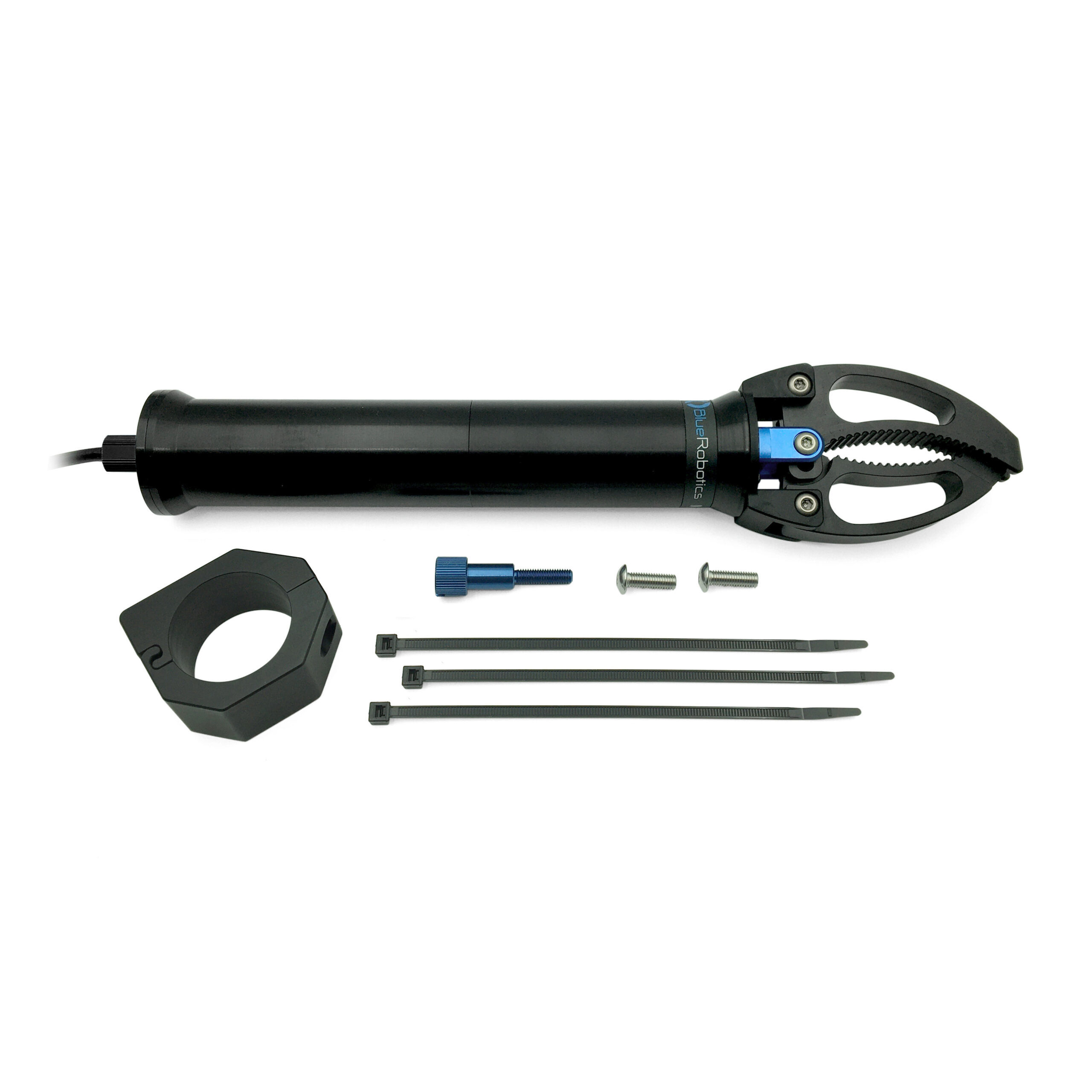

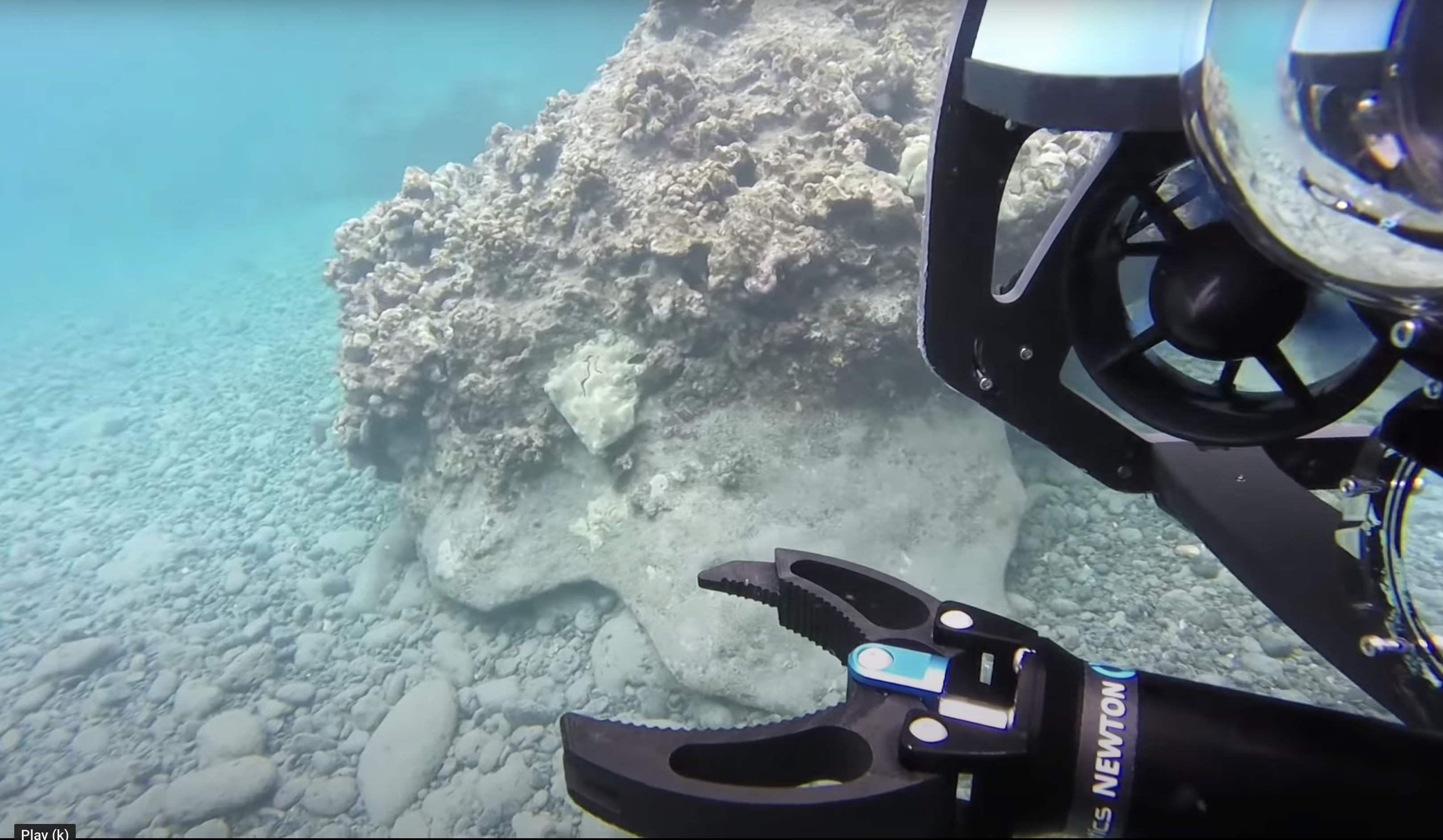

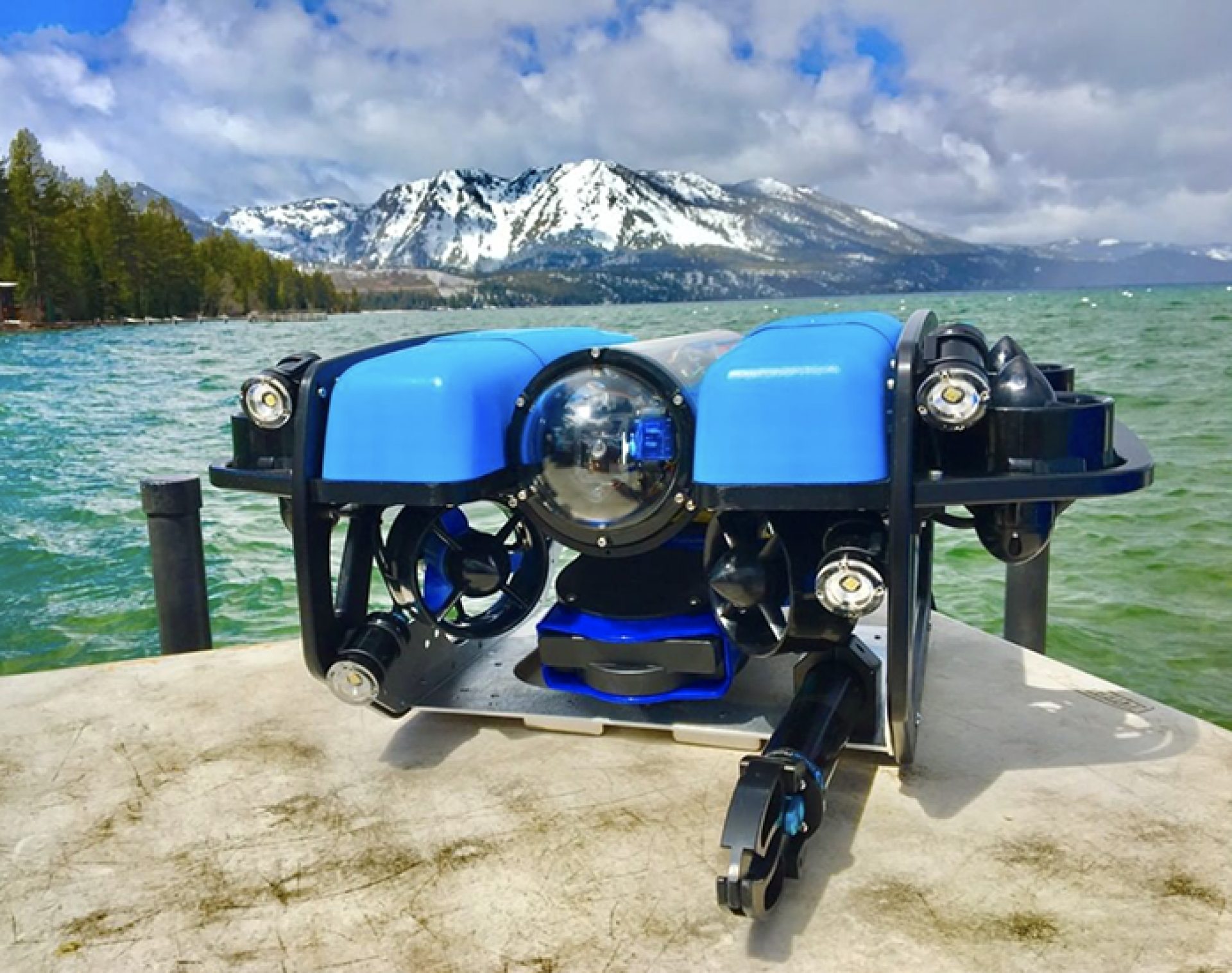

The Newton Gripper provides the BlueROV2 and other subsea vehicles with the ability to interact with the subsea environment to retrieve objects, attach recovery lines, or free a snagged tether! Includes everything needed for installation on the BlueROV2.
£717.99
inc. VAT

Product Description

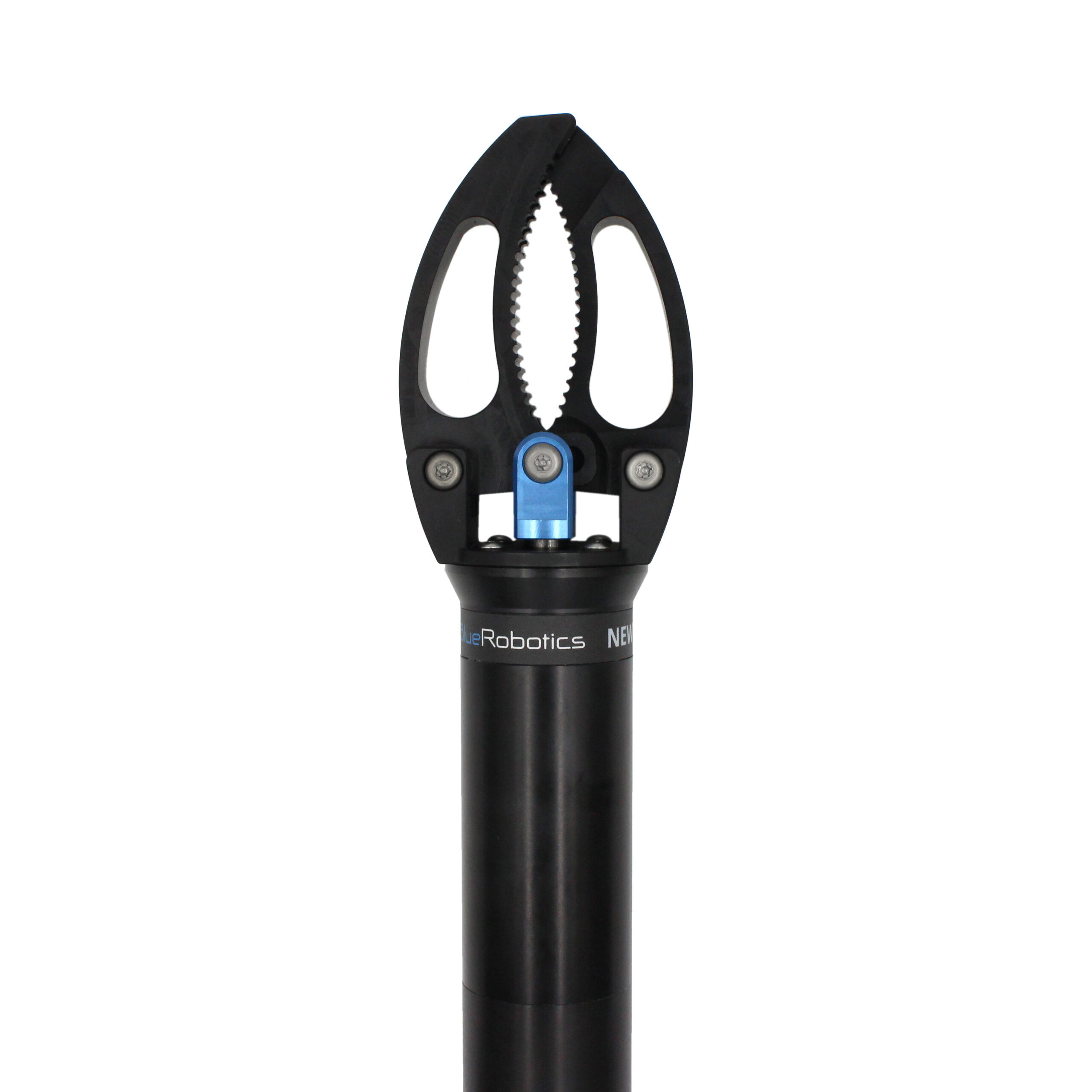

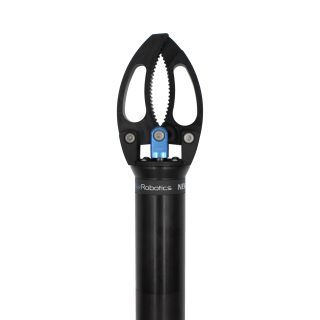

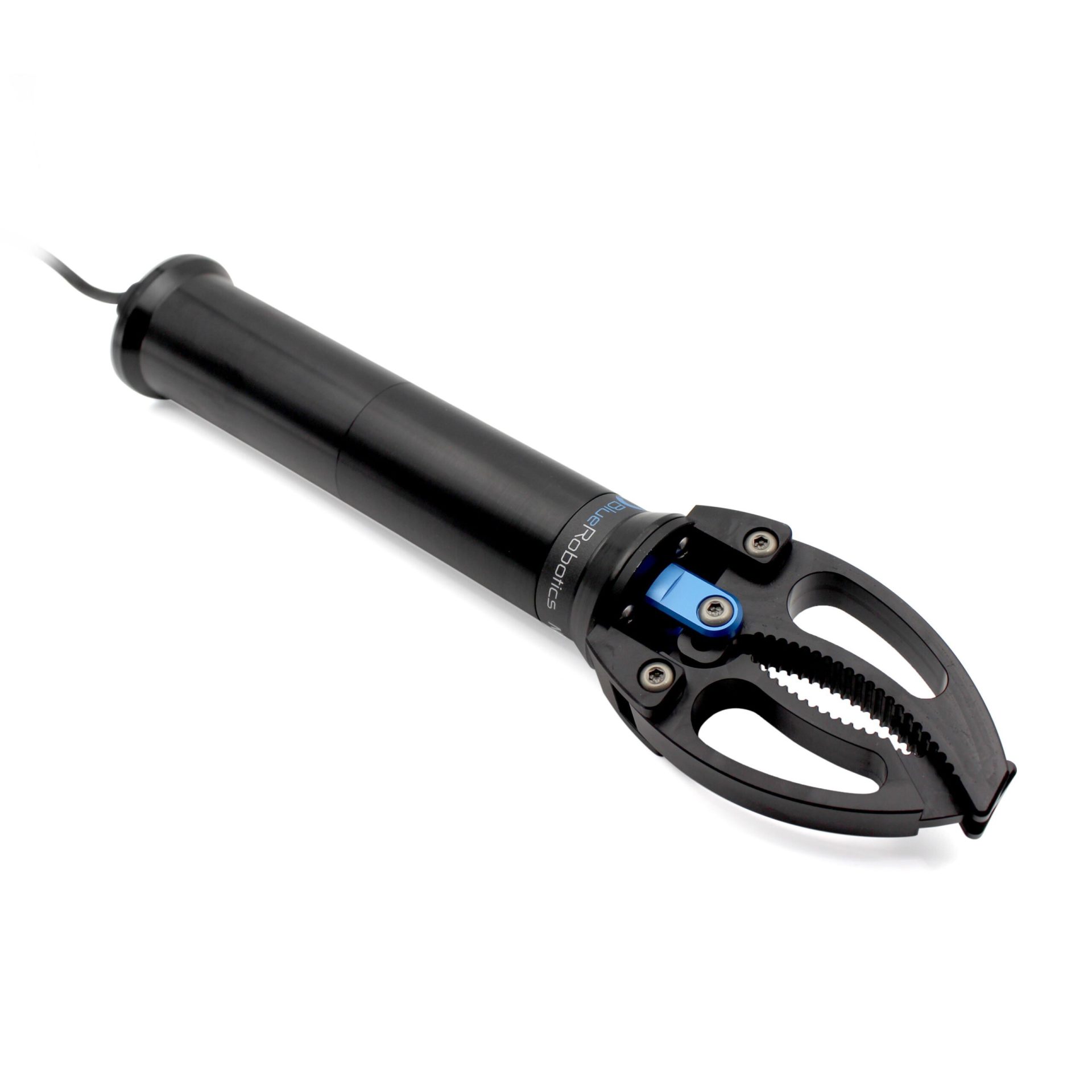

The Newton Subsea Gripper is a single function manipulator for the BlueROV2 and other subsea vehicles. It’s the result of several years of effort starting with a senior project in 2016 and evolving into the current design over several iterations. Each element was carefully designed and combined to create an awesome ROV tool.

The gripper has jaws that open to grab objects up to 2.44″ or 6.2cm in diameter. The plastic jaws are mounted with custom aluminum screws to create a corrosion resistant mechanism that doesn’t need any lubrication. The jaws are driven by a linear actuator that uses a geared brushed motor and lead screw. The main body is air-filled and sealed with O-rings. We’ve spent a lot of time testing it at pressure and it’s rated to 300m depth with plenty of safety factor.

The motor inside is controlled by a purpose-built brushed motor controller that accepts a standard servo-style PWM signal so that the gripper can be controlled just like our thrusters and lights. Power can be provided by the same battery that drives the thrusters as the gripper is compatible with 9-18v input and draws up to 6A current. It automatically detects motor stall conditions and stops the motor so that the gripper will always stop at the right moment. Check out the launch video to see that in action!

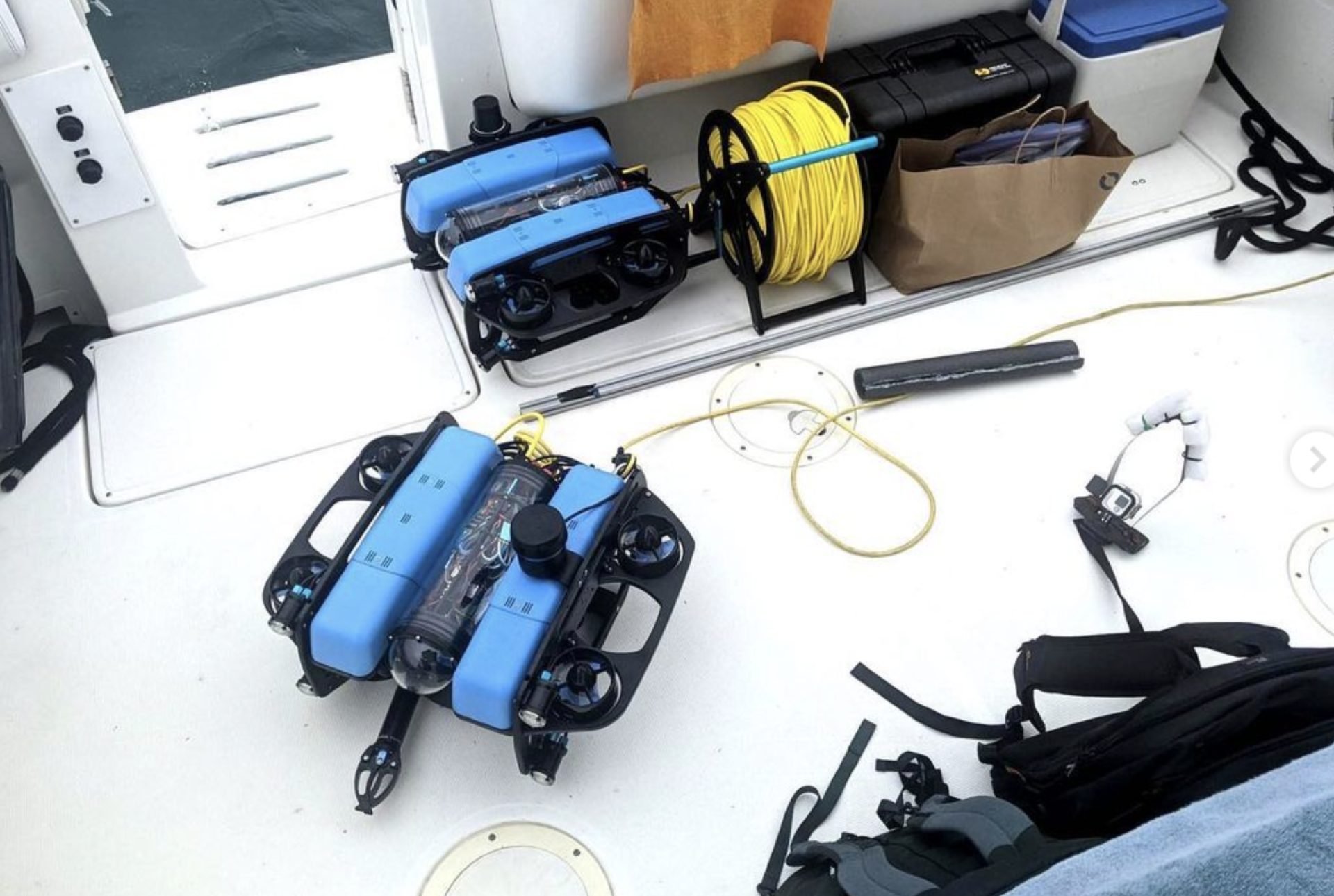

The gripper comes with everything needed to use it on the BlueROV2, including an anodized aluminum mount that uses a thumbscrew for quick retraction and rotation in the field. The mount attaches with two included M5 screws.

Technical Specifications

ParameterValue
Electrical
Supply Voltage9–18 volts
PWM Logic Voltage3.3 volts
PWM Neutral Signal1500 µs
PWM Open Signal>1530 µs–1900 µs
PWM Close Signal<1470 µs–1100 µs
Peak Current6 amps
Mechanical
Grip Force (at tip)97N22lbf
Grip Force (in middle)124N28lbf
Push-rod Axial Load Rating3 kg6.6 lb
Linear Piston Travel13.5 mm0.53 in
Jaw Opening62 mm2.44 in
Time to Open/Close1.6 secs
Cable

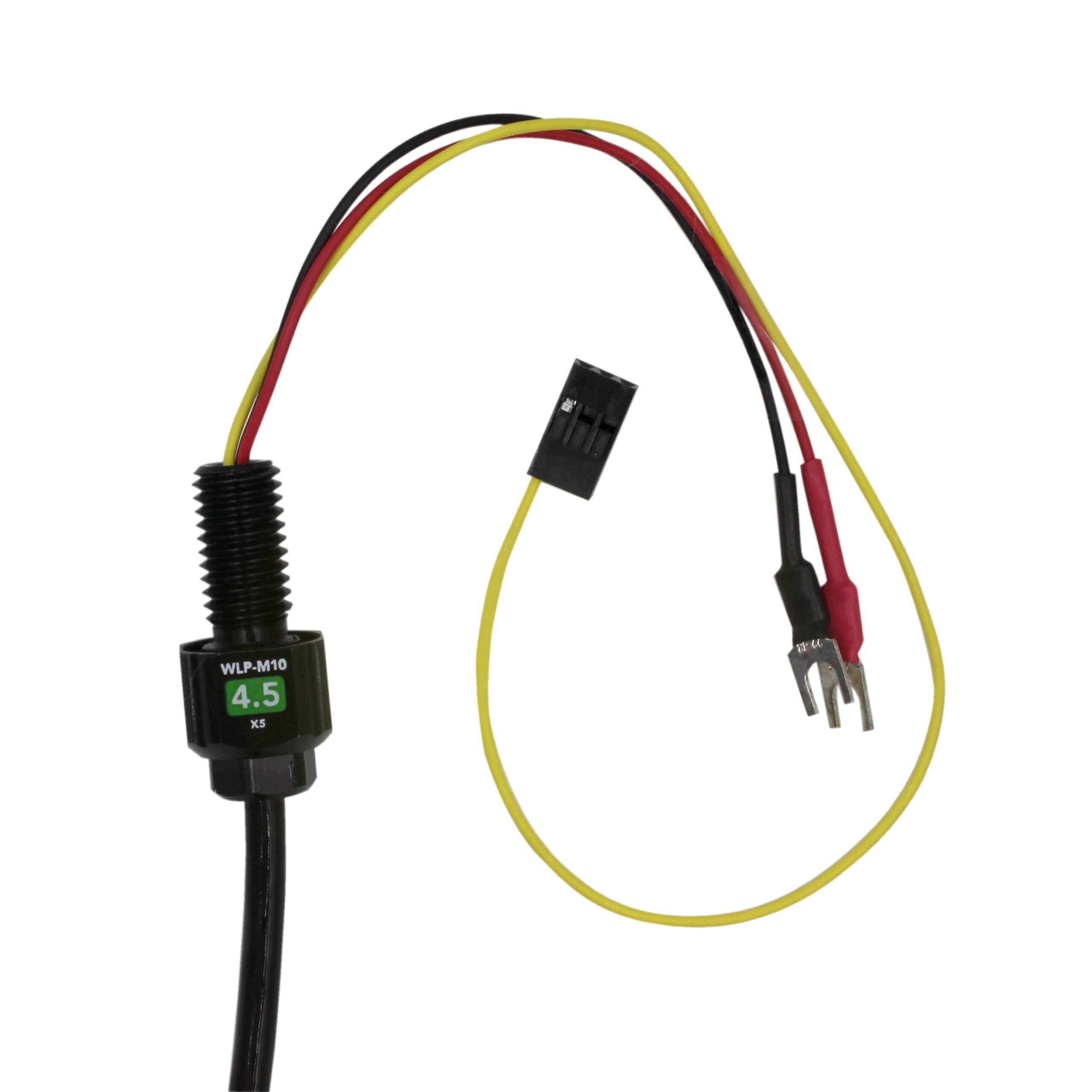

Cable UsedBR-101050
Cable Length635 mm25 in
Conductor Gauge22 AWG
WiresBlack - Ground
 Red - Power
 Yellow - Signal
Installed Penetrators
Device SideM06-4.5mm-LC
Cable EndM10-4.5mm-LC
Internals
Rear Flange Cap Seal(2x) AS568-021 O-ring Buna-N 70A
Housing SealAS568-212 X-Ring Buna-N 70A
Front Piston SealAS568-204 X-Ring Buna-N 70A
Motor34:1 Metal Gearmotor 25Dx52L mm HP 12V (Pololu)
Insertion Tool for Insulation Displacement ConnectorKyocera AVX - 067000773001000 - Hand Tool (Digi-Key)
Kyocera AVX - 069176701602000 - Tool Bit (Digi-Key)
Physical
Housing MaterialAluminum 6061-T6
Pressure Rating300 m984 ft
Overall Length (Closed)303.2 mm11.94 in
Overall Length (Open)309.2 mm12.17 in
Body Primary Diameter36 mm1.42 in
Bracket Mounting Hole Spacing16 mm0.63 in
Bracket Screw SizeM5x0.8
Weight in Air (w/ cable)524 g18.5 oz
Weight in Water (w/ cable)267 g9.4 oz
Functionality
Firmware SourceNewton Gripper
