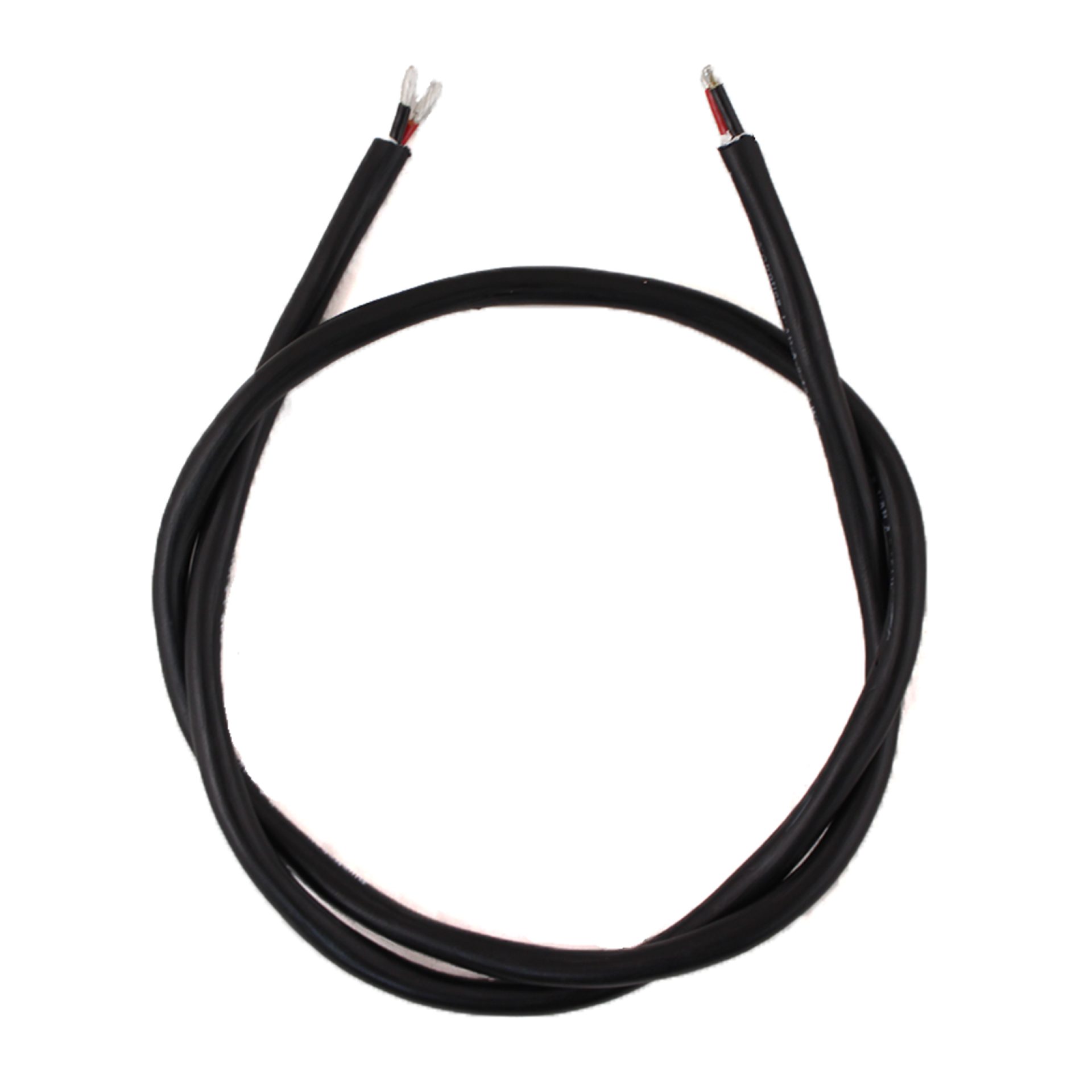

High-Temperature PUR Subsea Cable (by the meter) - High Power Cable (2 conductors, 12 AWG)

SKU: BR-101093

£18.99

inc. VAT

These cables are built specifically for use underwater and used in our products! A polyurethane jacket, PTFE tape, and FEP insulated conductors make for a rugged cable that can carry a lot of power. Sold by the meter (3.3 ft) and cut to length when you order.

£18.99

inc. VAT

Product Description

These cables are built for a wide range of subsea applications and designed to carry high currents underwater. The cables are custom made with a pressure-extruded polyurethane jacket, and flexible conductors. Each conductor is insulated with FEP, which can handle high temperatures without melting, and chemically etched to ensure excellent adhesion to potting compounds and glues. They’re really tough and abrasion resistant!

These cables are used in the T200 Thruster, T500 Thruster, the Ping360 Sonar, and in countless other applications!

Technical Specifications

able	High Power Cable	T200 Cable	T500 Cable	Ping360 Cable
Construction	2-conductors, tape wrap, jacket	3-conductors, tape wrap, jacket	3-conductors, fabric wrap, jacket	3-unshielded twisted pairs, tape wrap, jacket
Diameter	8.3 mm	6.4 mm	9.0 mm	5.5 mm
Outer Jacket	Pressure-extruded polyurethane	Pressure-extruded polyurethane	Pressure-extruded polyurethane	Pressure-extruded polyurethane
Wrap	PTFE tape	PTFE tape	Nonwoven fabric	PTFE tape
Filler	-	-	-	-
Number of Conductors	2	3	3	6
Conductor Gauge	12 AWG	16 AWG	12 AWG	26 AWG
Conductor Insulation	FEP	FEP	FEP	FEP
Conductor Insulation Colors	Red, black	White, green, blue	White, green, blue	black, red orange, orange/white green, green/white
Static Minimum Bend Radius	26 mm	18 mm	30 mm	20 mm
Compatible WetLink Penetrator	M10-8.5mm-LC	M10-6.5mm-LC	M14-9.5mm-HC	M10-5.5MM-LC
