Vacuum Plug

SKU: BR-101118
£7.99
inc. VAT

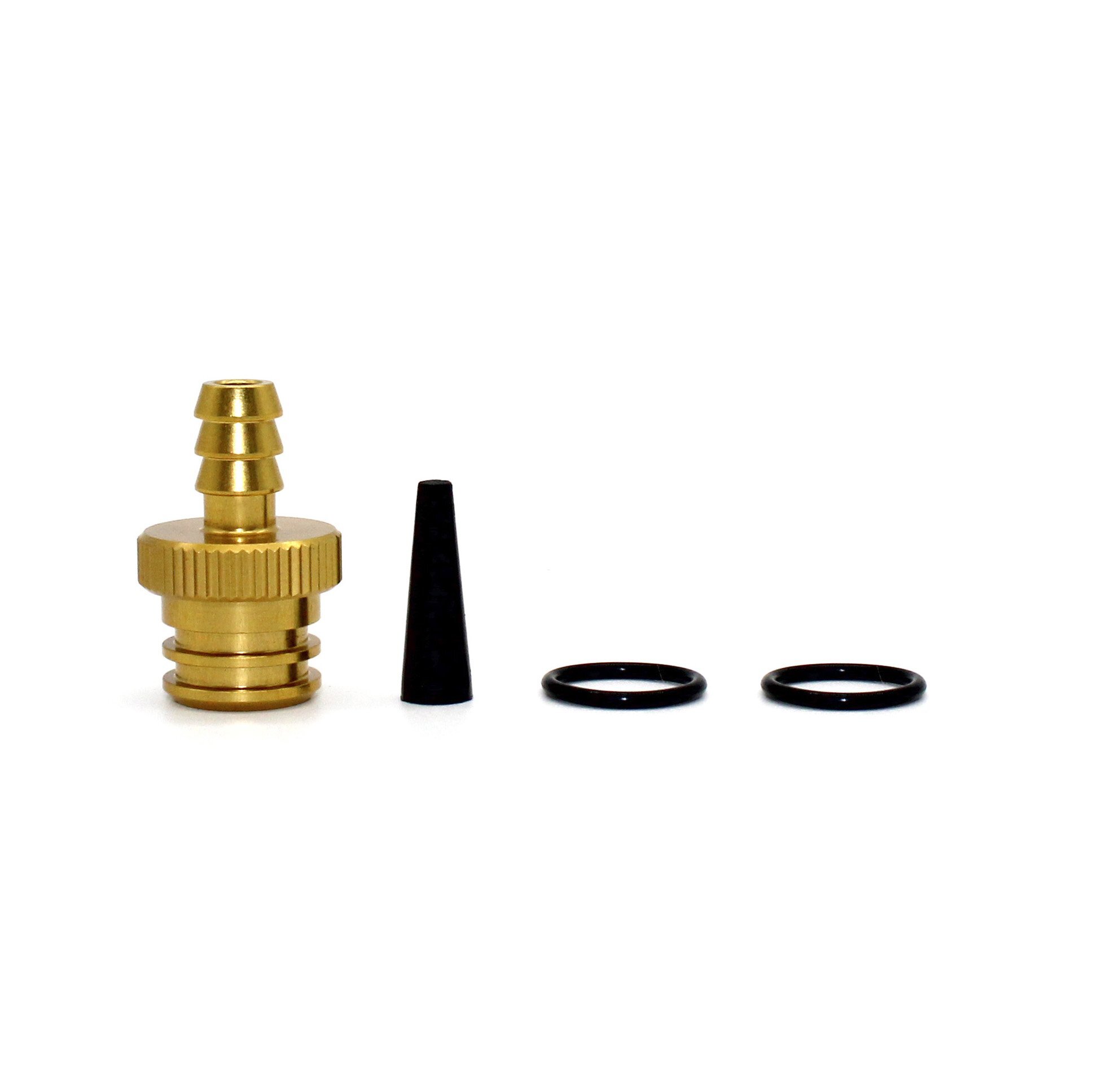

Test the watertight seal on your enclosure with this vacuum plug attachment, which connects to a hand vacuum pump and inserts into the enclosure vent. Comes with O-rings and a rubber stopper for testing. - Please note this is the NEW version there is an OLD version available which is NOT compatible with current M10 Vents and plugs, if you are in doubt or require the OLD version please contact us as we do hold stock of both versions
£7.99
inc. VAT

Product Description

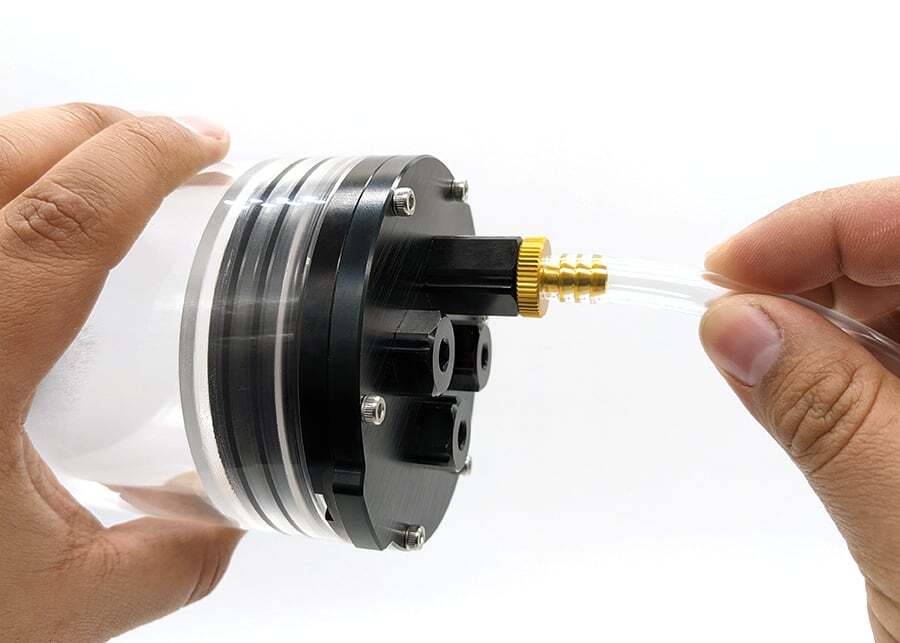

This vacuum plug allows you to test your watertight enclosure for proper seal without getting wet! Here’s how it works: the barbed end is connected to a handheld vacuum pump and vacuum gauge and then you insert the other end into the vent on the enclosure. By pumping the vacuum pump, you’ll remove air from the enclosure, which simulates the same external pressure that the enclosure would experience a few meters under the water. The vacuum gauge let’s you monitor for leaks, which would cause vacuum pressure to decrease. Once you’re done, you simply pull the vacuum plug out and reinstall the normal vent plug to seal it back up.

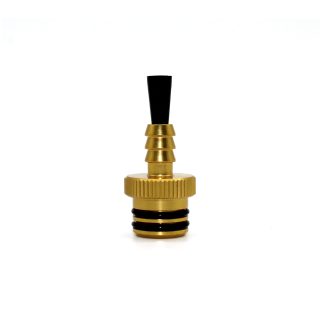

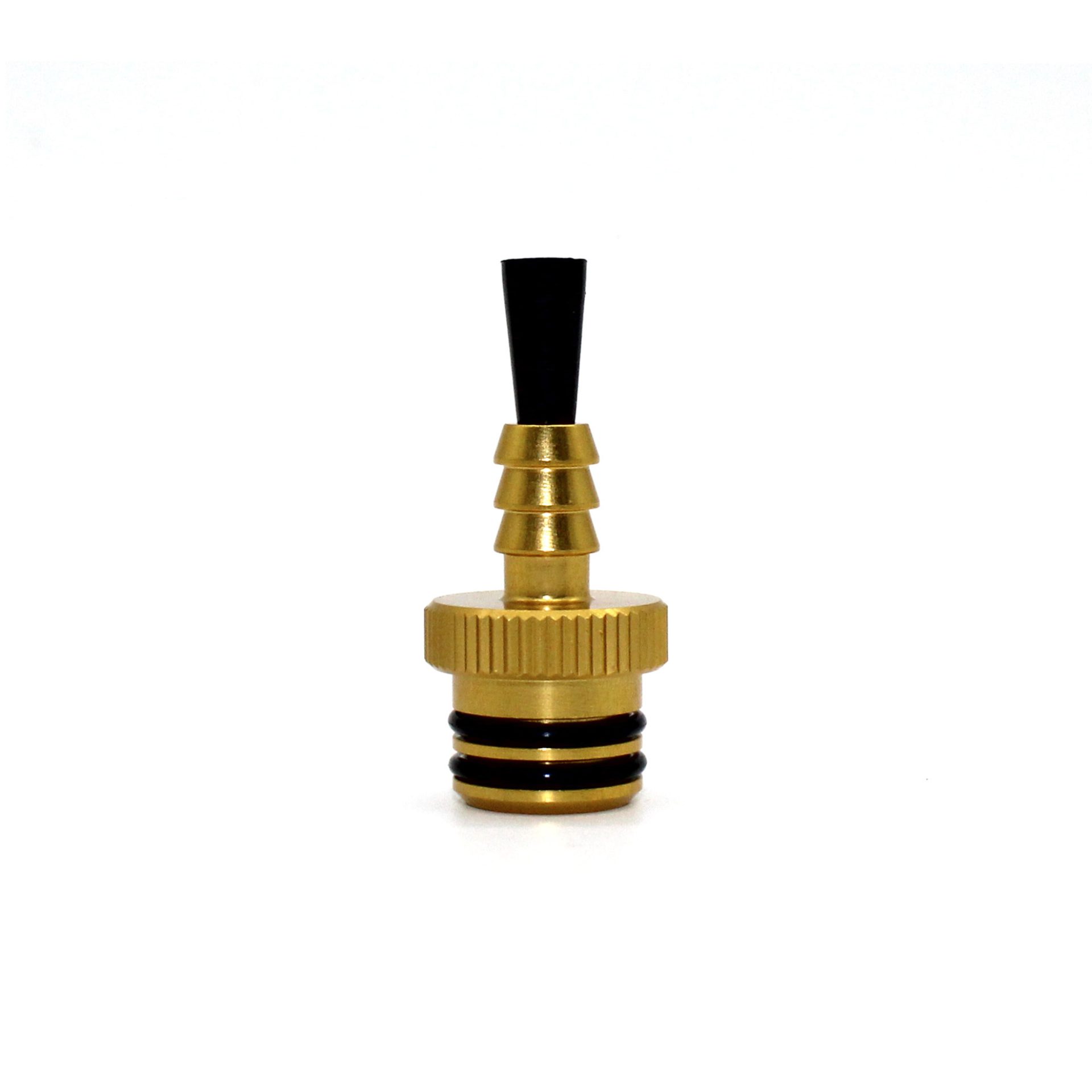

It’s really important to check your test setup (the vacuum pump, hose, and this vacuum plug) for leaks before you test. Otherwise, if there’s a leak you won’t know if it’s in the test setup or in the enclosure. To help with that, it comes with a rubber stopper to plug the end of the vacuum plug to check the test setup alone.

The vacuum plug is made of 24 carat gold. Just kidding, of course – it’s actually made of anodized aluminium in a bright colour to remind you to remove it and install the normal vent plug before going in the water.

Technical Specifications

ParameterValue
Hose Barb Size1/4 in6 mm
Plug O-ring Size1.5 x 11.5 mm Buna-N 70A
Material7075-T6 Anodized Aluminum
In Air Weight8 g
