Subsea Buoyancy Foam: R-3318

SKU: BR-100398-001

Select variant...

inc. VAT

All Enclosures, Buoyancy and Ballast Products

Subsea Buoyancy Foam for use on ROVs, AUVs, and other marine robotics applications. This foam can be machined, glued, painted, and coated to build any size or shape of float that you want.

Product Variant *

Select variant...

inc. VAT

Product Description

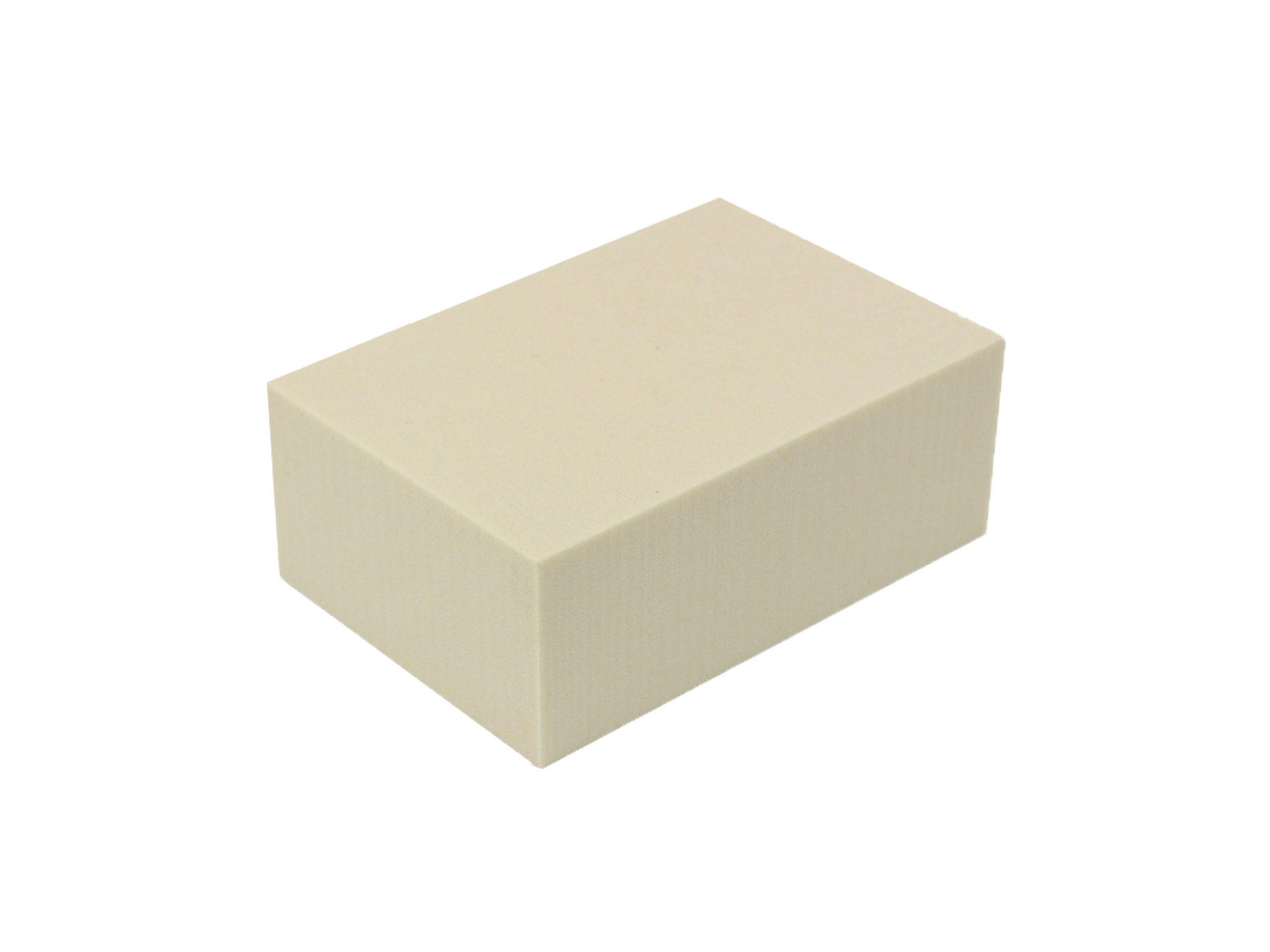

LAST-A-FOAM® R-3312 is a machinable, hydrostatic, pressure-resistant foam that provides buoyancy underwater. The closed-cell structure is engineered to resist penetration by water. Due to its pressure resistance to many fluids and resins, it is also used in resin-transfer molding as a core material. LAST-A-FOAM® R-3312 semi-submersible foam is optimal for shallow to mid-water underwater robotics applications.

This subsea polyurethane foam supports training operations for the International Space Station, providing buoyancy for assembly components in pools that simulate weightlessness.

Technical Specifications

Parameter	Value
Density	192 kg/m3	12 lbs/ft3
Specific Gravity	0.19
Tested Depth (uncoated)	91 m	300 ft
Tested Depth (coated)	182 m	600 ft
Sizes Available	(1) 203 x 102 x 13 mm (2) 305 x 152 x 25 mm (3) 406 x 203 x 25 mm (4) 610 x 203 x 64 mm	8 x 4 x 0.5 in 12 x 6 x 1 in 16 x 8 x 1 in 24 x 8 x 2.5 in
Net Buoyancy (Lifting force)	(1) 212 g (2) 953 g (3) 1694 g (4) 6363 g	0.47 lb 2.10 lb 3.74 lb 14.03 lb
Weight (in air)	(1) 50 g (2) 227 g (3) 403 g (4) 1512 g	0.11 lb 0.50 lb 0.89 lb 3.33 lb
